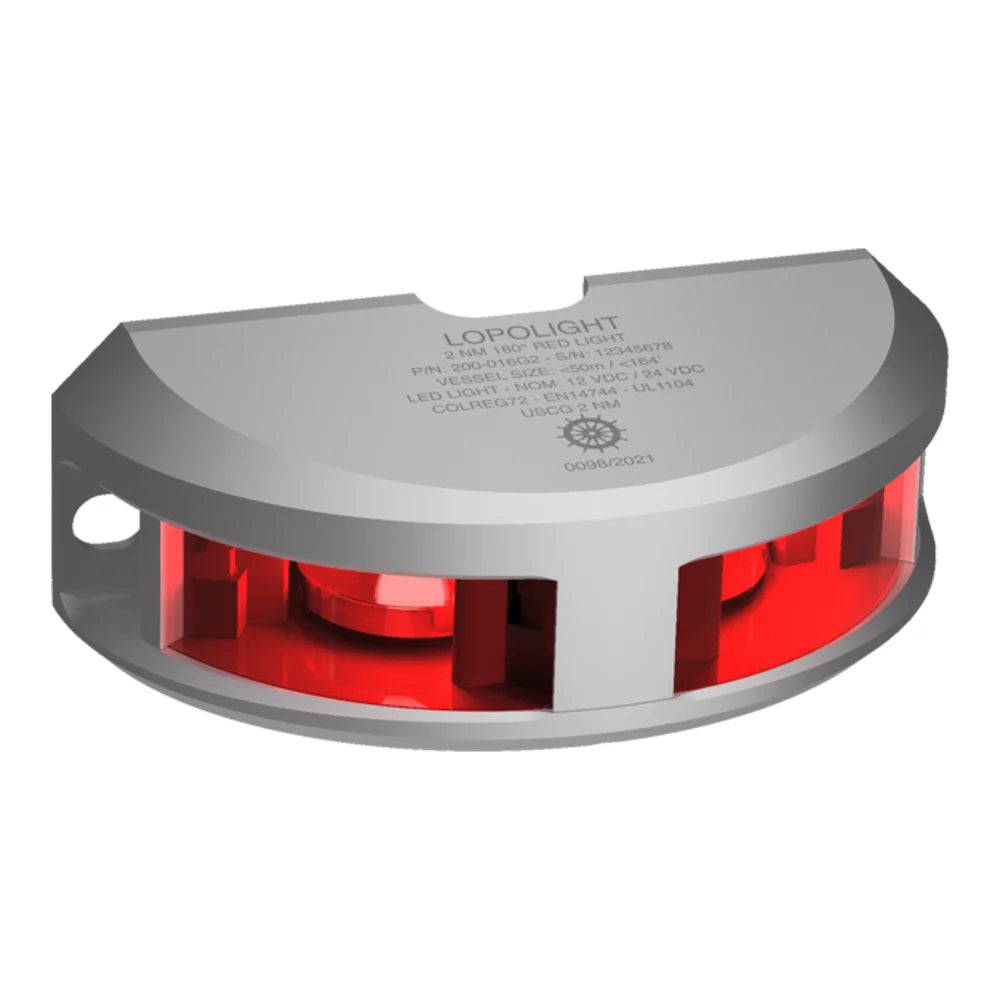

Lopolight Red LED Signal Light, 3nm, 180°, 6m Cable, Vertical Mount

Overview

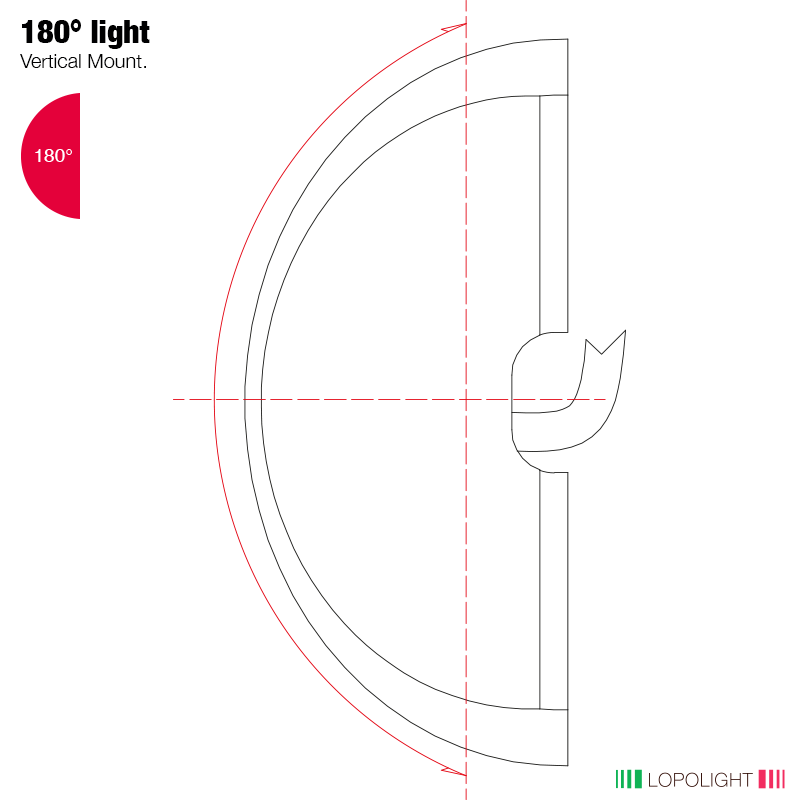

The Lopolight 180° Red LED Signal Light is a vertically mounted marine navigation light with a 3 nautical mile visibility range and a 180° red light sector. Intended for vessels over 50 meters, it operates on 10-32V DC electrical systems and features an IP68-rated enclosure.

The fixture measures 104 x 37 x 45 mm and comes in configurations with a 6-meter cable for routing the electrical connection through the vessel's installation. Silver and black anodized housing finishes are available, both retaining the same red light output and electrical characteristics.

Key features

• Red LED light output with a 180° illumination sector and 3 nautical mile visibility range.

• 10-32V DC operating voltage for compatible marine electrical systems.

• IP68 protection rating for resistance to dust and water ingress.

• Vertical mounting configuration with a 6-meter cable.

• Compact fixture dimensions of 104 x 37 x 45 mm.

• Operating temperature range of -25°C to +55°C.

• DNV certification and approvals including COLREG 72, EN 14744, IEC 60945, and USCG.

Variants

This navigation signal light is available in two anodized housing finishes: silver and black.

Both configurations maintain the same 180° red light sector, 3nm visibility, 10-32V DC operating range, IP68 protection rating, vertical mounting arrangement, and 6-meter cable. The difference is the exterior housing finish rather than the emitted light color.

• 300-116G2 6M: Silver anodized finish, providing a silver exterior housing with red light output.

• 300-116G2-B 6M: Black anodized finish, providing a black exterior housing with the same red light output.

Installation and fit

The vertical mounting arrangement is intended for installations requiring a 180° red signal light on vessels over 50 meters. The 6-meter cable allows the electrical connection to be routed from the fixture toward the vessel's wiring system. Mounting position, light sector orientation, available clearance, and cable routing should be considered when planning the installation.
