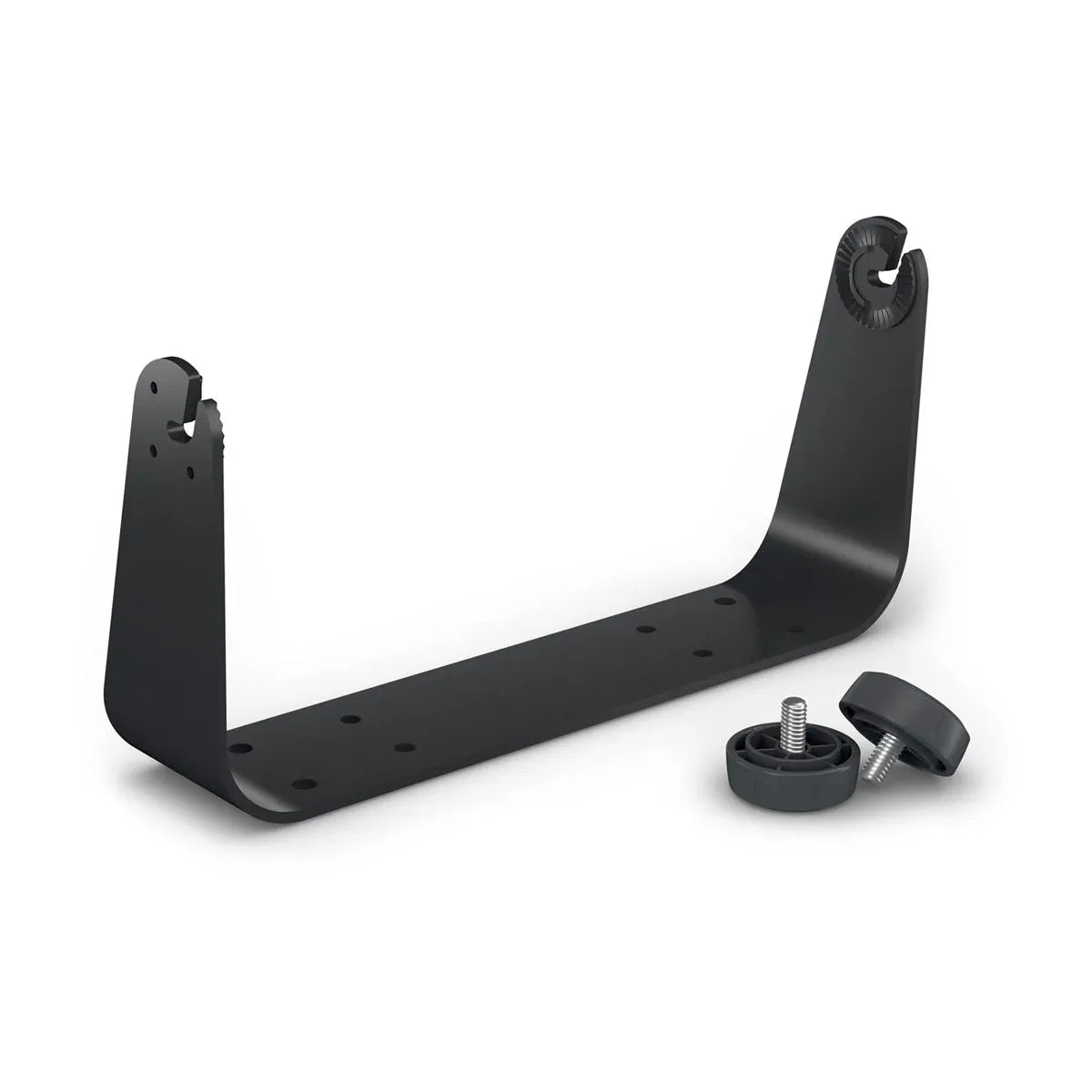

Garmin Bail Mount with Knobs, For GPSMAP 9x13 Series, Surface Mount, Tilt Adjustment

Overview

The Garmin 010-13903-11 is a bail mount with knobs for compatible Garmin GPSMAP® 9x13 Series chartplotters. It gives the display a fixed surface-mount location at the helm while still allowing the screen angle to tilt for easier viewing from the wheel, leaning post, cockpit, or pilothouse.

This is a practical replacement or spare mounting bracket for GPSMAP 9013, GPSMAP 9013xsv, GPSMAP 9213, and GPSMAP 9213xsv installations. It is a physical mounting accessory, so fit is based on the chartplotter model and the available mounting surface rather than vessel voltage or marine network compatibility.

Key features

• Fits compatible Garmin GPSMAP® 9x13 Series chartplotters, including GPSMAP 9013, 9013xsv, 9213, and 9213xsv units.
• Surface-mount bracket style suits helm stations, dash panels, electronics boxes, and other flat mounting areas with enough clearance for the display.
• Tilt adjustment helps set the chartplotter screen angle for better visibility when standing, seated, or moving around the helm.
• Knob-based retention allows the chartplotter angle to be adjusted without treating the mount as a permanent flush installation.
• Useful for replacing a missing mount, setting up a second station, or changing from a flush-mount layout to a more accessible helm position.

Installation and fit

Before installation, confirm that the chartplotter is part of the GPSMAP® 9x13 Series and that the mounting location can support the display’s size and weight. The surface should be flat, accessible from behind when fasteners are required, and positioned so the chartplotter can tilt without hitting the dash, windshield, switch panels, or nearby electronics.

At the helm, this mount works well where the display needs to remain visible during cruising, fishing, docking, or route planning without committing to a cutout in the console. Leave enough room for cabling behind the chartplotter and for hand access to the knobs on both sides of the bracket.

Use on board

This mount is a good match for boat owners replacing original GPSMAP® mounting hardware, refitting an electronics layout, or adding a compatible display to a secondary helm. It keeps the chartplotter on the surface where it can be adjusted for glare, seated viewing, or standing operation during normal time on the water.
