Lopolight Blue Fuelling LED Navigation Light, 2nm, 360°, Flat Base

Overview

The Lopolight Blue Fuelling LED Navigation Light delivers 360° blue light visibility with a 2 nautical mile range for marine fuelling signal applications. Operating on 10-32VDC with a 3.7W power draw, it features an IP68 rating and an FB flat-base POM mounting system for horizontal installation.

The fixture measures 92.5mm in diameter and 36mm in height, with an anodized aluminum housing, PMMA lens, and A4 stainless steel screws. Available in silver and black finishes, both configurations share the same electrical specifications, dimensions, and light output. The light is tested to IEC 60945 for marine electrical equipment.

Key features

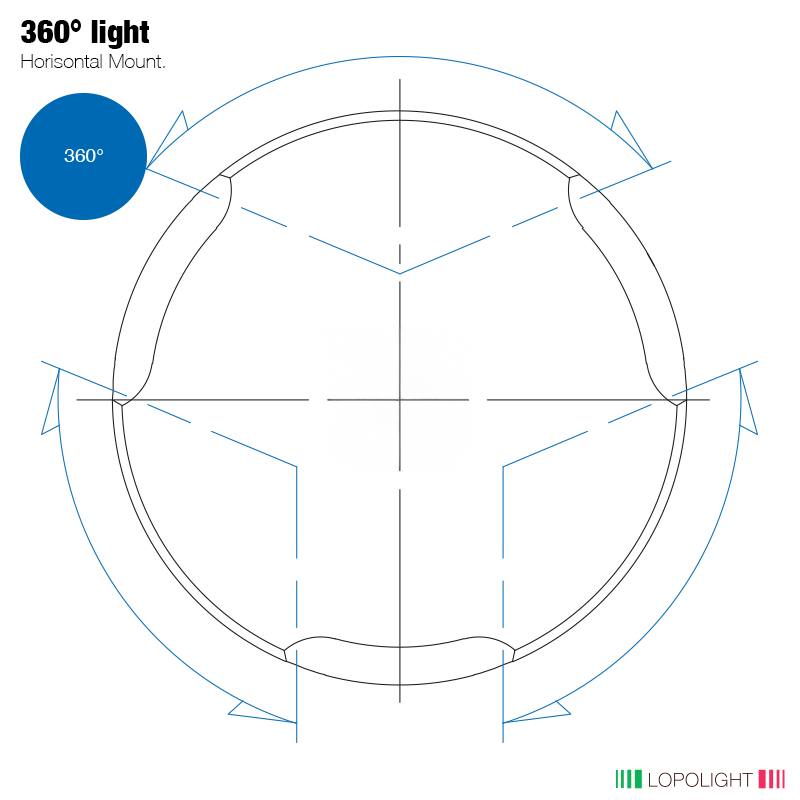

• Blue LED light with 360° coverage and a 2nm visibility range.

• 10-32VDC operating voltage with 3.7W power consumption.

• IP68 ingress protection and testing to IEC 60945.

• FB flat-base POM mounting system for horizontal installation.

• Compact housing measuring 92.5mm in diameter and 36mm in height (3.6in x 1.4in).

• Anodized aluminum housing with a PMMA lens and A4 stainless steel screws.

• Pre-cabled electrical connection for integration into the vessel's wiring system.

Variants

This fuelling light is available in two housing finishes to accommodate different vessel hardware and installation appearances.

Both configurations feature the same blue LED output, 360° coverage, 2nm visibility, 10-32VDC operation, IP68 rating, and FB flat-base mounting system. The housing finish is the distinguishing option.

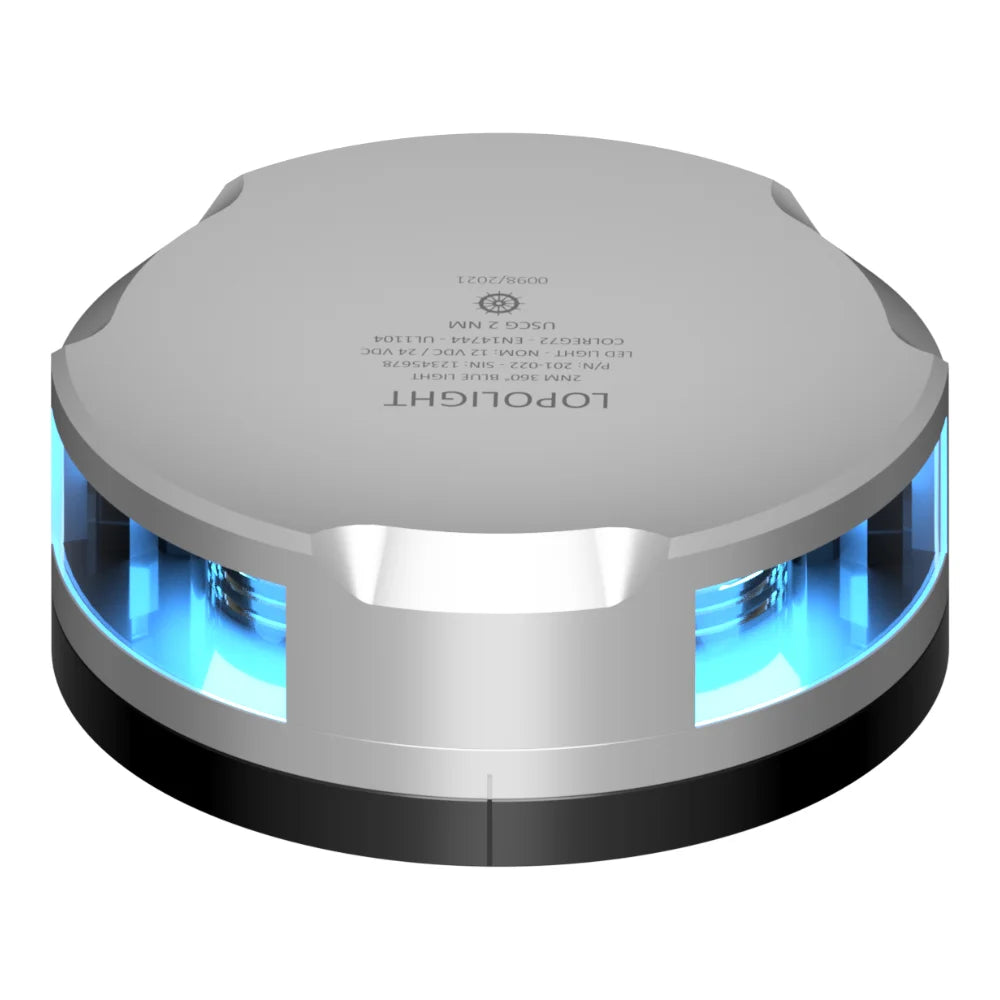

• 201-022-FB: Silver finish with a silver anodized aluminum housing.

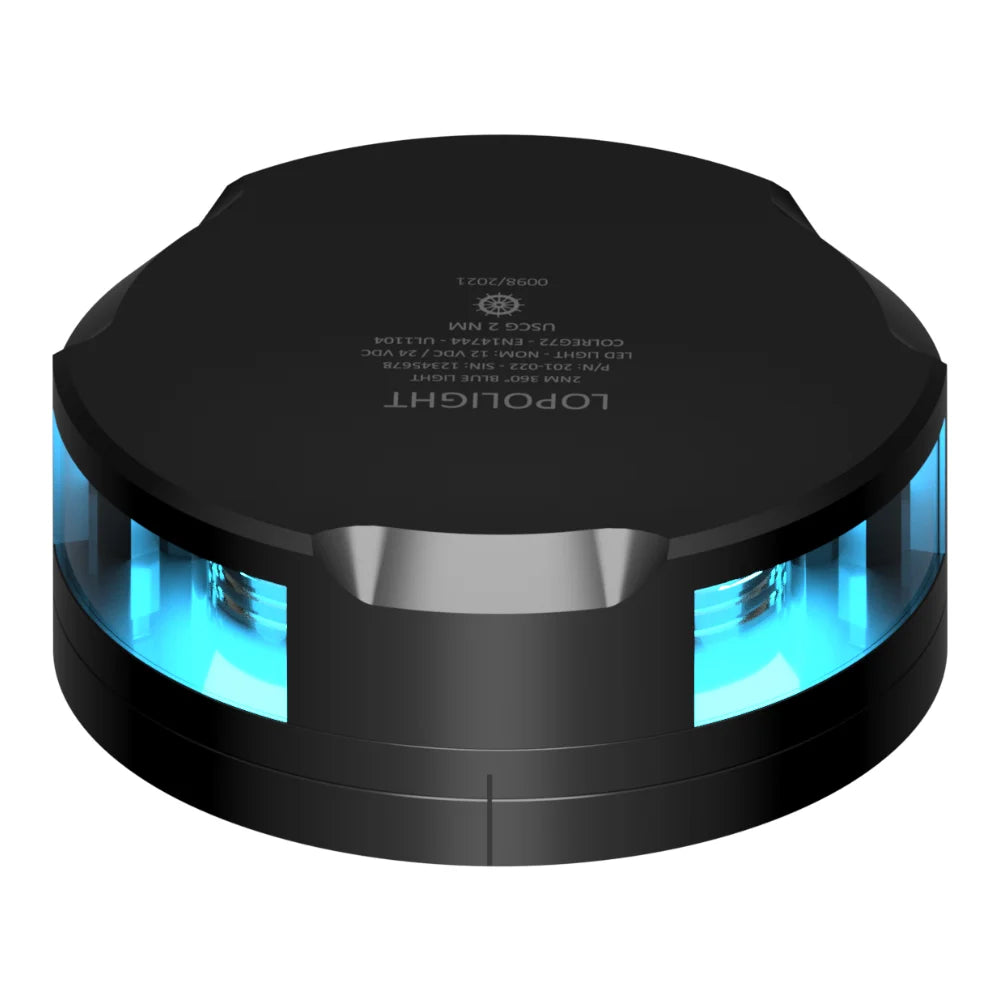

• 201-022-FB-B: Black finish with a black anodized aluminum housing.

Installation and electrical integration

The fixture mounts horizontally using its FB flat-base POM mounting system. Its pre-attached shielded cable connects to the vessel's electrical supply, while the 10-32VDC operating range accommodates common 12V and 24V marine electrical systems. The minimum specified feed wire size is 0.5mm² (AWG 22).

What's included

• One blue LED navigation light with pre-attached shielded marine-grade cable.

• Installation guide.
