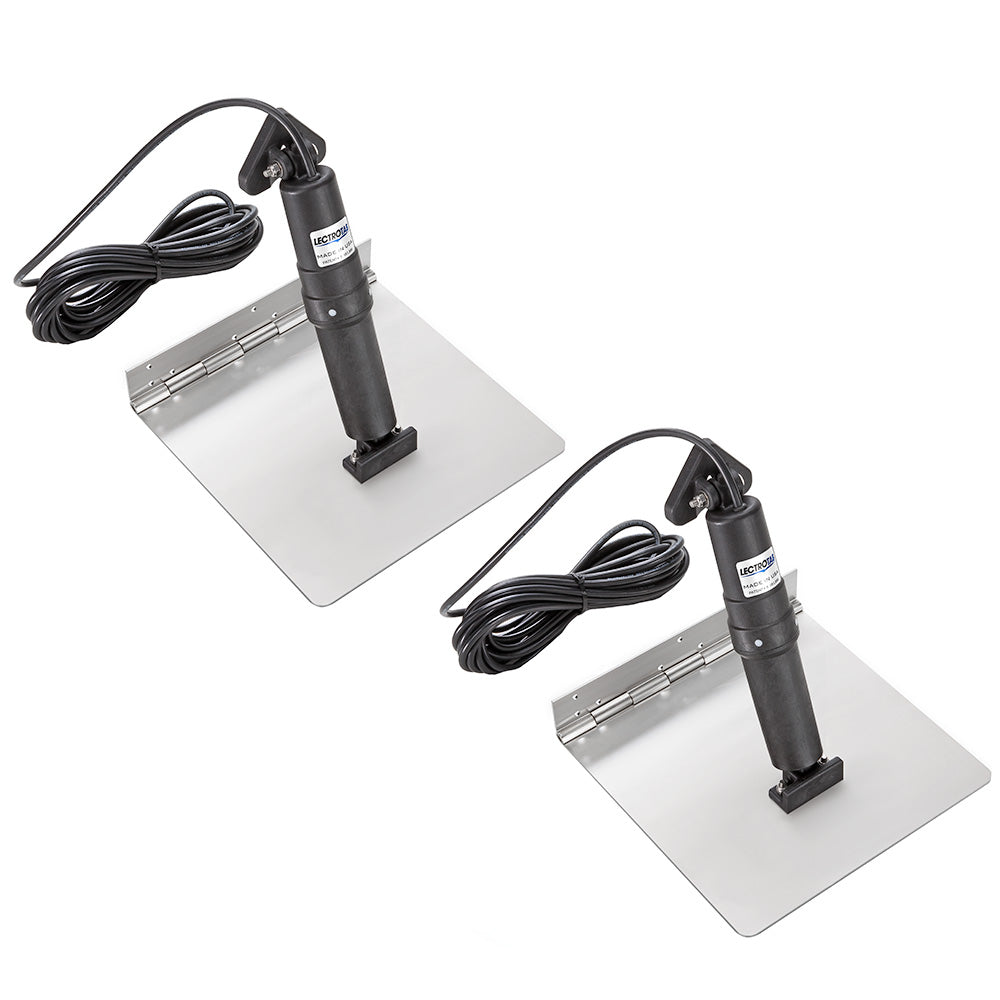

Lectrotab - XKA Trim Tab - Stainless Steel

Optimize Your Vessel's Performance with Lectrotab XKA Stainless Steel Trim Tabs

Introducing the Lectrotab XKA Stainless Steel Trim Tab, engineered to enhance your vessel's performance and stability. These trim tabs are crafted from high-quality 12 gauge, 304 stainless steel, featuring a unique continuous rolled and pinned hinge design that eliminates the need for welding. This innovative approach not only adds exceptional strength but also ensures reliability under the most demanding conditions. Paired with a precision-engineered actuator, the Lectrotab trim tab system offers quiet operation, maximum lift force, and a maintenance-free, non-hydraulic design. Corrosion-resistant and built to last, these trim tabs are the ideal solution for boaters seeking improved control, efficiency, and safety on the water.

Key Advantages for Enhanced Marine Navigation

• Robust construction with continuous rolled and pinned hinge for increased durability
• Superior corrosion resistance with non-metallic external structure and stainless steel material
• Internal pressure equalization and brake system for precise tab positioning and movement control
• Fully load tested actuators capable of pushing 1000 lbs of force for effective performance
• Quiet operation and maintenance-free design for hassle-free usage

Technical Excellence for Unrivaled Performance

• Trim Tab Size: 9" x 9" (23 x 23 cm) suitable for boats 14' to 19' (4 to 6 M)
• Material: Premium 12 gauge, 304 Stainless Steel for lasting durability
• Actuator Voltage: 12 V, ensuring efficient power use
• Actuator Stroke Length: 2.25" (57 mm) for precise trim adjustment
• Actuator Cable Length: 23' (7 M), offering flexibility in installation
• Vertical Height: 11.875" (302 mm), designed for optimal performance

Choose Your Perfect Fit: Available Variants

• XKA9X9: 9" x 9" - Perfect for smaller crafts seeking agility and efficiency
• XKA9X12: 9" x 12" - Ideal for enhanced control in a variety of sea conditions
• XKA9X18: 9" x 18" - Offers increased stability for larger vessels
• XKA9X24: 9" x 24" - Maximum lift force for optimal performance in rough waters
• XKA12X9: 12" x 9" - A versatile option for boats requiring extra lift and precision
• XKA12X12: 12" x 12" - Balances speed and stability for a smooth ride
• XKA12X18: 12" x 18" - For boats needing significant stability adjustments
• XKA12X24: 12" x 24" - The ultimate choice for maximum control and efficiency

Installation and Operation Simplified

Every Lectrotab XKA Stainless Steel Trim Tab kit includes two stainless steel tabs, two actuators with 23' cables, and an instruction manual for easy installation. Designed for seamless integration, these trim tabs do not require any components to be installed inside the boat, making the setup process straightforward and efficient. Enhance your boating experience with Lectrotab's advanced trim tab system, and navigate with confidence and precision.
