Imtra Norden Master Bi-Color LED Spot, 10-30VDC, Chrome

Overview

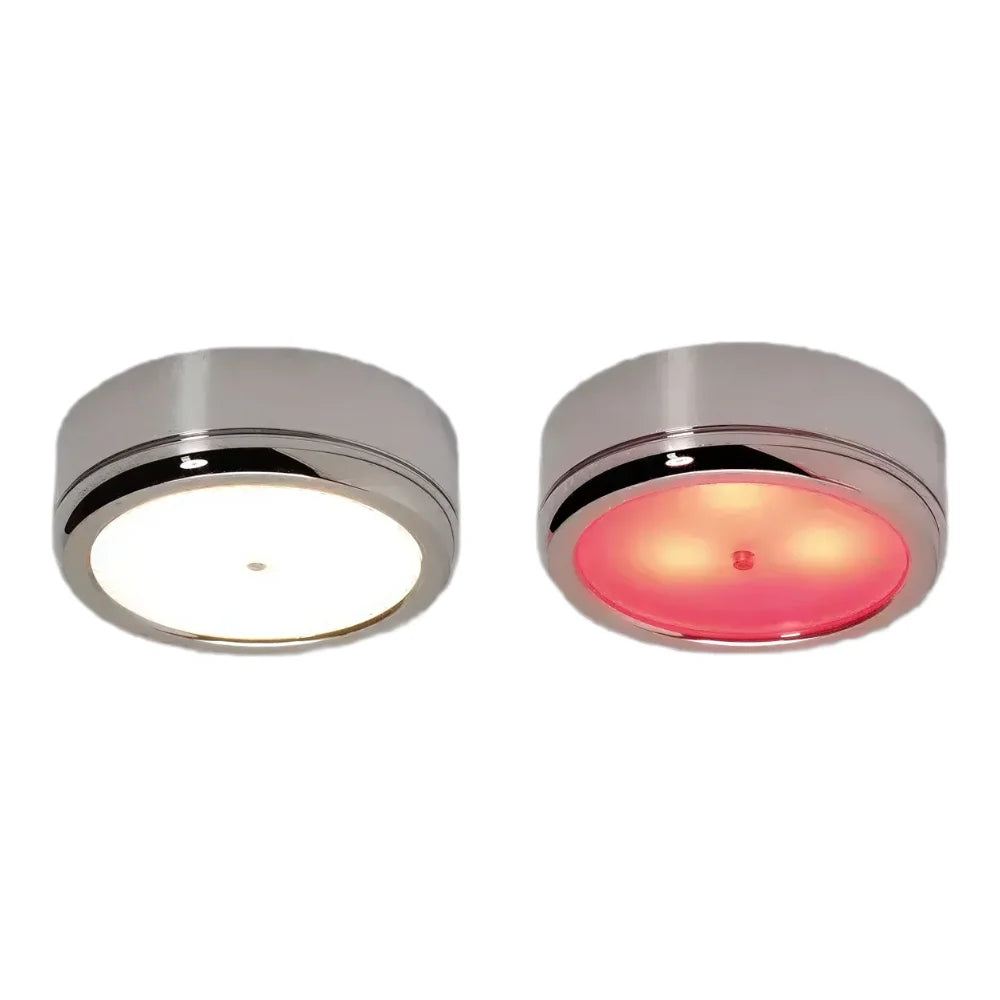

The Imtra ILPB23163105 is a Norden Master surface-mounted bi-color LED spotlight with a chrome finish, warm white and red illumination, and an integrated switch and dimmer. Operating on 10-30VDC with a maximum power consumption of 3W, it provides adjustable interior lighting for marine applications.

The integrated momentary switch controls on/off operation, color selection, and dimming for both light colors. This Master fixture operates independently or controls up to 15 compatible Norden Slave fixtures, allowing synchronized lighting throughout an interior space.

Key features

• Warm white (3000K) and red LED illumination with adjustable brightness.

• Integrated momentary push-button switch for lighting and dimming control.

• Master control functionality supports up to 15 Norden Slave fixtures.

• 10-30VDC input with 3W maximum power consumption.

• Chrome-finished housing with a satin acrylic lens.

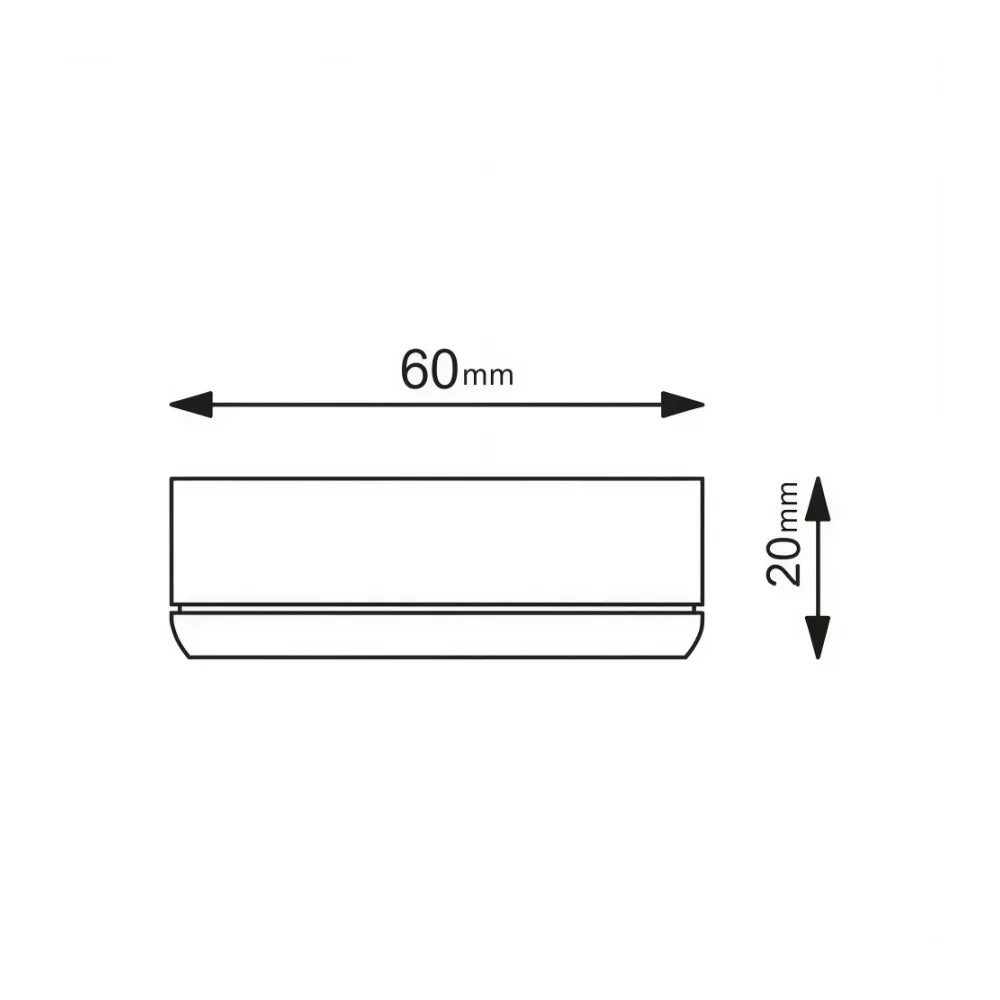

• Surface-mounted construction with a 60 mm diameter and 20 mm height.

• IP20 protection rating for dry interior installations.

• Compatible with externally wired momentary switches for additional control locations.

Operation and control

A short press of the integrated switch turns the light on or off, while holding the button adjusts brightness. A double press changes between warm white and red illumination. The fixture retains its previous brightness setting for subsequent operation.

When connected to compatible Slave fixtures, the Master coordinates switching, color selection, and dimming across the connected lighting group. Additional momentary switches can be wired for operation from other locations.

Installation and compatibility

The surface-mount design attaches with screws without requiring a recessed fixture cutout. Electrical connections use DC power with red positive and black negative leads. Group installations connect compatible Norden Slave fixtures through the designated control wiring. Multiple Master fixtures must not be interconnected within the same control group.

The IP20 rating limits installation to dry interior locations, such as protected cabin and accommodation spaces. The fixture is not suitable for wet areas or direct water exposure.
