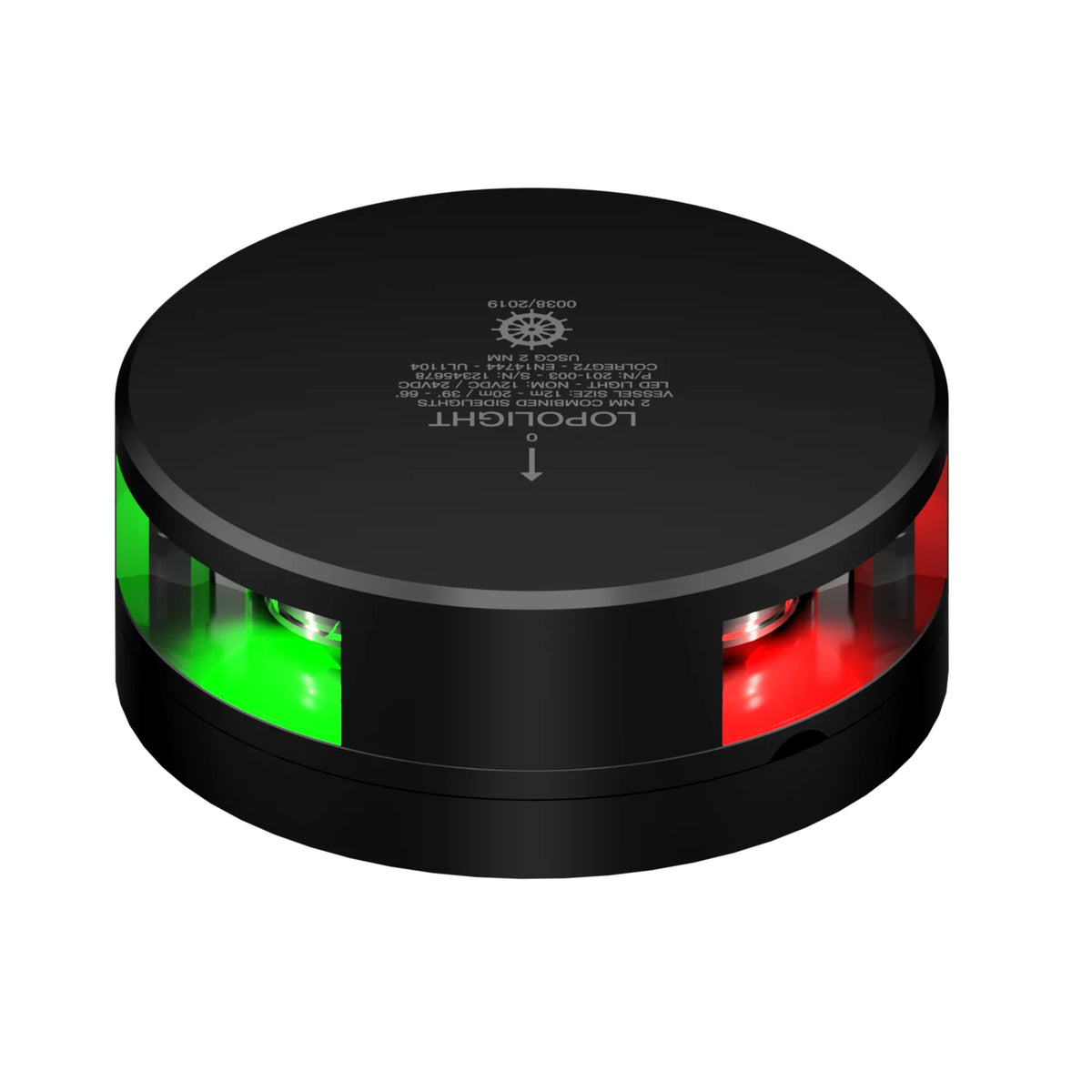

Lopolight Combined Red and Green Sidelight, 2nm, 10-32VDC, IP68

Overview

The Lopolight 201-003-B-UL is a combined red and green navigation sidelight with 2nm visibility for vessels from 12 to 20 meters. It operates on 10-32VDC and carries an IP68 rating.

This configuration is horizontally mounted and supplied pre-cabled with a 2.5-meter shielded marine-grade cable. The UL-base version uses Lopolight mounting ring 400-036-B and has a light intensity greater than 5.4 cd.

Key features

• Combined red and green sidelight with 2nm visibility

• 10-32VDC operating voltage

• IP68 ingress protection rating

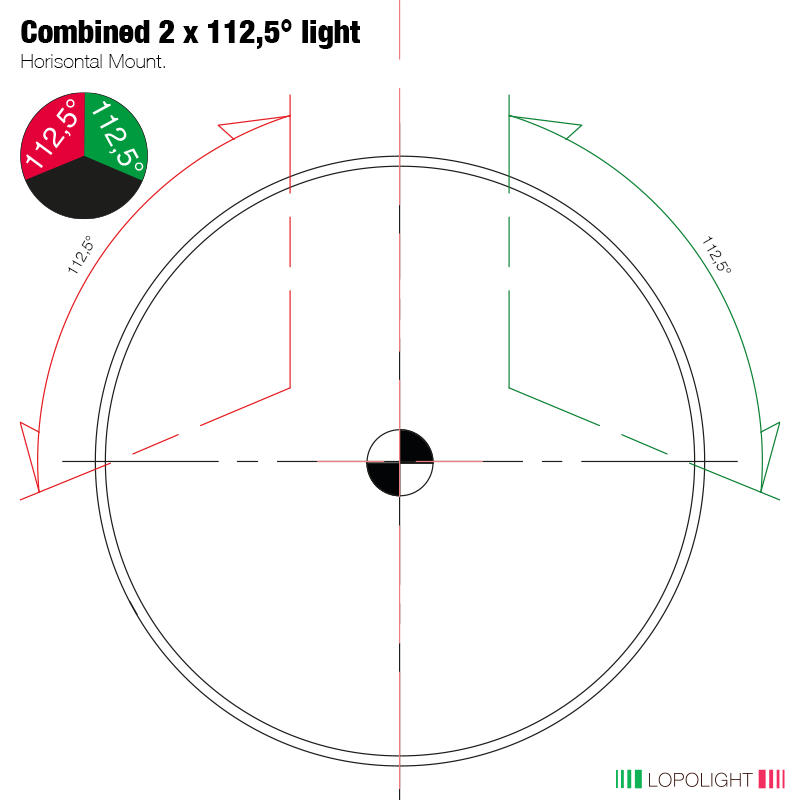

• Horizontal mounting configuration with UL mounting ring 400-036-B

• Pre-cabled with a 2.5-meter shielded marine-grade cable

• Light intensity greater than 5.4 cd

• Specified for vessels from 12 to 20 meters

• Approved to COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, MED, and DNV requirements

• Operating temperature range of -25°C to 55°C

Installation and setup

The light installs in a horizontal orientation and connects through its attached 2.5-meter cable. The specified minimum feed wire gauge is 0.5 mm2 or AWG 22.

What's included

• 1 navigation light pre-cabled with 2.5 meters of shielded marine-grade cable

• Installation guide
