Lenco Marine - 101XD Extreme Duty Actuator - Stroke, With Hardware, 12V - 2-1/4"

Elevate Your Marine Performance

Experience unparalleled power and reliability with the Lenco 101XD Extreme Duty Actuator. Specifically designed for use with HD, XD, High Performance, and Super Strong tabs, this actuator ensures instant response and robust performance, making it an essential component for serious mariners.

Unmatched Durability and Design

The 101XD Actuator is engineered for extreme duty applications, featuring high-impact glass fiber-filled, ultraviolet-resistant nylon material and 316 super buff stainless steel tubing. With a 2-1/4 inch stroke and an overall length of 11-3/8 inches, this actuator delivers the precision and strength needed for demanding marine environments.

Key Features and Benefits

• Advanced Seal System: Newly implemented Anti Extrusion Ring (AXR) seal stabilization system ensures enhanced durability.
• Enhanced Construction: Stronger top cap and mounting clevis design, thicker and stronger motor housing wall, and improved O-Ring design for a consistent seal.
• Integrated Protection: Improved pressure-tight torx screws and integrated wiper seal at the actuator base.
• Reliable Performance: Lenco's ballscrew design is more reliable and twice as powerful compared to typical hydraulics.
• High Torque Motor: The actuator's motor easily pushes 500 pounds, providing exceptional performance.
• Waterproof Connections: Uses Plug & Play Deutsch connectors to eliminate the possibility of water intrusion.
• Versatile Mounting: Includes 5/16" upper and 3/8" lower mounting hardware, with a 6-foot cable for flexible installation.

Specifications

• Voltage: 12V
• Stroke: 2-1/4 inches

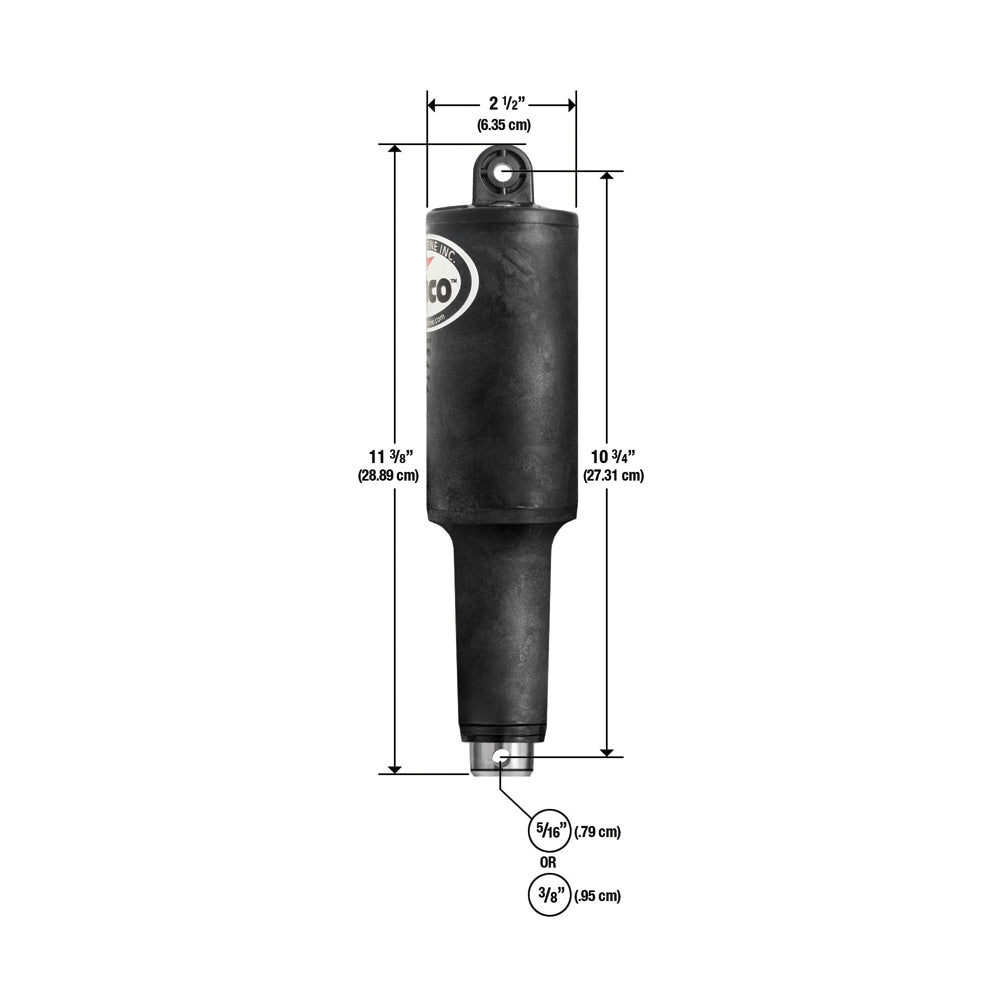

• Overall Length: 11-3/8 inches
• Material: High impact glass fiber-filled, UV-resistant nylon with 316 stainless steel tubing
• Mounting Hardware: 5/16" upper and 3/8" lower
• Cable Length: 6 feet

Superior Features

• Anti Extrusion Ring (AXR): Enhances seal stabilization for long-lasting performance.
• Top Cap and Clevis Design: Strengthened for improved durability.
• Pressure-Tight Torx Screws: Ensures a secure and tight fit.
• Integrated Wiper Seal: Provides added protection at the actuator base.
• Molded-In Brass Thrust Bearing: Designed for increased reliability.
• Over-Molded Cable: Provides a stronger, tighter seal to prevent water ingress.
• Mounting Bracket with Gland Seal: Ensures secure and reliable installation.
