Lenco - 102 Series Standard Actuator - 12V - 4-1/4" Stroke

Superior Performance for Marine Applications

The Lenco 102 Series Standard Actuator is an essential component for marine enthusiasts looking to enhance their boat's performance. Designed for Trolling Tab systems sold prior to 2000 and various OEM applications, this actuator offers a 4.25-inch stroke and an overall length of 14 inches. Crafted with high-impact glass fiber filled, ultraviolet-resistant nylon material and 316 super buff stainless steel tubing, the 102 Series Actuator is built to withstand the harshest marine environments.

Unmatched Features for Enhanced Functionality

The Lenco 102 Series Standard Actuator is packed with features that ensure reliability and power. Its innovative design includes an Anti Extrusion Ring (AXR) seal stabilization system and a stronger top cap and mounting clevis design. These enhancements provide improved durability and performance, making it a superior choice compared to typical hydraulic systems.

Key Features:

• Powerful and Reliable: Lenco's ballscrew design offers twice the power and reliability of typical hydraulics, easily pushing up to 500 pounds.
• Durable Construction: Made from high-impact glass fiber filled, ultraviolet-resistant nylon material with 316 super buff stainless steel tubing for long-lasting performance.
• Waterproof Connections: Features waterproof "Plug & Play" Deutsch connectors to eliminate water intrusion.
• Advanced Sealing System: Includes a newly implemented Anti Extrusion Ring (AXR) seal stabilization system and improved O-Ring design for a consistent seal.
• Enhanced Motor Housing: Thicker and stronger motor housing wall ensures durability and protection.
• Integrated Wiper Seal: Located at the actuator base for added protection against the elements.
• Improved Mounting Bracket: Upper mounting bracket comes with a gland seal for secure installation.

Specifications

• Voltage: 12V
• Stroke Length: 4.25 inches

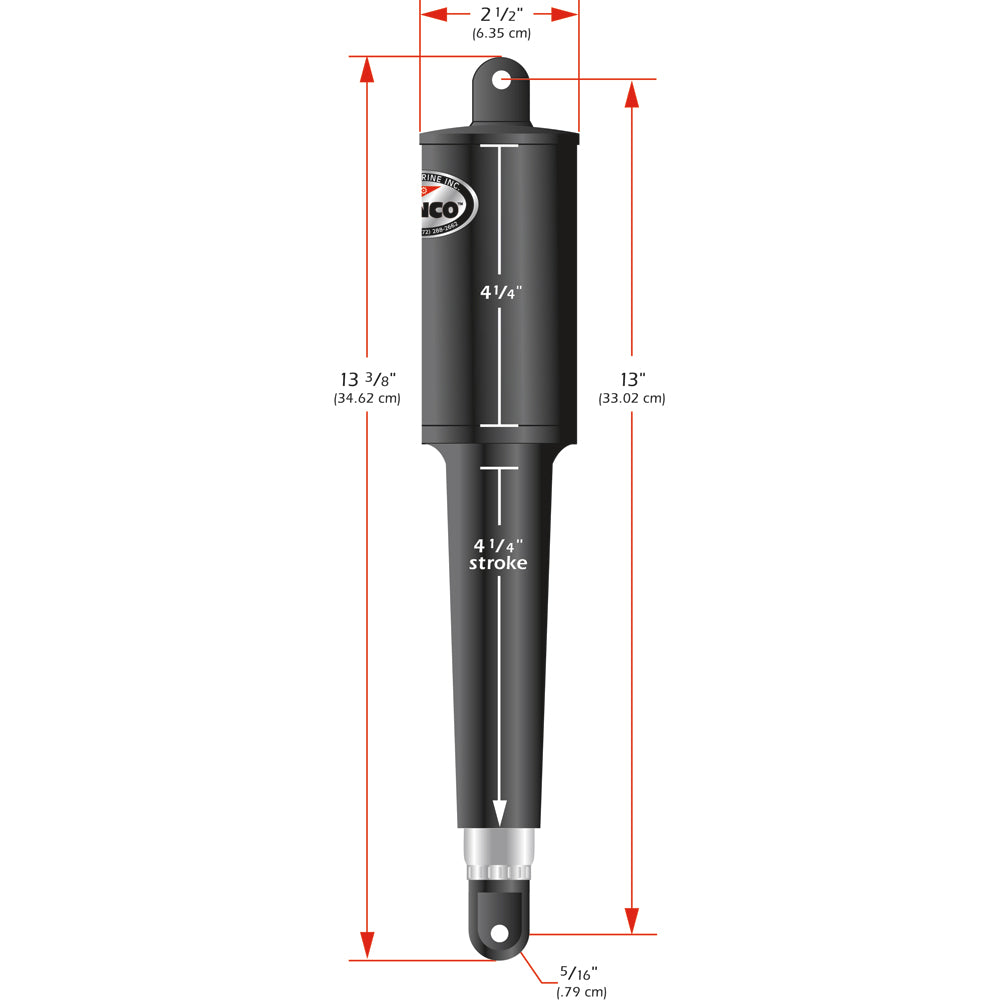

• Overall Length: 14 inches
• Mounting Hardware: 5/16"
• Cable Length: 6 feet

Built to Last

The Lenco 102 Series Standard Actuator is designed to provide instant response and consistent performance. Its tough, high-torque motor, improved pressure-tight torx screws, and molded-in brass thrust bearing design ensure that it can handle demanding marine environments with ease.

Technical Specifications

• Anti Extrusion Ring (AXR) Seal Stabilization System
• Stronger Top Cap and Mounting Clevis Design
• Improved Pressure-Tight Torx Screws
• Integrated Wiper Seal at Actuator Base
• Molded-In Brass Thrust Bearing Design
• Thicker and Stronger Motor Housing Wall
• Improved O-Ring Design for Consistent Seal
• Over-Molded Cable for Stronger Tighter Seal
• Upper Mounting Bracket with Gland Seal

Dimensions

• Stroke Length: 4.25 inches
• Overall Length: 14 inches
• Cable Length: 6 feet

Highlights

• Reliable Power: Lenco's ballscrew design provides unmatched reliability and power, handling up to 500 pounds.
• Durable and Resilient: High-impact, UV-resistant materials ensure long-lasting performance.
• Easy Installation: Waterproof "Plug & Play" connectors and a robust mounting bracket make installation simple and secure.

Conclusion

The Lenco 102 Series Standard Actuator is the ideal choice for marine applications requiring reliable, powerful performance. With advanced features and durable construction, it stands out as a superior option for enhancing your boat's functionality.
