Imtra Prebit LD200 PWM Dimmer, 10-30VDC, Up to 20 Slave Lights

Overview

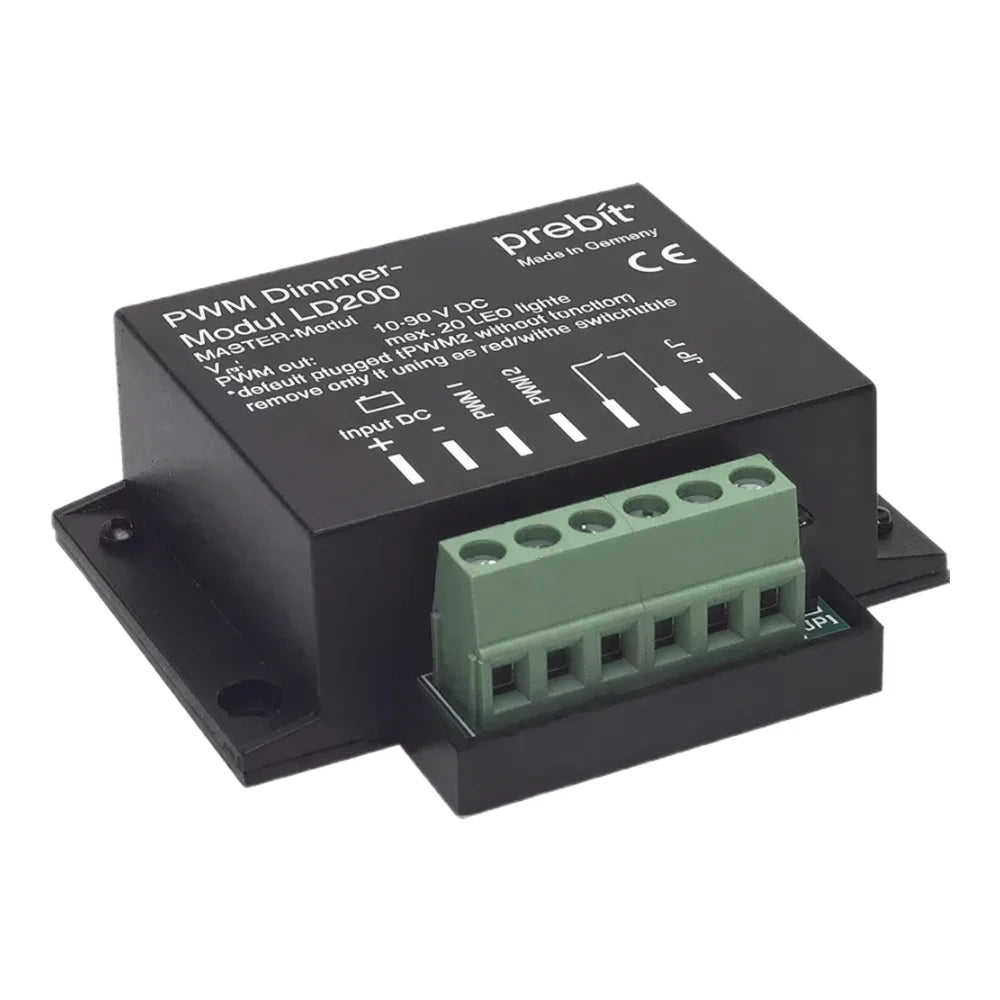

The Imtra ILPB50001239 is a Prebit LD200 PWM dimmer module for controlling Prebit Teamwork LED SLAVE lights in marine lighting installations. Operating on 10-30VDC, it provides centralized dimming for up to 20 compatible lights through an external momentary push-button switch.

The LD200 supports single-color and bi-color LED configurations, including combinations of both types on the same dimming circuit. Its compact housing measures approximately 2.68 x 2.24 x 0.89 inches, allowing installation in confined spaces where centralized lighting control is required.

Key features

• Compatible with Prebit Teamwork dimmable LED SLAVE lights.

• 10-30VDC operating voltage for 12V and 24V electrical systems.

• PWM dimming control for up to 20 connected SLAVE lights.

• Supports single-color, bi-color, and mixed lighting configurations.

• Momentary push-button control interface.

• IP40 ingress protection rating for dry interior installations.

• Compact module with four-screw surface mounting.

Installation and setup

The LD200 mounts to a vertical or horizontal surface using four fastening screws and requires a single-pole, single-throw normally open (1P/1T NO) momentary switch for user control. It connects to compatible Prebit SLAVE fixtures through the appropriate PWM control wiring.

Installation must be in a dry location consistent with its IP40 rating. The lighting configuration and wiring connections should follow the LD200 installation instructions, particularly when combining single-color and bi-color fixtures on one control circuit.
