Hella Marine NaviLED Compact Deckmount Port & Starboard Navigation Light Pair, 2NM, 12/24V, IP67

Overview

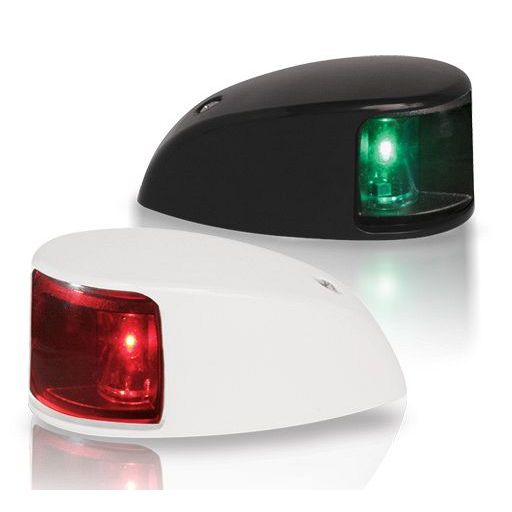

The Hella Marine 2NM NaviLED Deck Mount Port and Starboard Pair is a compact LED port and starboard navigation light set with 2 nautical mile visibility for vessels up to 50 m.

It runs on Multivolt 12 V and 24 V systems across 9 to 32 V DC, draws less than 2 W combined, and the lamps are sealed to IP67. Each lamp is pre-wired with 500 mm of tinned twin-core marine cable, so you can route to your sidelights circuit without splicing right at the fixture.

This is a practical upgrade for boats where you want low current draw at night and a light that stays sealed through spray, washdowns, and vibration. It suits coastal cruising, offshore runs, and fishing boats that spend time underway after dark.

Key features

• 2 NM port and starboard navigation light pair, covering vessel requirements up to 50 m
• Multivolt input from 9 to 32 V DC for 12 V and 24 V electrical systems
• Less than 2 W power consumption for the pair
• IP67 rating with a completely sealed lamp body for deck mounting and washdowns
• UV resistant ASA polymer housing with a UV resistant acrylic lens that is impact resistant
• Spike protection to +500 V and reverse polarity protection to -700 V
• Electronics built to reduce the chance of interference with onboard radio, communications, and navigation equipment
• Approvals include IMO COLREG 72, USCG, ABYC A-16, RINA, Maritime NZ, CE, and UKCA

Variants

This light pair is offered in multiple configurations to match different topside colour schemes and the look you want at the bow.

Housing colour is available in black or white, and the lens option is offered as clear or coloured. Core specs such as the 2 NM rating, Multivolt 9 to 32 V DC input, IP67 sealing, and less than 2 W combined draw remain consistent across the range.

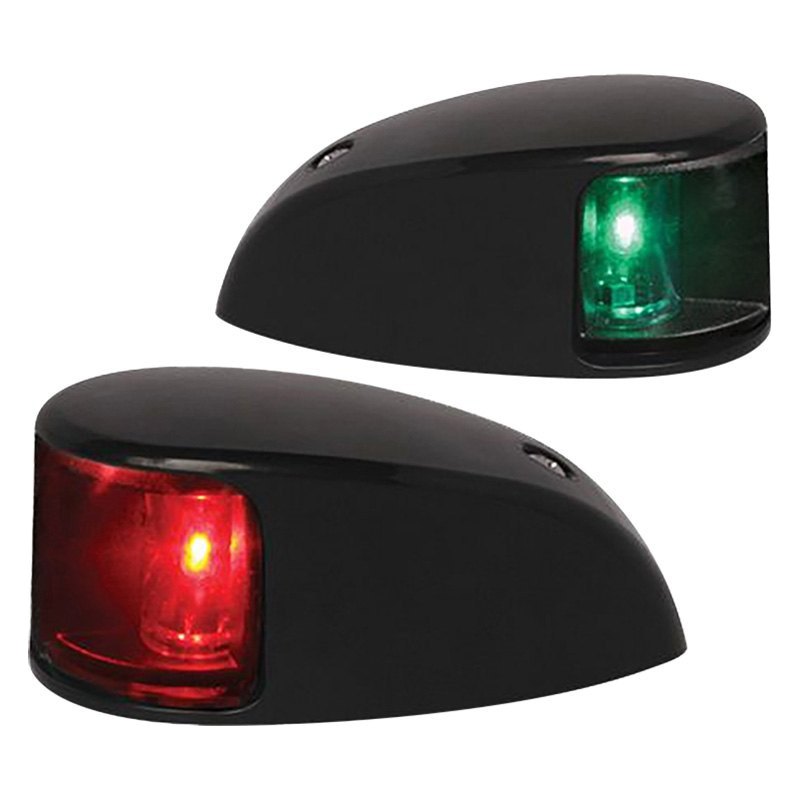

• 980620801: Black housing with coloured lens. The coloured lens changes the daytime look of the fixture compared with the clear-lens versions.

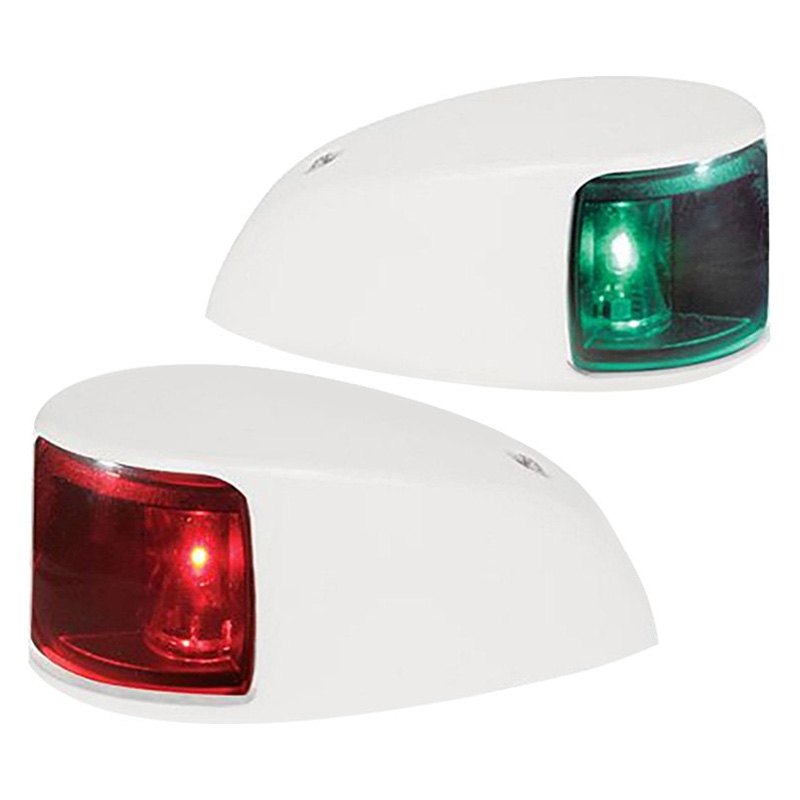

• 980620811: White housing with coloured lens. This keeps the housing light in colour while using the coloured lens style.

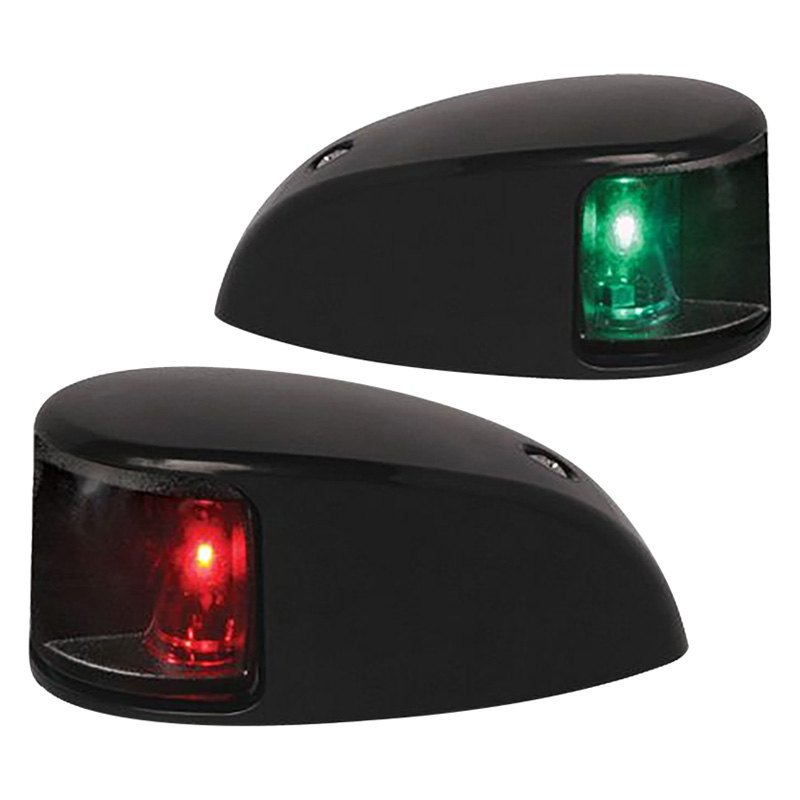

• 980620901: Black housing with clear lens. The clear outer lens keeps a more neutral appearance on deck while still showing the correct red and green sectors when operating.

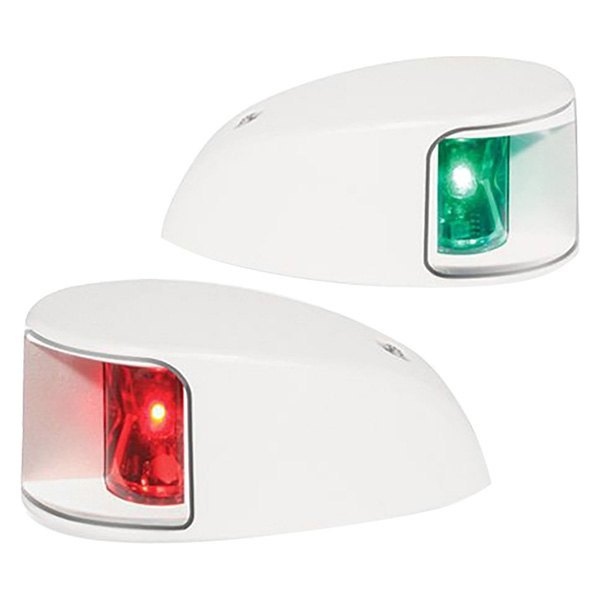

• 980620911: White housing with clear lens. This pairs a lighter housing colour with the clear outer lens look.

Installation and setup

These are deck-mount sidelights, so placement and alignment matter. Mount them on a solid, flat surface with the correct fore and aft orientation and a clear line of sight, then route the pre-wired tinned cable to your navigation light switch or breaker circuit using marine-grade connectors and proper strain relief. Seal any deck penetrations to keep water out of the core and wiring runs.

Compatibility and fit

Electrical integration is straightforward on 12 V or 24 V DC systems within the 9 to 32 V range. The 2 NM visibility rating suits vessels up to 50 m, making it a common choice for many powerboats and sailboats that need a compliant port and starboard pair without high power draw.

Materials and corrosion resistance

The housing uses UV resistant ASA polymer and the lens is UV resistant acrylic. With an IP67 sealed construction, the lamps are built to live in salt air and handle regular vibration and cockpit or foredeck washdowns when mounted correctly.

Maintenance and care

There are no bulbs to replace. Keep the lens clean so the sectors stay crisp, and periodically check the wiring terminations and cable support points, especially if the boat sees frequent spray or heavy slamming in a chop.
