Imtra T105 PowerLED Downlight, 10-40VDC, Polished SS, Warm White/Red

Overview

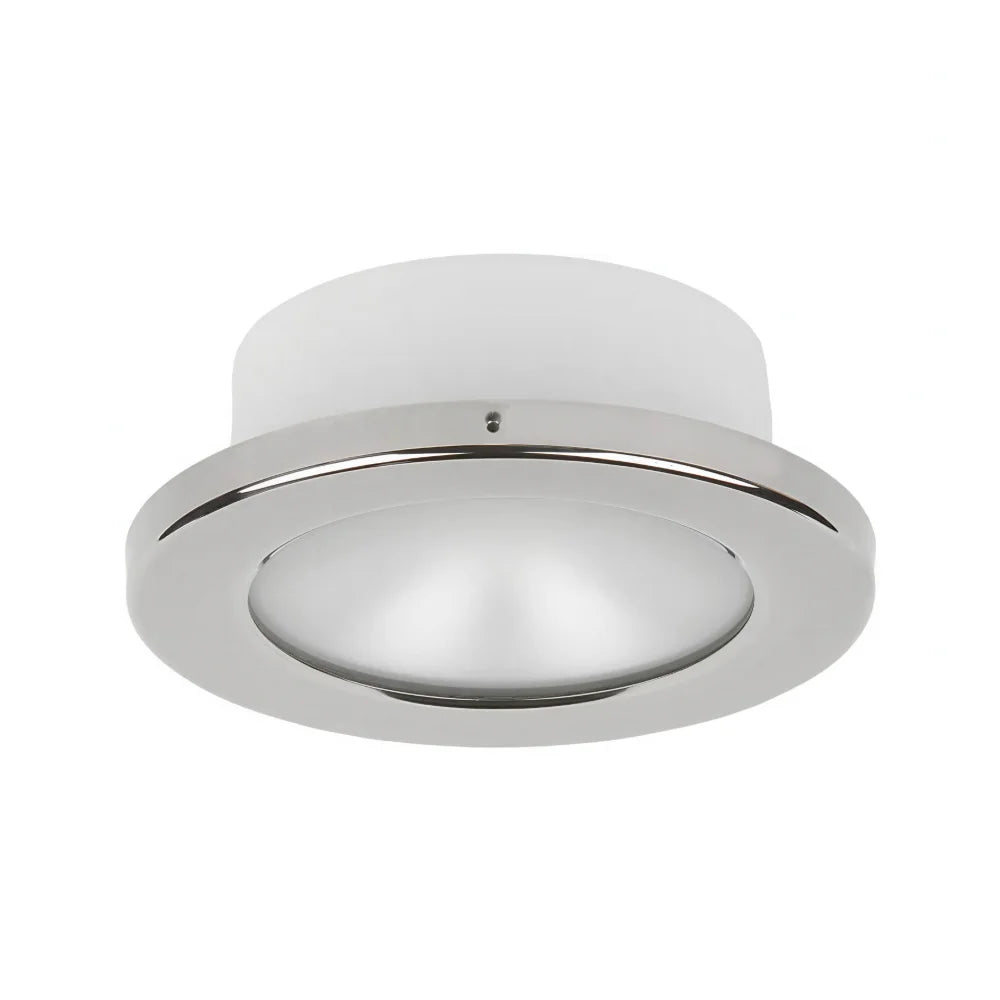

The Imtra ILIM67301 is a T105 PowerLED recessed marine downlight with warm white and red LED illumination and a polished stainless steel trim ring. Operating on 10-40VDC with 4.7W power consumption, this bi-color fixture combines general lighting and red accent lighting in a compact, screw-mounted design. Its IP65 rating applies to frontal water exposure, making it suitable for appropriately protected marine installations.

The fixture features integrated LED driver electronics and supports dimming through compatible Imtra PowerLED PWM controllers. Its 105mm round trim accommodates a 77mm mounting cutout, with a recessed fixture depth of 35mm.

Key features

• Warm white and red bi-color LED illumination.

• 10-40VDC input voltage with 4.7W power consumption.

• Polished stainless steel trim ring with IP65 frontal ingress protection.

• 105mm trim diameter and 77mm mounting cutout.

• Integrated LED driver eliminates the need for a separate remote driver.

• Compatible with Imtra PowerLED PWM dimming controls.

• Screw-mounted recessed installation.

Installation and setup

The T105 requires a 77mm circular cutout and a minimum recommended recessed clearance of 47mm. The rear of the fixture must be protected from water exposure, and adequate ventilation space must be maintained around the heat sink for cooling.

Power and dimming can operate through a compatible two-wire PWM control arrangement. Bi-color dimming with a single momentary switch requires the appropriate Imtra control configuration and a third control wire. Confirm the wiring and controller compatibility before installation.
