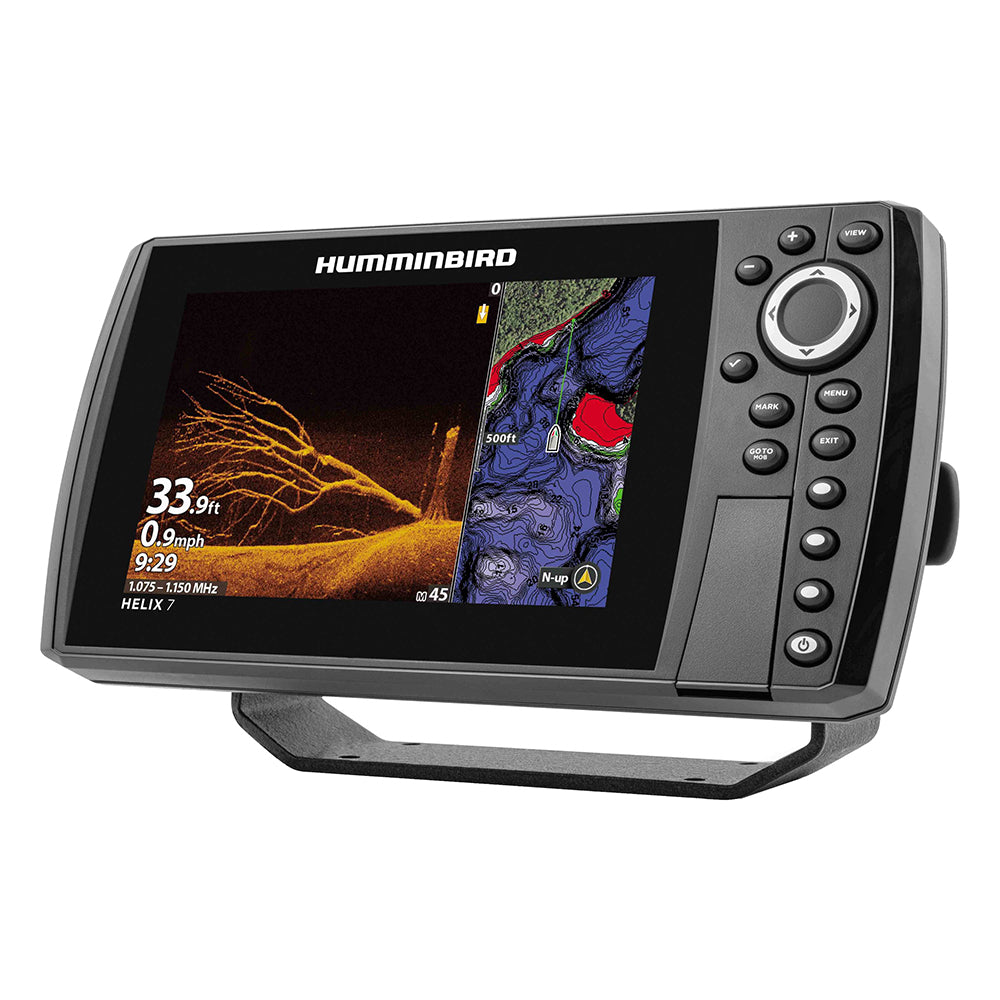

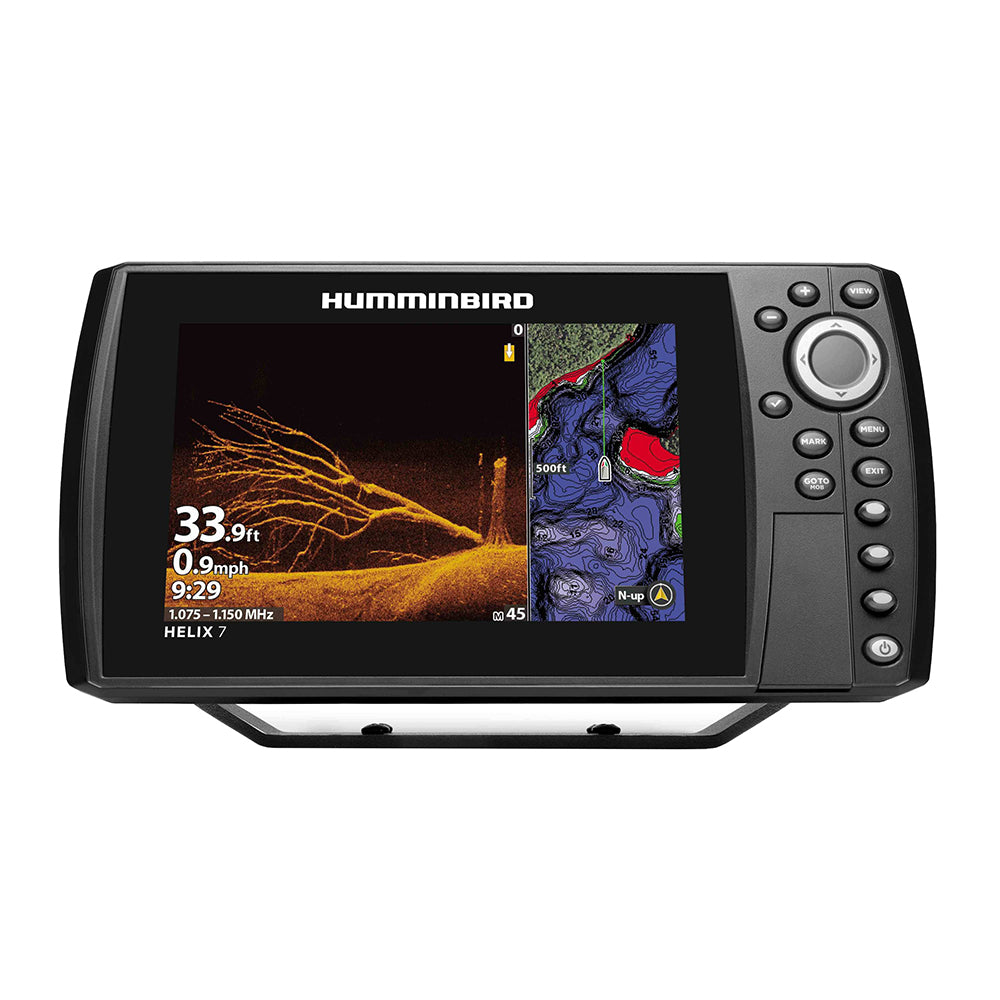

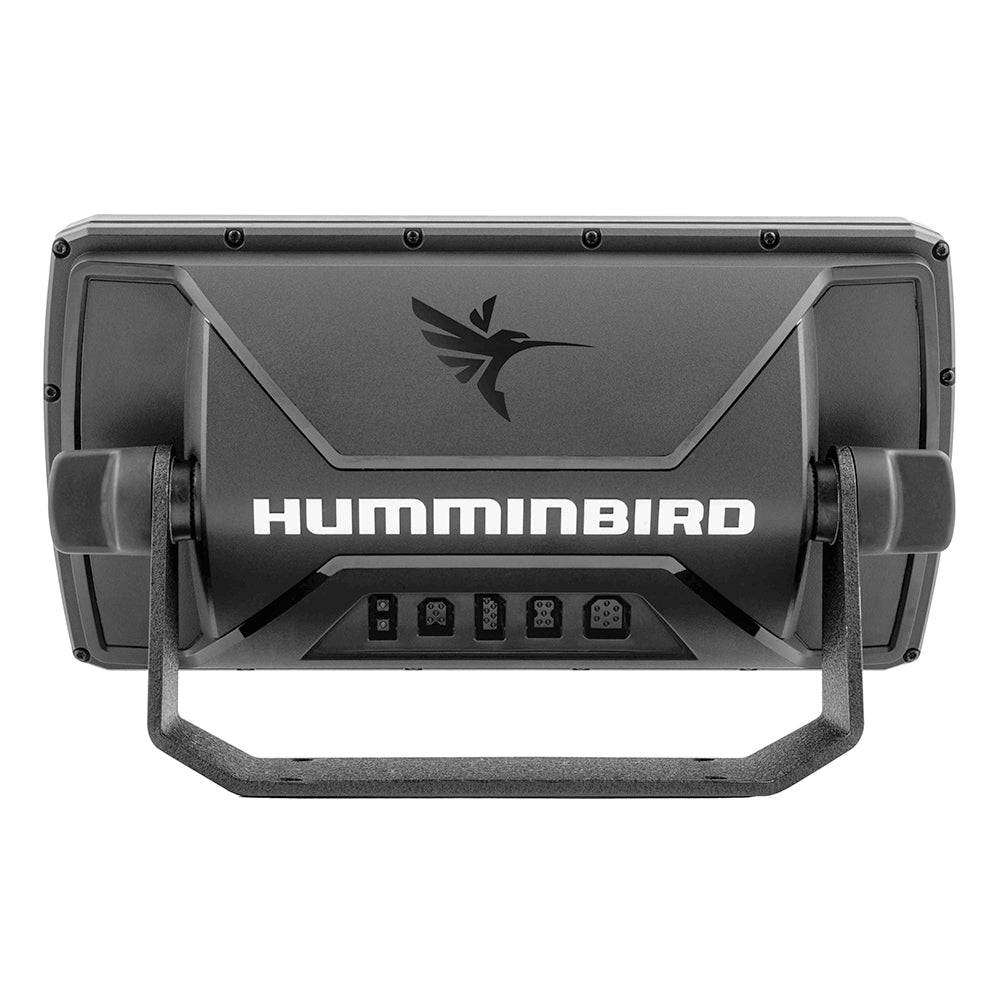

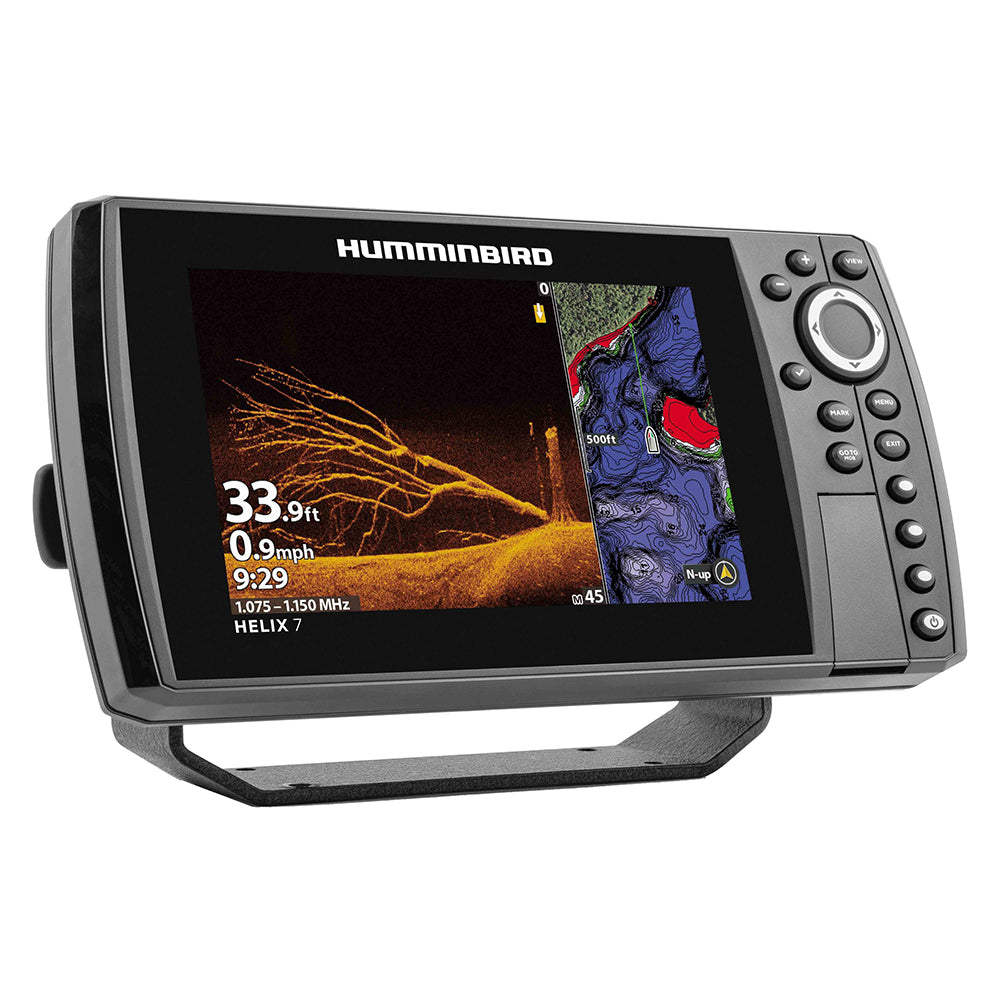

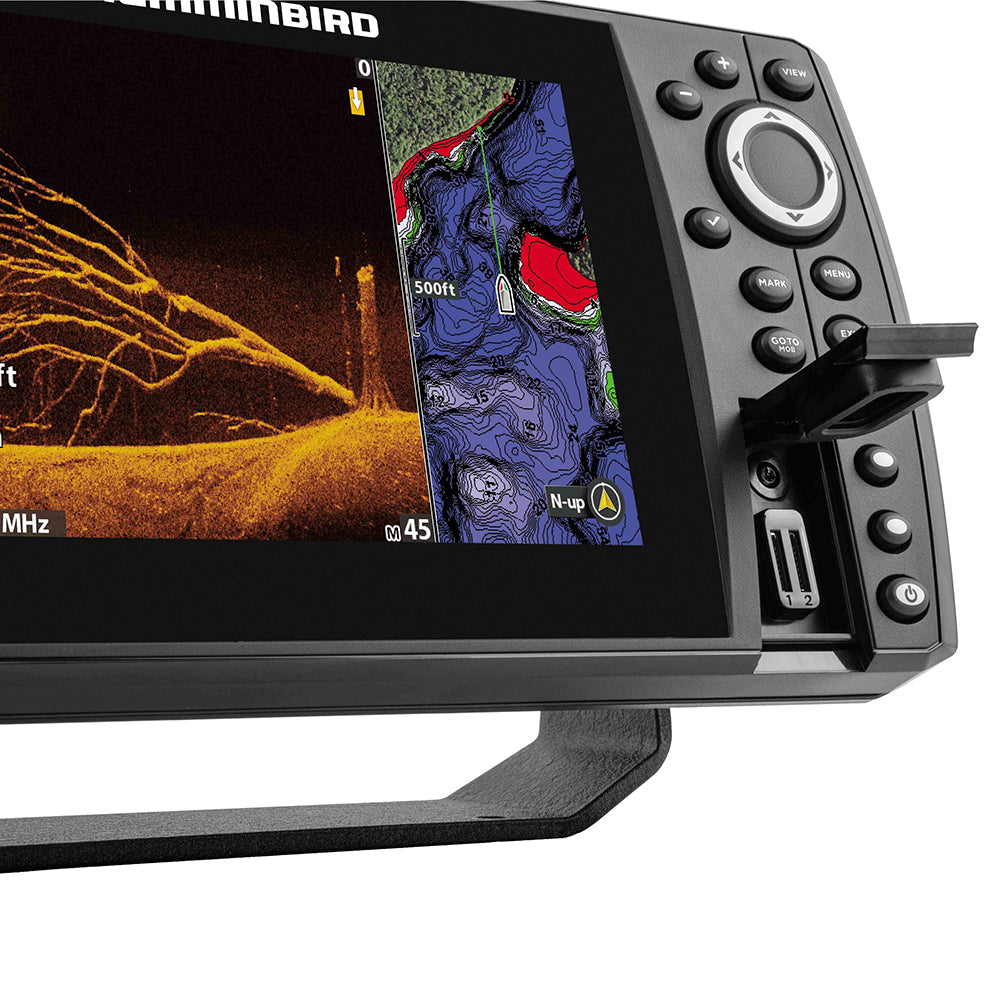

Humminbird - HELIX 7 CHIRP MEGA DI GPS G4N Fish Finder

Exceptional Clarity and Comprehensive Control for Anglers

The Humminbird HELIX 7 CHIRP MEGA DI GPS G4N is a state-of-the-art fish finder designed to enhance your fishing experience. Featuring MEGA Down Imaging and Dual Spectrum CHIRP Sonar, it provides unparalleled underwater clarity, revealing details beneath your boat with precision. The high-definition 7-inch display offers clear, vivid images, ensuring you never miss a fish. Whether navigating new waters or mapping favorite spots, the HELIX 7 G4N equips you with all the tools needed for success on the water.

Unrivaled Underwater Imaging and Navigation

MEGA Down Imaging technology delivers unprecedented detail up to 125 feet below your boat—three times the clarity of standard imaging sonars. Distinguish fish, structures, and bottom contours with crystal clarity. Dual Spectrum CHIRP Sonar enhances this experience, providing detailed fish arches and clear views of fish-holding structures. With the built-in Humminbird Basemap and internal GPS, you'll access over 10,000 lake charts and comprehensive coastal coverage, making navigation straightforward and reliable.

Key Features for Superior Fishing

• Keypad Control: Navigate through pre-loaded views and settings using softkey controls for reliable operation.
• MEGA Down Imaging: Exceptional clarity up to 125 feet deep, revealing underwater details with up to 3X more clarity.
• Dual Spectrum CHIRP Sonar: Wide mode for maximum coverage and Narrow mode for precise details; see fish and structures clearly.
• Internal GPS & Humminbird Basemap: Navigate confidently with detailed maps, identifying buoys, hazards, and marinas.
• Premium Chart Compatibility: Supports optional charts from LakeMaster, CoastMaster, and Navionics for enhanced underwater landscapes.
• AutoChart Live: Create real-time maps of fishing spots, including depth contours and vegetation; standard with eight hours of recording.
• One-Boat Network Compatible: Integrates with other Humminbird and Minn Kota products for expanded functionality.
• Ethernet Networking: Connect multiple devices for a professional-grade system; supports Minn Kota i-Pilot Link and CHIRP Radar.
• Bluetooth: Control compatible devices, receive updates, and display smartphone notifications on-screen.
• NMEA 2000 Networking: Access data on boat performance, weather, and water conditions.

Specifications

• Display Size: 7" diagonal
• Pixel Matrix: 1024H x 600V
• Sonar Standard: Dual Spectrum CHIRP, MEGA Down Imaging
• Sonar Coverage: 20°, 42°, 60°, and (2) 86° @ -10dB
• Optional Sonar: 53 kHz, 50/Low Airmar CHIRP
• CHIRP Frequencies Supported: 83/200 (75-155/130-250 kHz), Full (150-220 kHz), Narrow (180-240 kHz), Wide (140-200 kHz)
• Sonar Frequencies Supported: 50/83/200/455/800 kHz & 1.2 MHz
• Depth Capability: 1,200 ft (standard transducer), 3,500 ft (optional 50 kHz)

Comprehensive Package

The HELIX 7 CHIRP MEGA DI GPS G4N includes: control head, transom-mount transducer, power cable, gimbal mounting bracket, and mounting hardware. It comes with a 1-year limited warranty for peace of mind.

Ideal for Serious Anglers

Designed for demanding marine applications, the HELIX 7 G4N offers robust construction and advanced features, making it indispensable for serious anglers and boaters.

Why Choose the Humminbird HELIX 7 CHIRP MEGA DI GPS G4N?

Combining high-definition imaging, advanced sonar capabilities, and comprehensive mapping features, this fish finder is the ultimate choice for those demanding the best in fishing technology. With the HELIX 7 G4N, you can explore, navigate, and fish with unmatched confidence and precision.
