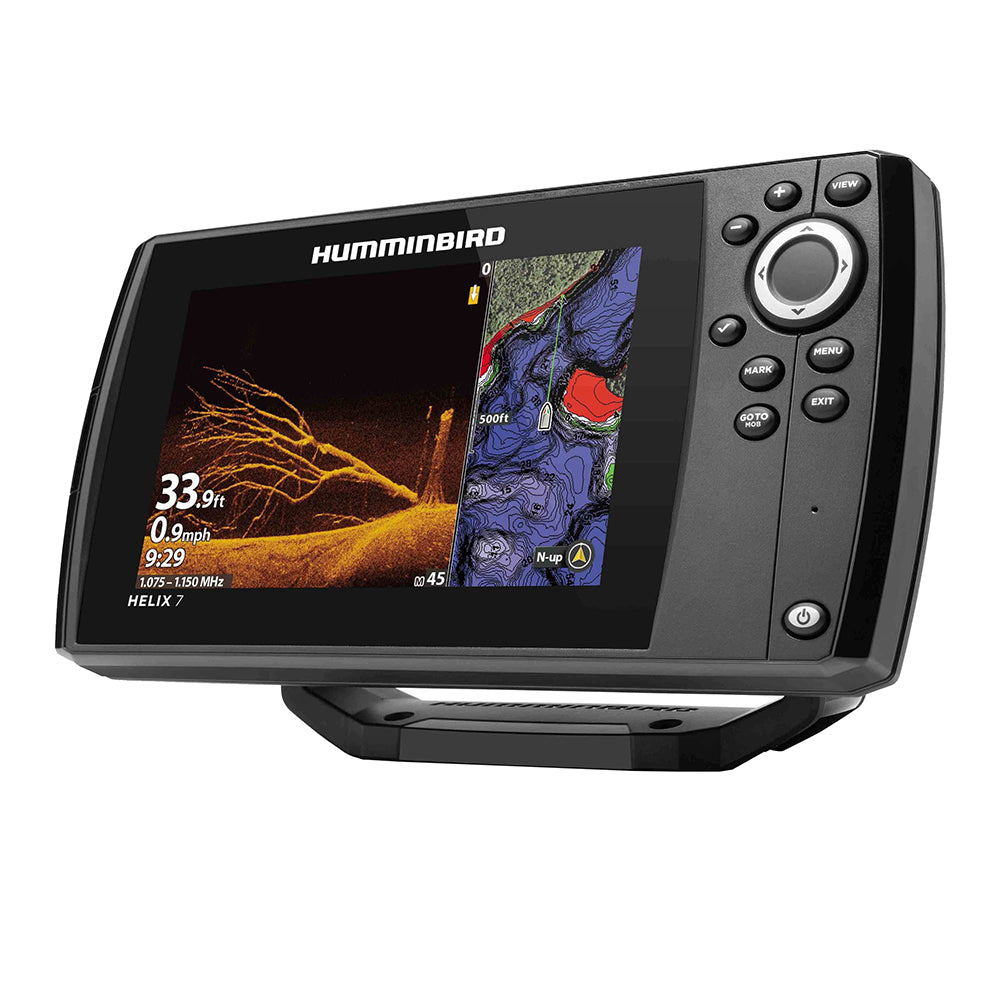

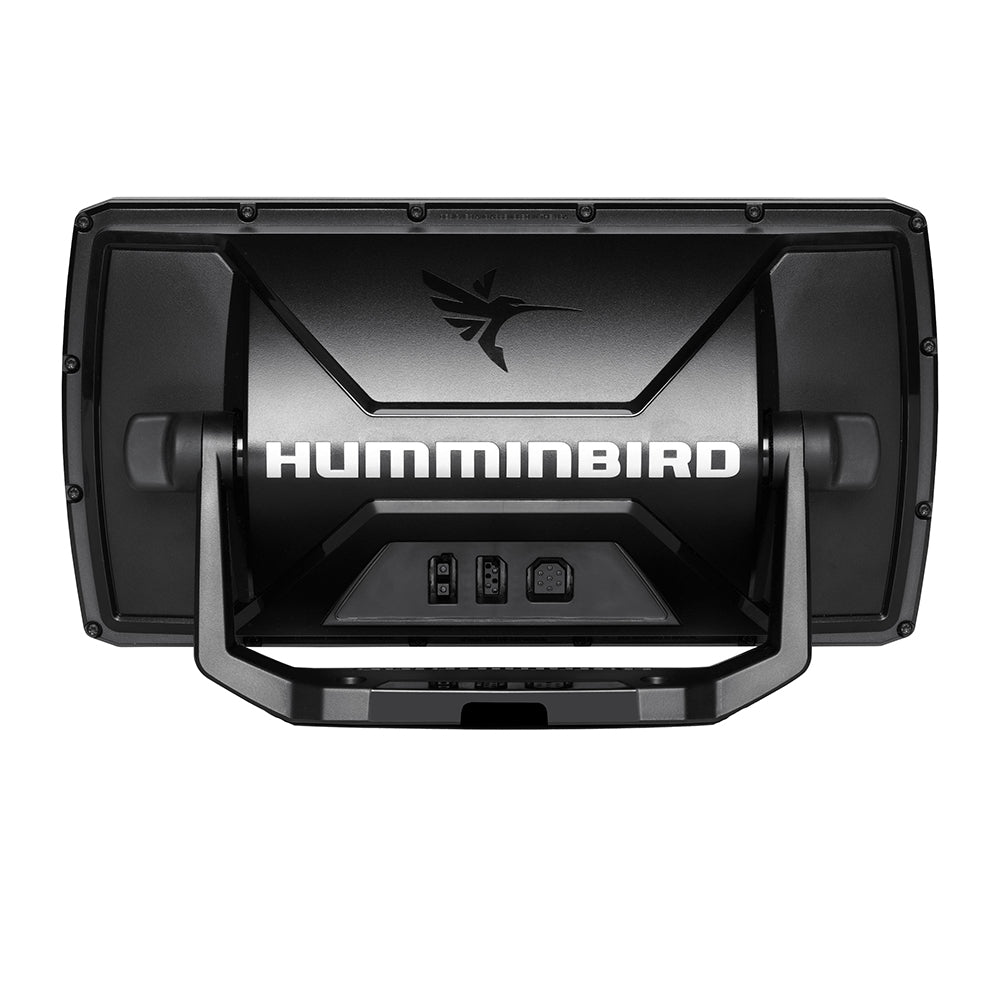

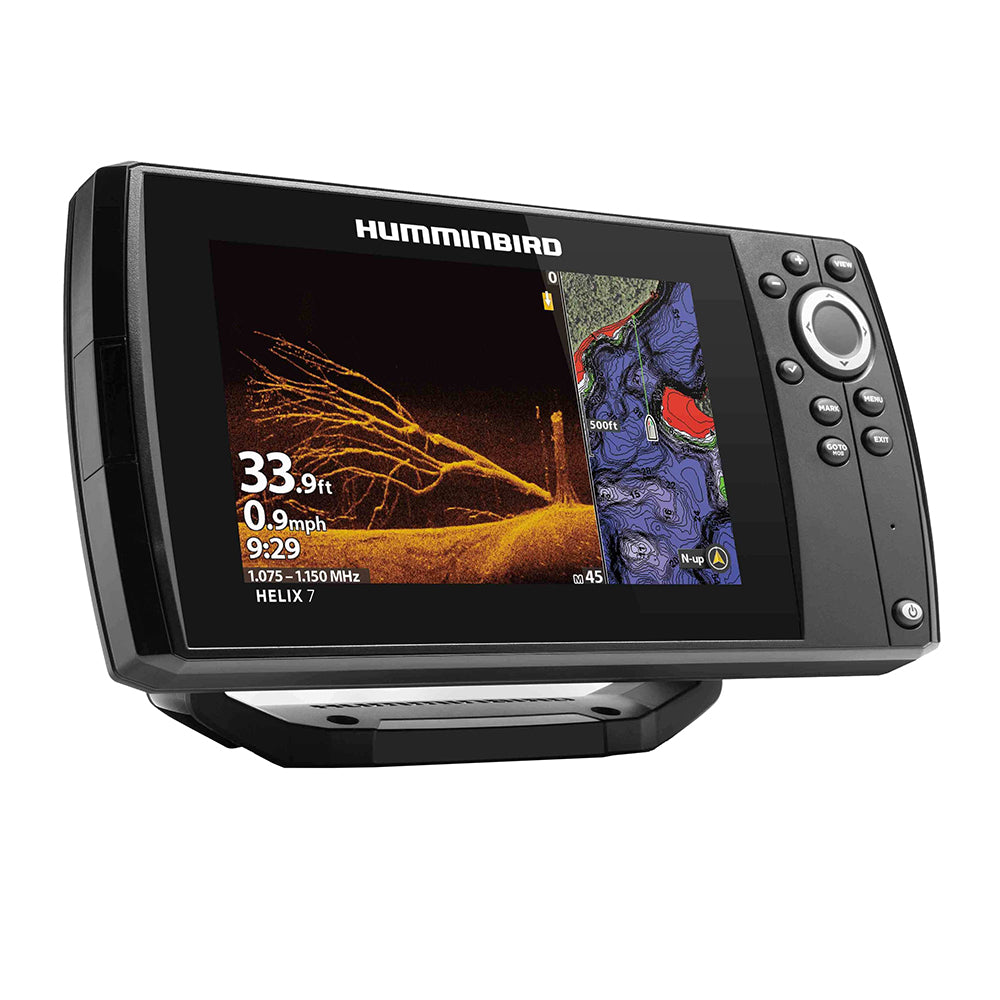

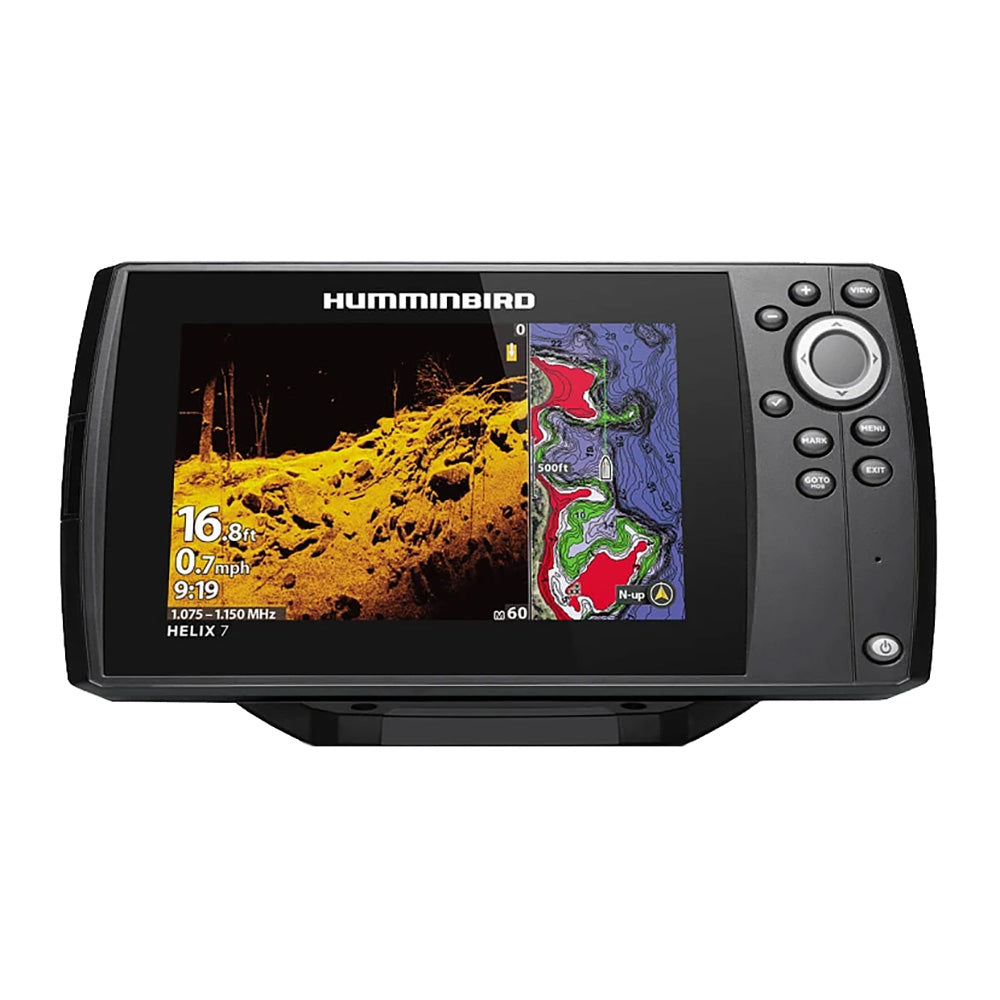

Humminbird - HELIX 7 CHIRP MEGA DI GPS G4 Fish Finder

Experience Superior Fish Finding with Advanced Imaging

The Humminbird HELIX 7 CHIRP MEGA DI GPS G4 is a state-of-the-art fishfinder designed to provide unparalleled clarity and precision. Featuring MEGA Down Imaging, Dual Spectrum CHIRP Sonar, and a host of advanced features, this device delivers crystal-clear underwater visuals and accurate navigation capabilities. Whether you're a seasoned angler or a weekend enthusiast, the HELIX 7 G4 offers a powerful combination of sonar technology and mapping features to enhance your fishing experience.

Comprehensive Underwater Imaging

The MEGA Down Imaging technology takes underwater clarity to the next level, offering up to three times more detail than standard Down Imaging sonar. With coverage reaching depths of up to 125 feet, you can explore underwater structures and fish-holding areas with incredible detail. The Dual Spectrum CHIRP sonar provides highly detailed fish arches and a clear view of the bottom, allowing you to distinguish between different fish species and structures. With two search modes—Wide Mode for broader coverage and Narrow Mode for pinpoint accuracy—you'll always know what's beneath your boat before casting.

Advanced Navigation and Mapping

Equipped with internal GPS and the Humminbird Basemap, the HELIX 7 G4 ensures you navigate confidently. The enhanced basemap includes over 10,000 lake charts and coastal coverage for the continental U.S., detailing underwater terrain and points of interest such as buoys, markers, and hazards. For a more comprehensive view, the device is compatible with premium charts from Humminbird's LakeMaster® and CoastMaster™ products, as well as Navionics® charts. AutoChart Live allows you to create real-time maps of your fishing spots, recording depth contours, bottom hardness, and vegetation.

Key Features

• MEGA Down Imaging: Provides exceptional clarity and detail down to 125 feet, revealing underwater structures with up to 3X more detail than standard imaging.
• Dual Spectrum CHIRP Sonar: Offers detailed fish arches and a clear view of fish-holding structures with two search modes.
• Internal GPS & Humminbird Basemap: Delivers accurate navigation with comprehensive mapping of lakes and coastal areas.
• AutoChart Live: Enables real-time mapping of fishing spots, with built-in recording and support for AutoChart Zero Line SD cards.
• User-Friendly Keypad Control: Easy access to pre-loaded views and features via softkey controls.

Technical Specifications

• Display Size - Diagonal: 7"
• Display Pixel Matrix: 1024H x 600V
• Sonar-Standard: Dual Spectrum CHIRP, MEGA Down Imaging
• Sonar-Coverage: 20°, 42°, 60°, and (2) 86° @ -10dB
• CHIRP Frequencies Supported: 83/200 (75-155/130-250 kHz), Full Mode (150-220 kHz), Narrow Mode (180-240 kHz), Wide Mode (140-200 kHz)
• Sonar-Frequencies Supported: 50/83/200/455/800 kHz & 1.2 MHz
• Depth-Sonar: 1,200 ft (standard transducer), 3,500 ft (optional 50 kHz)

Complete Package for Easy Installation

The HELIX 7 CHIRP MEGA DI GPS G4 comes complete with a control head, transom-mount transducer, power cable, gimbal mounting bracket, and mounting hardware. Its 1-year limited warranty ensures peace of mind, making it a reliable choice for any angler.

Designed for Marine Excellence

Tailored for marine and navy use, this fishfinder offers advanced features that cater to the unique needs of maritime navigation and fishing. Its robust design and comprehensive capabilities make it a top choice for those seeking precision and reliability on the water.

Why Choose the Humminbird HELIX 7 CHIRP MEGA DI GPS G4?

With its advanced sonar technology, detailed mapping, and user-friendly interface, the HELIX 7 CHIRP MEGA DI GPS G4 sets a new standard for fishfinders. Its cutting-edge features provide the tools you need to navigate and fish with confidence, making it an invaluable addition to any marine arsenal. Experience the difference in clarity and control with this exceptional device.
