Imtra Tide PowerLED Downlight with Switch, 10-40VDC, Warm White/Red

Overview

The Imtra ILIM58300 is a Tide PowerLED bi-color LED downlight with a surface-mount base and integrated three-position switch for warm white, off, and red lighting. Operating on 10-40V DC with 3.2W power consumption, it provides two lighting colors in a single fixture for marine interior applications.

The fixture features a white-finished stainless steel bezel, a frosted glass lens, and integrated driver electronics that eliminate the need for a separate remote driver. Its wide-angle illumination and compact surface-mount construction make it suitable for cabin and helm lighting where local control of white and red light is useful. The fixture carries an IP40 rating and requires installation in a location protected from water exposure.

Key features

• 10-40V DC operating range with 3.2W power consumption.

• Warm white and red LED illumination with a built-in White/Off/Red switch.

• 2800K warm white color temperature.

• White-finished stainless steel bezel with a twist-on round design.

• Frosted glass lens with approximately 90-degree beam coverage.

• Surface-mount base measuring 3.70 inches (94 mm) in diameter.

• Integrated current-controlled driver electronics with two-wire power connection.

• IP40 protection against solid objects larger than 1 mm, without water ingress protection.

Installation and electrical connections

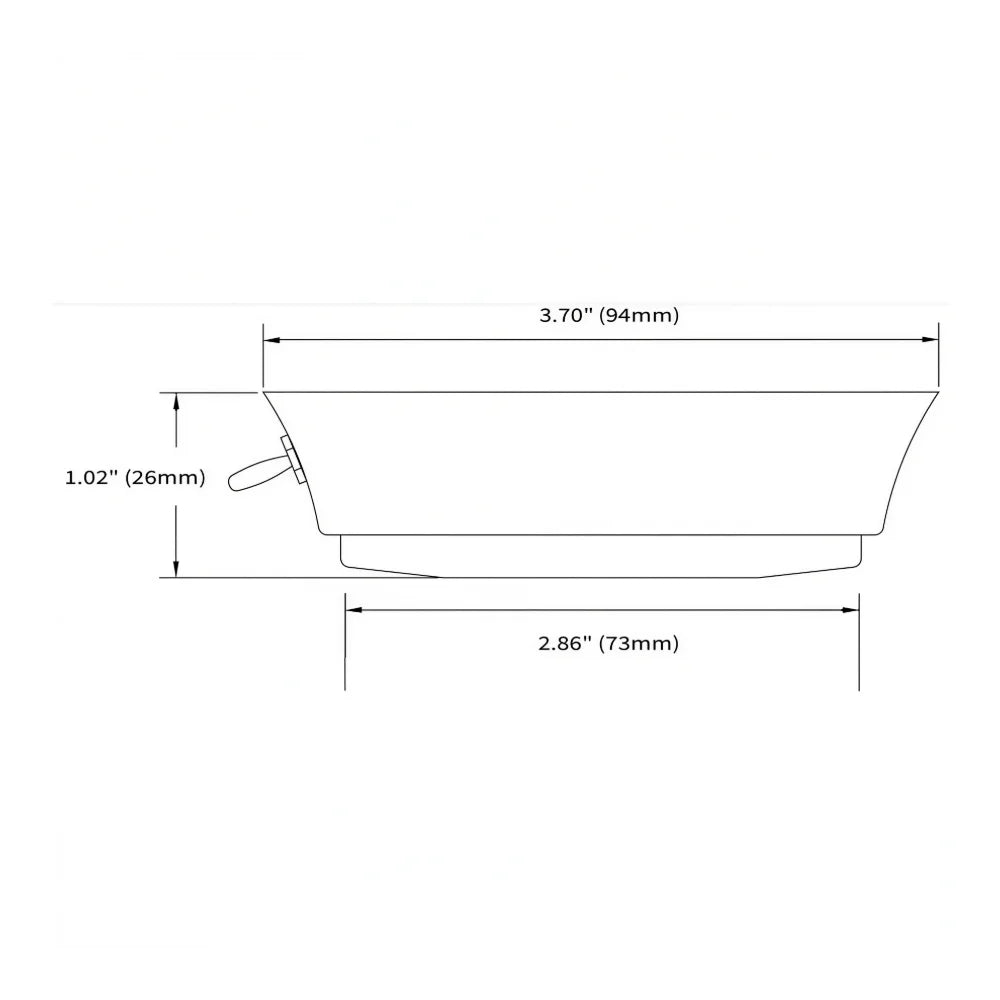

The downlight uses a surface-mount base rather than a recessed ceiling cutout. The mounting base measures 3.70 inches (94 mm) in diameter, with a 2.86-inch (73 mm) trim ring and an exposed height of 1.02 inches (26 mm). These dimensions should be considered when selecting the mounting location and available clearance.

The integrated switch allows direct selection between warm white illumination, off, and red illumination without requiring a separate color-selection switch. The internal driver electronics support connection to the specified DC power supply without an external LED driver.

Compatibility and use

The 10-40V DC input range accommodates compatible onboard DC electrical systems. Warm white output serves general interior illumination, while red output provides an alternative lighting color for helm and cabin areas where reduced white-light exposure is preferred.

Because the fixture is rated IP40, it should be mounted in a dry, protected location rather than an exposed deck or wet area. The rear of the fixture must also remain protected from water, with adequate ventilation around the housing for heat dissipation.
