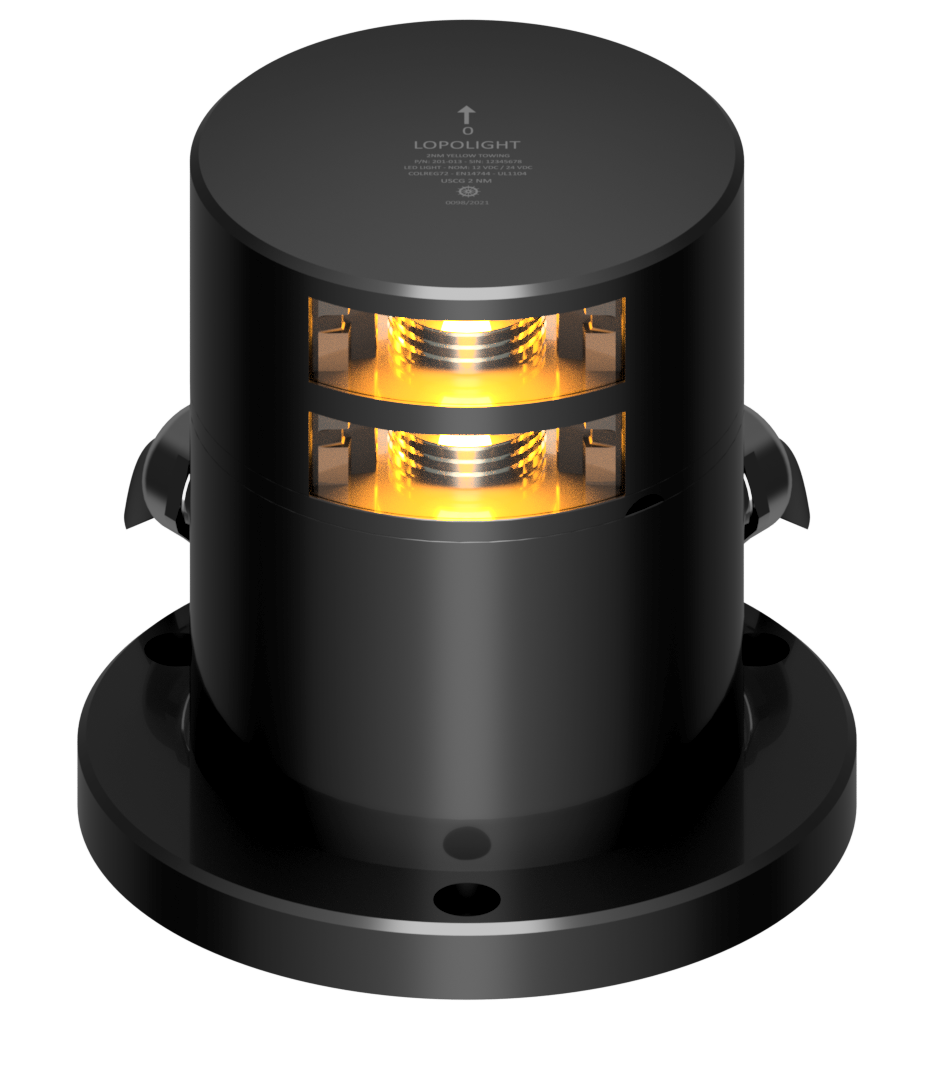

Lopolight PRO Double LED Towing Light, 3nm, 135°, 10-32VDC

Overview

The Lopolight 301-113ST-PRO is a double yellow LED towing navigation light with a 135° visibility arc and a 3 nautical mile range, intended for commercial vessels over 50 meters. Operating on 10-32V DC, it features a black hard-coat anodized aluminum housing, a PMMA lens, and an IP68 protection rating.

The double-light configuration is housed in a horizontally mounted fixture with a 400-037 POM mounting base and an HDPE base plate. Its side cable entry, plug connector, and cable glands accommodate integration into the vessel's navigation lighting system.

Key features

• Double yellow LED towing light with 135° coverage and 3 nautical mile visibility.

• 10-32V DC operating range with 2.2W power consumption.

• IP68-rated construction with black 50-micron hard-coat anodized aluminum housing and PMMA lens.

• Light intensity greater than 15 candela.

• Horizontal mounting with POM base, HDPE base plate, and side cable entry.

• Plug connector with cable glands accommodating cable diameters from 7 to 13 mm.

• Overall dimensions of 92.5 mm diameter x 125.5 mm height (3.6 x 4.9 inches).

• DNV certified, with approvals including COLREG 72, EN 14744, IEC 60945, IACS E10, USCG, ABS, MED, and LR.

Installation and electrical integration

The fixture mounts horizontally using its POM base, with the cable routed through the side entry. The specified minimum feed wire size is 0.5 mm² (AWG 22). Current consumption is 154 mA at 12V DC and 90 mA at 24V DC.

The light operates at temperatures from -25°C to 55°C and is intended for towing navigation light installations on vessels over 50 meters. Its yellow output and 135° coverage correspond to the towing light function, while the double configuration accommodates installations requiring a dual-light assembly.

What's included

• 1 Lopolight double LED towing navigation light

• 2 mounting screws (M6 x 8 mm)

• Installation guide
