Vimar Arké SICURY Universal Socket Outlet, Italian Standard P40, 2P+E, 16A 250V

Overview

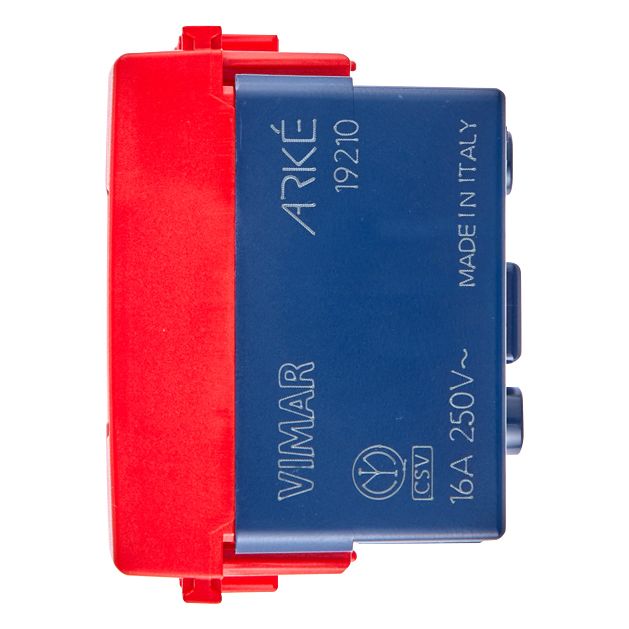

The Vimar Arké 19210 SICURY is a 2-module universal socket outlet range for Italian standard P40 installations. Core versions are rated 16 A at 250 V, use flush mounting, and carry IP20 protection, so they suit dry interior spaces on board rather than exposed or washdown areas. This is an AC mains outlet range, not a 12 V or 24 V accessory socket.

Across the range, the outlet uses SICURY enhanced contact protection and a screwed terminal connection in a thermoplastic body with a matt finish. Standard outlet versions measure 44.8 x 49 x 26 mm, while the USB versions add a USB-C charging output rated 5 V, 3 A, 15 W and increase depth to 52 mm.

Key features

• 2P+E universal socket outlet in Italian standard P40 format, rated 16 A, 250 V, 50/60 Hz

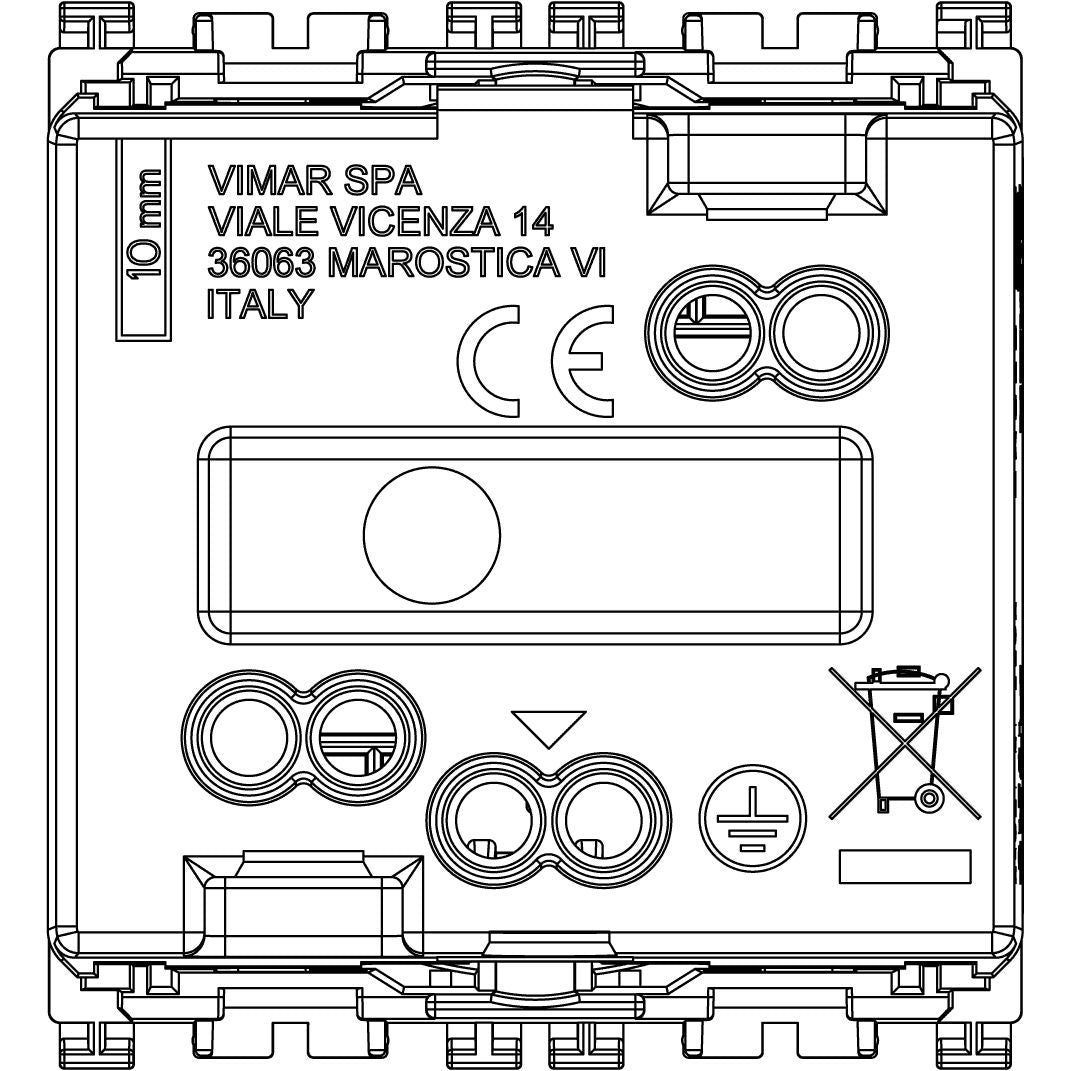

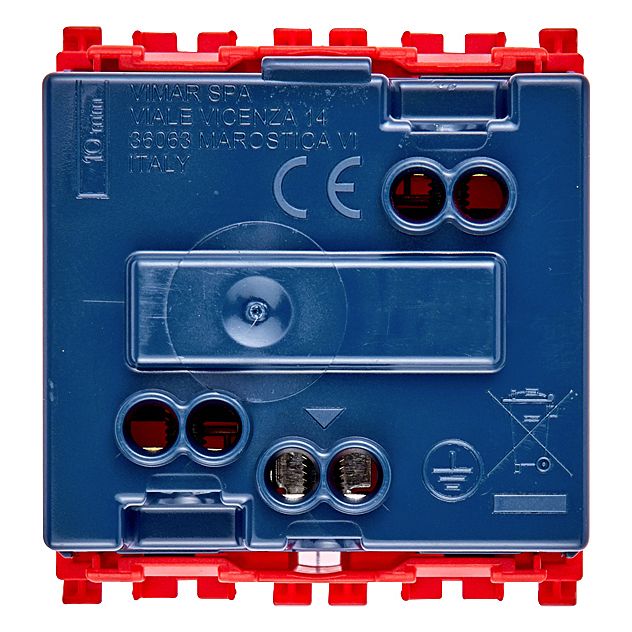

• Flush-mounted 2-module device with screwed terminal connection
• SICURY enhanced contact protection
• Thermoplastic, halogen-free body with matt finish and IP20 protection

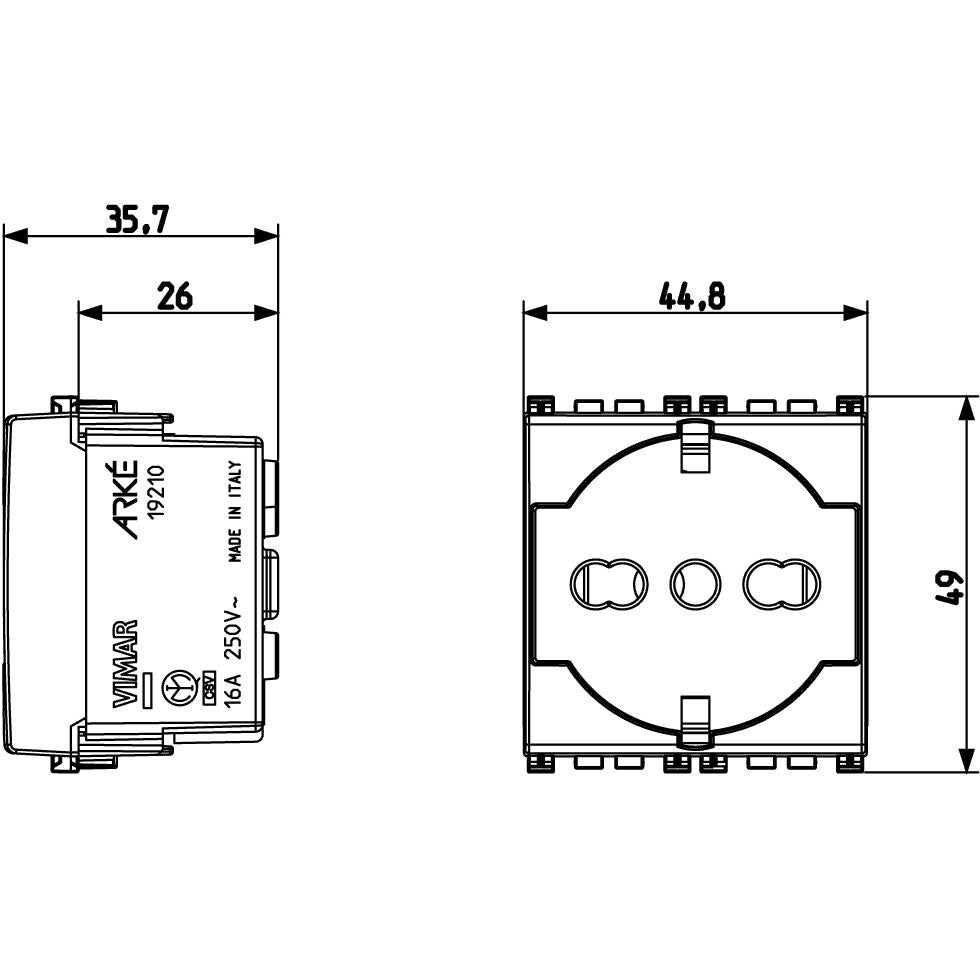

• Standard outlet body size of 44.8 x 49 x 26 mm

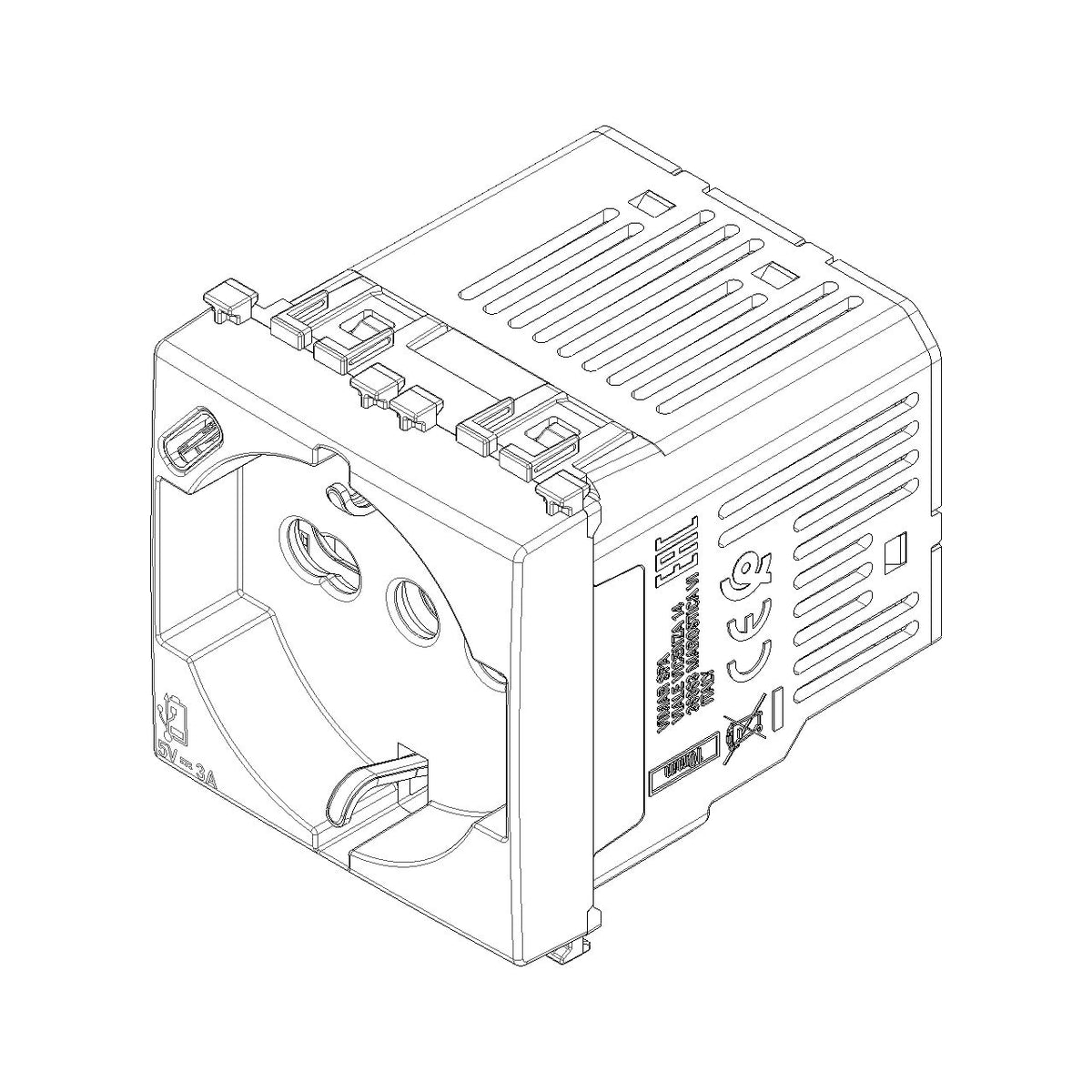

• USB versions add 1 USB-C output rated 5 V, 3 A, 15 W and allow the outlet and USB charger to be used at the same time

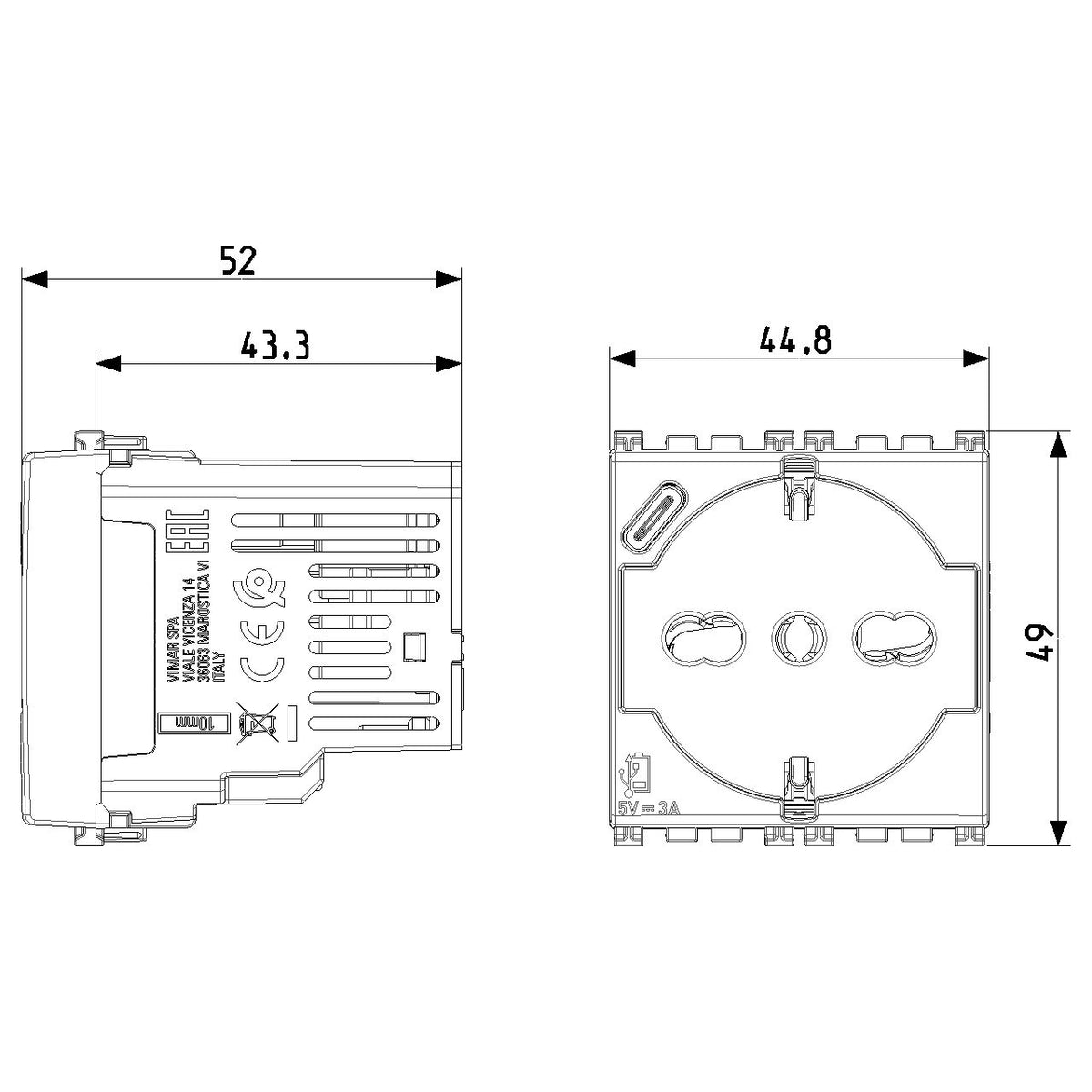

• USB versions measure 44.8 x 49 x 52 mm and require a built-in box depth of at least 48 mm

Variants

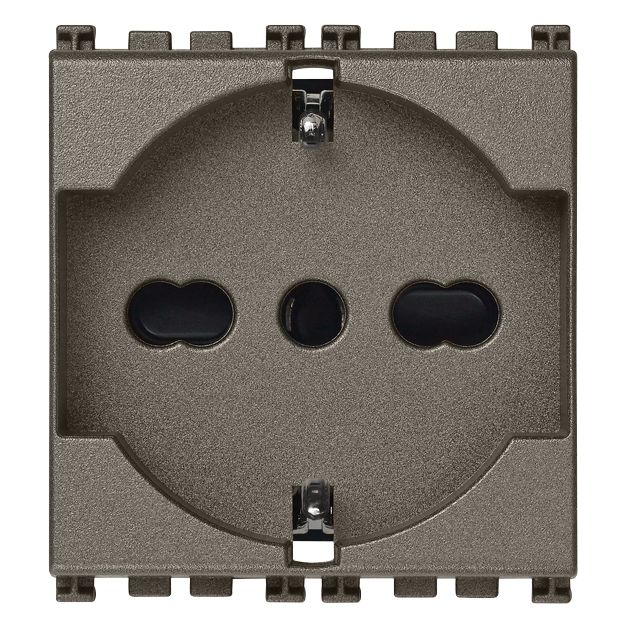

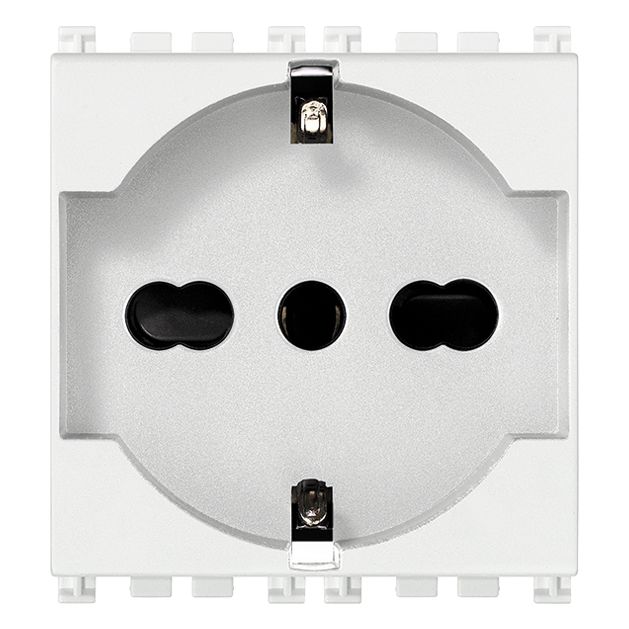

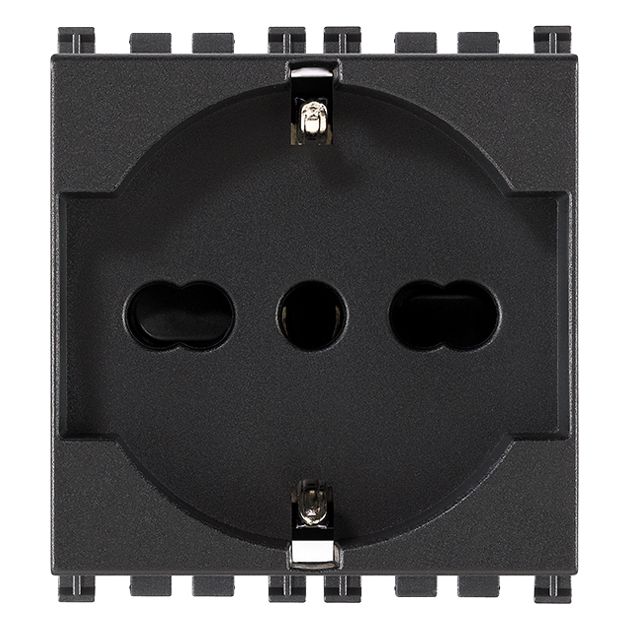

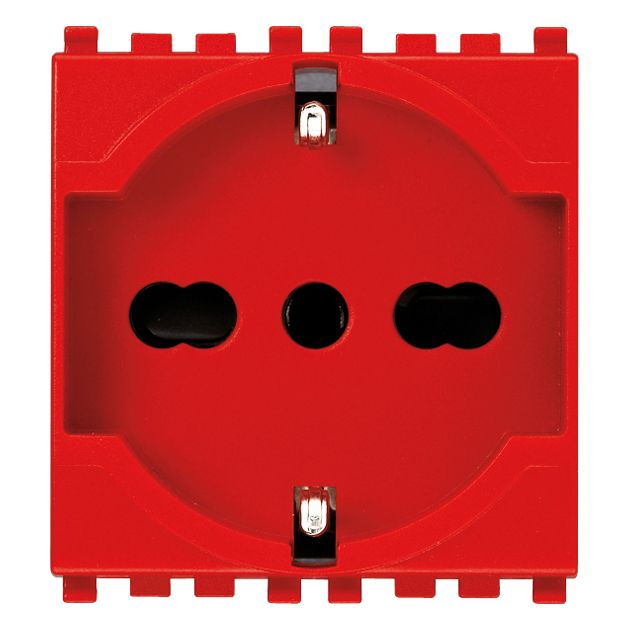

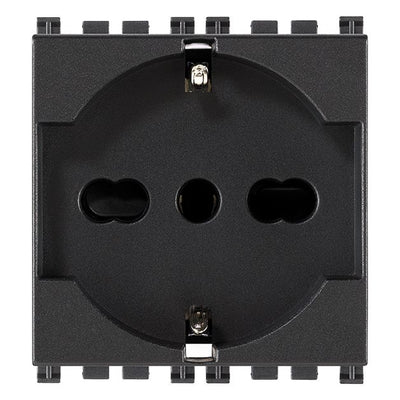

This range changes in three main ways across the listed configurations: face color, antibacterial treatment, and whether a USB charging outlet is built in. The listed colors are gray, white, red, and metal, with antibacterial options shown in gray and white.

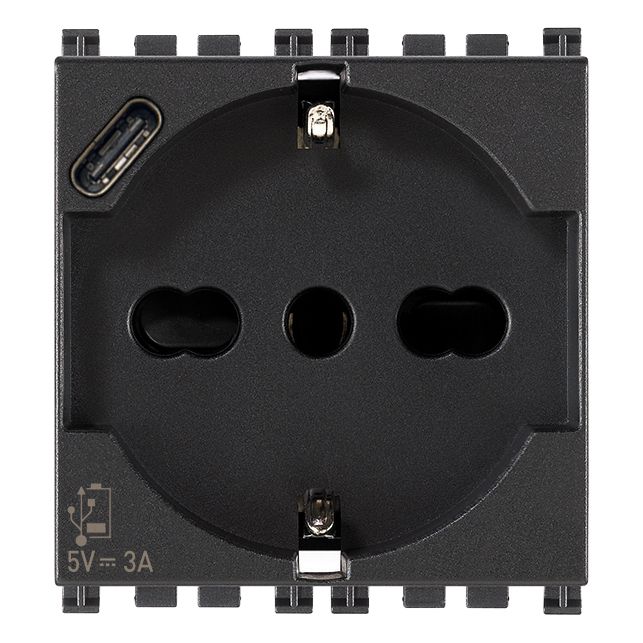

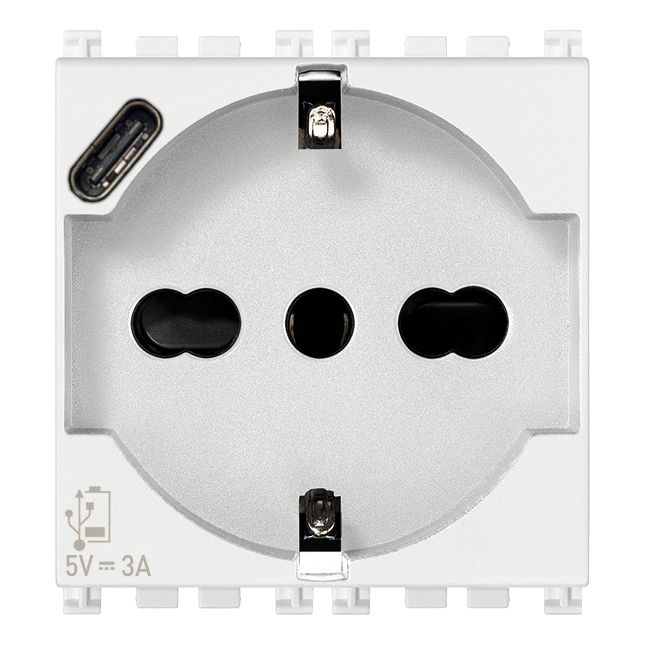

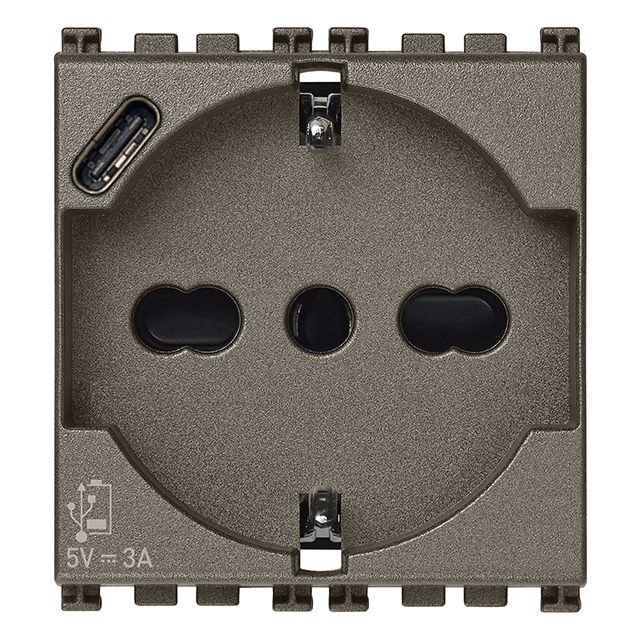

When USB is included, it is a single USB-C output rated 5 V, 3 A, 15 W. The outlet format stays within the same Arké 2-module SICURY family, so the practical difference between versions is finish, hygiene option, and whether a nearby charging point is integrated into the socket.

Electrical and system integration

This range belongs on 250 V AC circuits where the vessel uses Italian pattern modular devices. It works well in protected cabin spaces such as a saloon, galley, berth area, or chart table where a flush outlet is needed and the installation is kept dry.

USB-C versions make more sense where phones, handheld electronics, or small personal devices are charged routinely. The non-USB versions keep the same outlet function in a shallower body, which can matter when back-box space is limited behind interior panels.

Installation and fit

Check mounting depth before ordering, especially if you are comparing the standard outlet with the USB-C versions. The standard device is much shallower, while the USB version needs more room behind the face and calls for a built-in box depth of at least 48 mm.

Because this is a flush-mounted IP20 device, it is better suited to finished interior joinery than locations exposed to spray, damp washdowns, or open weather. For marine refits, it is a good match for boats that already use Italian style AC fittings and want a clean built-in outlet in the Arké format.
