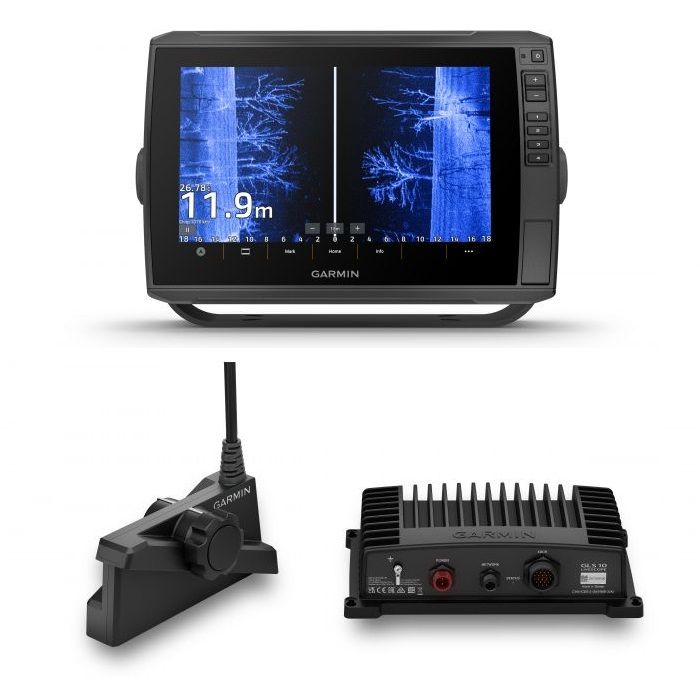

Garmin ECHOMAP Ultra 2 102sv 10 in Chartplotter/Fishfinder Bundle, LiveScope Plus System, GLS 10 Sonar Black Box, LVS34 Transducer, GT56UHD-TM Transducer

Overview

The Garmin 010-02879-01/LIVESCOPE is a 10 in chartplotter and fishfinder bundle that pairs an ECHOMAP Ultra 2 102sv display with a GT56UHD-TM transom-mount transducer and LiveScope Plus live-scanning sonar. It is built for anglers who want charting and multiple sonar views on one screen, with wiring and ports that fit common small-boat and mid-size fishing setups.

The display runs a WXGA IPS touchscreen at 1280 x 800 and uses keyed assist for quick zoom and menu work with wet hands. It is rated IPX7 and measures 11.6 x 7.7 x 3.9 in, which helps when you are checking dash space for a bail mount or a flush install.

Power input is 9 to 18 Vdc with typical current draw of 2.3 A at 12 V (up to 5.0 A max). Built-in sonar output is 600 W with CHIRP traditional sonar plus ClearVü and SideVü scanning, and the unit supports both NMEA 2000 and NMEA 0183 for tying into existing marine electronics.

Key features

• 10 in touchscreen (8.5 x 5.4 in viewable area) with 1280 x 800 WXGA IPS display and keyed assist controls
• IPX7 water rating for rain, spray, and routine washdowns
• 9 to 18 Vdc input (fits 12 V systems) with 2.3 A typical draw at 12 V and 5.0 A maximum draw
• Built-in 600 W sonar with single-channel CHIRP traditional sonar plus ClearVü and SideVü scanning (260/455/800/1000/1200 kHz)
• GT56UHD-TM transom-mount transducer included for CHIRP traditional sonar and ultra high-definition scanning views
• LiveScope Plus included in the bundle for live-scanning sonar on the same display
• Networking and integration: 1 NMEA 2000 port, NMEA 0183 support, 2 Garmin Marine Network ports, Wi-Fi and ANT+
• Two microSD card slots for chart cards, updates, and extra storage

What’s included

• ECHOMAP Ultra 2 102sv
• Power/data cable
• Bail mount with quick release cradle
• Protective sun cover
• GT56UHD-TM transducer
• Hardware
• Documentation
• LiveScope Plus

Installation and setup

You can mount the display with the included bail bracket when you want quick removal at the end of the day, or flush mount it for a cleaner helm. Leave room behind the unit for cable bend radius and strain relief so connectors are not taking the load in chop.

The GT56UHD-TM is a transom-mount transducer. It works best when it stays in clean water flow, away from steps, strakes, and trailer bunks that can aerate the face. After your first run, a small height or angle adjustment can make a big difference in how well side and down views hold bottom at speed.

Electrical and system integration

This unit is meant for 9 to 18 Vdc power, which matches a 12 V electronics bus. If your boat is primarily 24 V, plan on a regulated step-down converter so the display sees the correct voltage range. Typical draw at 12 V is 2.3 A, with up to 5.0 A maximum draw, so it helps to run it on a clean circuit with proper protection and solid grounds.

For networking, there is a NMEA 2000 port and NMEA 0183 support for bringing in data from compatible devices on board. Two Garmin Marine Network ports are available for wired expansion, and Wi-Fi can share sonar, waypoints, and routes with compatible displays using a one-to-one wireless connection. LiveScope sonar data cannot be shared wirelessly between two ECHOMAP Ultra 2 or ECHOMAP UHD2 units.

Maps and storage

Two microSD card slots give you room for chart cards and updates without constantly swapping media. The unit supports BlueChart g3 and g3 Vision, LakeVü g3 and g3 Ultra, Garmin Navionics+ and Garmin Navionics Vision+, plus TOPO 100K mapping. It can also store up to 5,000 waypoints, 50,000 track points, 50 saved tracks, and 100 routes.

This bundle is a good match for bass boats, bay boats, and multi-species rigs where you want a 10 in display at the bow or helm and you plan to use live-scanning sonar alongside traditional and scanning views. It also fits mixed freshwater and coastal use when you want the flexibility to add the charting that matches where you run.
