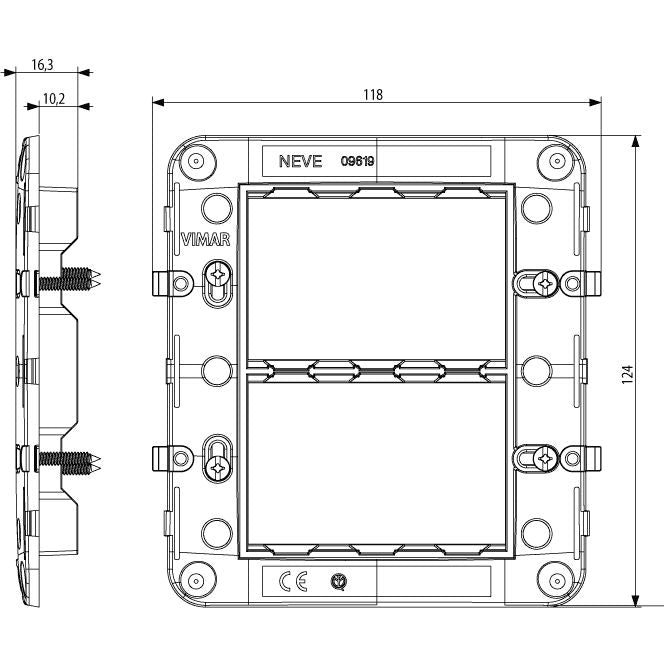

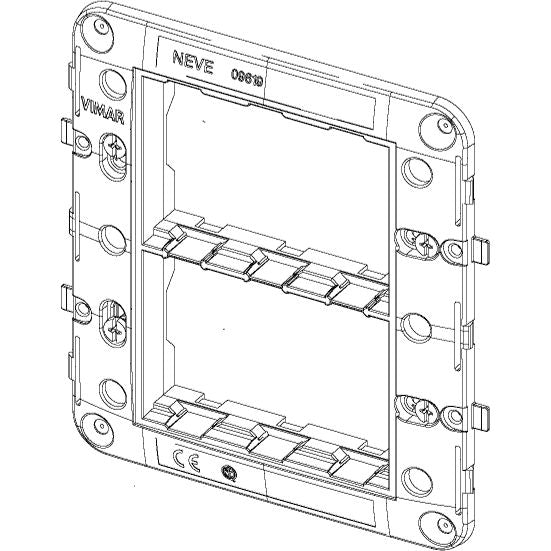

Vimar Neve Up 6-Module (3+3) Mounting Frame, For 09996 Flush-Mount Box, With Screws

Overview

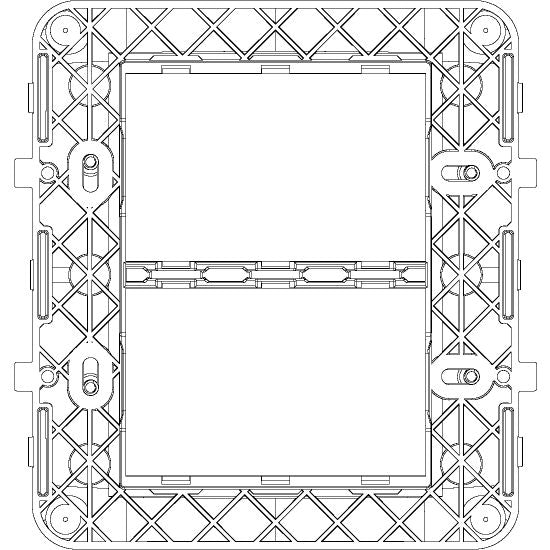

The Vimar VM09619 is a 4x4 in mounting frame that supports a 6-module (3+3) Neve Up layout when paired with a Vimar 09996 flush mounting box.

It mounts with screws, accepts module inserts from the front side, and can be installed in either horizontal or vertical orientation. The frame itself is thermoplastic, and it does not include a built-in installation box.

Key features

• 6-module mounting frame in a 3+3 arrangement (3 modules wide by 2 modules high)
• 4x4 in format for use with Vimar 09996 flush mounting boxes
• Can be mounted horizontally or vertically to match the panel layout
• Front-side installation for the module inserts
• Screw-mounted frame, supplied with screws
• Thermoplastic construction
• No built-in installation box included
• Not suitable for round 60 mm junction boxes

Installation and setup

Install the 09996 flush box first, then fasten the frame to the box with the included screws. Choose the orientation that matches your cutout and labeling, then load the Neve Up module inserts from the front side before finishing with the appropriate cover frame and faceplates for your build.

On a boat, it helps to use a solid backing surface behind thin liners so the assembly stays tight when the hull flexes and hardware sees vibration.

Compatibility and fit

This frame is for Neve Up modular assemblies that use a 6-module (3+3) format and the matching 09996 flush mounting box. If you are replacing an existing support, confirm the box style and the module grid (3 across by 2 high) so the cover frame and mechanisms line up cleanly.

Use on board

This is a good match for builds using Vimar Neve Up switching devices in cabin panels, nav stations, or helm consoles where you want a flush installation with a consistent module grid.
