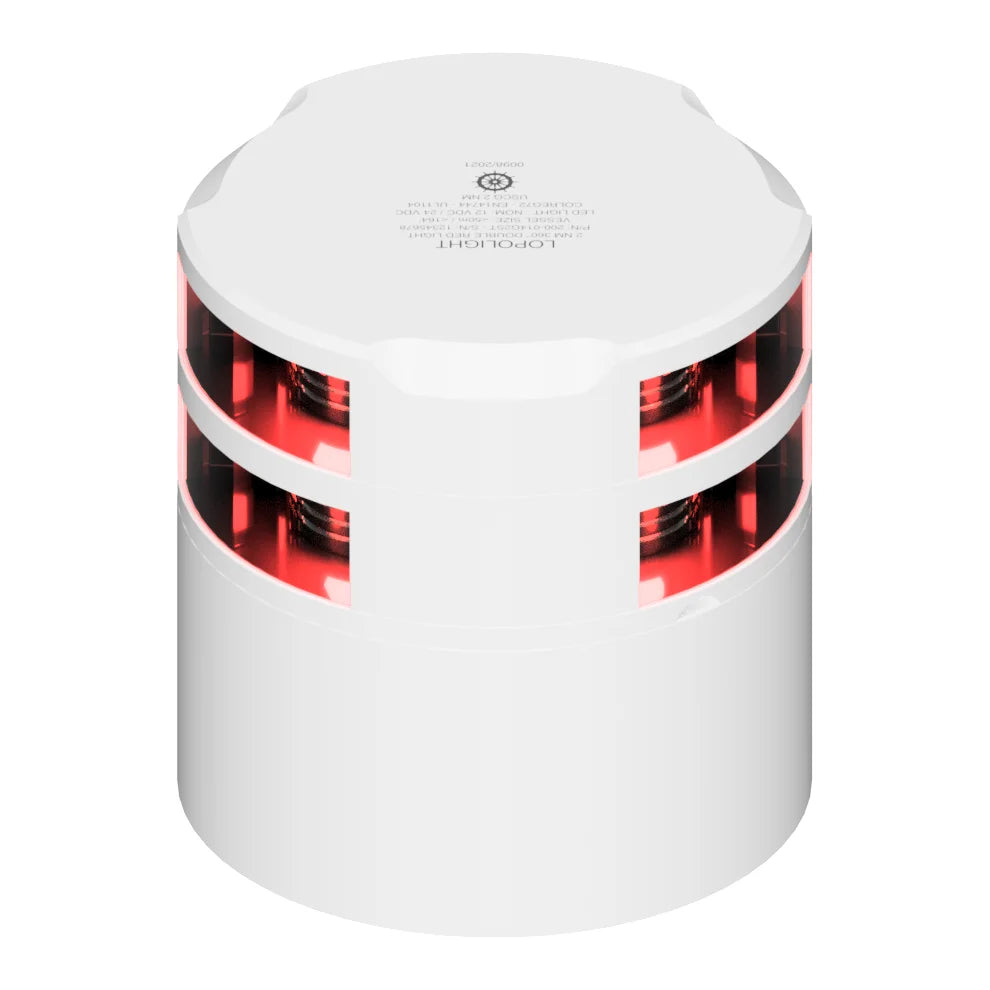

Lopolight Double Red LED Navigation Light, 360°, 2 NM, White Ceramic Finish

Overview

The Lopolight 201-014ST-WH is a double red LED navigation light with 360° all-round illumination and a visibility range of 2 nautical miles. Its double configuration provides redundancy within a single fixture, while its 10-32V DC operating range supports common marine electrical systems with a 4W power draw.

The fixture features a white ceramic-coated aluminum housing, a PMMA lens, and an IP68 protection rating. It is configured for horizontal mounting with downward cable routing and is suitable for vessels up to 50 meters in length. The light is Wheelmarked with DNV certification and meets COLREG 72 requirements.

Key features

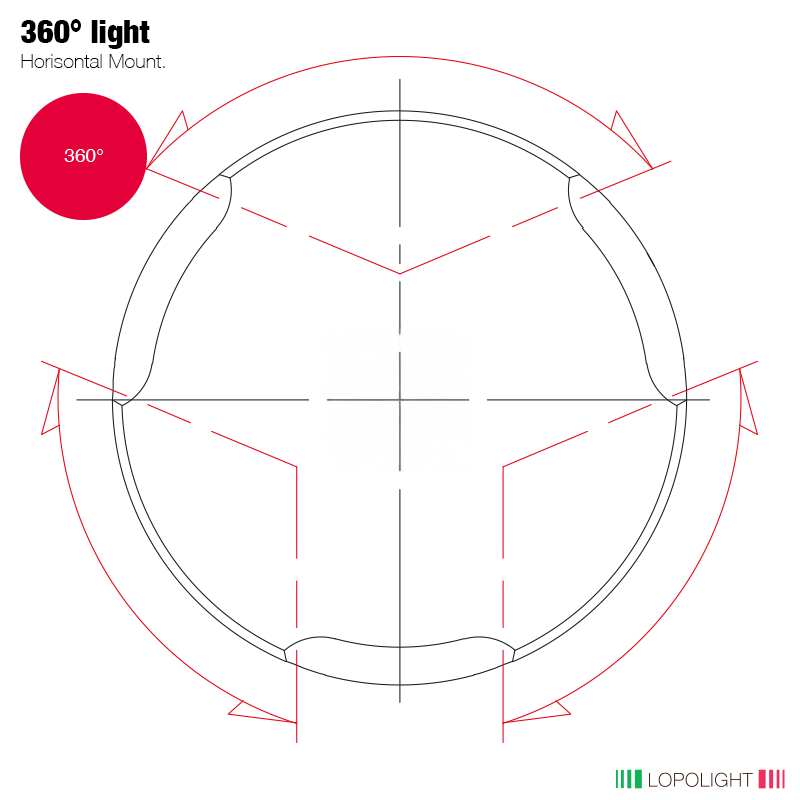

• Double red LED configuration with 360° all-round light coverage.

• 2 nautical mile visibility range with luminous intensity greater than 5.4 cd.

• 10-32V DC operating voltage and 4W power consumption.

• IP68 protection rating for exposure to marine environments.

• White ceramic-coated aluminum construction with a PMMA lens and A4 stainless steel screws.

• Horizontal mounting configuration with downward-only cable routing and a plug connector.

• Overall dimensions of approximately 3.6 in diameter and 3.8 in height.

• Wheelmarked with DNV certification and approved to COLREG 72, EN 14744, and IEC 60945 standards.

Installation and fit

This navigation light mounts horizontally using its white aluminum mounting base. The downward cable exit must be accommodated by the installation surface, and the plug connector provides the electrical connection. The fixture is compatible with 12V and 24V DC marine electrical systems within its specified 10-32V operating range.

A black PE baseplate is supplied as standard, while a white ceramic-coated baseplate is available as an optional alternative. The compact circular housing accommodates installations requiring a red all-round navigation signal with a double-light configuration.

What's included

• One Lopolight double red LED navigation light with white ceramic-coated housing and white aluminum mounting base.

• Black PE baseplate.
