Lopolight Double Red LED Navigation Light, 2nm, 360°, 10-32VDC

Overview

This Lopolight double red LED navigation light delivers 360° all-round red illumination with a 2 nautical mile visibility rating. Operating on 10-32V DC, the fixture features a double-light configuration, IP68 protection, and an aluminum base for marine installations.

The unit measures 92.5 mm in diameter by 96.5 mm in height and features an anodized aluminum housing, PMMA lens, and plug connector. Its horizontal mounting arrangement includes downward cable routing through M16 glands. Silver and black anodized finishes are available without changes to the light's optical or electrical specifications.

Key features

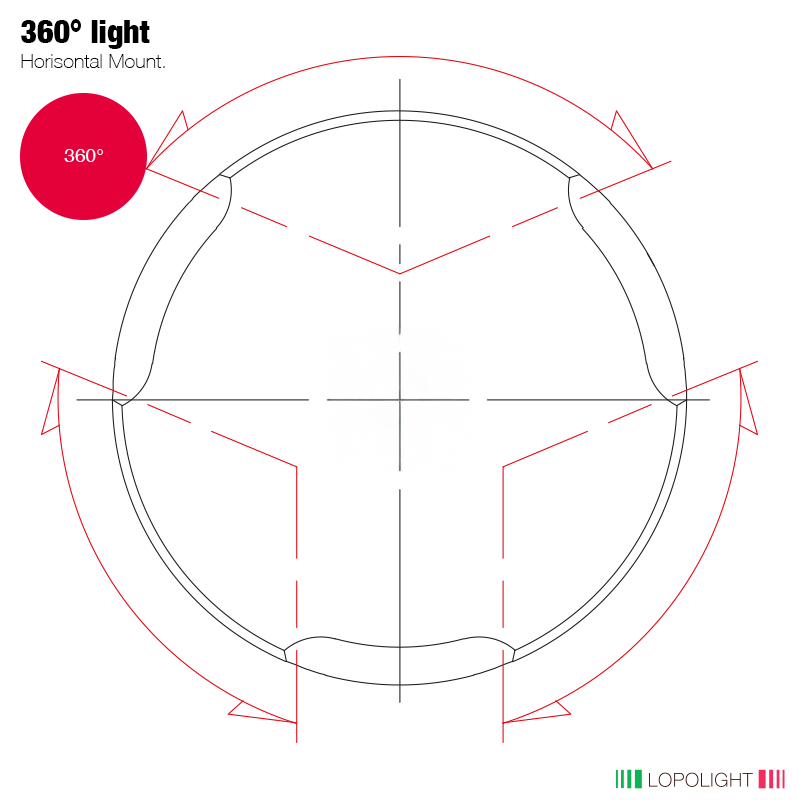

• Double red LED navigation light with 360° visibility and a 2 nautical mile range.

• 10-32V DC operating voltage, drawing 150 mA at 12V DC and 85 mA at 24V DC.

• IP68-rated construction with an anodized aluminum housing, PMMA lens, and A4 stainless steel screws.

• Horizontal mounting with an aluminum base, plug connector, and cable-down M16 glands.

• Compact dimensions of 92.5 mm diameter by 96.5 mm height (3.6 x 3.8 in).

• DNV-certified navigation light with approvals including COLREG 72, EN14744, IEC 60945, USCG, ABS, and MED.

Variants

This navigation light is available in two anodized finishes, allowing the exterior appearance to match different vessel installations.

Both configurations share the same double-light arrangement, red light output, 2 nautical mile visibility, electrical specifications, dimensions, IP68 rating, and connector-based horizontal mounting system.

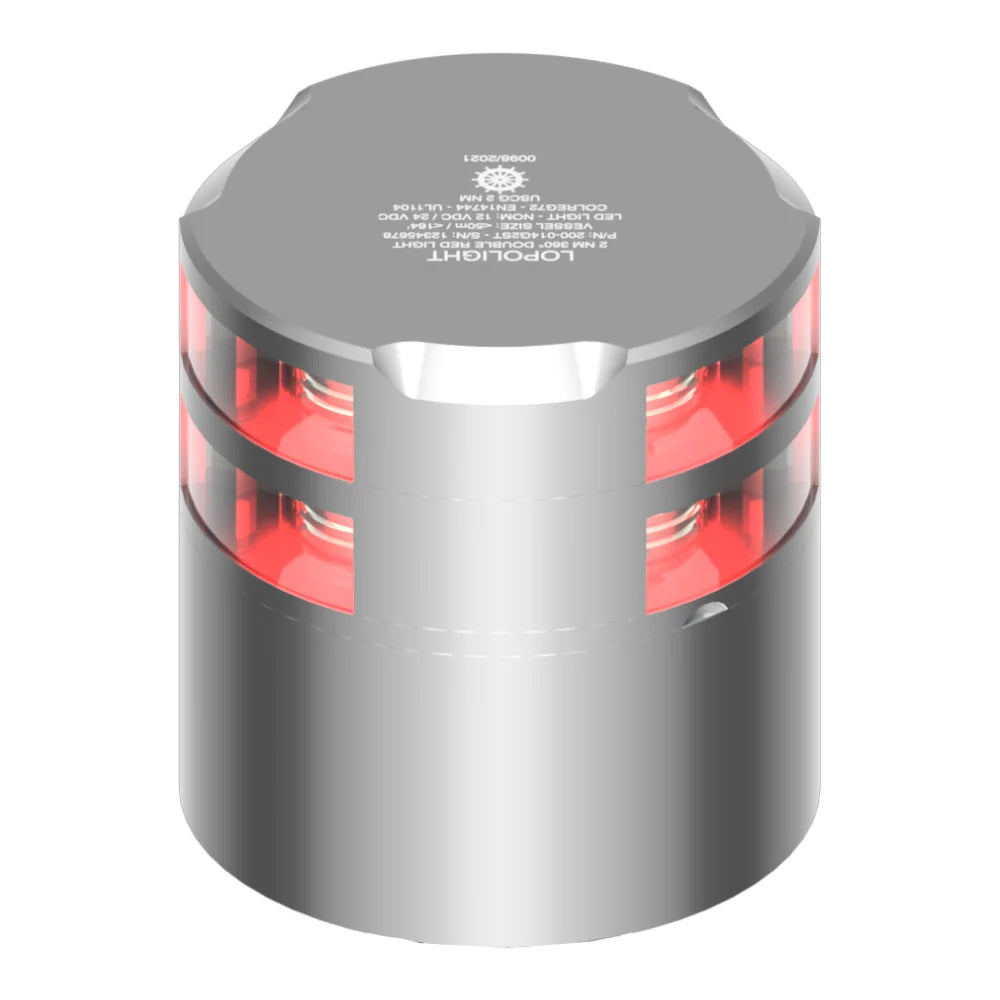

• 201-014ST-CD: Silver finish. Features a silver-anodized aluminum housing with a matching aluminum base.

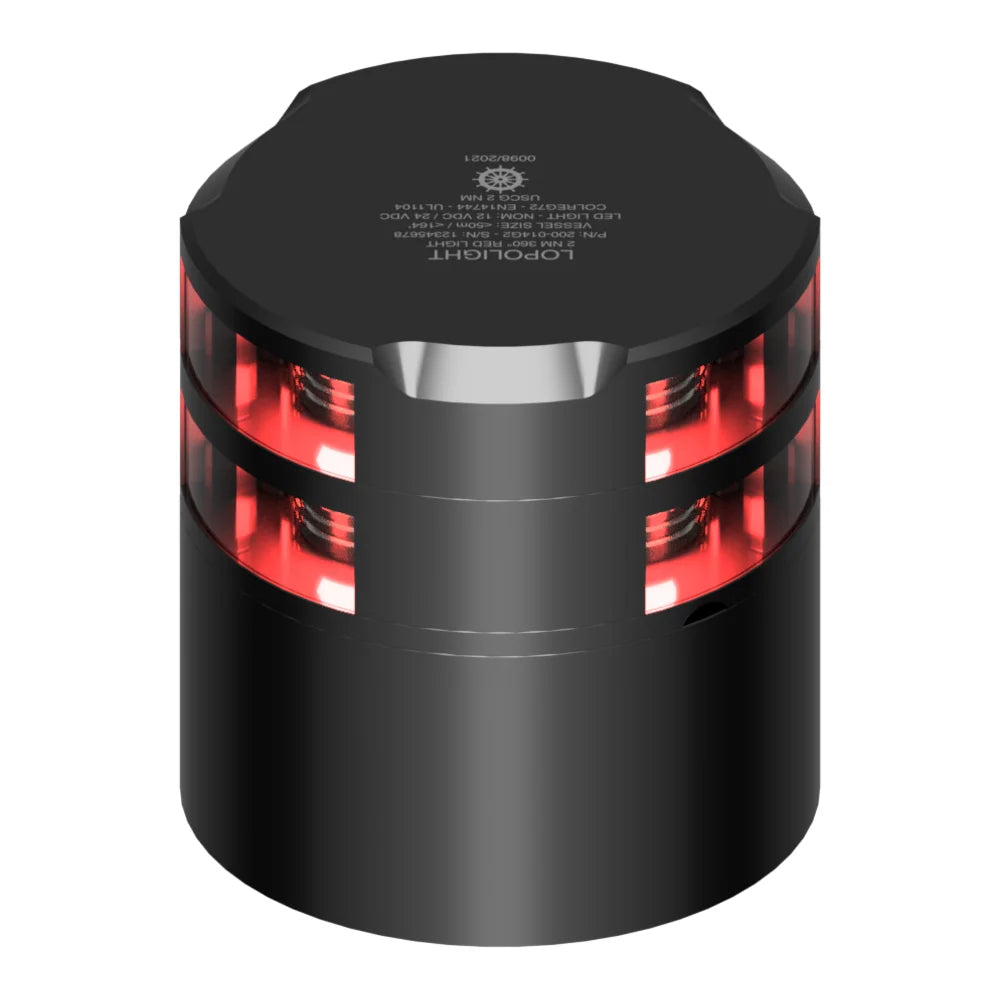

• 201-014ST-B-CD: Black finish. Features a black-anodized aluminum housing with a matching aluminum base.

Installation and fit

The fixture mounts horizontally and uses cable-down M16 glands for electrical cable routing beneath the aluminum base. Its plug connection and 10-32V DC operating range are important considerations when integrating it into an existing navigation lighting circuit. The 92.5 mm diameter and 96.5 mm overall height should be considered when checking available mounting space and clearance.

What's included

• 1 double red LED navigation light in the selected finish.
