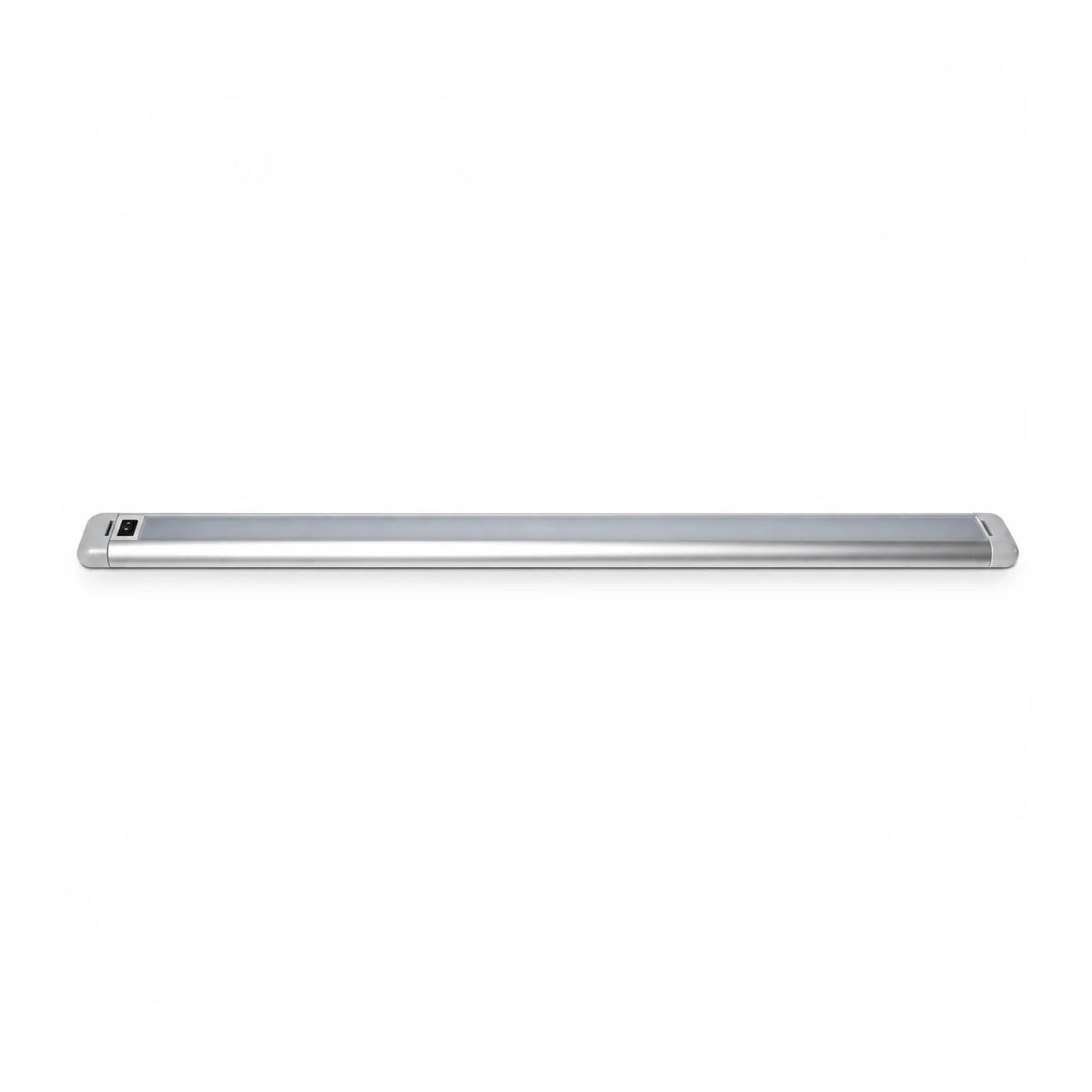

Imtra F-120.2 Linear LED Utility Light, 12/24VDC, 648mm, 14W

Overview

The Imtra F-120.2 is a 648mm linear LED utility light for surface-mounted illumination in protected marine interior spaces. Operating on 12V or 24V DC electrical systems, the fixture consumes 14W and delivers 1,000 lumens of light output, making it suitable for onboard utility areas, machinery spaces, and general interior lighting.

Its slim-profile construction combines an anodized aluminum housing with polycarbonate components and a grey finish. The IP50 protection rating is intended for sheltered installations, while the dual-voltage circuitry automatically accommodates either supported DC supply voltage.

Key features

• 12/24VDC dual-voltage operation with automatic voltage adaptation.

• 14W LED illumination with 1,000-lumen output.

• 648mm length and 47mm width for linear surface-mounted installations.

• IP50 ingress protection for protected interior locations.

• Anodized aluminum and polycarbonate construction with a grey housing finish.

• Screw-mounted design for fixed installation.

• Non-dimmable LED operation.

Variants

The F-120.2 is available in four configurations distinguished by LED output color and the presence of an integrated switch.

All configurations share the same housing dimensions, electrical requirements, power consumption, and IP50 rating. Cool White and Warm White refer to the emitted light color, while the integrated switch option determines whether the fixture can be controlled directly at the light.

• IL1363: Cool White Light, No Integrated Switch. Provides cool white illumination for installations using separate switching controls.

• IL1364: Cool White Light, Integrated Switch. Combines cool white illumination with direct on-fixture switching.

• IL1365: Warm White Light, No Integrated Switch. Provides warm white illumination for installations using separate switching controls.

• IL1366: Warm White Light, Integrated Switch. Combines warm white illumination with direct on-fixture switching.

Installation and electrical connections

The fixture mounts to a suitable interior surface using screws and connects to a 12V or 24V DC supply. Its dual-voltage circuitry accommodates both supported electrical systems without requiring separate voltage-specific fixture versions.

Models without an integrated switch require an external switching arrangement for local or centralized lighting control. Because the IP50 rating does not provide water ingress protection, installation locations should be protected from spray, washdown, and direct moisture exposure.
