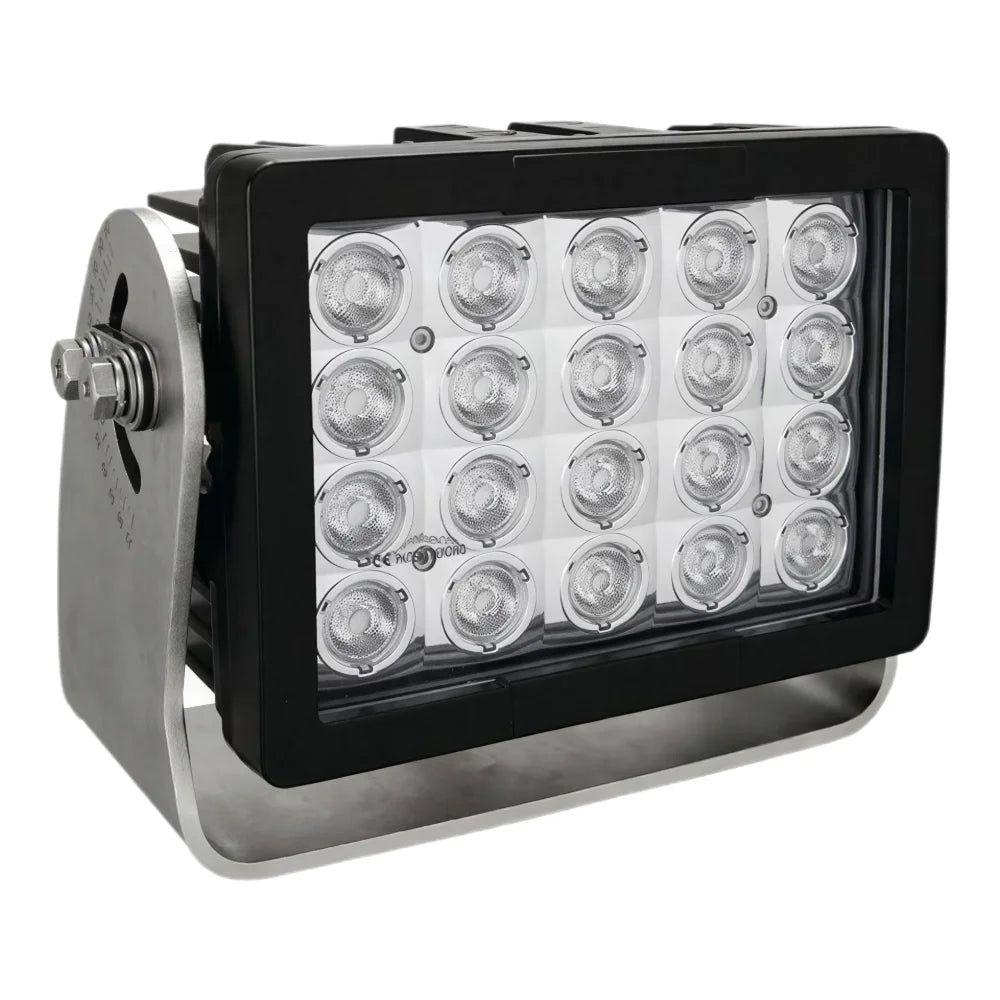

Imtra Offshore 20-LED Deck Light, 11-65VDC, 140W, 25° Beam

Overview

The Imtra Offshore 20-LED Marine Deck Light is a 140W exterior lighting fixture operating on 11-65VDC marine electrical systems. Its 20 LEDs produce 11,270 effective lumens of 5700K cool white light through a 25° beam, providing concentrated illumination for deck and work areas. The fixture carries IP68 and IP69K ingress protection ratings for exposure to water and high-pressure washdowns.

The black powder-coated die-cast aluminum housing incorporates a polycarbonate lens and a 304 stainless steel mounting bracket. Corrosion-resistant construction, EMC shielding, and transient voltage suppression help protect the light in demanding marine environments.

Key features

• 140W LED output with 11,270 effective lumens and 17,600 raw lumens.

• 11-65VDC input range for compatible DC electrical systems.

• 25° beam angle with 5700K cool white illumination.

• IP68/IP69K protection against water ingress and high-pressure spray.

• Black powder-coated aluminum housing with a polycarbonate lens.

• 304 stainless steel adjustable mounting bracket with aiming marks.

• CISPR 25 Class 1 electromagnetic interference protection.

• 6 ft, 16 AWG duplex marine cable for electrical connection.

Installation and setup

The adjustable bracket allows the fixture to be aimed after mounting. Installation requires approximately 25 mm of clearance around the housing for heat dissipation, and flush mounting is not permitted. The supplied duplex cable connects the red conductor to DC positive and the black conductor to negative. A waterproof cable gland and drip loop are recommended where the wiring enters the vessel.

The fixture supports 12V and 24V DC installations within its rated input range, although 24V operation is recommended for this 20-LED model. Installation should be performed by a qualified marine electrician using appropriate circuit protection and wiring practices.

What's included

• 1 Offshore 20-LED light fixture with mounting bracket installed.

• 2 M12 hex-head mounting bolts.

• 2 metal washers.

• 2 nylon locking nuts.

• 2 isolating polycarbonate spacer kits.
