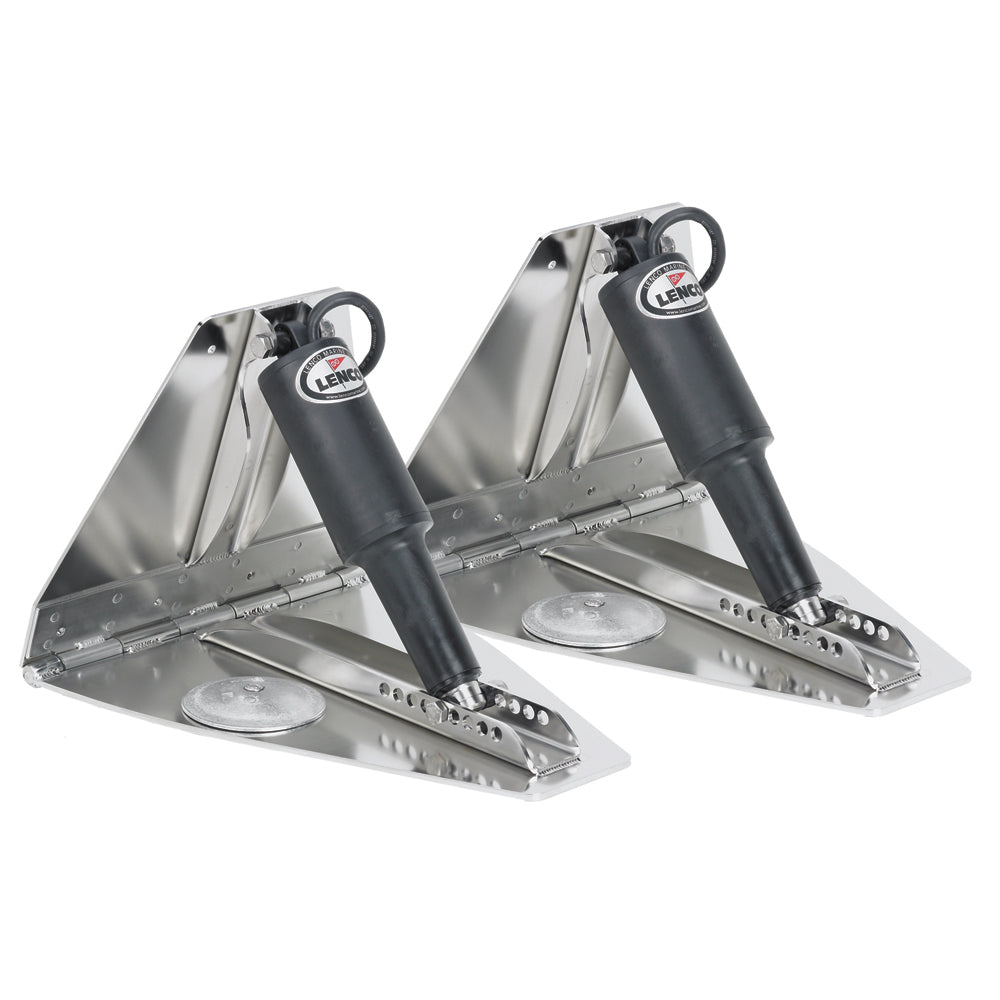

Lenco Marine - High Performance Trim Tab Kit - With Switch Kit 12V

Elevate Your Boating Experience with Lenco 14" x 12" High Performance Trim Tabs

Experience the ultimate in marine control and stability with Lenco's 14" x 12" High Performance Trim Tab Kit. Designed for avid boaters and marine enthusiasts, these trim tabs deliver precise adjustments and enhanced performance, ensuring a smoother, faster, and safer ride. Perfectly crafted for boats ranging from 16' to 32', these trim tabs are essential for optimizing your boating experience.

General Description

Lenco's High Performance Trim Tabs are engineered to provide unparalleled control and efficiency. Featuring electro-polished 7-gauge stainless steel blades and extreme duty actuators, this kit is built to withstand the harshest marine environments. The fast-response electric actuators are fully submersible and equipped with plug & play waterproof Deutsch connections, ensuring reliability and ease of installation.

Key Features

• Precise Control: Fast response electric actuators for optimal performance.
• Durable Construction: Electro-polished 7-gauge stainless steel blades with 3/8" stainless steel bolts.
• Corrosion Resistance: Made with high-quality materials to withstand harsh marine conditions.
• Plug & Play: Fully submersible Deutsch connections for easy installation.
• User-Friendly Design: Self-contained, sealed keypad and control box (sold separately) for hassle-free operation.

Technical Specifications

• Actuator Voltage: 12V
• Blade Material: 7-Gauge 304 Stainless Steel
• Blade Finish: Electro-Polished
• Hinge Pin Diameter: 3/8"
• Mounting Hardware: Stainless Steel (supplied by customer)
• Suggested Boat Length: 16' to 32'
• Switch Kit: Sold Separately
• Class: Fuel Efficient
• Compliance: CE Certified
• Compatibility: Any Boat
• Switch Required: 10222-211D, 15069-001, or 15070-001

Product Dimensions

• Length of Tab: 14"
• Width of Tab: 12"
• Minimum Transom Height: 10.5"

Kit Contents

• 2 stainless steel trim tab planes
• 2 #15056-001 XD extreme duty actuators with 6' lead and Deutsch plugs
• Full transom back plate
• Mechanical strain relief cable seal
• Adjustable C-channel mounting brackets
• 3.75" sacrificial anodes

Additional Information

Customer-Supplied Items:

• Boat mounting hardware
• Actuator extension harnesses (2 for single actuator application or 4 for dual) will be required. To order the lengths of your choice, see the Lenco Accessories Section.

Important Safety Information

This product contains chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.

Manufacturer's Note

Please note that this product cannot be returned to the original point of purchase. For any issues or concerns, contact the manufacturer directly for assistance and support.

Variations List

• 15048-101: Size 14" x 12"
• 15049-101: Size 18" x 12"
• 15050-101: Size 21" x 14"
• 15051-101: Size 25" x 14"

Upgrade your marine experience with the Lenco 14" x 12" High Performance Trim Tab Kit. Designed to provide superior control, enhanced safety, and improved efficiency, these trim tabs are the perfect addition to any boat, ensuring a smoother and more enjoyable ride in any conditions.
