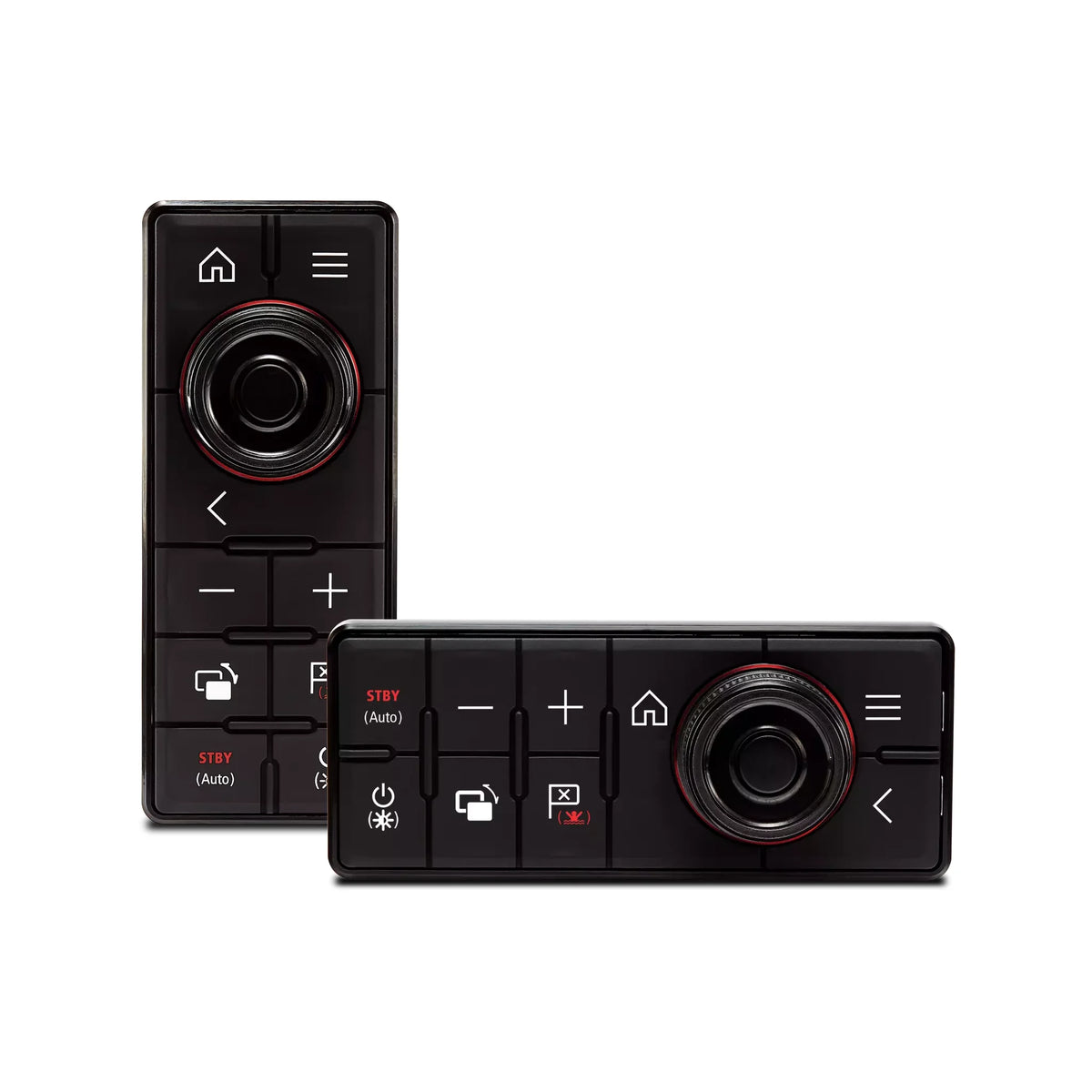

Raymarine RMK-10 Wired Remote Keypad, For MFDs, 12/24V, IPX6, RayNet, Surface/Flush Mount

Overview

The Raymarine T70293 is an RMK-10 wired remote keypad for controlling compatible Raymarine chartplotters and multifunction displays from a helm position, overhead electronics box, or another station where the display is not easy to reach. It gives the operator physical keys, a rotary controller, and an integrated cursor pad, which is useful when touch control is awkward in rain, spray, cold weather, or while the boat is moving.

This keypad can be powered through PoE at 48 V DC or by alternate 12 / 24 V DC power, with an alternate operating range of 9 V to 32 V DC. Power consumption is up to 4 W with full keypad illumination, and the housing carries IPx6 and IPx7 waterproof ratings for exposed helm and cockpit installations.

Connection is handled through RayNet Ethernet networking, with one RayNet 10/100 Mb/s connector and a separate SeaTalkng-style power connector for alternate power. The unit can be surface mounted or flush mounted, and it includes both landscape and portrait keypad mats so the control layout can match the available panel space.

Key features

• Wired RMK-10 keypad for remote control of Raymarine Axiom chartplotters and compatible Raymarine multifunction display systems.
• Fully backlit keys for home, menu, zoom, window control, waypoint management, power, brightness, and Evolution autopilot control.
• Rotary controller with an integrated cursor pad gives precise menu and chart control without relying only on a touchscreen.
• RayNet Ethernet connection supports control of one display or multiple displays mounted at the same helm location.
• PoE Class 1 support, with 48 V DC PoE input or 12 / 24 V DC alternate power for flexible system wiring.
• Operating range of 44 V to 57 V DC on PoE power and 9 V to 32 V DC on alternate power.
• IPx6 and IPx7 waterproof ratings suit installations where the keypad may see spray, washdowns, or an open helm environment.
• Surface or flush mounting gives the installer options for console panels, overhead boxes, helm seats, and secondary stations.
• Landscape and portrait keypad mats are included so the same unit can be fitted horizontally or vertically.

Installation and setup

The RMK-10 works well where the display is mounted beyond arm’s reach, such as an overhead electronics pod, a wide dash, a flybridge console, or a protected navigation station below deck. The wired connection keeps control consistent and avoids the battery management concerns of a handheld remote.

For a clean installation, plan the mounting position around cable routing, panel thickness, reach from the helm seat, and how the landscape or portrait keypad mat will be read in normal use. Flush mounting gives the panel a low-profile look, while surface mounting can be useful where cutting the console is not practical.

Electrical and network integration

The keypad connects into the Raymarine system through RayNet Ethernet. When used with multiple displays at the same station, it can move control across the display group, which is helpful on larger helms with separate chart, radar, sonar, or camera screens.

Power can be supplied through PoE when the network hardware supports it, or through the separate alternate power connection on 12 V or 24 V DC systems. The 9 V to 32 V DC alternate power range gives installers room for normal voltage variation on small and mid-size marine electrical systems.

Use cases on board

This keypad is a practical match for cruising boats, offshore fishing boats, sailboats, and larger helm layouts where the main display is not always within comfortable reach. It is also useful when the crew wants physical control during wet conditions, rough water, or night operation, since the backlit keys and rotary controller are easier to use by feel than a touchscreen alone.

What’s included

• RMK-10 keypad
• Landscape keypad mat
• Portrait keypad mat fitted to the unit
• Mounting gasket
• Mounting fixings x4
• Right angled power cable, 2 m (6.6 ft.)
• RayNet network cable, 2 m (6.6 ft.)
• Documentation
