Lopolight Double 360° White and 135° Red Suez Stop Light, 3nm

Overview

This Lopolight LED navigation and Suez Stop light combines a double 360° white navigation light with a 135° red Suez Stop signal in one fixture, each rated for 3 nautical miles of visibility. Intended for vessels over 50 meters, it operates on 10-32V DC and carries an IP68 protection rating.

The fixture mounts horizontally on a 400-035 aluminum base with a downward cable exit and plug connector. Its combined configuration accommodates both all-round white navigation lighting and the directional red signal used for Suez Canal operations. Silver and black finish options are available to suit different vessel installations.

Key features

• Combined light configuration: Double 360° white navigation light and 135° red Suez Stop signal, each rated for 3nm visibility.

• Electrical compatibility: 10-32V DC operating range, with current consumption of 270mA at 12V DC and 176mA at 24V DC.

• Ingress protection: IP68-rated fixture for marine installations.

• Mounting configuration: Horizontal installation on a 400-035 aluminum base with downward cable routing.

• Electrical connection: Plug connector and cable gland accommodating cable diameters from 7-13mm.

• Regulatory compliance: DNV-certified navigation light with listed approvals including COLREG 72, EN 14744, IEC 60945, IACS E10, USCG, ABS, MED, DNV, and LR.

• Operating temperature: -25°C to 55°C.

Variants

This combined navigation and Suez Stop light is available in two finish configurations for different installation appearances.

Both versions retain the same double 360° white and 135° red lighting configuration, 3nm visibility rating, electrical operating range, IP68 protection, and horizontal mounting arrangement. The distinguishing option is the exterior finish.

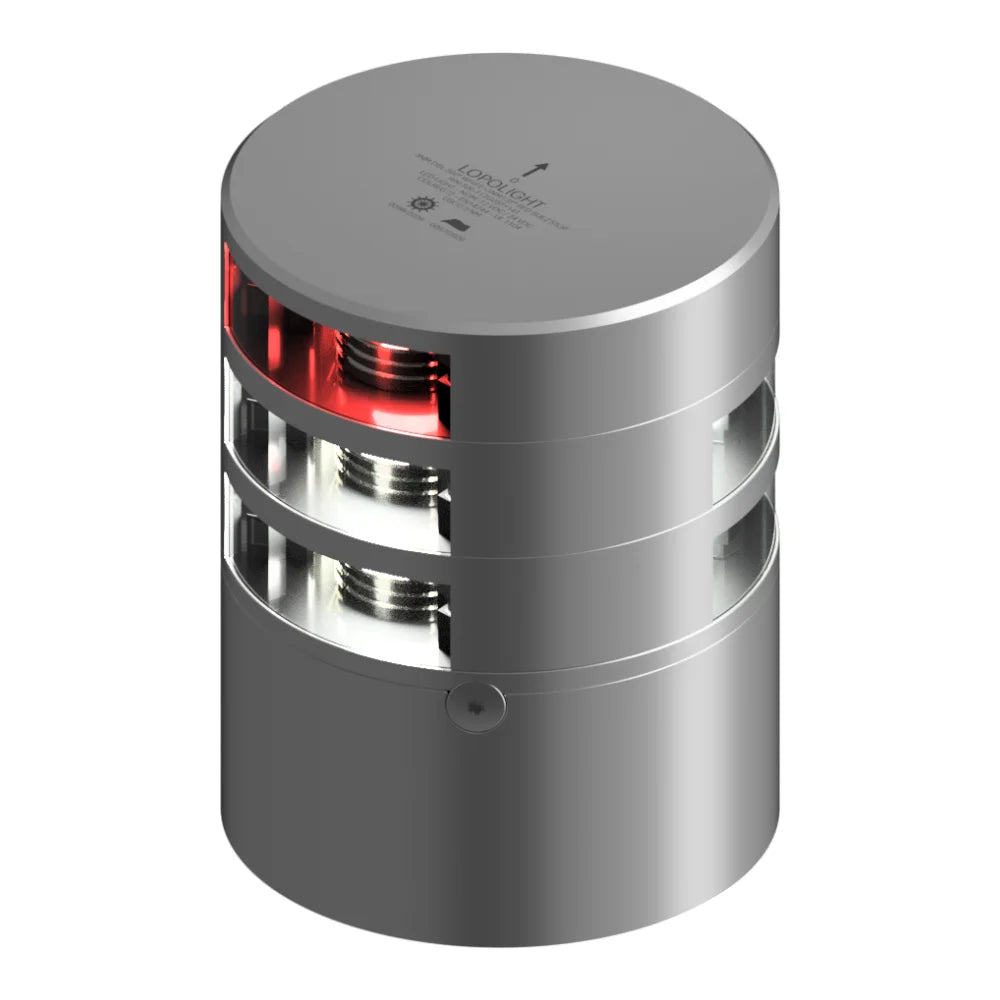

• 300-112G2ST+141-CD - Silver finish: Silver anodized aluminum exterior for installations requiring a metallic fixture appearance.

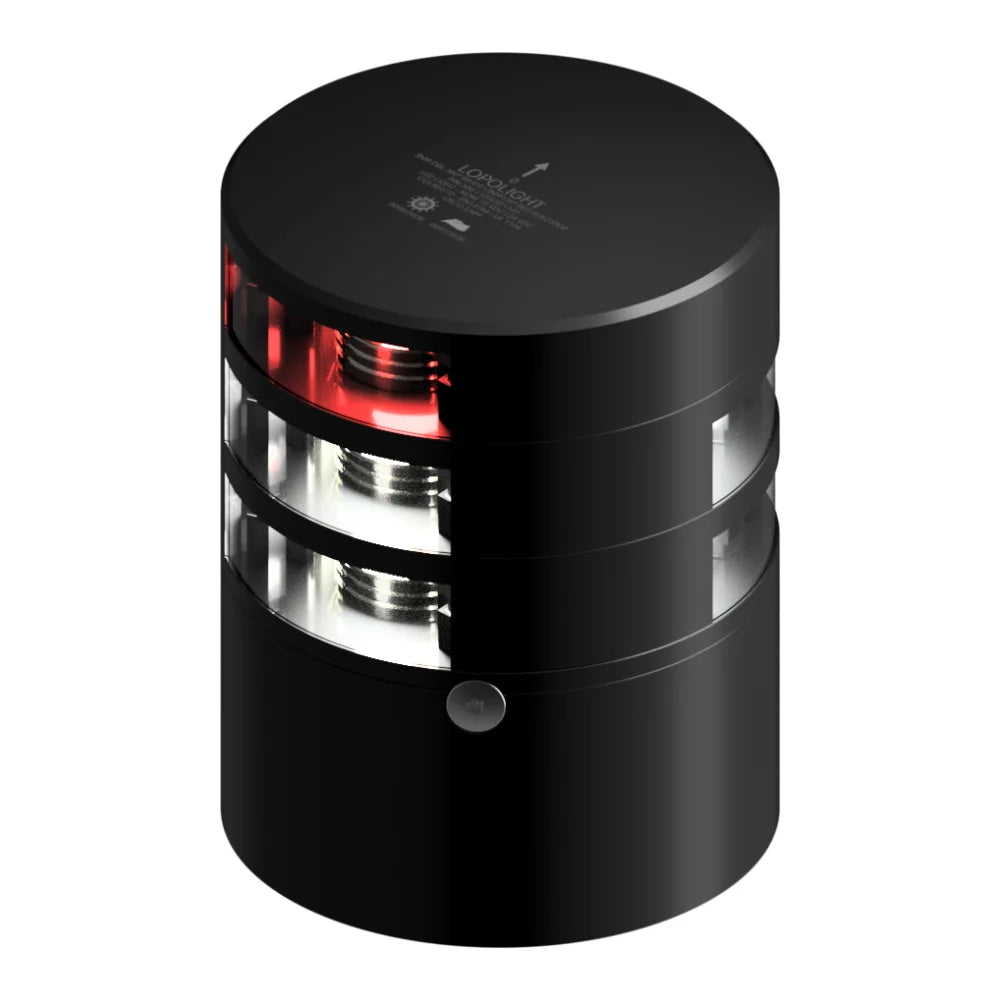

• 300-112G2ST+141-B-CD - Black finish: Black exterior for installations where a darker fixture appearance is preferred.

Installation and setup

The light is configured for horizontal mounting with the cable routed downward through the mounting arrangement. The 400-035 aluminum base and included HDPE base plate form part of the installation assembly. The cable gland accommodates cable diameters between 7mm and 13mm, allowing the electrical entry to be matched to the selected cable size.

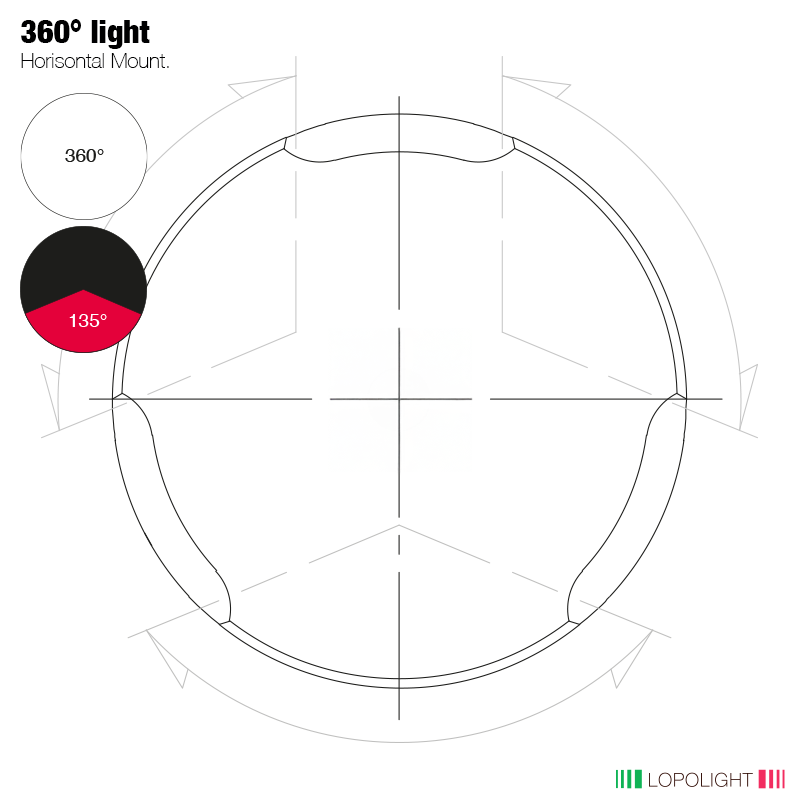

Its 10-32V DC operating range supports compatible vessel electrical systems. Installation planning should account for the required 360° white light visibility and the specified 135° red signal orientation, along with the applicable navigation lighting requirements for the vessel.

What's included

• Combined LED navigation and Suez Stop light fixture

• HDPE base plate

• Cable gland for 7-13mm cable diameter
