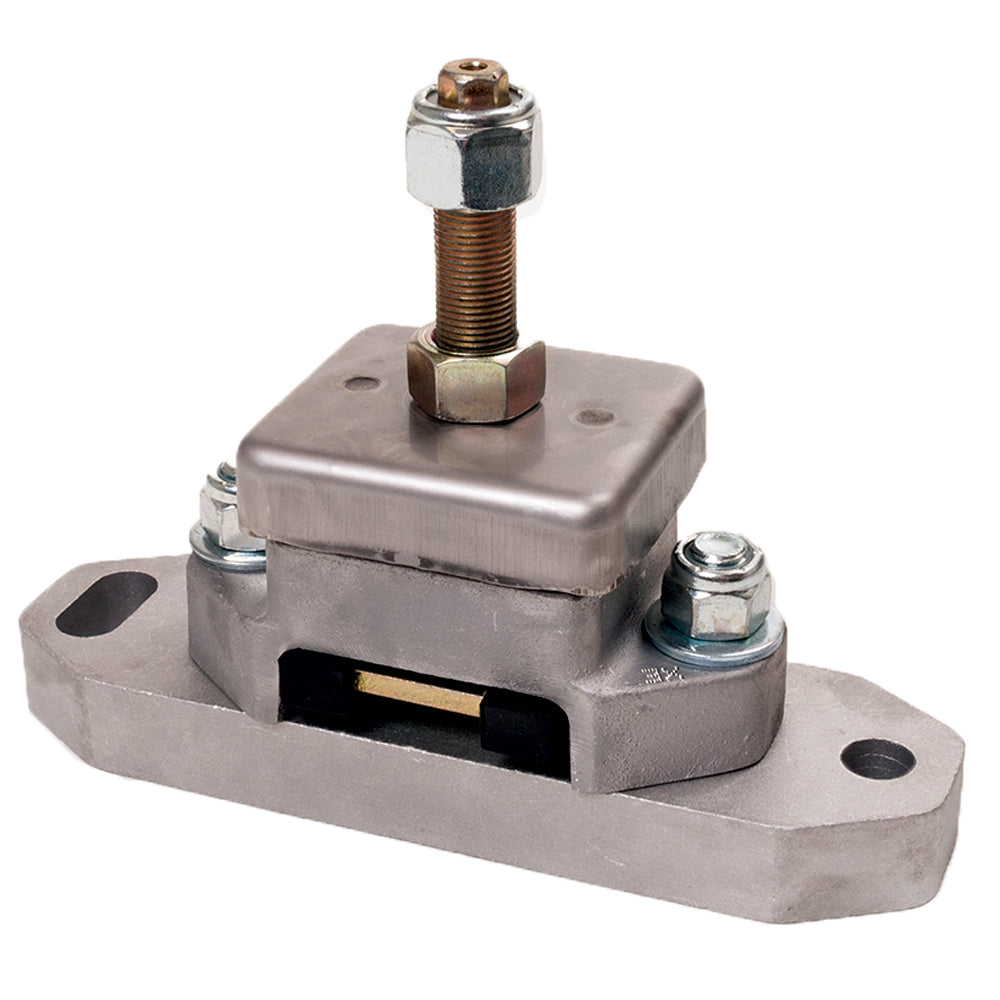

R & D Marine - Engine Mount Yanmar

Optimize Your Yanmar Engine Stability: R & D Marine Engine Mounts

Engineered for Yanmar Excellence: Elevate the performance and longevity of your Yanmar 1GM, 2GM, 3GM, 3YM, 3HM, and 3JH series engines with R & D Marine Engine Mounts. These mounts, featuring a 6.85" footprint and a 5/8" stud, are specifically designed to accommodate capacities ranging from 50-175lbs per mount. Ideal for marine environments, they expertly absorb both forward and reverse propeller thrust while isolating drivetrain vibrations, ensuring smooth sailing and enhanced engine protection. Zinc-plated and pasivated steel parts offer superior corrosion resistance, while a petroleum-resistant oil shield safeguards the rubber components. Preloaded to minimize engine movement and adjustable for ease of installation, these mounts are indispensable for any Yanmar engine setup.

• Perfect for Yanmar marine engine series, ensuring compatibility and enhanced performance.
• Designed to absorb significant propeller thrust, reducing vibration to the hull.
• Corrosion-resistant with zinc-plated and pasivated steel parts.
• Protected against petroleum products with an oil shield on rubber components.
• Adjustable height and preloaded for reduced engine movement and easy alignment.

Custom Tailoring for Yanmar Engines

Selecting the right engine mount for your Yanmar engine:

1. Assess the combined weight of your engine and transmission.
2. Calculate 60% of this weight for rear mounts and 40% for front mounts, then divide to find the required capacity per mount.
3. Ensure the stud diameter and mount footprint match your engine's specifications.
4. Opt for mounts that best fit your engine's weight range, aiming for the middle for optimal support.

Mount Variations for Every Yanmar Model: Catering to diverse needs, these R & D Marine Engine Mounts come in variations to support:

• 50-175lbs for lighter engine configurations.
• 80-230lbs for mid-range setups.
• 120-410lbs for the heaviest engine and transmission combinations.

Why R&D Marine Engine Mounts? Beyond their precise engineering for Yanmar engines, R & D mounts offer a fail-safe design, adjustable heights, and preloading to ensure minimal movement. Their slotted base holes make alignment straightforward, underscoring their suitability for all applications. Trust R & D Marine Engine Mounts for unmatched stability and performance, safeguarding your Yanmar engine's longevity and ensuring peaceful marine adventures.
