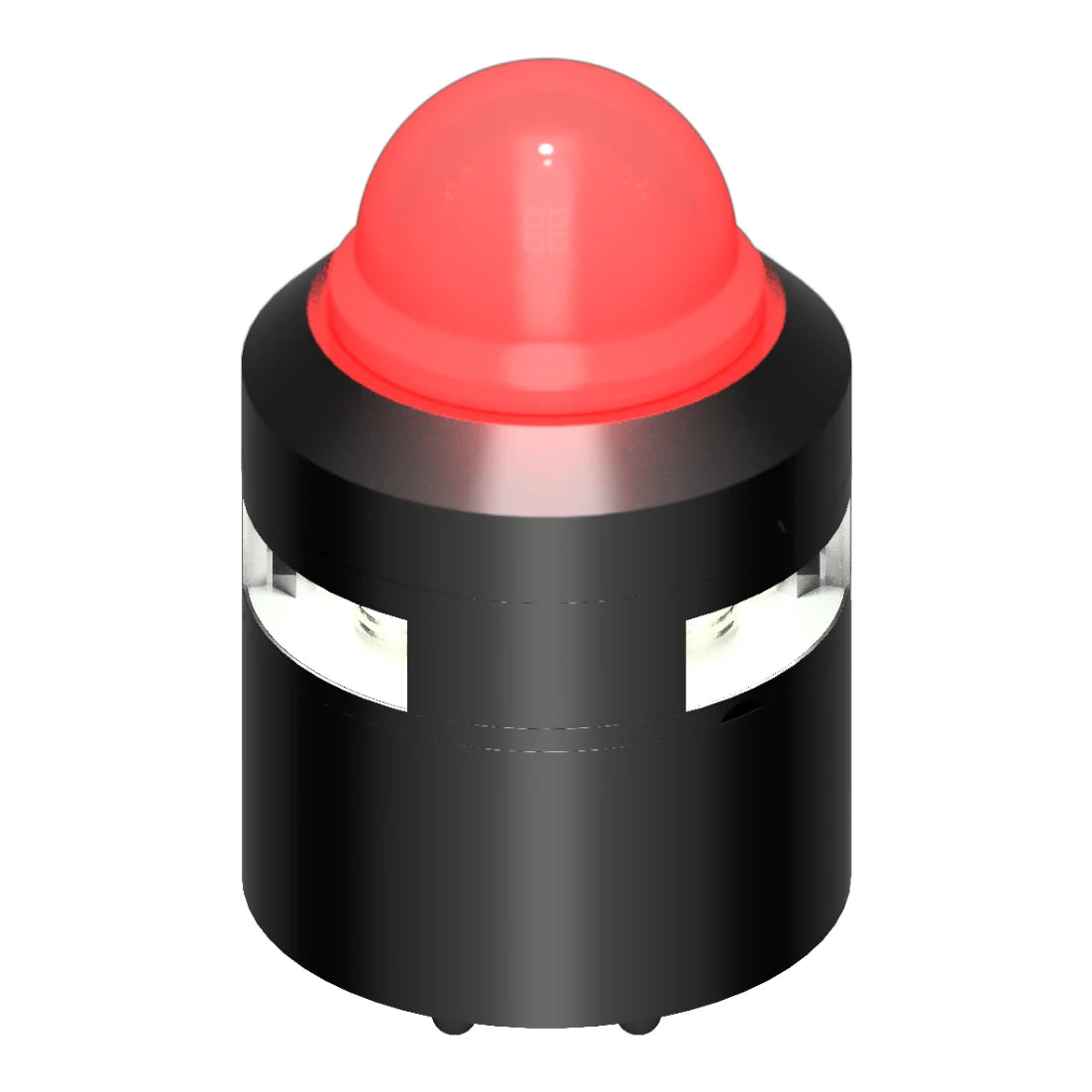

Lopolight Hemispherical Obstruction Light, 20-32VDC, 3nm, Red Light

Overview

The Lopolight 301-411-B is a single red hemispherical obstruction light with a luminous intensity of 15 candela and a visibility range of 3 nautical miles. Operating on 20-32VDC, it is intended for horizontal mounting on commercial vessels and larger marine installations, including vessels 20 meters and above.

The fixture features an aluminum mounting base, IP67 ingress protection, and a plug connector for electrical connection. Its operating temperature range of -25°C to 55°C supports use in demanding marine environments, while DNV certification and compliance with COLREG 72, IEC 60945, and USCG requirements address applicable marine lighting standards.

Key features

• Single hemispherical obstruction light with red light output, 15 cd luminous intensity, and 3nm visibility.

• 20-32VDC operating voltage with 350 mA current consumption at 24VDC.

• IP67 ingress protection against dust and temporary water immersion.

• DNV-certified with COLREG 72, IEC 60945, and USCG approvals.

• Operating temperature range from -25°C to 55°C.

• Plug connector and M16/M20 cable gland configuration accommodating cable diameters from 4.5 to 13 mm.

Installation and fit

The light is configured for horizontal installation on aluminum base 400-034, with CS/CD cable routing configurations. The M16 and M20 cable glands accommodate cables measuring 4.5 to 13 mm in diameter, allowing the cable entry to be matched to the installation. Its specified vessel applications include vessels from 20 to 50 meters and vessels exceeding 50 meters.

What's included

• 1 Lopolight red hemispherical obstruction light

• Installation guide
