SI-TEX - T2010A 10.4" Color Radar - With 12Kw 6' Open Array

High-Performance Radar with Superior Detection Capabilities

The Si-Tex T2010A-6 is a powerful 10.4" color radar system designed to provide precise target detection and enhanced situational awareness for marine operations. Equipped with a 12kW open array radar and a 6.5' antenna, this system delivers exceptional performance, making it ideal for high-speed navigation, river operations, and offshore applications. With its dual-speed antenna and advanced display capabilities, the T2010A-6 ensures superior accuracy in identifying long- and short-range targets simultaneously.

Cutting-Edge Features for Reliable Performance

• Dual-Speed Antenna: 48-rpm capability optimizes target tracking for high-speed and river navigation.
• Split-Screen Display: Simultaneously view both long-range and short-range targets for comprehensive situational awareness.
• True-Trail Function: Easily identify moving targets, improving navigational safety.
• Advanced Processing Functions: Includes Interference Rejection, Target Expansion, Parallel Index, and True/Relative Bearing for precise target identification.
• AIS Interface Module: Standard module capable of tracking up to 200 targets, ensuring seamless integration with vessel tracking systems.
• Optional Automatic Tracking Aid (ATA): Enhances target tracking with up to 50 automated targets.

Technical Specifications

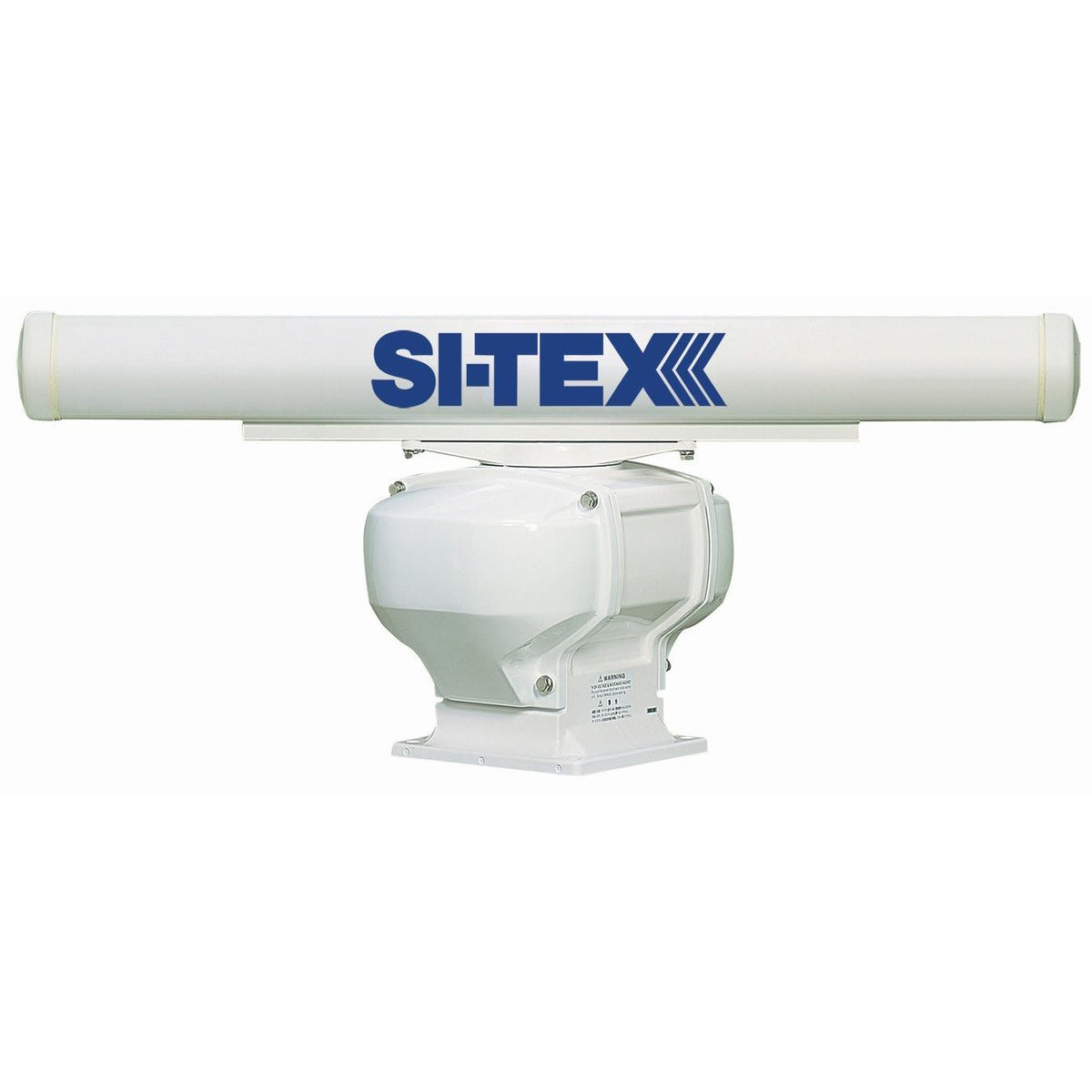

• Scanner Type: 6.5' Open Array
• Peak Power Output: 12kW
• Operating Frequency: 9410 ± 30MHz
• Beam Width: 1.2° Horizontal, 22° Vertical
• Antenna Rotation Speeds: 24 or 48 RPM
• Pulse Widths: 0.08, 0.15, 0.3, 0.5, 1 µs
• IF Frequency: 60MHz
• Range Accuracy: Better than 8m or 1% of selected range scale
• Minimum Detecting Distance: 25m

High-Resolution Display for Clear Visualization

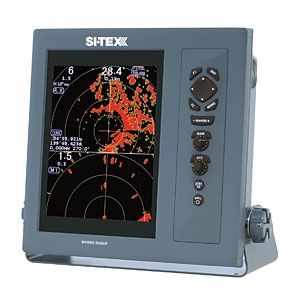

• Display Type: 10.4" TFT Color LCD
• Resolution: 480 x 640 pixels
• Display Modes: Heads Up, North Up*, Course Up*, WPT Up**
• Power Input: 10.8 - 31.2V DC
• Power Consumption: 130 watts or less

Product Dimensions

• Display Unit Dimensions: 12 19/32" x 12 19/32" x 5 39/64"

Included Components

• MRD-104 Display
• RB718A - Pedestal 12kW
• RW701A-06 - 6.5' Antenna
• 15M Cable (242J159098A)
• DC Power Cable
• Quick Reference Guide
• Operation Manual

The Si-Tex T2010A-6 delivers precise radar imaging, advanced tracking functions, and seamless integration with marine navigation systems, making it an excellent choice for professional and recreational marine applications.
