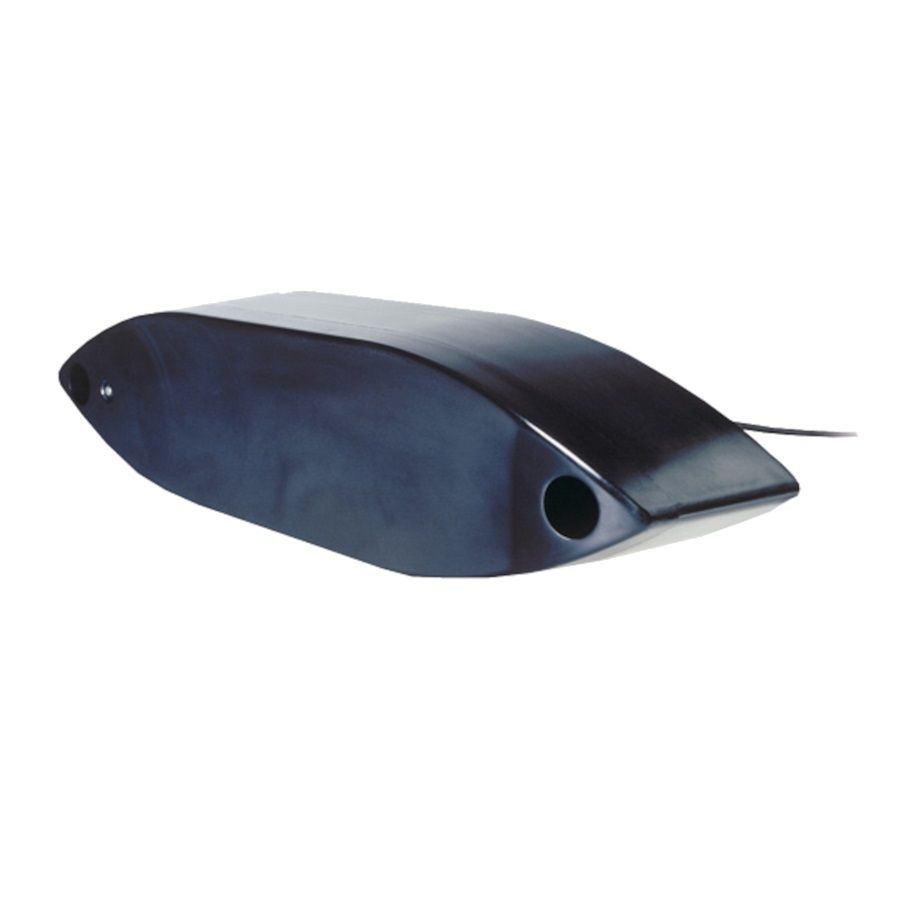

Airmar - R509C-LHW Low/High-Wide Chirp 3KW Thru-Hull Mount Depth/Temp Transducer

Advanced Dual-Band Chirp Transducer for Superior Marine Performance

The Airmar R509C-LHW is a powerful thru-hull transducer designed for both deep-water and shallow-water applications. Engineered with a high wide beam and a low-frequency band, this 3kW transducer delivers unparalleled resolution, extensive coverage, and superior fish-target separation. Whether you're fishing inshore or offshore, the R509C-LHW ensures optimal performance with its Chirp-ready technology, making it a top choice for professional and serious recreational anglers.

Exceptional Deep-Water and Shallow-Water Capabilities

The R509C-LHW is equipped with dual-band frequency operation, allowing it to excel in a wide range of marine environments. The low-frequency band (28-60 kHz) penetrates deep waters up to 3,048 meters (10,000 feet), while the high-frequency band (150-250 kHz) provides superior resolution and coverage in depths up to 152 meters (500 feet). Its consistently wide beamwidth of 25° at high frequency ensures enhanced detection of fish in the upper-water column, making it an excellent choice for various fishing applications.

Key Technical Specifications

• Power Output: 2 to 3 kW for superior performance in deep-water environments
• Low Frequency: 28-60 kHz with a beamwidth of 23° to 9° (port-starboard) and 11° to 5° (fore-aft)
• High Frequency: 150-250 kHz with a constant 25° beamwidth
• Depth Range: Maximum of 3,048 m (10,000') at low frequency, 152 m (500') at high frequency
• Total Bandwidth: 132 kHz, covering key fishing frequencies of 38, 50, and 200 kHz
• Cable Length: 15 meters (49 feet) with bare wire connection
• Deadrise Compatibility: Up to 25° with fairing
• Acoustic Window Material: Epoxy/urethane
• Housing Material: Urethane

Wide-Beam Coverage for Increased Detection

Unlike traditional narrow-beam transducers, the Airmar R509C-LHW utilizes a high wide-beam design that provides twice the coverage area. This ensures enhanced target separation and more detailed fish arches, even in the upper-water column. The combination of Chirp technology and broad frequency range enables clear and precise imaging for improved fish-finding efficiency.

Rugged Design for Long-Lasting Marine Use

Built with durable urethane housing and an epoxy/urethane acoustic window, the R509C-LHW is designed to withstand harsh marine conditions. Its robust construction ensures long-lasting performance, making it an excellent investment for serious anglers and marine professionals alike.

Highlights

• Dual-frequency Chirp technology for maximum underwater clarity
• High wide-beam design for increased fish detection in the upper column
• Exceptional deep-water capabilities up to 3,048 meters (10,000 feet)
• Optimized high-frequency performance for detailed bottom imaging
• Rugged and durable construction for long-term marine use
• Ideal for professional and recreational offshore fishing

With its advanced Chirp capabilities and wide-beam coverage, the Airmar R509C-LHW is the perfect transducer for those who demand precision, power, and reliability in their marine electronics.
