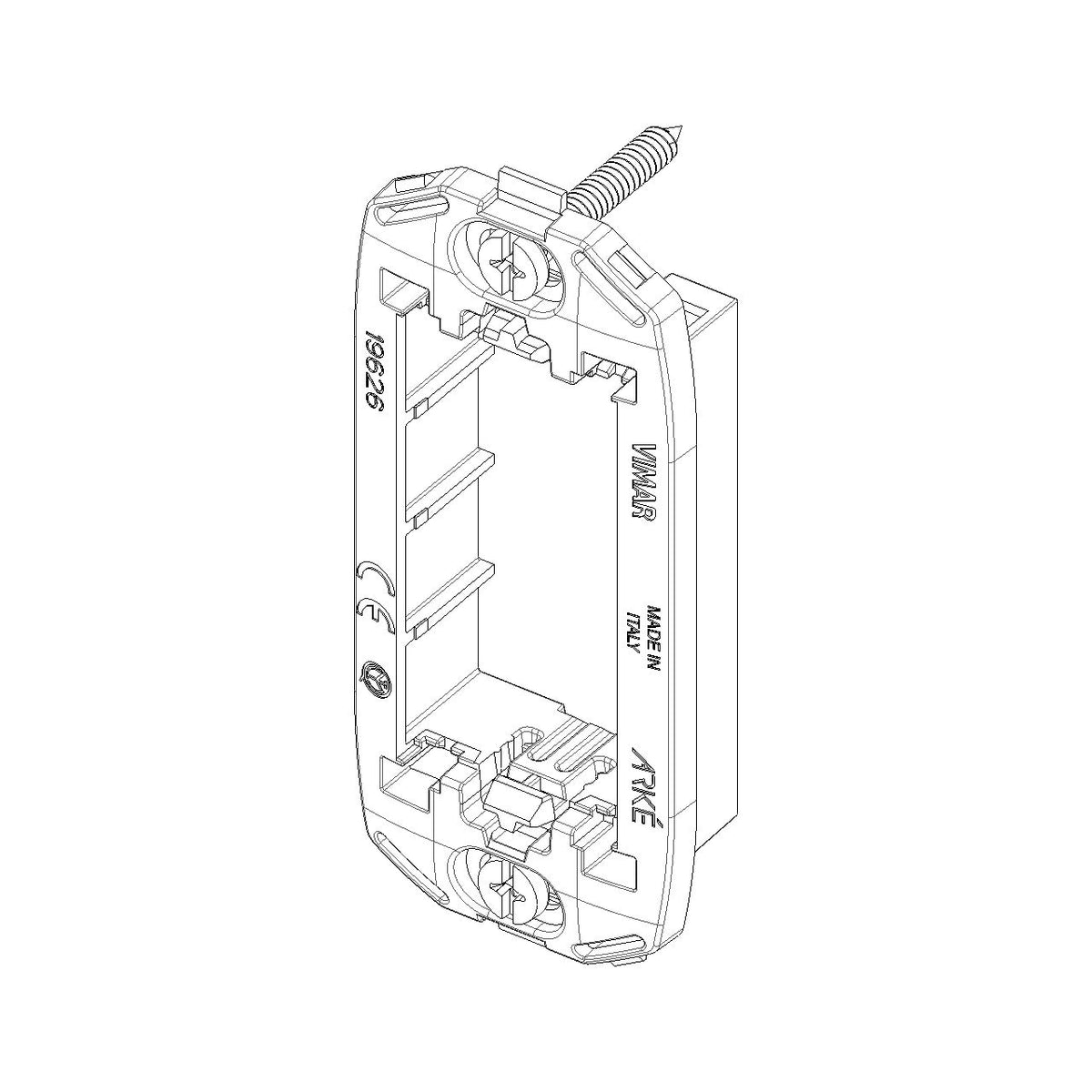

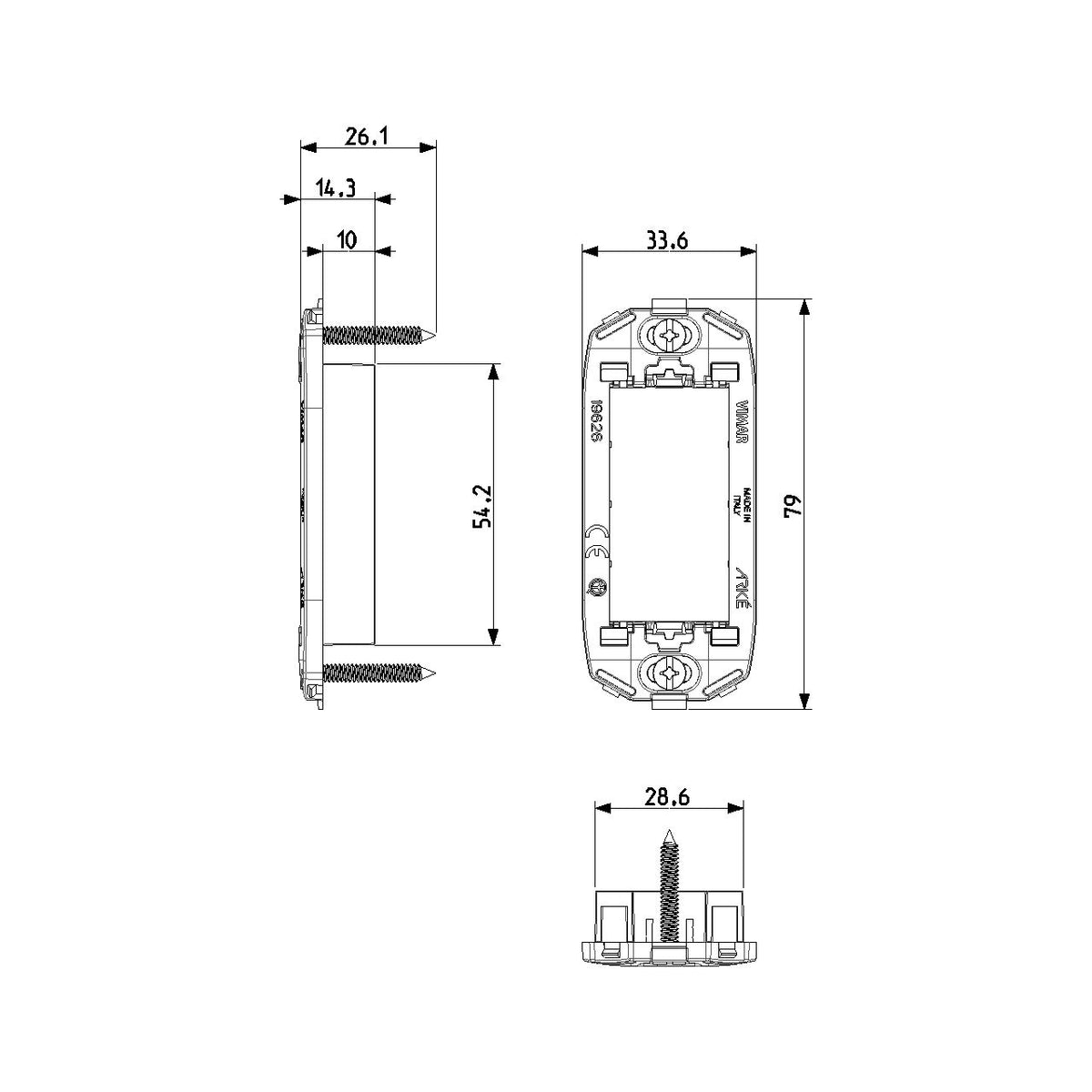

Vimar ARKÉ 1-Module Panel Mounting Frame, With Screws, Thermoplastic, Front-Side Mount, Horizontal and Vertical

Overview

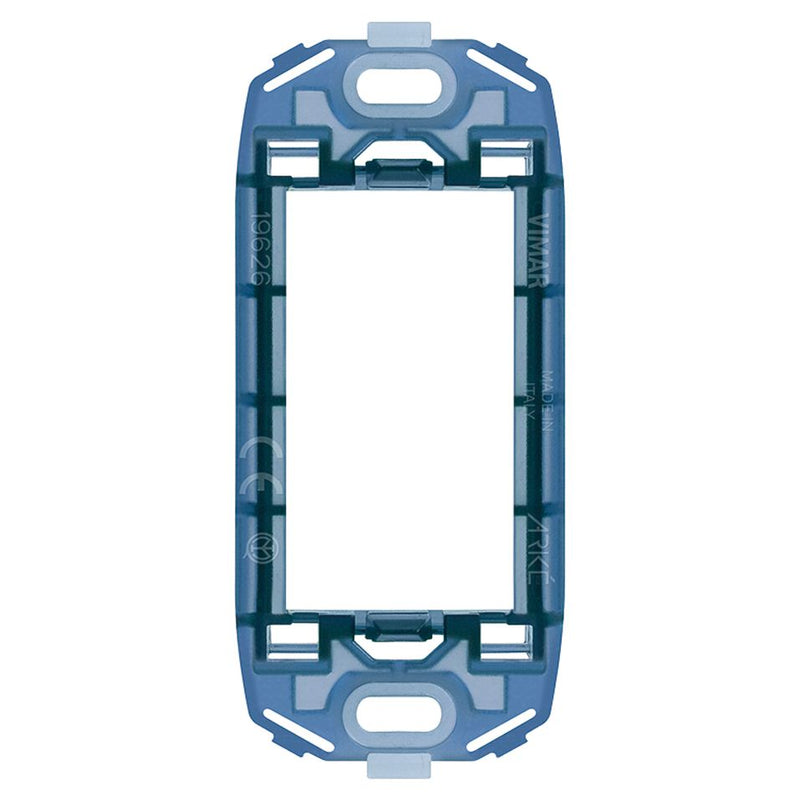

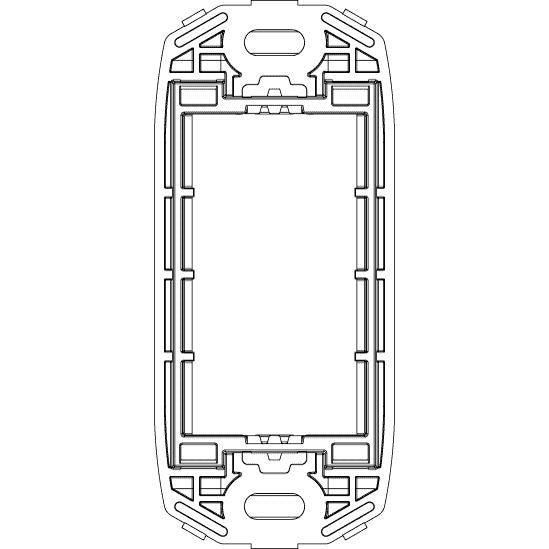

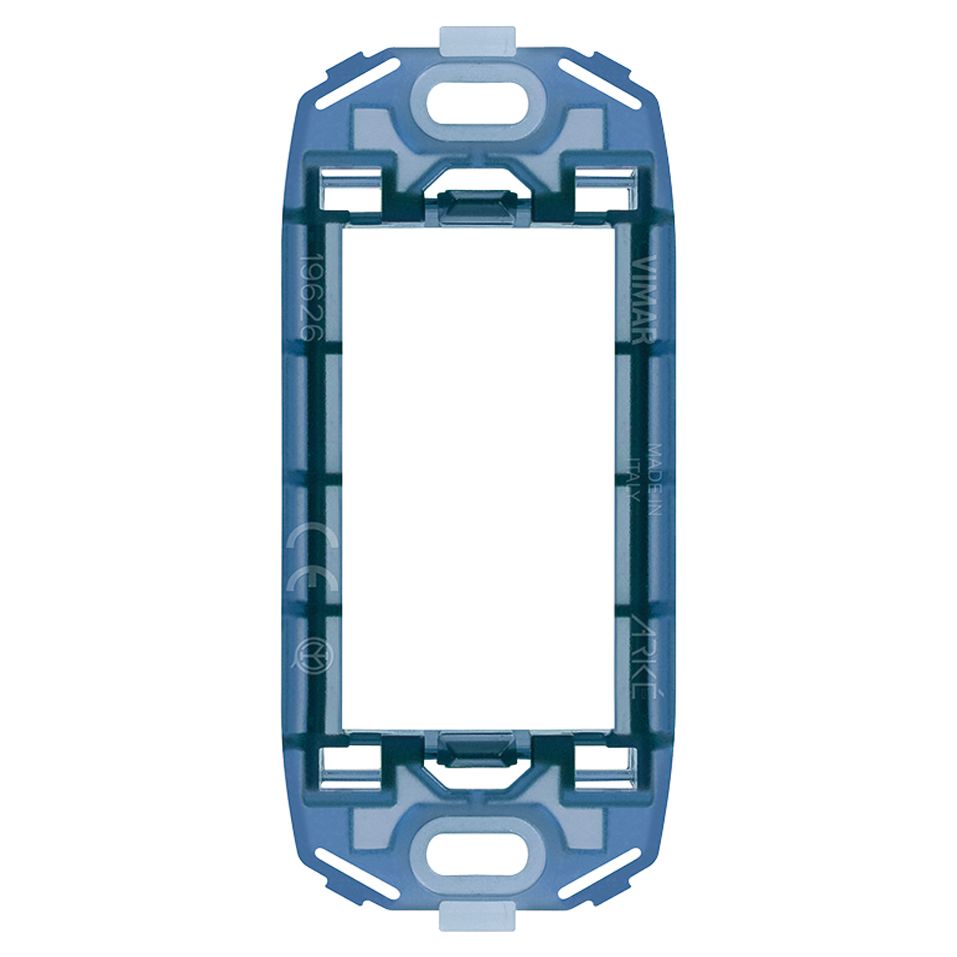

The Vimar VM19626 is a 1-module mounting frame for panel mounting in the ARKÉ system, secured from the front with screws for a flush-mounted finish.

It gives you a clean way to hold a single ARKÉ insert in a dash, helm switch panel, nav station, or any flat panel where the module needs to stay put when the boat is vibrating or underway.

Key features

• 1-module support for Vimar ARKÉ modular inserts in panel installations
• Flush-mounted format for a low-profile result on flat panels
• Front-side fixing with screws for straightforward access during installation and service
• Can be mounted horizontally or vertically, depending on panel layout
• Thermoplastic body that does not corrode and is well suited to damp interiors
• Not intended for DIN-rail (35 mm) mounting or 60 mm round junction boxes

What's included

• 1-module mounting frame
• Mounting screws

Compatibility and fit

This frame is meant for ARKÉ 1-module components. Match it with the correct ARKÉ insert and the faceplate style used in your installation so everything lines up cleanly in the opening.

Because it is a panel-mount support, it is not a substitute for in-wall boxes, in-wall duct boxes, or rail-mounted systems. If you are refitting an existing cutout, confirm the opening and screw positions before drilling.

Installation and setup

Position the frame behind the panel cutout, align it for the orientation you want, and fasten it from the front using the supplied screws. Once the support is secure, install the ARKÉ module insert from the front so it is held firmly in the panel.

On boats, place it where it will live behind a protected surface. For exposed consoles, seal the panel opening as needed so spray cannot track down into the wiring.

Use on board

This is a good match when you are adding a single ARKÉ switch, outlet, or accessory to a compact location such as a helm side panel, a cabin entry switch point, or a small service panel.

Maintenance and care

Check screw tightness during periodic electrical inspections, especially after the first few trips on a new install. Wipe accessible surfaces with a damp cloth and avoid solvent cleaners that can haze thermoplastic parts.
