Vimar Eikon P30 SICURY Socket Outlet, 2P+E, 16A 250V, 2 Module

Overview

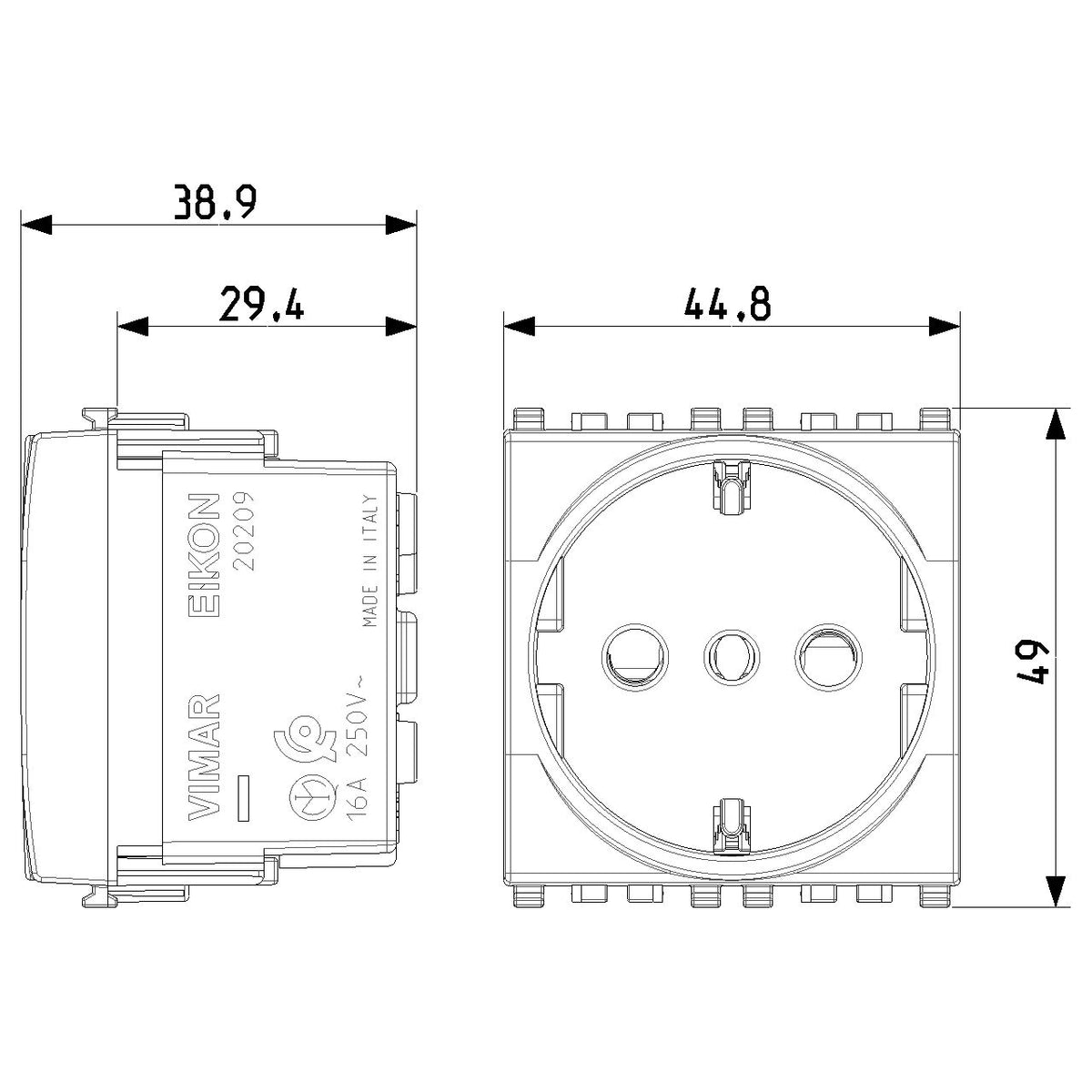

The Vimar Eikon 20209 is a 2P+E 16 A 250 V SICURY socket outlet for Italian standard P30 plugs, with lateral and central earth contacts in a 2-module format. It is a flush-mounted unit with screwed terminals, enhanced contact protection, and one outlet point in a body sized at 44.8 x 49 x 38.9 mm.

This is a mains socket outlet, not a USB charging module. On board, it makes sense where the vessel already uses Italian P30 outlets and an Eikon interior electrical layout. Its IP20 rating and flush-fit construction place it in protected interior spaces such as cabins, galleys, or service panels rather than areas exposed to spray or washdowns.

Key features

• Italian standard P30 socket outlet with 2P+E layout and lateral plus central earth contacts
• Rated 16 A at 250 V with one socket outlet in a 2-module format
• SICURY enhanced contact protection for safer everyday use
• Screwed terminal connection for fixed wiring installations
• Flush-mounted body with front label space for circuit identification
• Halogen-free thermoplastic construction with IP20 protection for dry interior locations

Variants

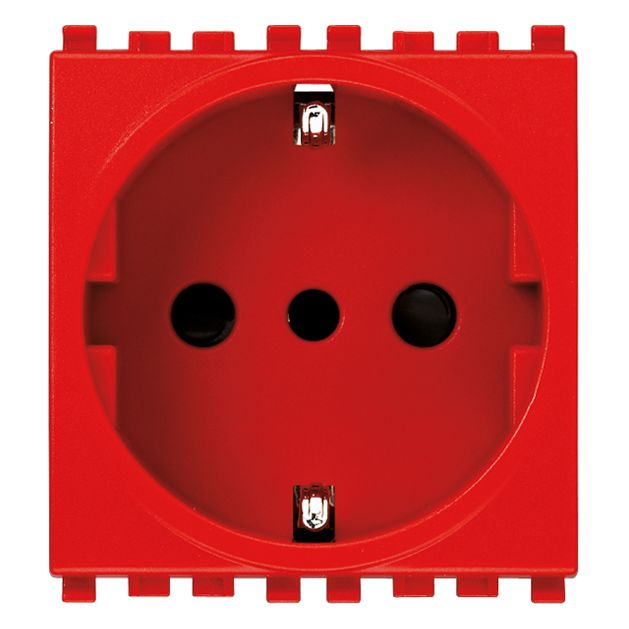

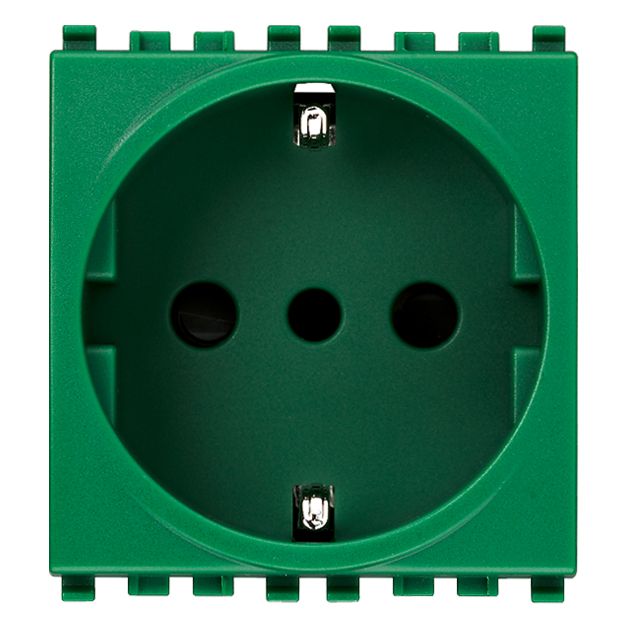

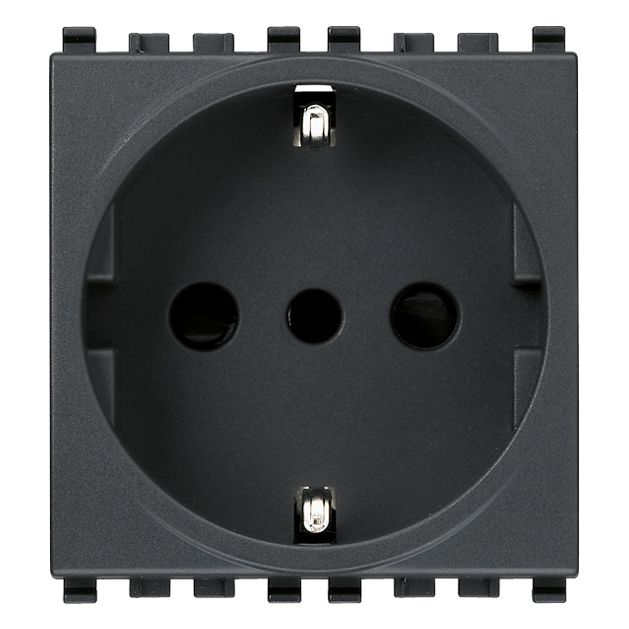

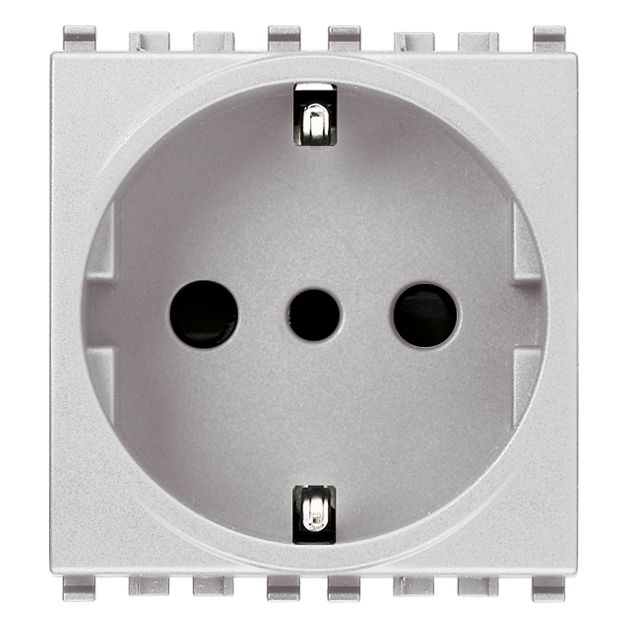

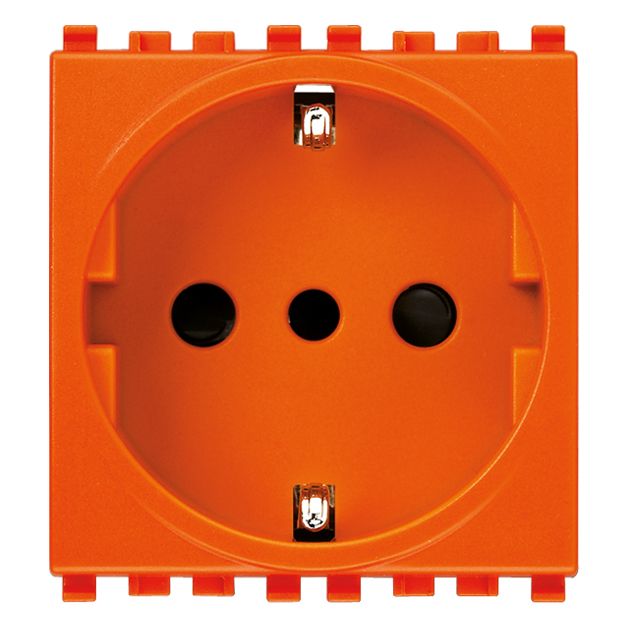

This range is offered in six colour versions: white, silver, red, grey, orange, and green. The red, orange, and green versions are marked for dedicated supply lines, while the grey, white, and silver versions follow the same outlet format in standard finish options.

Across the range, the core specification stays the same at 2P+E, 16 A, 250 V, Italian standard P30, one socket outlet, 2 modules, flush mounting, and screwed terminals. The main difference between variants is the visible colour and the colour coding used on the installed face.

Installation and fit

This outlet is for fixed installation in a flush-mounted support and should be matched with the correct frame and cover components from the same series. Before ordering for a boat, check that your panel uses the Italian P30 pattern, a 2-module position, and the same Eikon family if you are replacing one existing point rather than building a new panel from scratch.

It is a good match for owners and installers updating interior AC outlets on boats that already use this standard. Where outlet colours are used to separate circuit functions on board, the dedicated-line colours help keep that layout clear without changing the electrical format of the outlet itself.
