Lumishore - Eclipse Starter Kit - 17-30" Boats, CMD Center, 2 SMX24, 2 Down Light, 2 StripLED

Comprehensive Marine Lighting for Superior Illumination

The Eclipse Starter Kit offers a complete lighting solution tailored for 17-30' boats with hard tops, perfect for center consoles, runabouts, bay boats, and more. Designed with durability and simplicity in mind, this kit includes the state-of-the-art Eclipse Command Center, SMX24 underwater lights, StripLEDs, and DL55 downlights. Enhance your boating experience with dual-color lighting options, intuitive controls, and seamless integration with your boat’s systems.

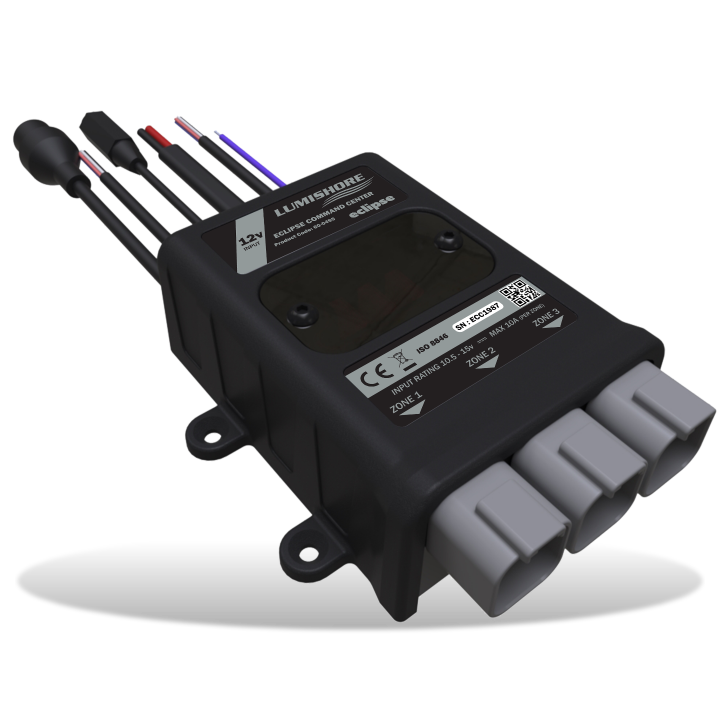

Advanced Command Center with Seamless Integration

The Eclipse Command Center provides an intuitive interface for full control of your lighting system. Compatible with multi-function displays (MFDs), this ultra-compact box includes built-in drivers and three configurable lighting zones, expandable to six zones with additional modules. It also features integrated Wi-Fi for connectivity with smart devices or the option to control via switches.

High-Performance SMX24 Underwater Lights

The included SMX24 lights deliver 3,100 lumens with a wide 90° beam angle in dual colors (blue and white). These surface-mount lights feature a marine bronze body, a glass lens, and simple two-wire connections for straightforward installation.

Versatile StripLED Lighting

Eclipse StripLEDs are ideal for adding subtle ambient effects to gunwales, under furniture, or behind panels. Available in dual colors (blue and white), they are encapsulated, potted, and IP68-rated for water resistance, ensuring durability in marine environments.

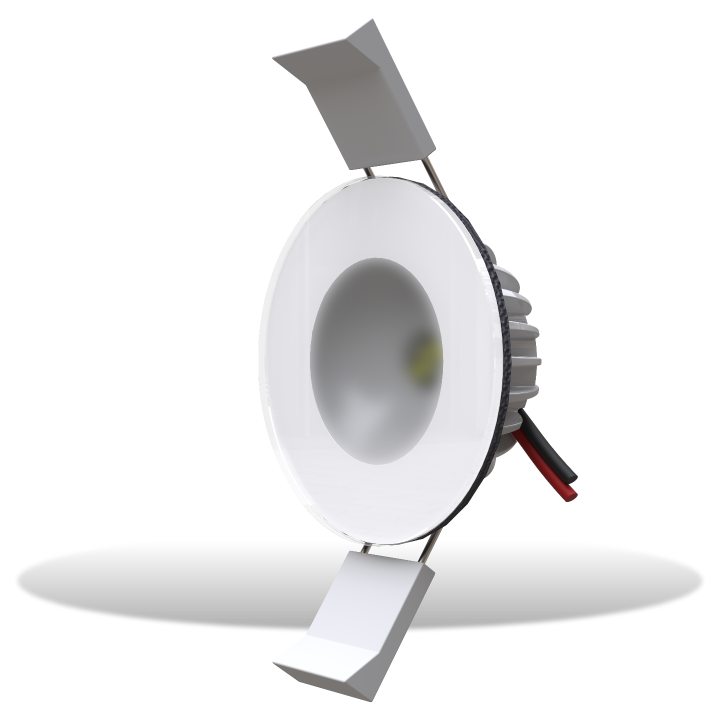

Durable DL55 Downlights for Indoor and Outdoor Use

The DL55 downlights provide bright overhead illumination for indoor or outdoor spaces. Made from durable aluminum with a water-sealed glass front, they are IP67-rated and available in dual colors (blue and white) with a shallow depth profile for easy installation.

Technical Specifications

Eclipse Command Center:

• Supply Voltage Range: 12V DC Only (10 - 15V DC)
• Max Current Draw: 30A (10A per zone, up to 3 zones)
• Ingress Protection: IP67
• Connectivity: Integrated Wi-Fi, Ethernet port
• Control Options: Compatible MFDs, switches, or smart devices

SMX24 Lights:

• Lumens: 3,100
• Beam Angle: 90°
• Voltage: 12V DC Only
• Ingress Protection: IP68

StripLEDs:

• Lengths Available: 1m, 2.5m, and 5m (cuttable and sealable)
• Max Current Draw: 0.5A per meter (6W/m)
• Ingress Protection: IP68

DL55 Downlights:

• Front Diameter: 64.0mm (2.519")
• Hole Diameter: 50.8mm (2.0")
• Profile Depth: 21mm (0.83")
• Voltage: 12V DC Only
• Ingress Protection: IP67

Highlights

• Dual-color lighting (blue and white) for versatile aesthetics
• Intuitive control through MFDs, smart devices, or switches
• Plug-and-play setup for easy installation
• Fully sealed and water-resistant designs (IP67 and IP68 ratings)
• Expandable to integrate additional Lumishore lighting solutions
