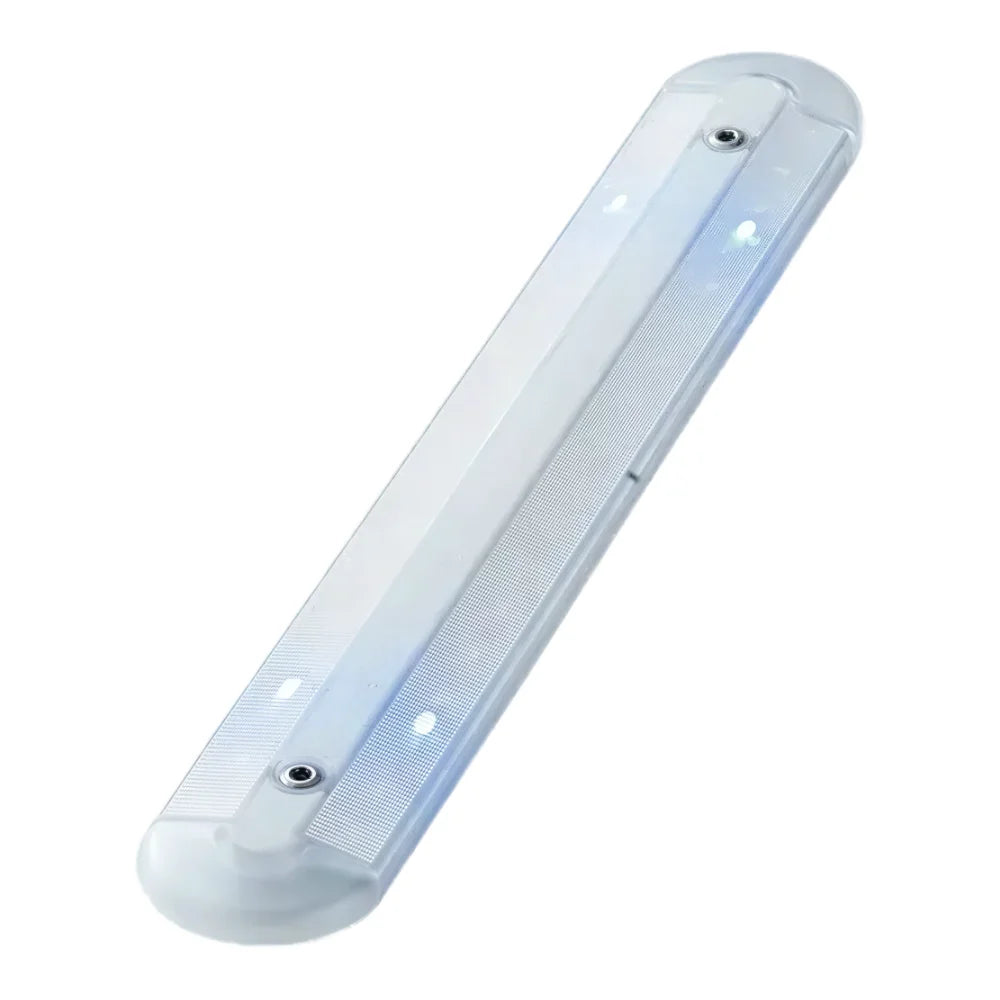

Imtra F-22 HO Touchsensor Linear LED Light, 10-30V DC, 8W

Overview

The Imtra F-22 HO is a low-profile, dual-color linear LED light featuring an integrated touch-sensitive switch for marine lighting applications. Operating on 10-30V DC with 8W power consumption, the fixture allows users to turn the light on or off and switch between two LED colors using illuminated touch sensors.

Its IP67-rated construction features a clear, translucent housing and a non-glare lens made from UV-stabilized polycarbonate. The slim 270 x 40 x 8 mm profile mounts directly to a surface using two screws, eliminating the need for a recessed installation.

Key features

• Dual-color LED operation with integrated illuminated touch controls.

• 10-30V DC input compatible with supported 12V and 24V electrical systems.

• IP67 ingress protection against dust and temporary water immersion.

• UV-stabilized polycarbonate housing and non-glare translucent lens.

• 117-degree beam angle for broad illumination.

• Integrated electrical protection against reverse polarity, voltage transients, and electromagnetic interference.

• Low-profile surface-mounted construction measuring 10.63 x 1.57 x 0.31 inches.

Variants

The F-22 HO is available in four dual-color configurations combining cool white or warm white primary illumination with red or blue secondary lighting. These combinations provide different lighting characteristics while retaining the same fixture design.

All configurations share the clear housing, electrical requirements, surface-mount installation, and integrated touch-sensitive switching system.

• IL7366 - Cool White/Red: Cool white primary illumination with switchable red LED lighting.

• IL7367 - Cool White/Blue: Cool white primary illumination with switchable blue LED lighting.

• IL7353 - Warm White/Red: Warm white primary illumination with switchable red LED lighting.

• IL7354 - Warm White/Blue: Warm white primary illumination with switchable blue LED lighting.

Installation and operation

The fixture attaches directly to a mounting surface with two screws. Its shallow profile accommodates installations where available mounting depth is limited. The integrated LED driver simplifies electrical integration, while the touch-sensitive controls eliminate the need for a separate fixture-mounted mechanical switch.

Once connected to a compatible DC supply, the illuminated photo sensors control switching between the primary white illumination and the secondary colored output. The sealed construction supports installation in marine environments where exposure to moisture and splashing is a consideration.
