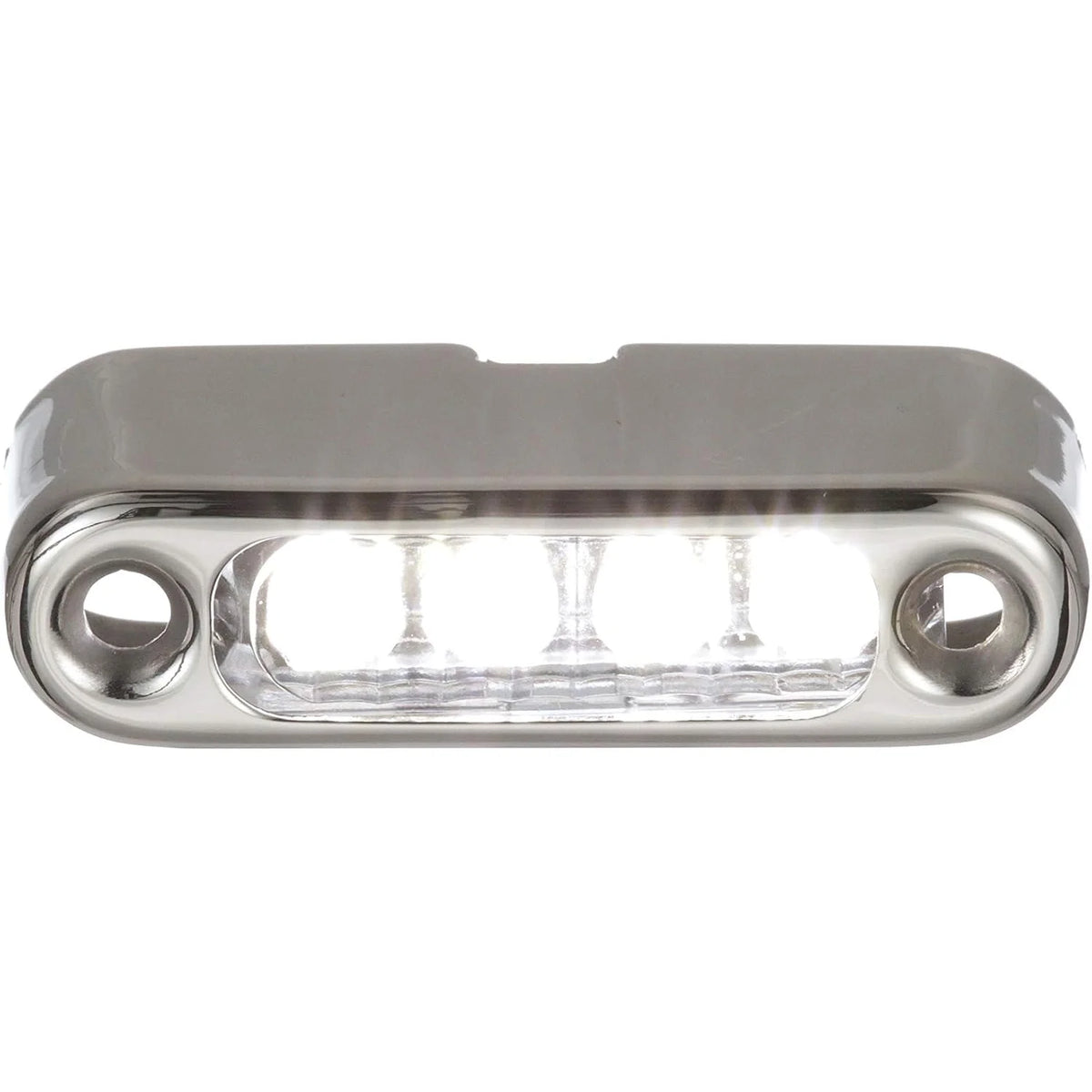

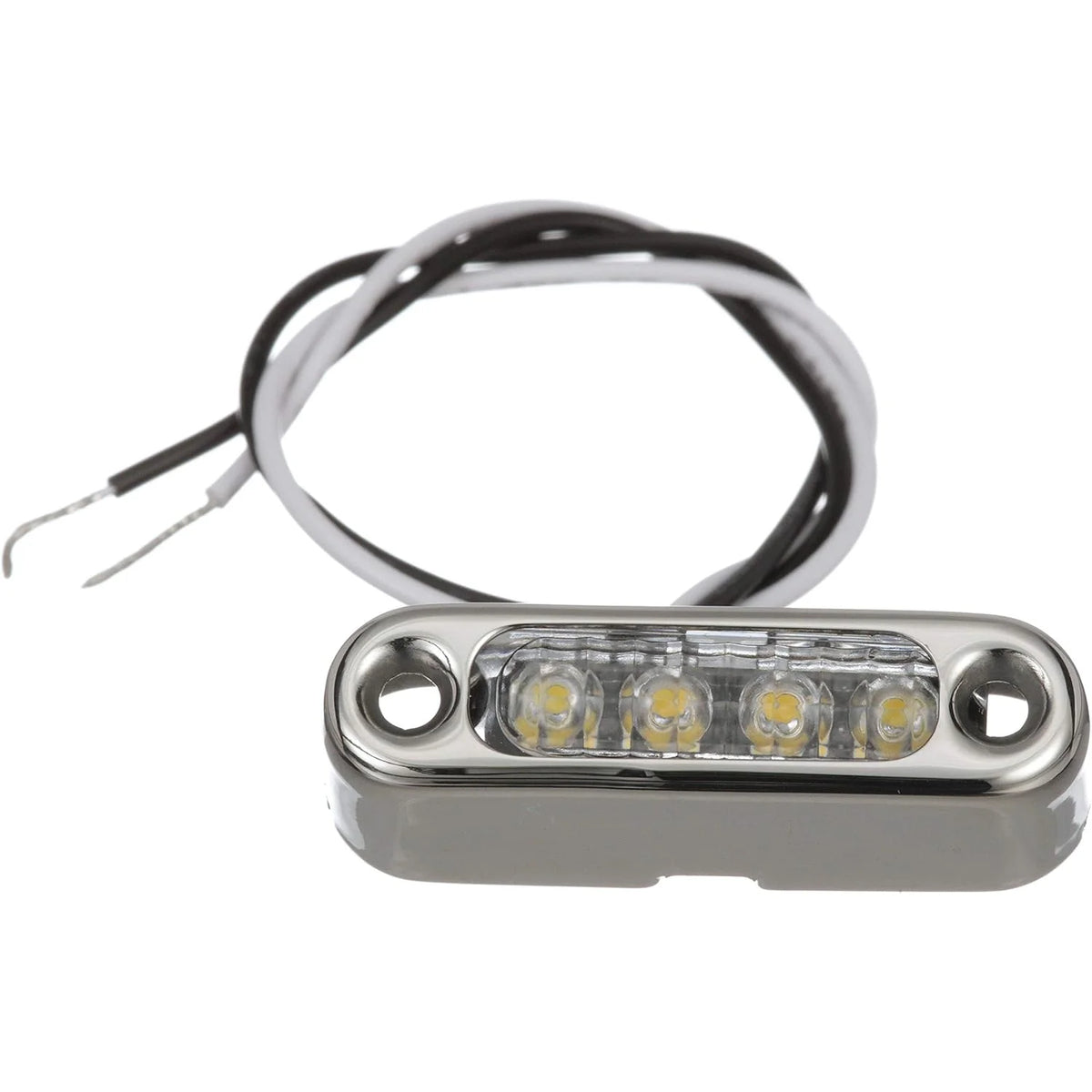

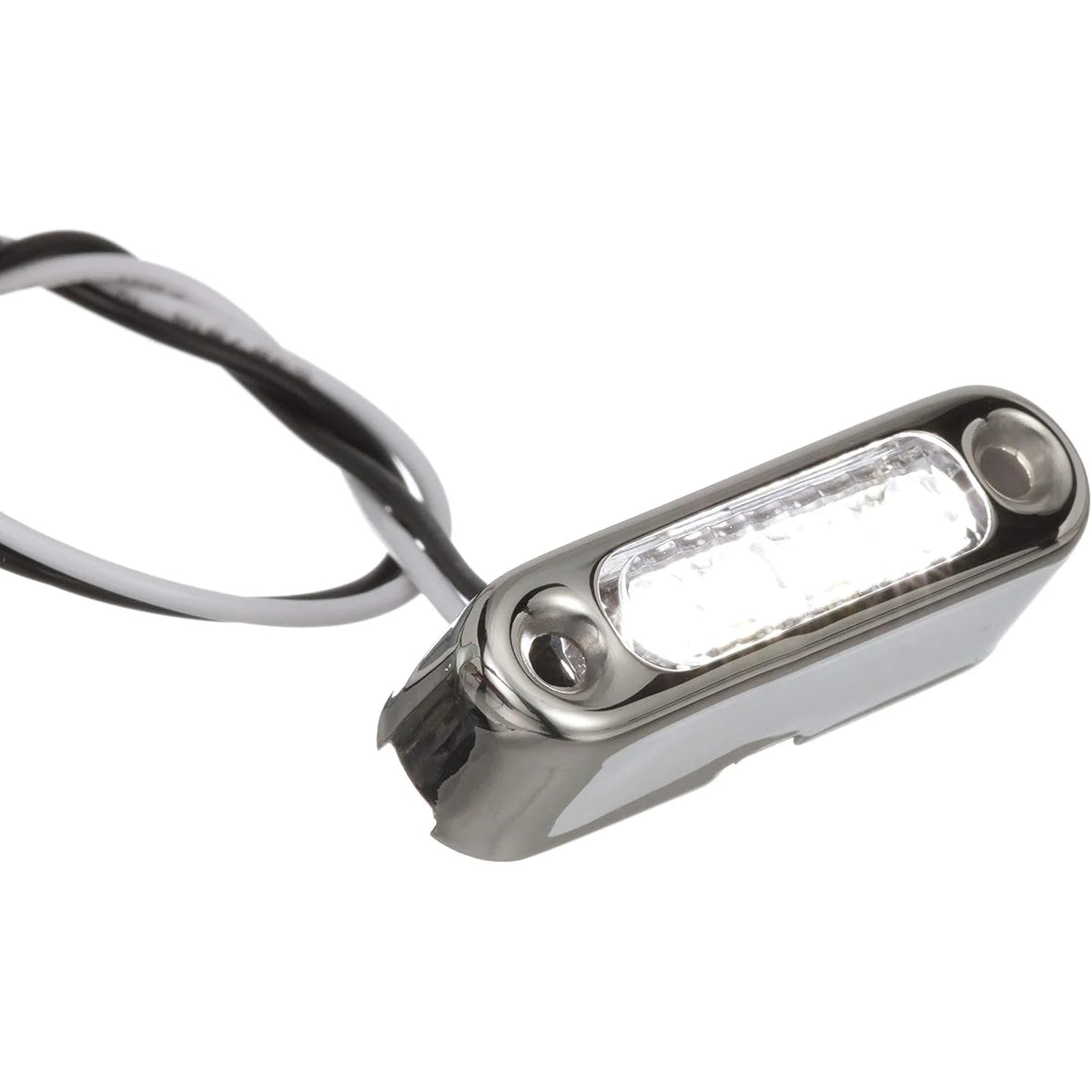

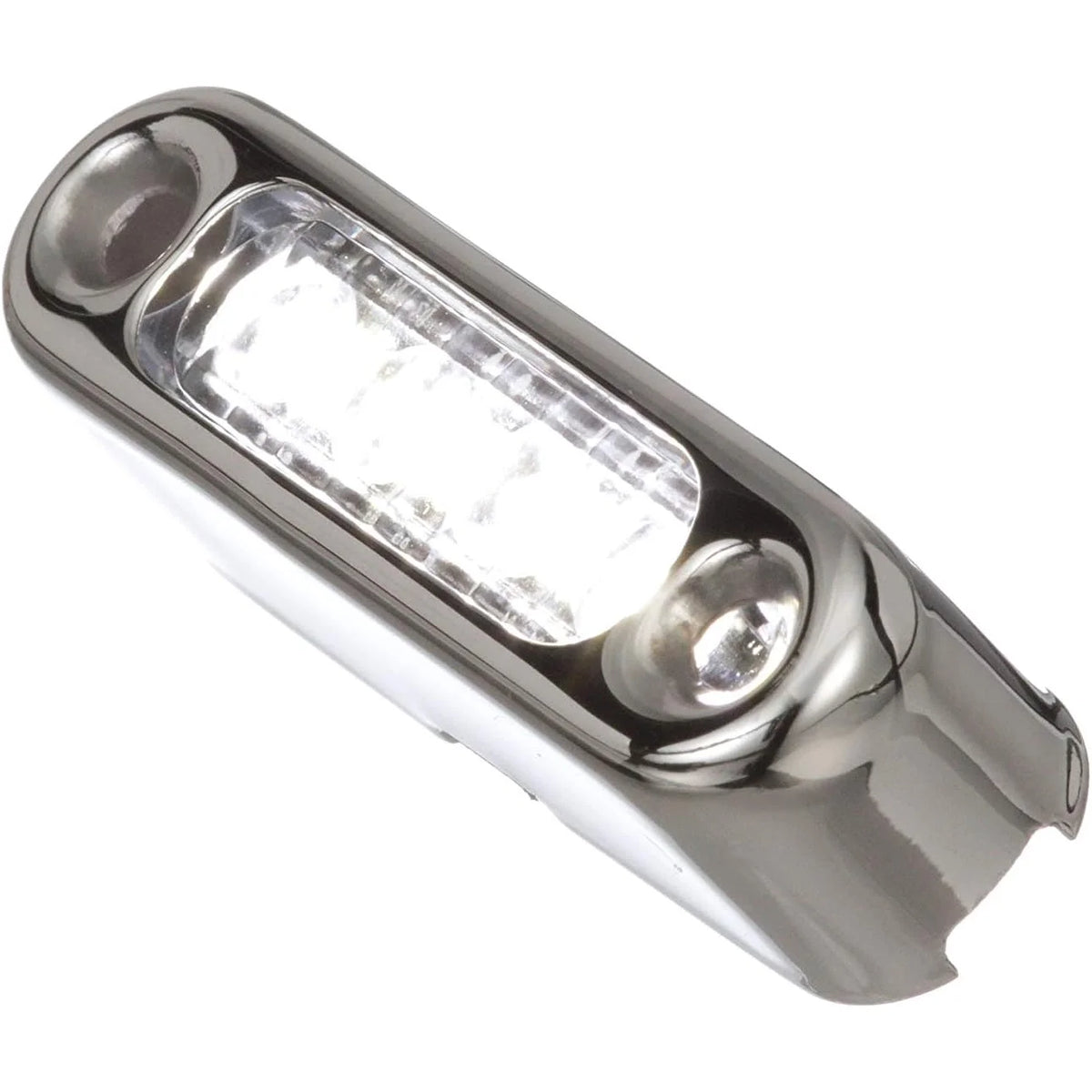

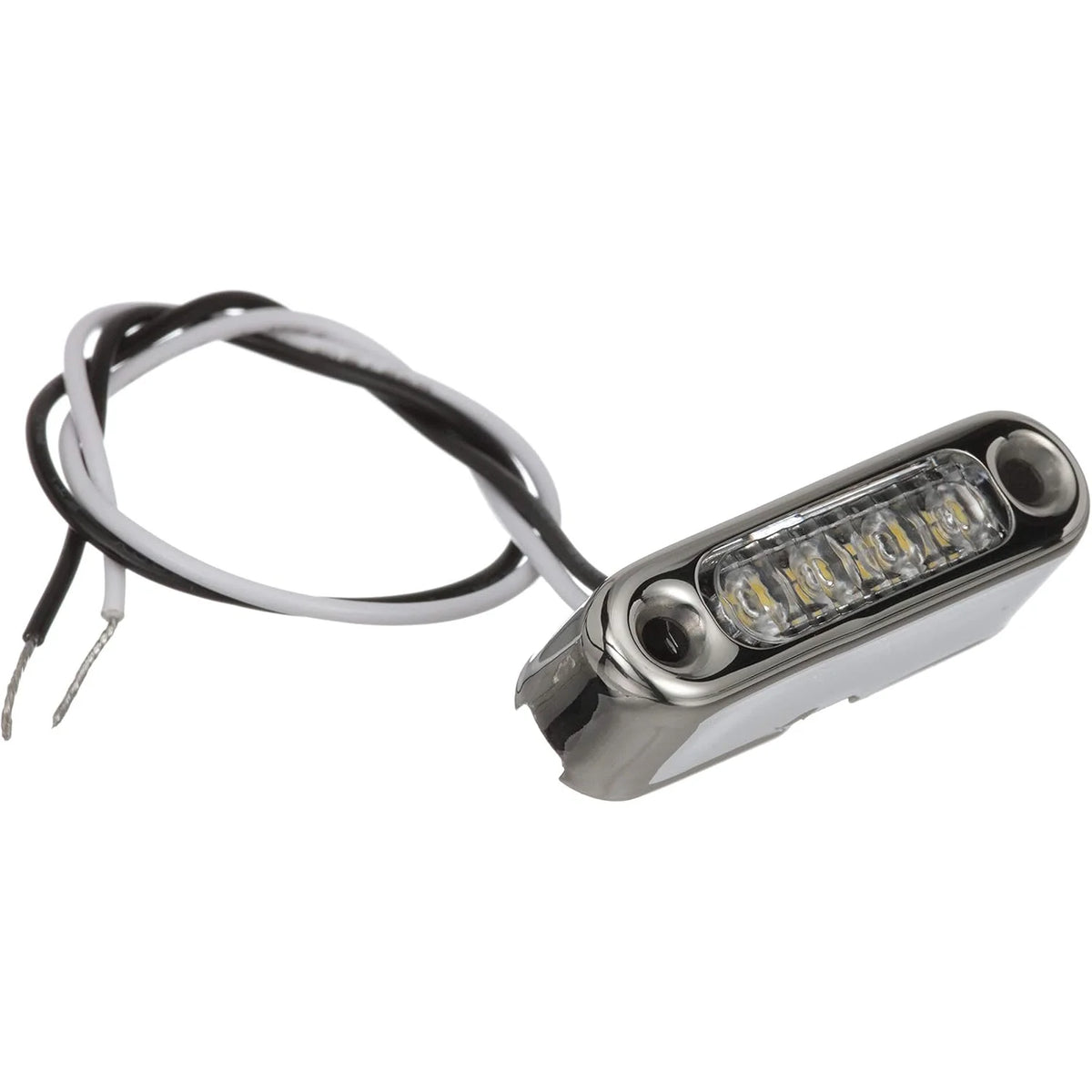

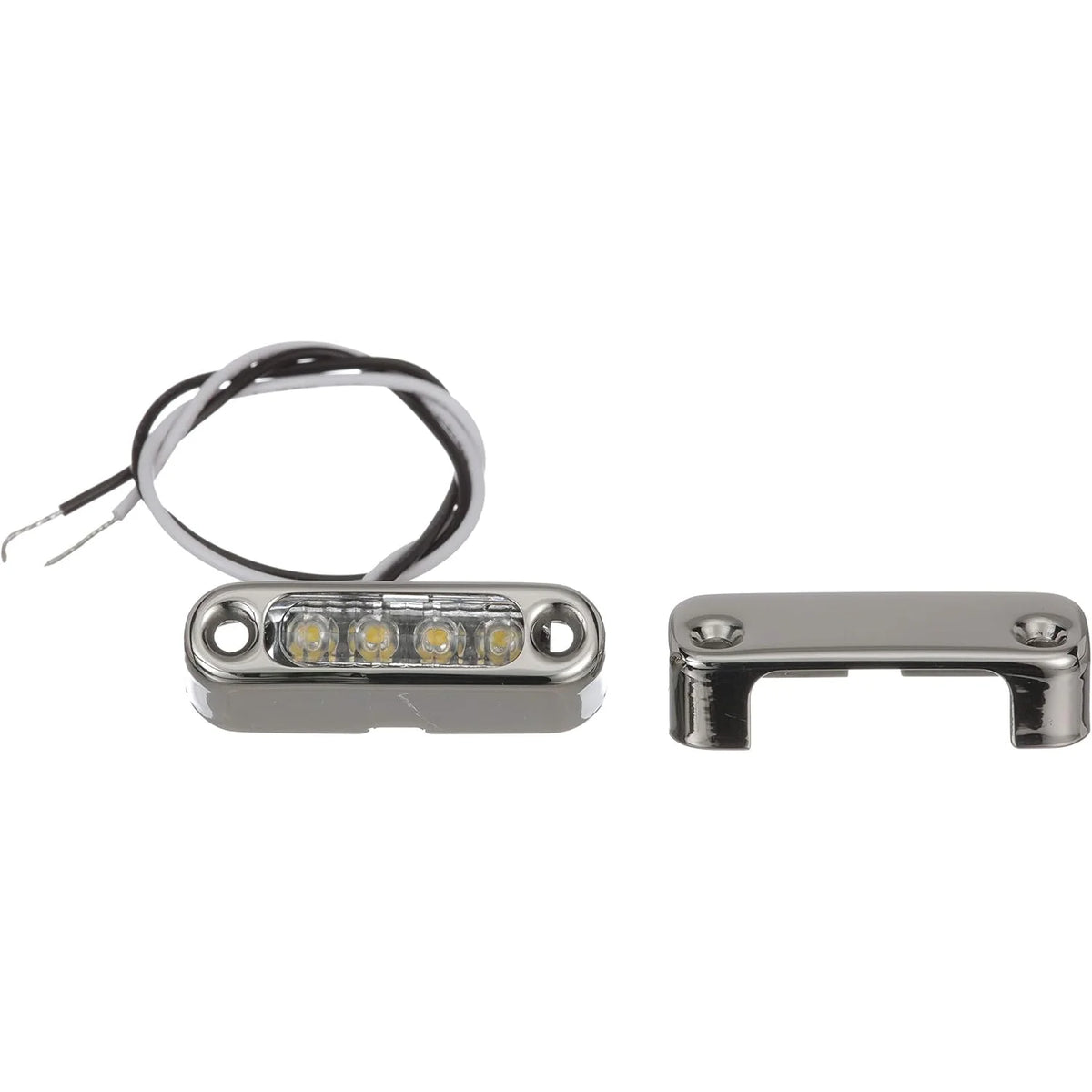

Attwood Marine Micro LED Courtesy Light, 12V DC, 316 Stainless Bezel, Vertical Mount

Overview

The Attwood Marine LED Micro Lights is a compact surface-mount LED courtesy and accent light range with a stainless steel bezel and vertical-mount layout. These lights are built around a 12V DC electrical system and draw 0.66 watts, making them a low-load option for small lighting points around a boat.

The light housing is only 1.63 inches long, so it fits in tight areas where a larger fixture would look bulky or be difficult to place. Common onboard locations include steps, cockpit details, rod storage boxes, under hardtops, rails, lockers, and other interior or exterior areas that need a small point of light.

The stainless cover is electropolished, and the electronics are fully sealed for wet marine spaces where spray, washdowns, and damp storage areas are part of normal use.

Key features

• Compact LED micro light format with a 1.63-inch overall length for tight mounting spots.
• 12V DC operation with a 0.66-watt draw for low current demand on a boat lighting circuit.
• Stainless steel bezel with an electropolished finish for a clean exposed look on deck, in the cockpit, or inside the cabin.
• Fully sealed electronics for use in wet or damp areas such as rod boxes, under hardtops, and storage compartments.
• Vertical-mount configuration for installations where the light needs to sit upright on a surface.
• Suitable for step lighting, courtesy lighting, locker lighting, accent lighting, and small task-light points around the vessel.

Variants

This Attwood Marine LED Micro Lights range is offered in two LED color configurations. Both variants are stainless steel bezel, vertical-mount LED micro lights in the same 6350 series.

The main difference is the LED color. White gives a more direct courtesy-light look, while blue gives a softer accent effect that is often used where glare control and visual atmosphere matter more than bright task lighting.

• 6350W7: LED color White. White light works well for steps, lockers, under-hardtop areas, and other places where clear visibility is the priority.

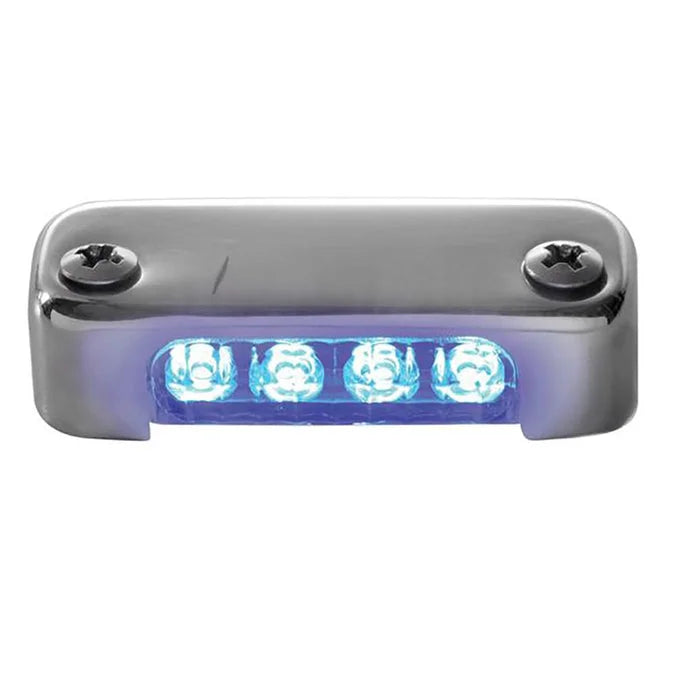

• 6350B7: LED color Blue. Blue light gives a lower-glare accent appearance for cockpit details, cabin accents, storage spaces, or other small lighting points where a softer color is preferred.

Installation and setup

These lights are intended for surface mounting, so the installation does not require a full through-hole cutout for the body of the fixture. A 3/16-inch wire clearance hole is used, along with pilot holes for the mounting screws.

The light should be connected to a fused 12V DC circuit. Polarity matters with LED fixtures, so the black negative lead connects to the negative side of the supply, and the positive lead connects through the switch and fuse to the positive 12V supply. A 1-amp fuse is specified for the circuit.

Use on board

This light range is a good match for boat owners adding small, neat lighting points without taking up much surface space. It is especially useful on fishing boats, center consoles, cruisers, and sailboats where a compact fixture can add visibility inside storage areas, along walking paths, or beneath overhead structures.

Because the electronics are sealed and the bezel is stainless steel, the fixture fits exposed and semi-exposed locations better than ordinary interior-only lighting. For aluminum boats, wire routing and drilled holes should be placed carefully so wiring does not contact the hull.
