Garmin ECHOMAP Ultra 2 Bail Mount Bracket, Surface Mount, Tilting

Overview

The Garmin ECHOMAP Ultra 2 bail mount is a surface-mount bracket option for securing a compatible ECHOMAP Ultra 2 chartplotter and setting a comfortable viewing angle at the helm.

This listing groups the size-specific mounts for 10-inch, 12-inch, and 16-inch displays, so you can match the bracket to the screen size you run on board and keep the install clean and serviceable.

Key features

• Surface-mount bail bracket style for Garmin ECHOMAP Ultra 2 chartplotters in the matching 10-inch, 12-inch, or 16-inch size
• Tilts to fine-tune screen angle for seated or standing operation at the helm
• Quick-release cradle style on the 10-inch and 12-inch variants for quick seat and removal of the display
• Knob-adjusted bail mount on the 16-inch variant for holding and positioning the larger display
• Works well on flat mounting locations like a dash top, electronics box, or helm pod where a flush cutout is not wanted
• Practical for trailering, seasonal storage, or boats where the display is removed between trips

Variants

This bail mount range is offered in multiple configurations to match different ECHOMAP Ultra 2 screen sizes.

The key differences are the display size fit and whether the mount uses a quick-release cradle style or a knob-adjusted bail bracket.

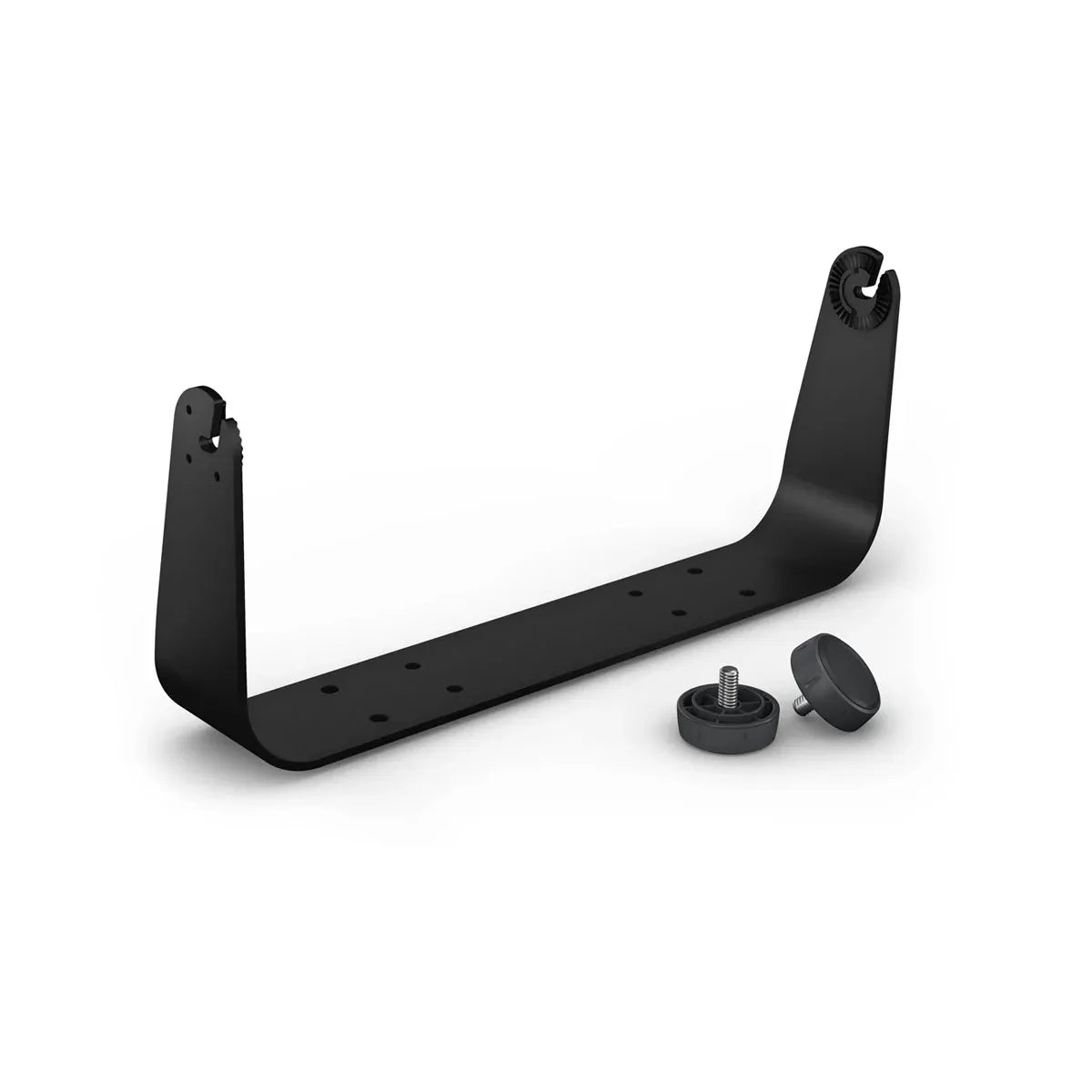

• 010-13352-12: Size 16-inch. This version uses a bail mount with knobs for holding the larger display and adjusting the viewing angle.

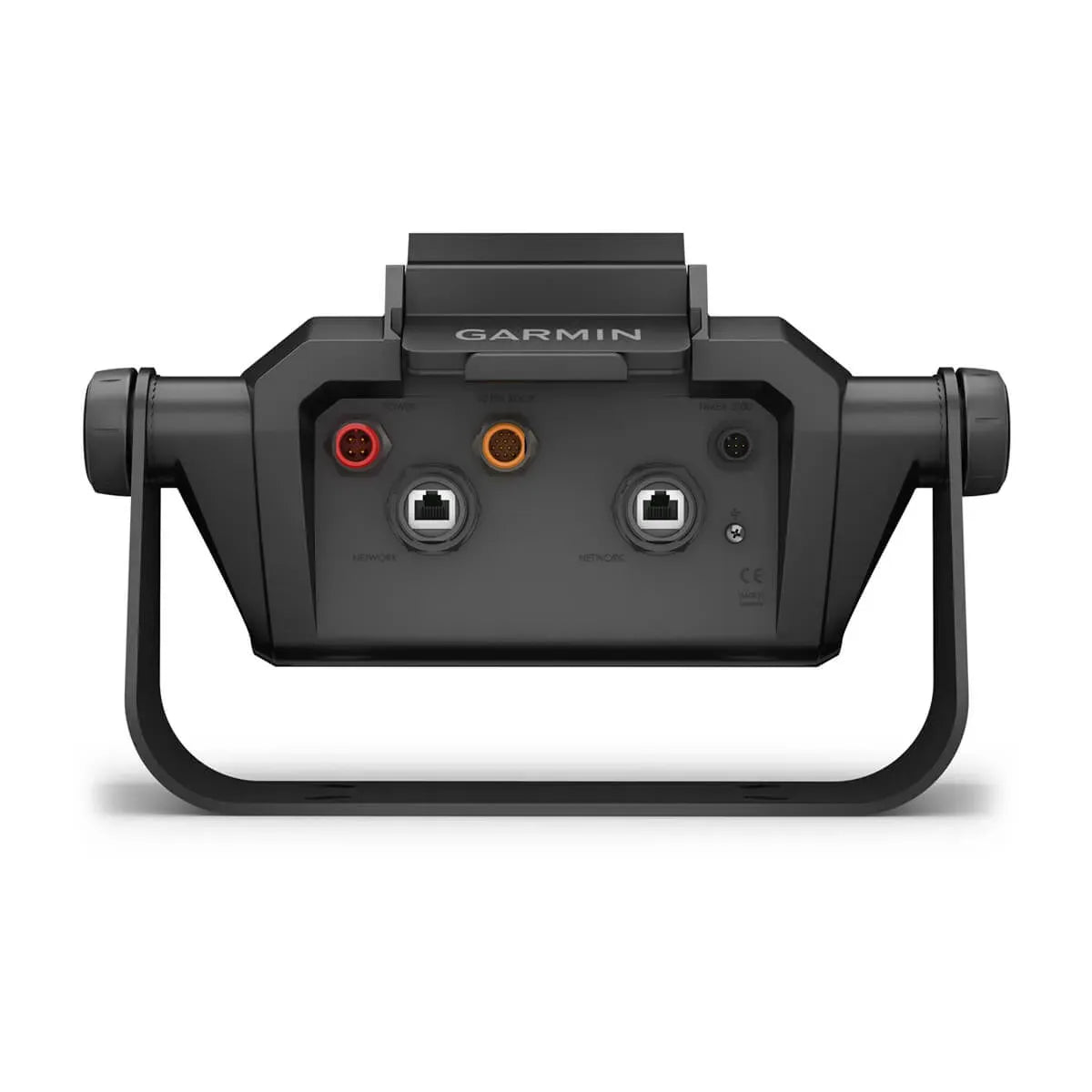

• 010-13353-03: Size 12-inch. This version uses a bail mount with a quick-release cradle so the display can be seated and removed without reworking the mount.

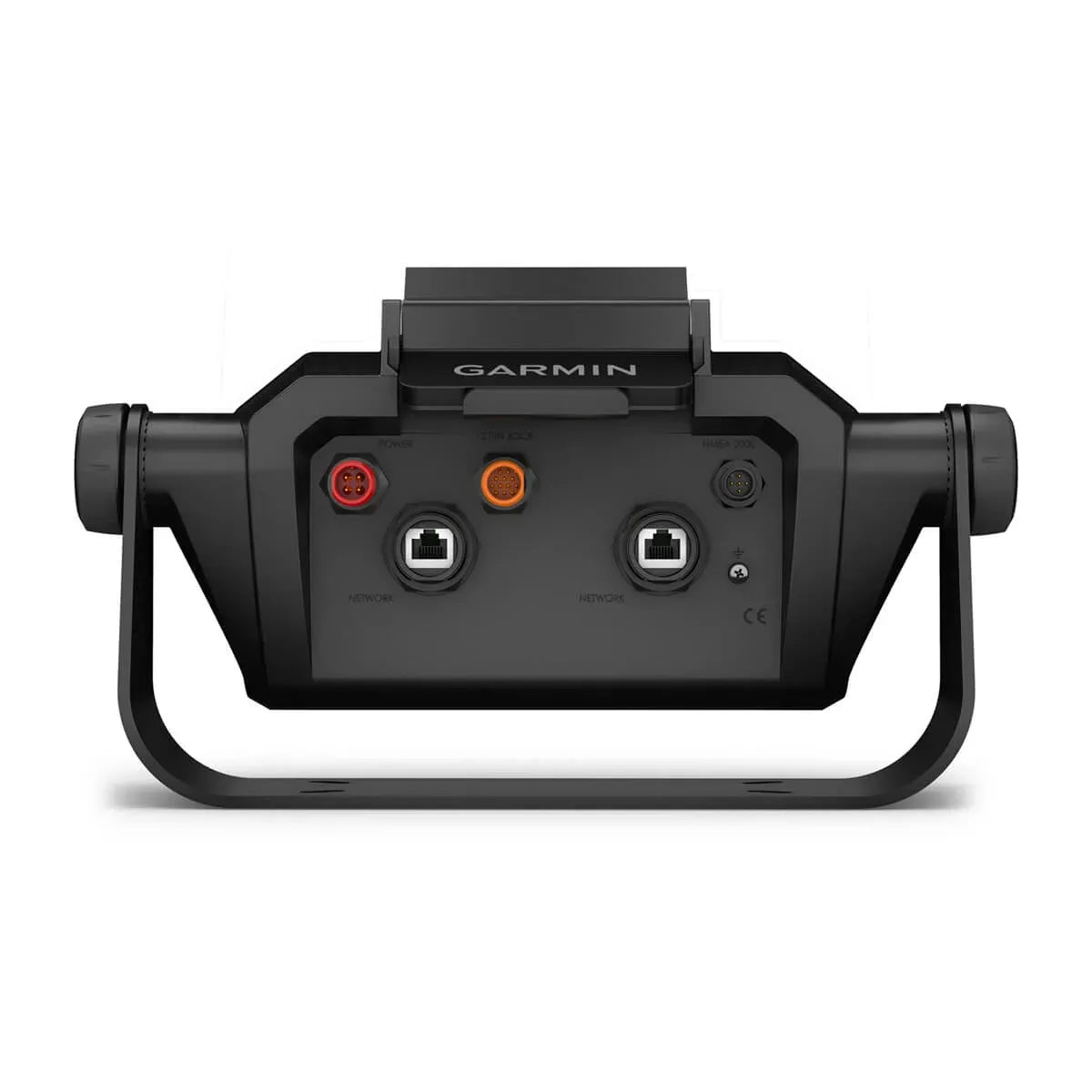

• 010-13352-02: Size 10-inch. This version uses a bail mount with a quick-release cradle for fast removal on a smaller helm footprint.

Installation and setup

Plan the mounting spot so the unit can tilt through its full range without hitting a windshield frame, throttle binnacle, grab rail, or electronics box lid. Leave enough room behind the display for cable routing and for the connectors to bend without being forced tight against the console.

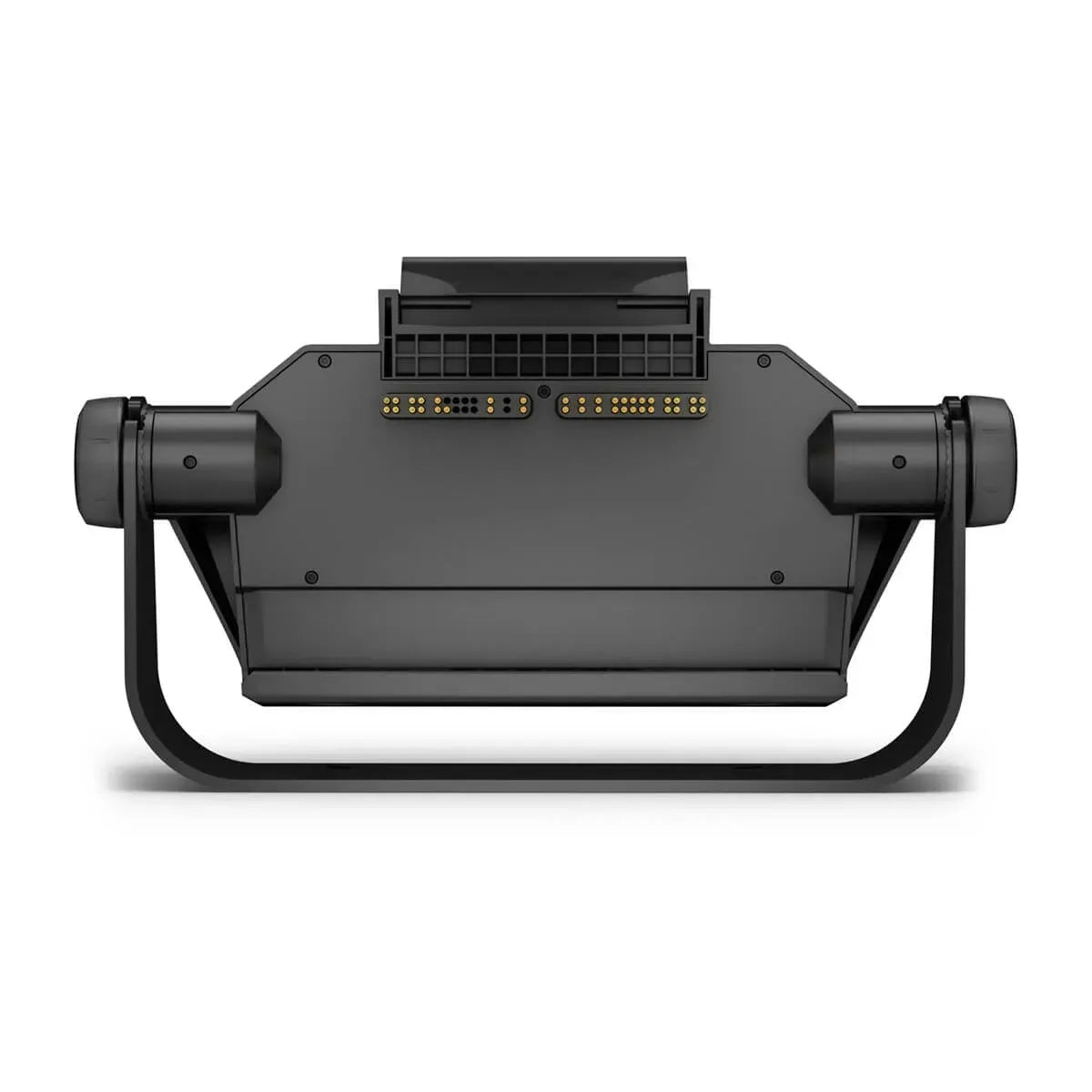

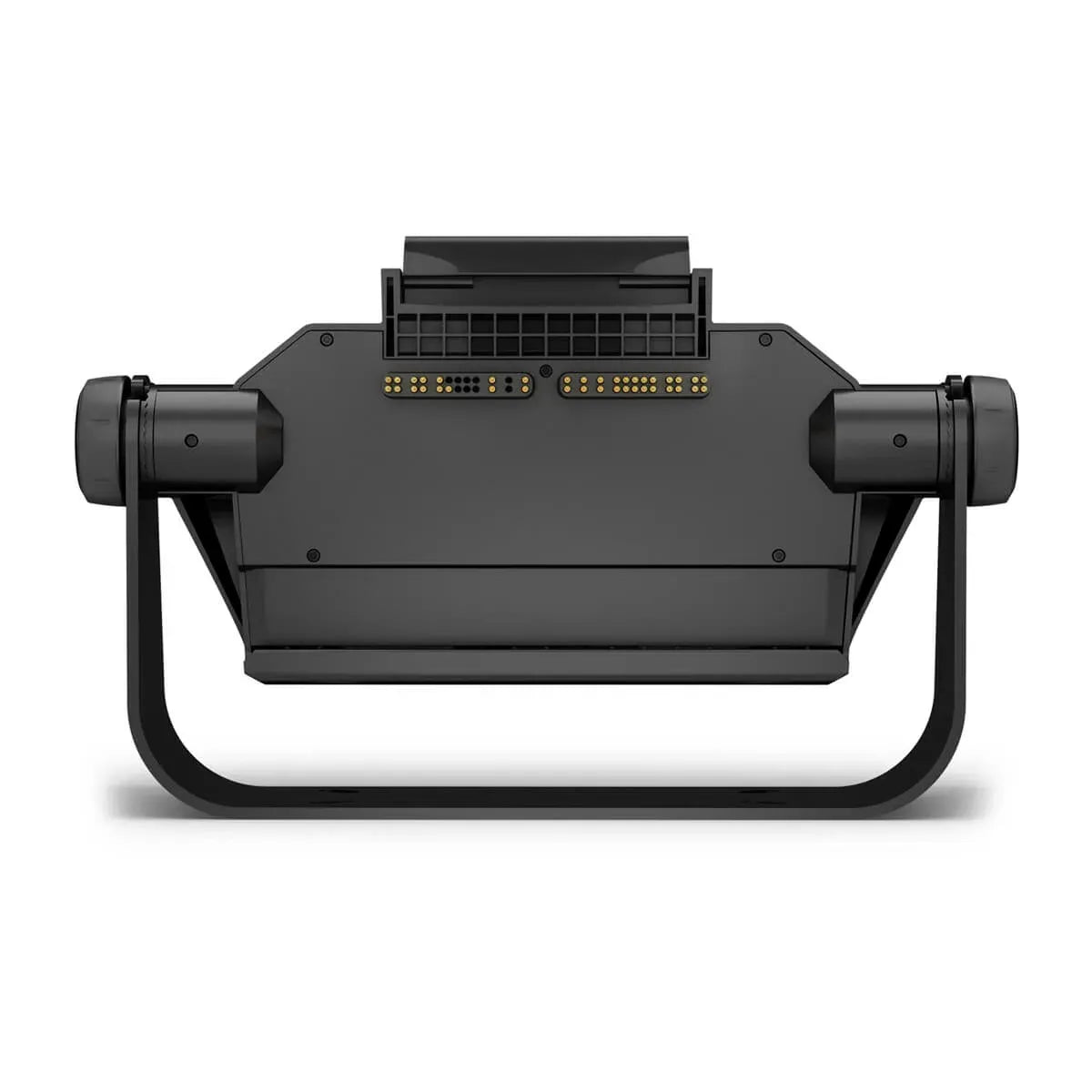

On quick-release cradle versions, the cradle is the connection point for the wiring, so the chartplotter can be lifted out for storage while the cabling stays managed at the mount. On boats that see regular spray or washdowns, take the time to tidy cable runs and seal any new fastener holes appropriately for the surface you are mounting to.

Compatibility and fit

These mounts are size-matched accessories for Garmin ECHOMAP Ultra 2 chartplotters. Confirm your display size before selecting a variant, since a 10-inch, 12-inch, and 16-inch unit each use a different bracket configuration.

If your helm already has a cutout for a flush mount, a bail mount is often used when you want the screen higher, more adjustable, or easier to access for service. It is also a common choice on open boats where the display is brought inside after a day on the water.

Use cases on board

This mount setup fits well on center consoles, pilot houses, and flybridges where glare and seating position change during the day and you want to adjust the screen angle quickly. It also suits owners who trailer, winterize, or prefer removable electronics so the display can be stored off the boat between runs.
