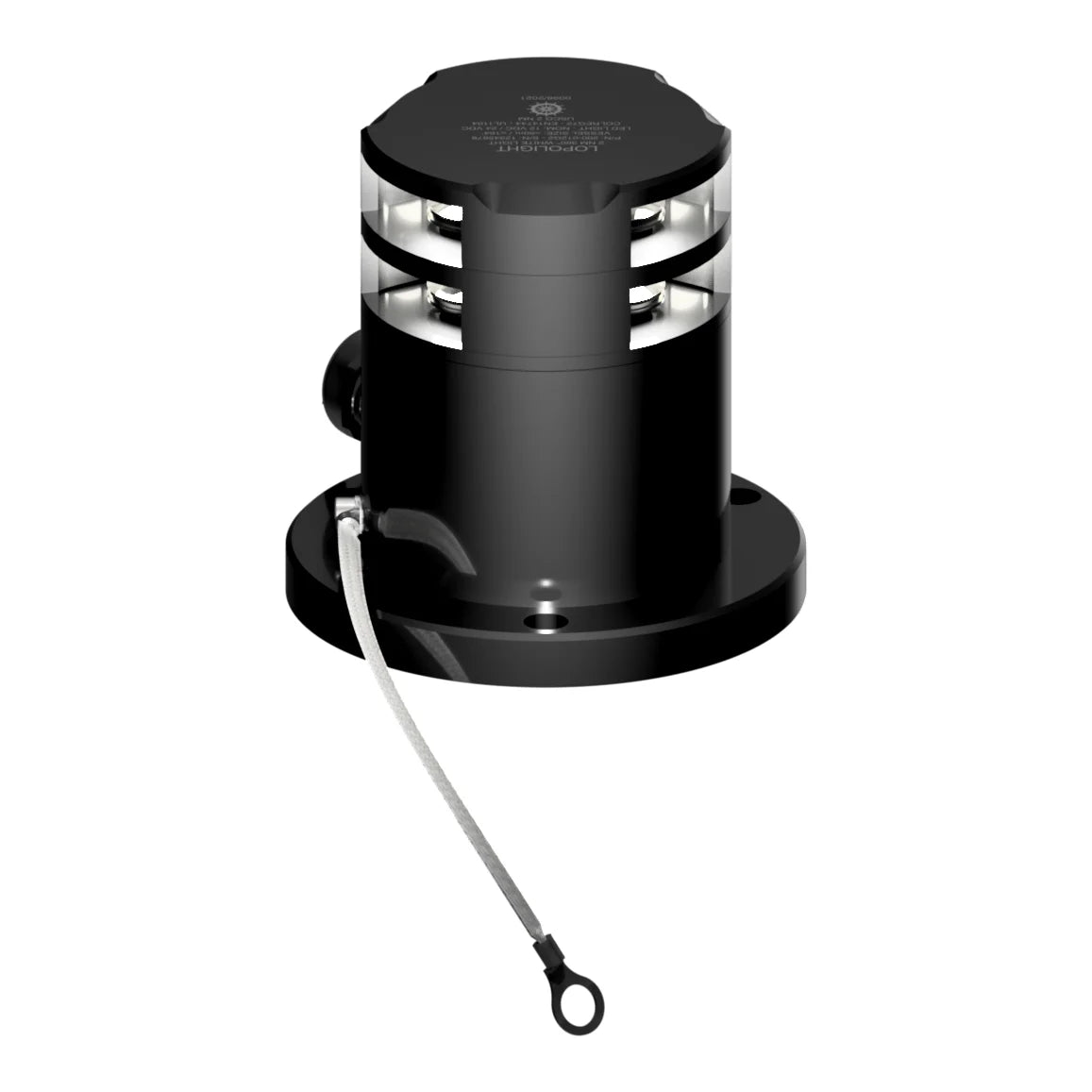

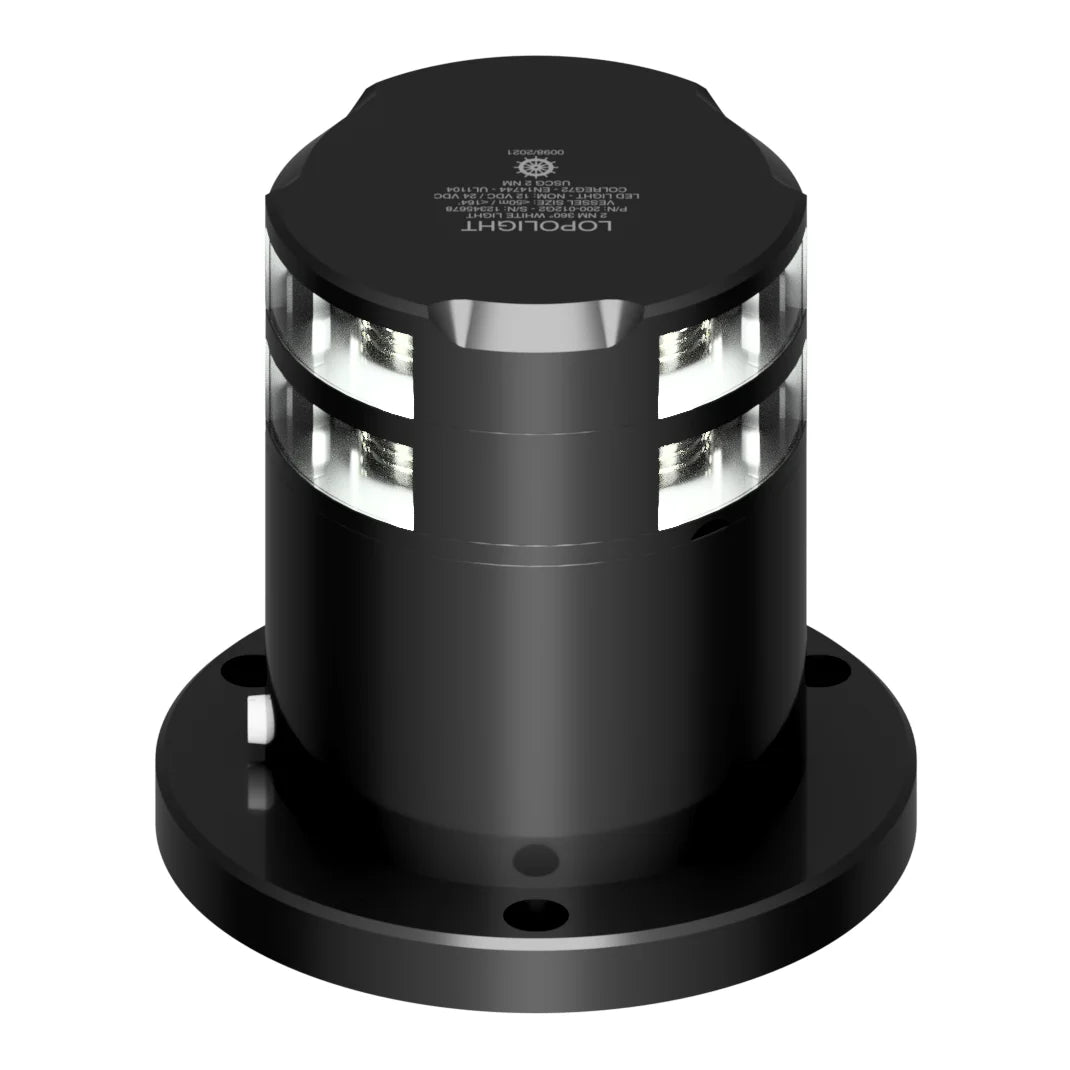

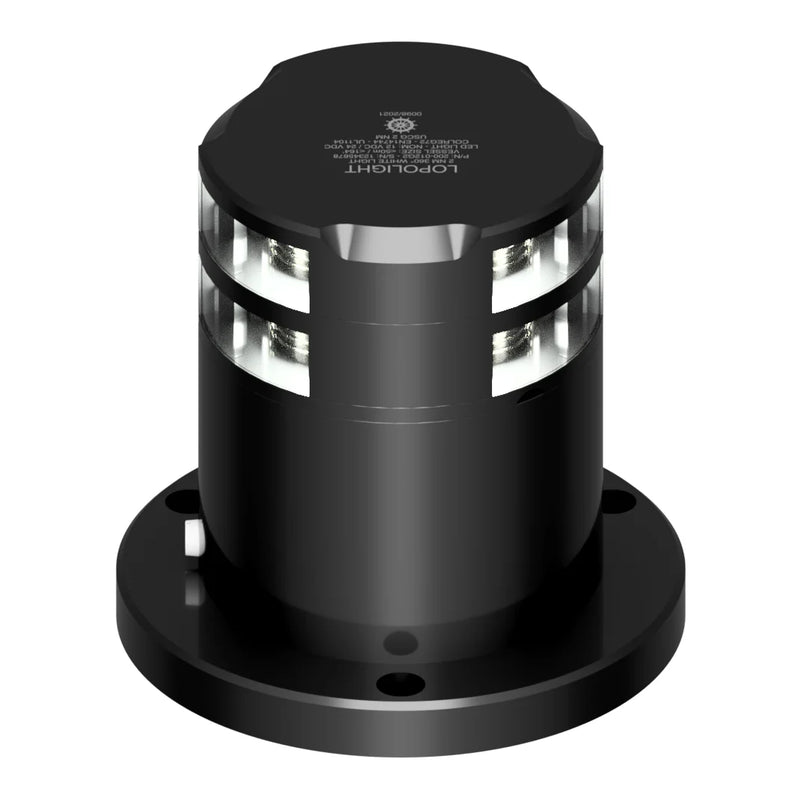

Lopolight PRO Double LED Navigation Light, 2NM, 360°, ATEX

Overview

The Lopolight 201-012ST-PRO-I-EX is a double LED navigation light with 360° white illumination, a 2 nautical mile visibility range, and an integrated ice-class defroster. Part of the PRO Series, this all-round light is certified for hazardous environments classified as ATEX Zones 1 and 2, combining navigation signaling with protection against ice accumulation in cold operating conditions.

Operating on 10-32V DC with an IP68 rating, the fixture features a black hard-coat anodized aluminum housing, a PMMA lens, and A4 stainless steel screws. Its double-light configuration, horizontal mounting arrangement, and hazardous-area certification make it suitable for commercial marine installations requiring specialized navigation lighting.

Key features

• Double LED navigation light with 360° white illumination and a 2 nautical mile visibility range.

• Certified for ATEX Zones 1 and 2, with Ex mb eb IIB T5 Gb hazardous-area classification.

• Integrated ice-class defroster helps prevent ice accumulation on the navigation light.

• 10-32V DC operating range for compatible marine electrical systems.

• IP68-rated construction for protection against dust and water ingress.

• Black aluminum housing with 50-micron hard-coat anodizing, PMMA lens, and A4 stainless steel screws.

• Overall dimensions of 3.6 inches in diameter and 4.9 inches in height.

• Horizontal mounting configuration with a side-facing cable connection and plug connector.

• Approved to marine navigation and electrical standards including COLREG 72, EN 14744, IEC 60945, and ATEX 2014/34/EU.

Installation and electrical integration

The light mounts horizontally on a 400-037 EX/MIL aluminum base and incorporates an HDPE base plate. Its side-facing cable arrangement accommodates the plug connection, while the specified minimum feed wire size is 0.5 mm² (AWG 22). Electrical consumption is listed at 155 mA at 12V DC and 112 mA at 24V DC, with a nominal power draw of 2W.

Installation in hazardous areas must follow the applicable explosion-protection requirements and installation instructions. The fixture is rated for operating temperatures from -25°C to 55°C.

Marine applications

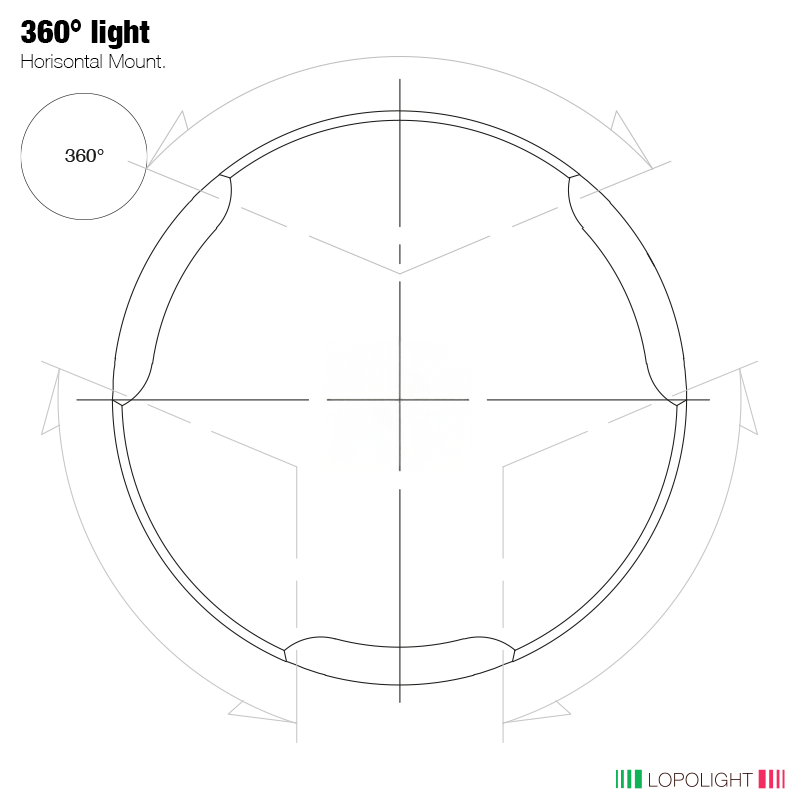

This navigation light supports all-round white signaling on vessels in the under 12 m, 12-20 m, and 20-50 m categories, subject to the applicable navigation-light arrangement requirements. Its hazardous-area certification and built-in defrosting capability are particularly relevant to vessels operating in classified environments or exposed to freezing conditions.

What's included

• 1 Lopolight double LED navigation light with integrated ice-class defroster.

• Installation guide.
