Imtra Avalon 105 LED Downlight, 10-30VDC, IP65, Warm White

Overview

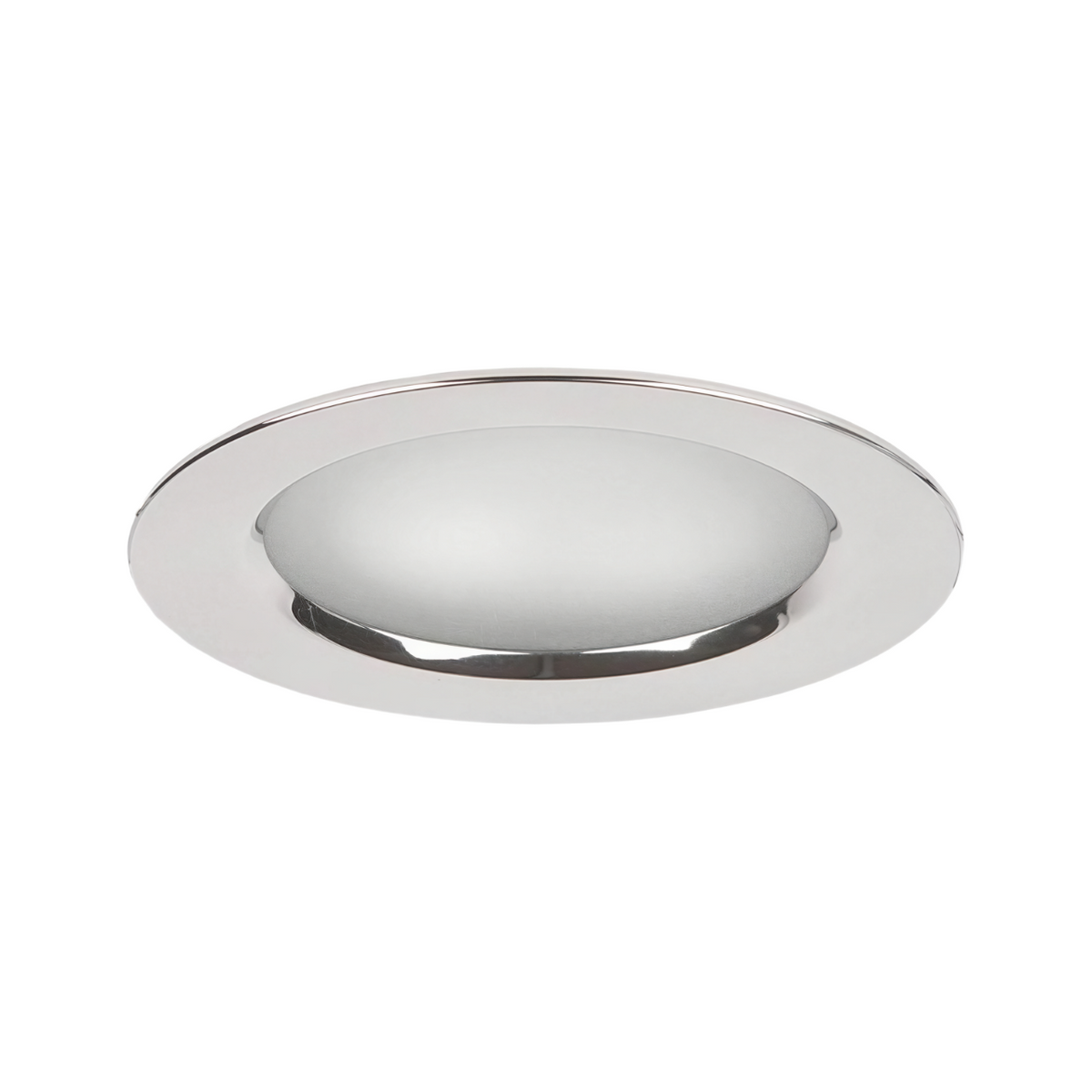

The Imtra ILIM10301 is an Avalon 105 PowerLED recessed marine downlight with a stainless steel housing, warm white illumination, and a low-profile trim ring. Operating on 10-30VDC, it produces 207 lumens at a 2800K color temperature, providing soft overhead lighting for interior and exterior marine applications.

The fixture combines two 3W LEDs with a frosted tempered glass lens and an 84-degree beam angle for broad light distribution. Its integrated driver, PWM dimming interface, and IP65 protection make it suitable for marine installations requiring adjustable illumination and resistance to dust and water exposure.

Key features

• 10-30VDC operating range with 5.5W power consumption.

• 207-lumen warm white output with a 2800K color temperature.

• IP65 ingress protection against dust and water jets.

• 84-degree beam angle with a frosted tempered glass lens.

• Stainless steel housing and trim ring with a low-profile bezel.

• Integrated LED driver with PWM dimming compatibility.

• Spring-mounted recessed installation with self-adjusting mounting springs.

• Electrical protection against voltage spikes and transients.

Installation and fit

The Avalon 105 uses a recessed spring-mount system that secures the fixture without exposed mounting screws. Its trim ring measures 4.13 inches (105mm) in diameter, with a required ceiling cutout of 3.39 inches (86mm) and a recessed installation depth of 1.53 inches (39mm). These dimensions should be checked against the available overhead space before installation.

Electrical and dimming compatibility

The integrated drive electronics support operation on compatible 12V and 24V DC marine electrical systems within the specified 10-30VDC input range. The PWM dimming interface allows adjustable light intensity when connected to a compatible external dimming controller, such as the Imtra PowerLED dimming module ILIM80120.
