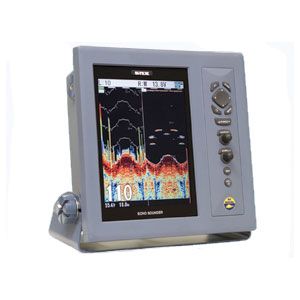

SI-TEX - Color LCD Sounder - W/O Transducer

Advanced Digital LCD Echo Sounder for Professional and Recreational Use

The SI-TEX Color LCD Sounder is a powerful and professional-grade marine echo sounder designed for serious fishermen and commercial operators. With a robust 1 kW output, advanced Digital Signal Processing, and Digital Filtering, this unit delivers superior bottom-reading performance and clear target images in all depths. Whether navigating deep offshore waters or targeting fish in shallow areas, the SI-TEX sounder provides unmatched clarity and accuracy.

Its high-resolution 10.4-inch TFT LCD display ensures crisp and detailed imaging, allowing users to detect fish close to the bottom at depths previously unattainable with conventional high-frequency transducers. Designed to enhance fishing success, the unit incorporates unique features such as SI-TEX’s Detection Area Display, which visually represents the bottom coverage area, and the exclusive Sona-Tone™ feature, which provides distinct audible alerts for individual fish and schools.

For added convenience, the built-in image storage allows up to 10 "Snap-Shot" screen images to be saved for later reference. The optional GPS input integration enables easy back-track navigation, ensuring users can return to key fishing spots with precision. With its user-friendly Auto Function mode, even novice users can achieve professional-grade results without complex manual adjustments.

Technical Specifications

• Output Frequency: 50kHz/200kHz
• Output Method: Single or alternate
• Output Power: 1kW
• Output Firing Times: Up to 3,000 times per minute
• Display Modes: Normal, Dual frequency, Zoom, NAV (Simple plotter, compass), A-scope
• Depth Range: 8 ft to 6,500 ft
• Zoom Range: 8 ft to 650 ft
• Image Speed: 9 adjustable steps with stop function
• Color Options: Monochrome, 9-color, 16-color, 64-color
• Data Input Format: NMEA0183 Ver.1.5/2.0/3.0 (GGA, GLL, HDT, MTW, MWV, RMC, VHW, VTG, ZDA)
• Data Output Format: NMEA0183 Ver 2.0 (DBT, DPT, GGA, GLL, HDT, MTW, MWV, RMC, TLL, VHW, VTG, ZDA)
• Power Supply: 10.8V to 31.2V DC
• Power Consumption: 30W or less (at 24V DC)
• Operating Temperature Range: -15°C to +55°C
• Storage Temperature Range: -30°C to +70°C
• Water Protection Rating: IPX5

Product Dimensions

• Cabinet Size: 13" x 12.5" x 6.8"
• Weight: 16.4 lbs

Highlights

• High-powered 1 kW transducer with dual-frequency operation (50/200kHz)
• 10.4-inch color TFT LCD with 640x480 resolution for superior clarity
• Advanced Digital Signal Processing and Filtering for improved target detection
• Depth range capabilities from 8 ft to 6,500 ft
• Detection Area Display for precise fish location relative to the vessel
• Sona-Tone™ alert system differentiating individual fish from schools
• Image storage for up to 10 snapshots for future reference
• Optional GPS input for back-track navigation directly on the sounder screen
• Auto Function mode for hands-free operation

Variants List

• CVS-1410 - 10.4-inch display
• CVS-126 - 5.7-inch display

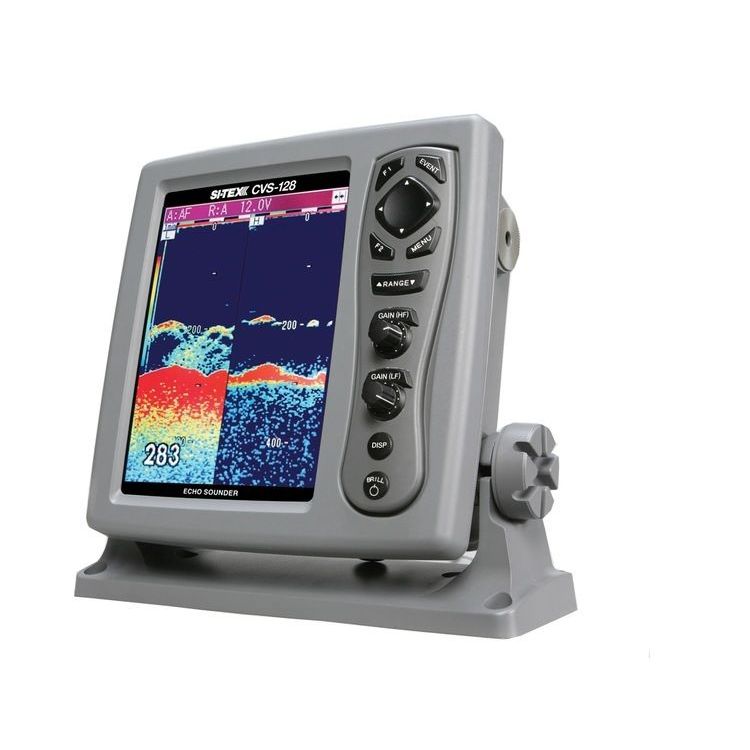

• CVS-128 - 8.4-inch display

Designed to meet the needs of professional mariners and dedicated recreational anglers, the SI-TEX Color LCD Sounder is a premium solution for superior fish detection and depth analysis in marine environments.
