Vimar Plana Shaver Supply Unit 230V, 20 VA Isolating Transformer, 120V/230V Output, 3-Module

Overview

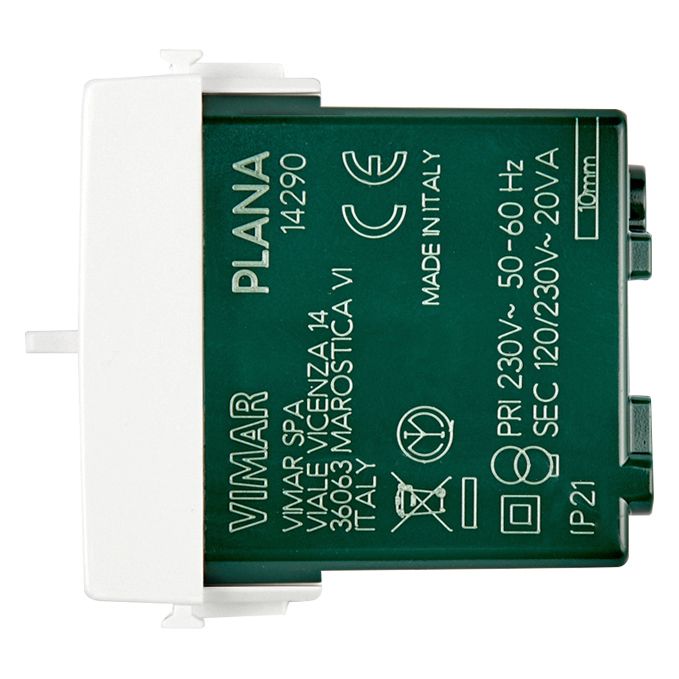

The Vimar Plana Series is a flush-mounted 230 V shaver supply unit for spaces that need a dedicated outlet for grooming appliances. It uses a 20 VA isolating transformer and supports 120 V output for 2P 15 A 125 V American standard plugs with non-polarized flat blades, plus 230 V output for 2P 2.5 A Europlugs.

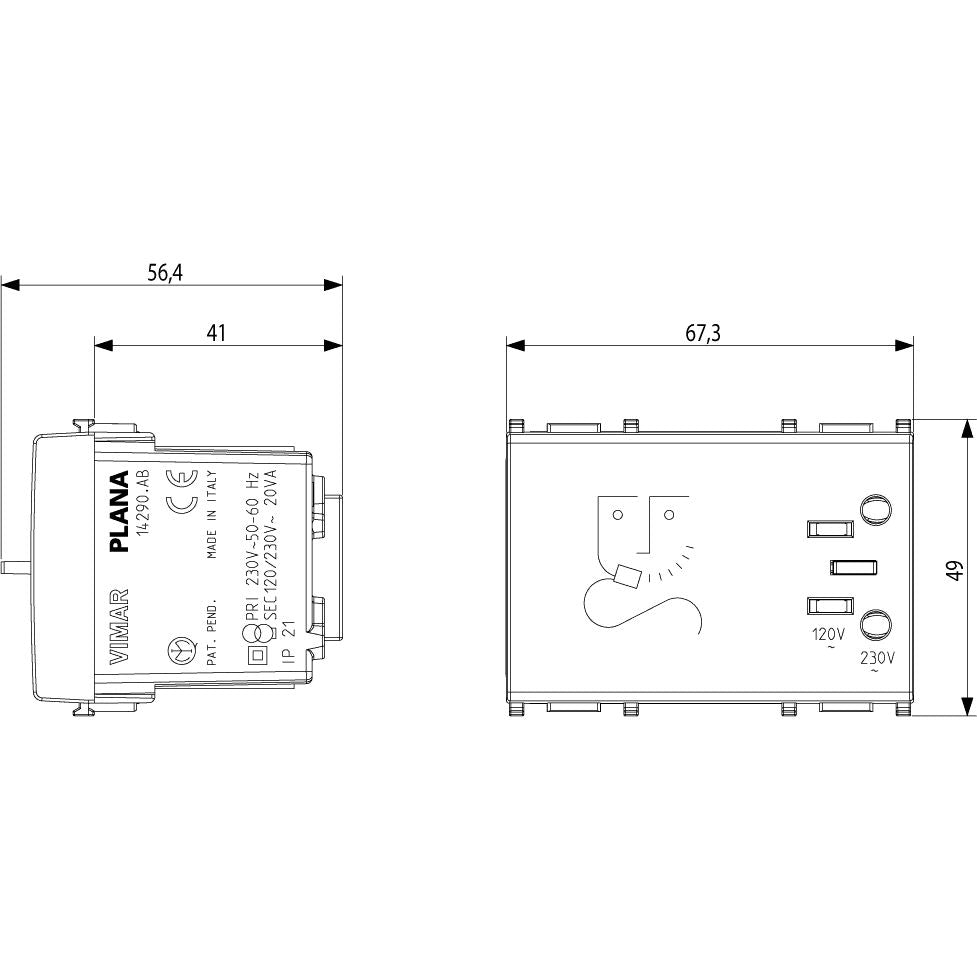

This unit is built in a 3-module Plana format and measures 67.30 mm wide, 49.00 mm high, and 51.50 mm deep. That matters when you are matching existing switch layouts in a boat head, cabin, or any accommodation space already using the Plana system.

On board, it fits best in enclosed interior areas with a 230 V AC supply from shore power or an inverter-fed circuit. It is a dedicated shaver outlet rather than a general-purpose receptacle, so plug type and installation format are the main fit checks before purchase.

Key features

• 230 V~ 50-60 Hz input with a 20 VA isolating transformer for shaver use
• 120 V output for 2P 15 A 125 V American standard plugs with non-polarized flat blades
• 230 V output for 2P 2.5 A Europlugs
• Flush-mounted 3-module Plana format for installations that need a consistent modular layout
• Thermoplastic body with a glossy visible finish across the range
• Available in white, silver, or white with antibacterial treatment depending on variant

Variants

This product is offered in three configurations.

Across the listed versions, the electrical format stays the same: 230 V~ 50-60 Hz input, 20 VA isolating transformer, dual shaver outputs, and a 3-module Plana flush-mounted layout. The change between variants is the visible finish or surface treatment.

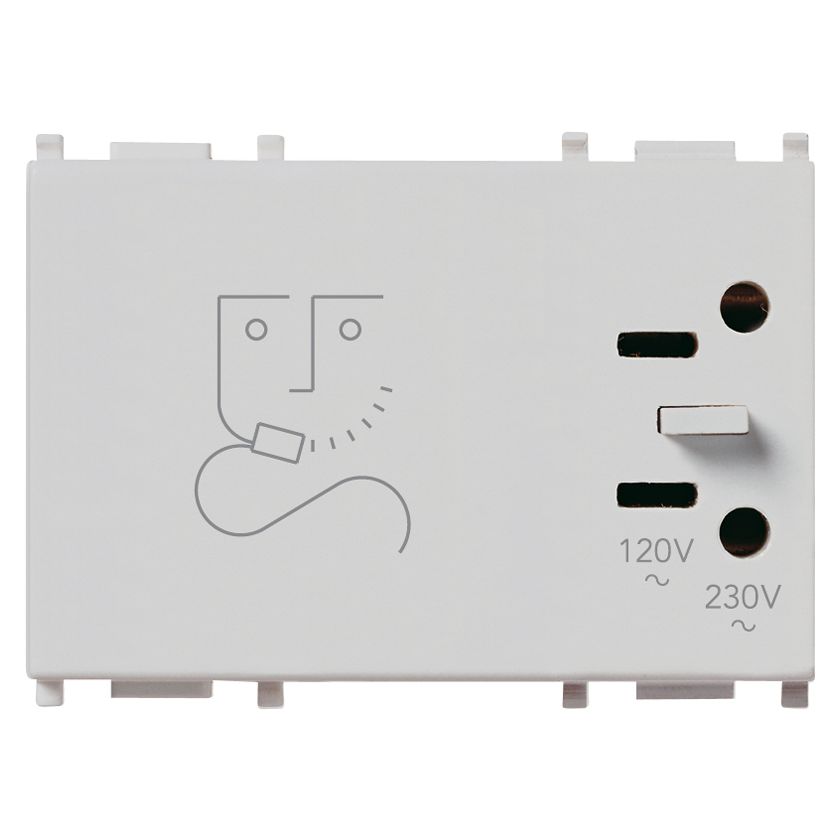

• VM14290.SL: Silver. This version uses a silver finish that works well where the surrounding switches or trim already follow a metallic look.

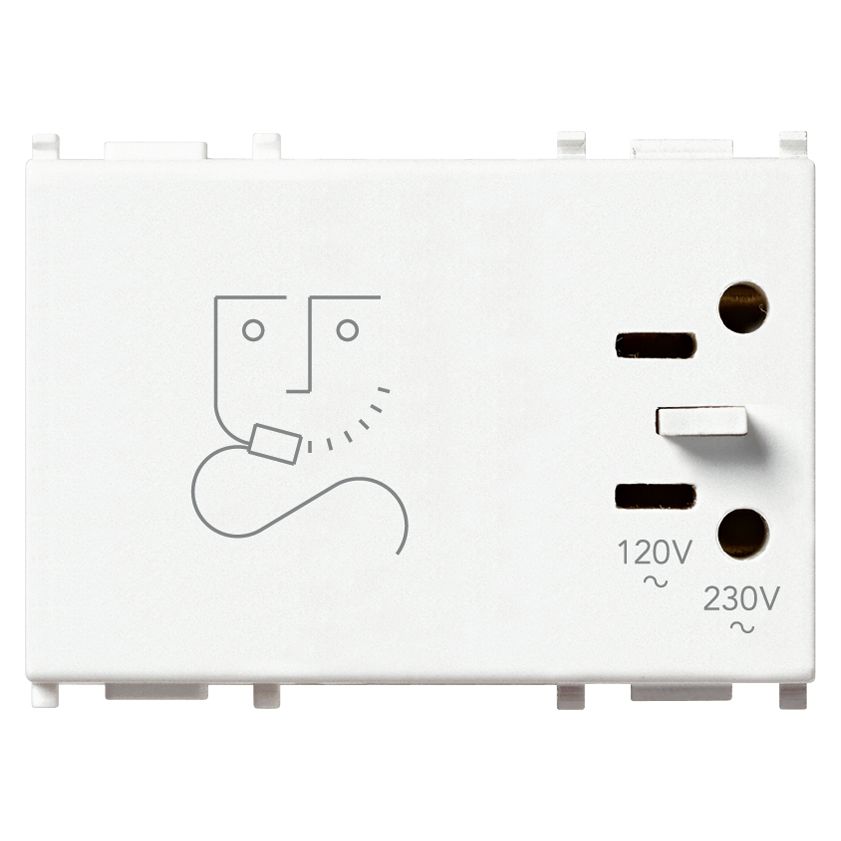

• VM14290: White. This version keeps the appearance aligned with standard white Plana devices.
• VM14290.AB: White with antibacterial treatment. The surface treatment is relevant in shared washroom spaces and other high-touch interior installations.

Compatibility and fit

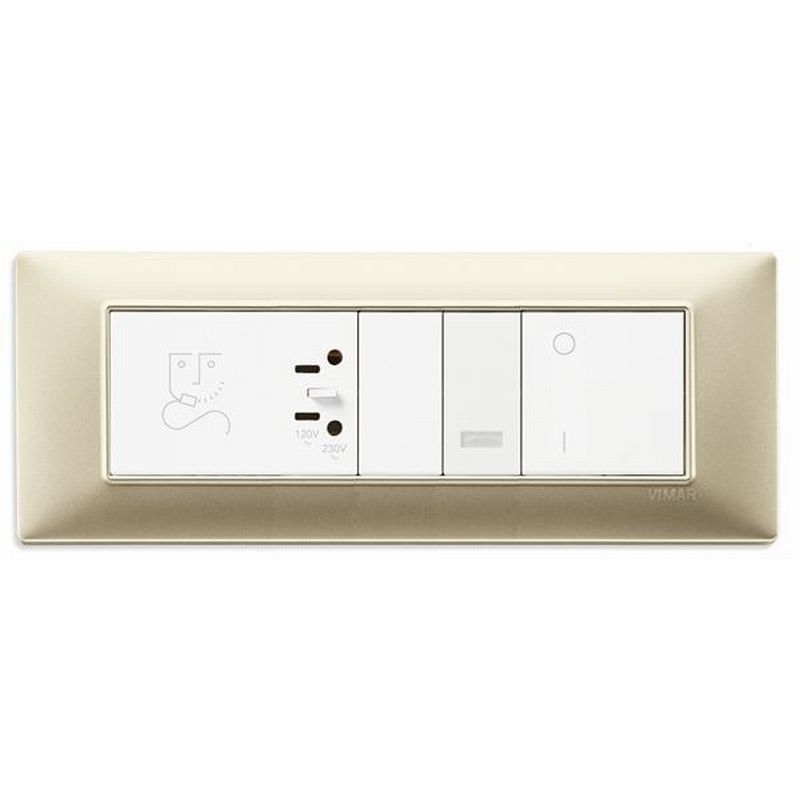

Check that the installation uses the Vimar Plana system and has room for a 3-module flush-mounted device. The body dimensions are compact, but matching the correct mounting arrangement and front aesthetics is still important in refit work.

This unit suits yachts, motorboats, and accommodation builds where a dedicated shaver point is needed and the AC system already runs at 230 V. It is especially relevant when users may bring either a Europlug shaver or a 120 V American standard non-polarized flat-blade plug.
