Lopolight Double 5nm Masthead and 2nm Anchor LED Navigation Light

Overview

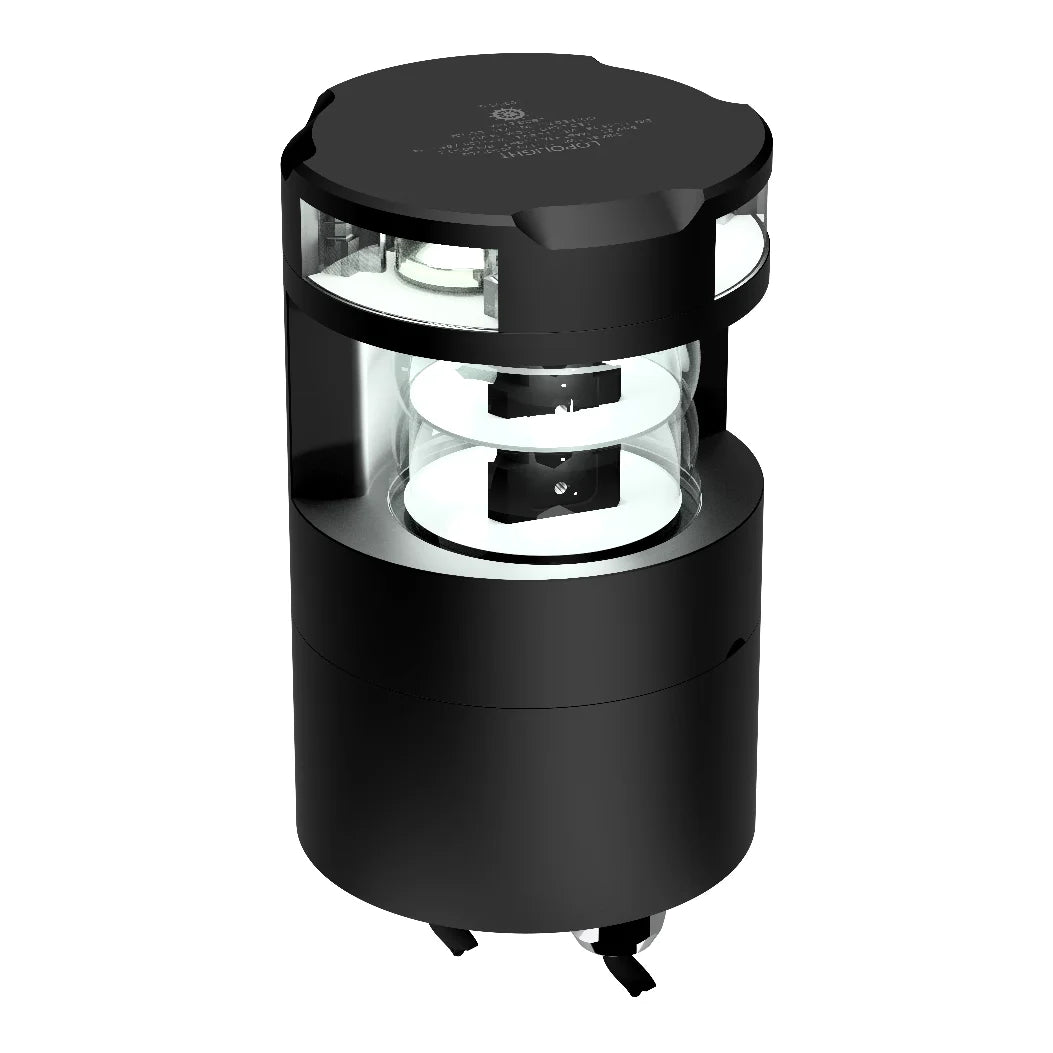

The Lopolight 300-038+200-012G2-B is a combined LED navigation light featuring a double white masthead configuration with 5 nautical miles of visibility across a 225° sector and a single all-round white anchor light with 2 nautical miles of visibility across 360°. Both lighting functions are integrated into a black-anodized assembly for horizontal mounting.

The fixture uses a 400-035 aluminum mounting base with an IP68 rating, downward cable routing, and M16 x 1.5 cable glands. It operates on 24V DC marine electrical systems with a supported supply range of 20 to 32V DC. The combination is suited to vessels requiring separate masthead and anchor-light functions at the same mounting location.

Key features

• Double white masthead light with a 225° illumination sector and 5nm visibility range.

• Single 360° all-round white anchor light with a 2nm visibility range.

• 20 to 32V DC operating range for 24V marine electrical systems.

• IP68-rated 400-035 aluminum base for horizontal mounting.

• Black-anodized finish with downward cable routing.

• M16 x 1.5 Skintop MS-M cable glands for electrical cable entry.

• DNV-certified navigation light configuration.

Installation and setup

The assembly mounts horizontally on its aluminum base and includes an HDPE base plate. The downward cable arrangement accommodates wiring routed through the mounting surface, while the cable glands provide dedicated entry points for the electrical connections.

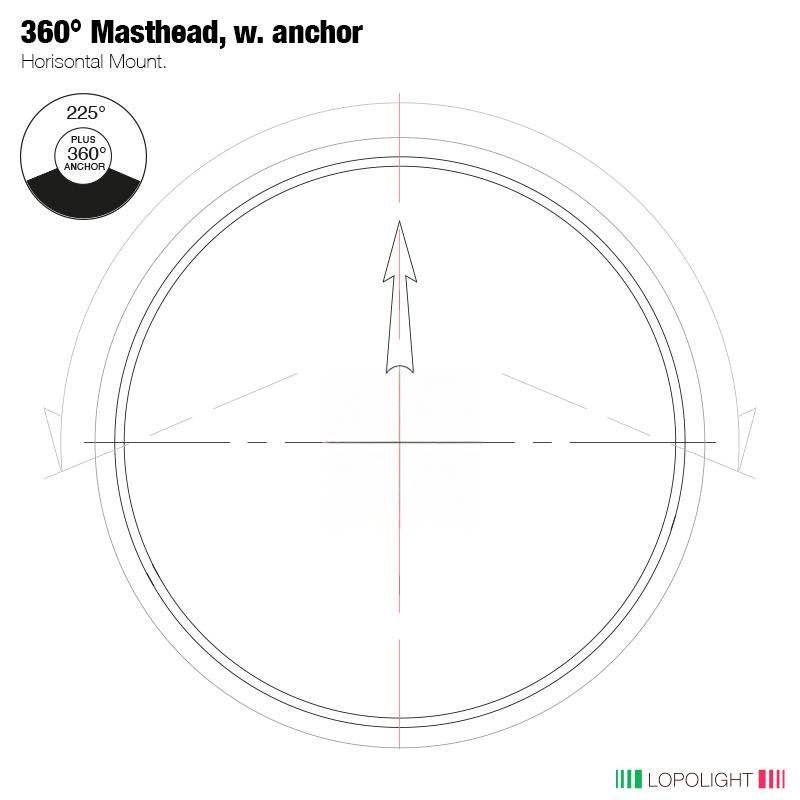

Correct alignment with the vessel centerline is important for positioning the 225° masthead illumination sector. The electrical installation requires a 20 to 32V DC supply, with a slow-acting fuse or circuit breaker rated below 2A recommended. Wiring should be protected against chafing, heat, and interference from nearby electrical equipment.

Use on board

This combination brings a double masthead-light configuration and a separate all-round anchor light into one mounting assembly. The two functions serve different navigation-light requirements, with the forward-facing 225° white sector used for masthead signaling and the 360° white light used for all-round anchor illumination. Its horizontal mounting arrangement is intended for installations where both functions can be positioned and aligned appropriately on the vessel.
