Furuno - TZtouch3 Multifunction Display

Powerful and Intuitive Multifunction Display

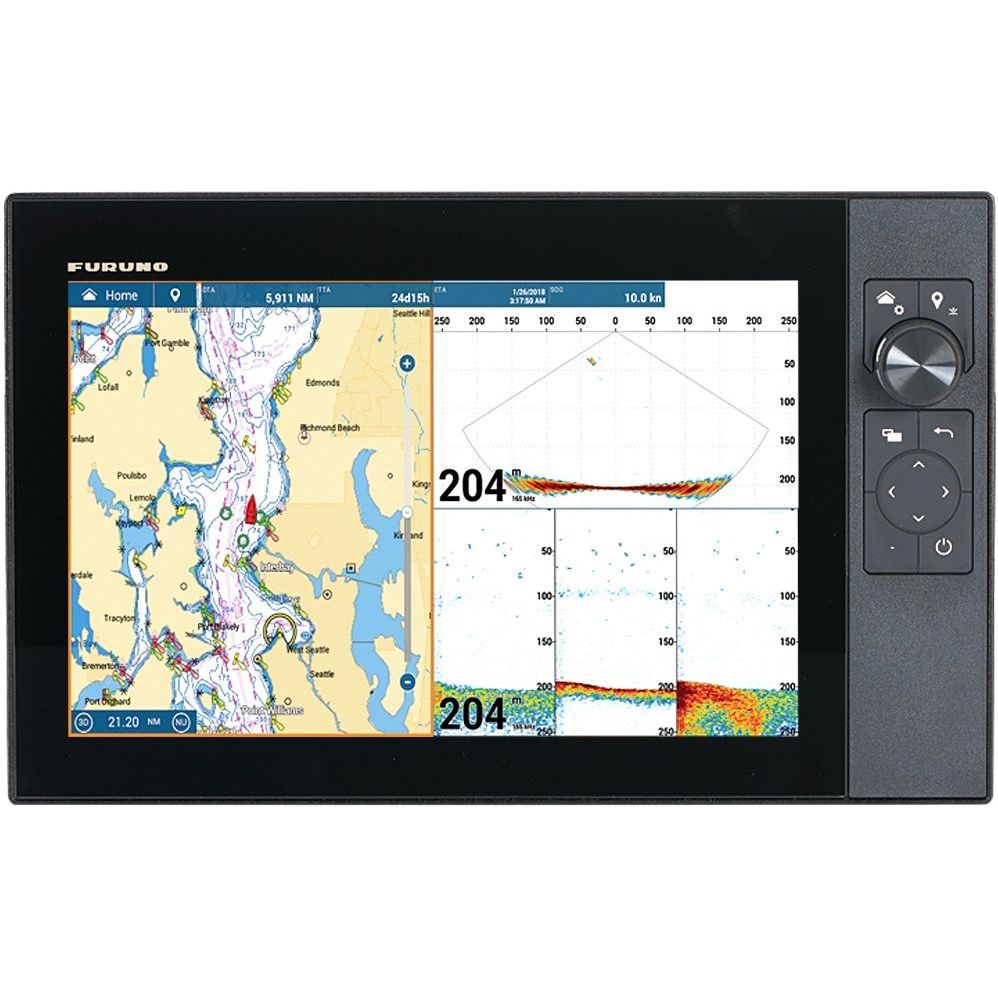

The Furuno TZT12F TZtouch3 is a state-of-the-art 12.1-inch chart plotter and fish finder designed to enhance marine navigation and fishing experiences. Featuring a high-resolution WXGA touchscreen with In-Plane Switching (IPS) technology, it delivers crisp visuals, vivid colors, and exceptional clarity even in bright sunlight.

Equipped with Hybrid Control, this unit offers both touchscreen and physical control options, ensuring seamless operation in any marine environment. The intuitive interface simplifies navigation, making it easy to plot routes, mark waypoints, and access essential data.

Designed for reliability, the TZT12F features a secure PIN CODE system, preventing unauthorized access. Additionally, cloud-based storage with TZ Cloud allows users to sync waypoints, routes, and settings across multiple devices, ensuring data is never lost.

High-Performance Chart Plotter with Versatile Mapping

The Furuno TZtouch3 supports MapMedia mm3d charts, providing compatibility with C-MAP, Navionics, and NOAA cartography. With the ability to store 30,000 user points, 30,000 track points, and 200 planned routes, this unit is a powerful tool for precise navigation. Built-in alarms, including anchor watch, depth alerts, and boundary alarms, enhance safety during voyages.

Integrated High-Definition Radar Capabilities

The radar functionality of the TZT12F ensures enhanced situational awareness. Features include:

• Head-up and North-up display modes

• Echo Trail functionality for tracking vessel movement

• ARPA target tracking for up to 30 targets

• Comprehensive radar alarms for guard zones, CPA/TCPA warnings, and azimuth alerts

Advanced CHIRP Fish Finder for Precision Fishing

The built-in CHIRP fish finder operates at frequencies ranging from 40 kHz to 225 kHz, ensuring superior target separation and deeper penetration. It supports 300W, 600W, and 1 kW transducers (with compatibility for Furuno's MB1100 matching box for specific models).

Advanced sonar features include:

• RezBoost™ and TruEcho CHIRP™ for clear target distinction

• Bottom Discrimination Mode for seabed composition analysis

• ACCU-FISH™ technology for estimating fish size

• Fish Finder alarms for detecting schools of fish and bottom-lock fish tracking

Robust Connectivity and Integration

The Furuno TZtouch3 supports multiple connectivity options, allowing seamless integration with existing marine electronics. Key interface features include:

• NMEA2000 and NMEA0183 support for networking with marine sensors

• Dual LAN ports (100 BASE-TX) for fast data transfer

• USB 2.0 input for external touch monitor or control unit

• Video input and output (NTSC/PAL, HDMI 720p) for additional display flexibility

• Micro SDXC card slot for data storage

• Wireless LAN (IEEE 802.11b/g/n) for remote connectivity

Built to Withstand Marine Conditions

Designed to operate in extreme environments, the Furuno TZtouch3 is highly durable with IP56 waterproofing and an operational temperature range of -15°C to +55°C. It is engineered to perform reliably in high humidity (up to 93% at 40°C), ensuring long-lasting functionality on the water.

Power Efficiency for Extended Use

The unit operates on a 12-24V DC power supply with an efficient power draw of 2.3 - 1.2A, making it suitable for a wide range of vessels.

Available Variants

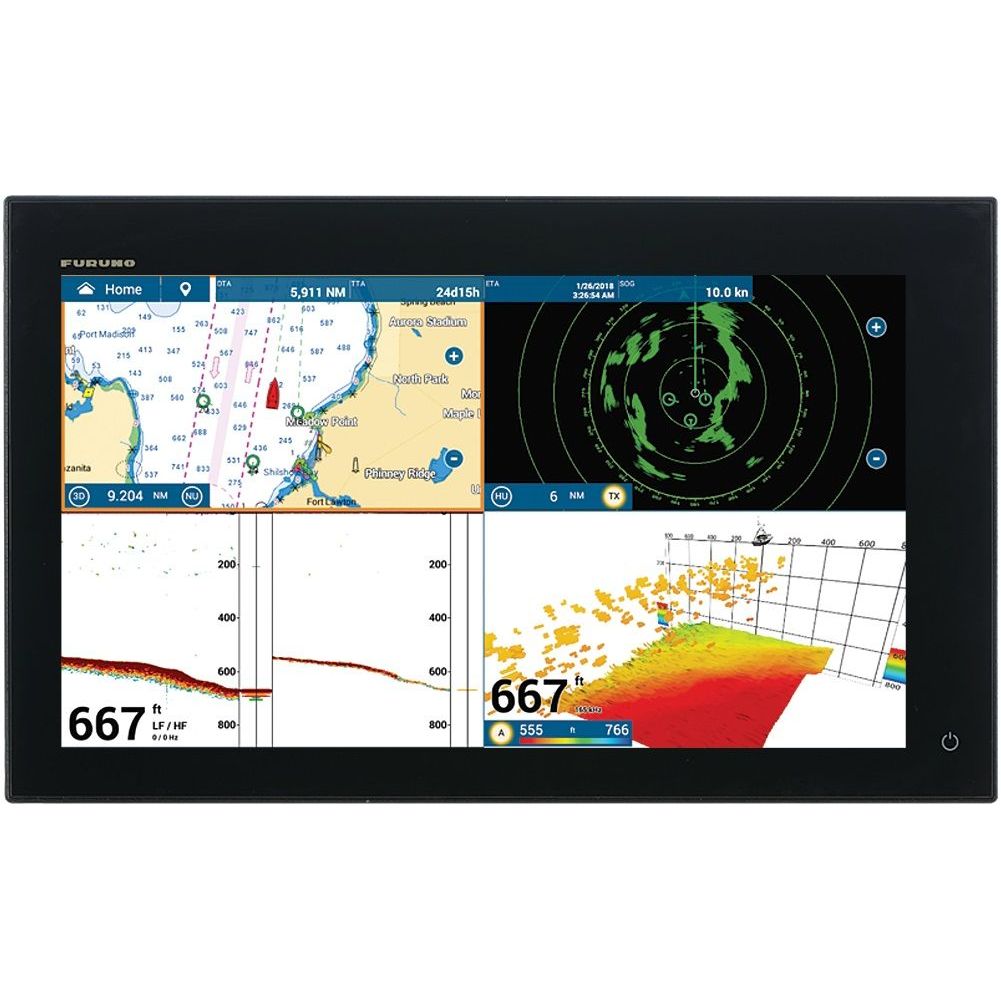

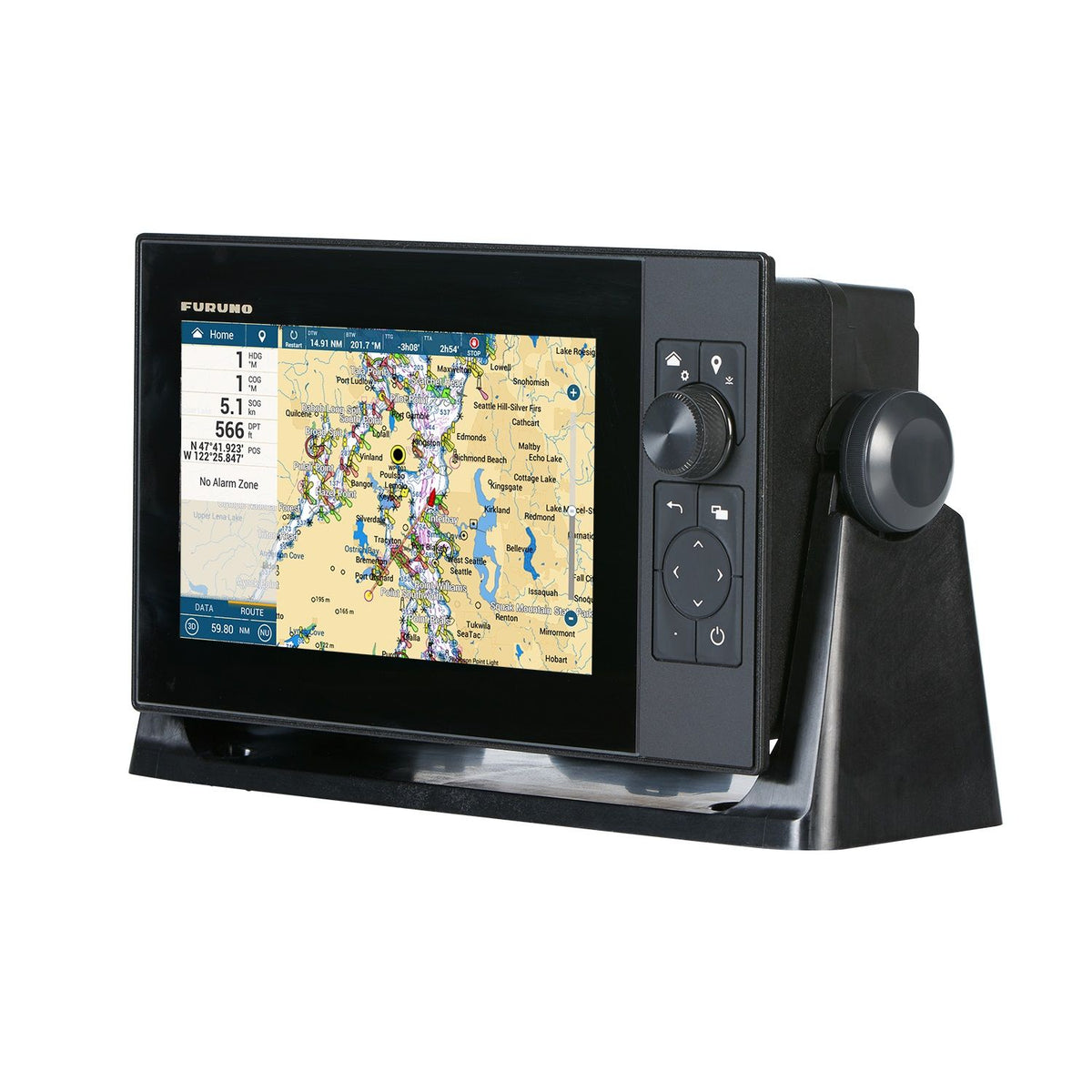

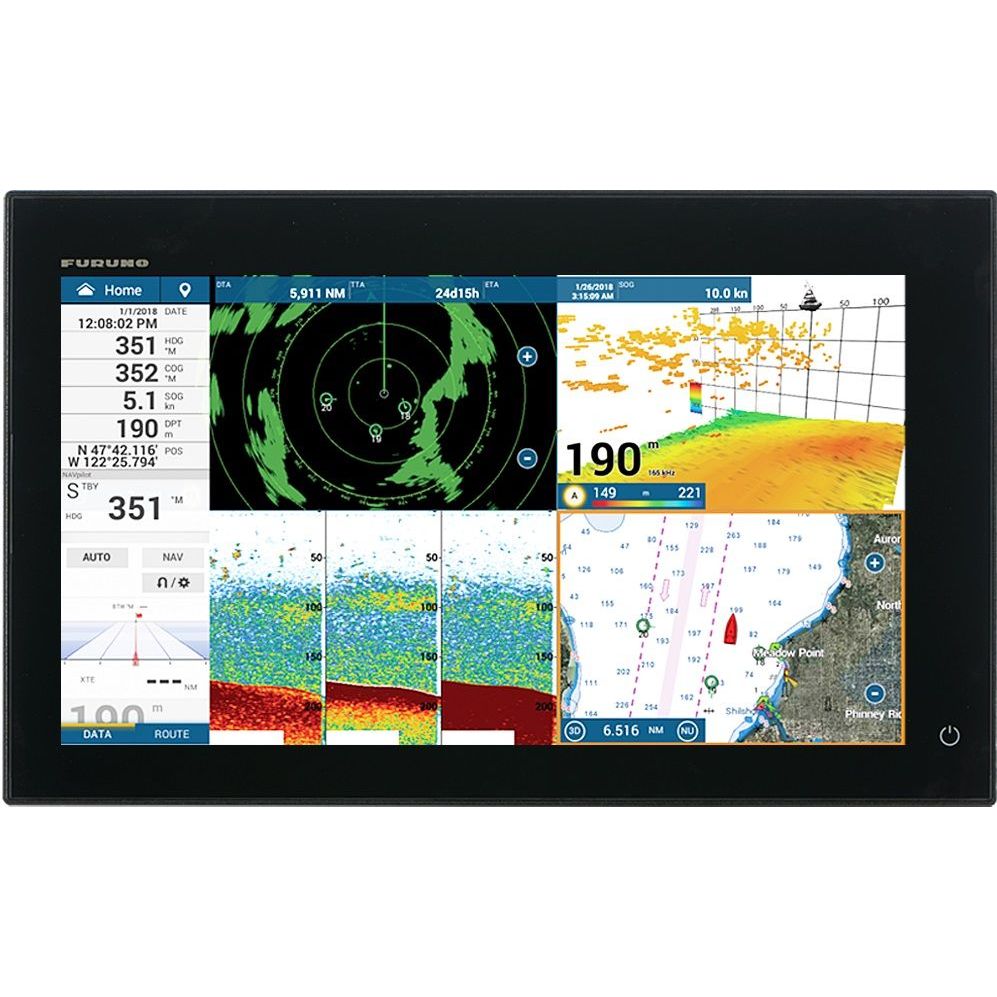

The Furuno TZtouch3 series offers multiple display sizes to accommodate different vessel configurations:

• TZT-9F – 9" Display

• TZT-12F – 12" Display

• TZT-16F – 16" Display

• TZT-19F – 19" Display

Each variant provides the same industry-leading features, ensuring optimal performance regardless of screen size.

The Furuno TZtouch3 TZT12F is the perfect solution for marine professionals and avid anglers seeking a powerful, user-friendly, and feature-rich navigation and fish-finding system.
