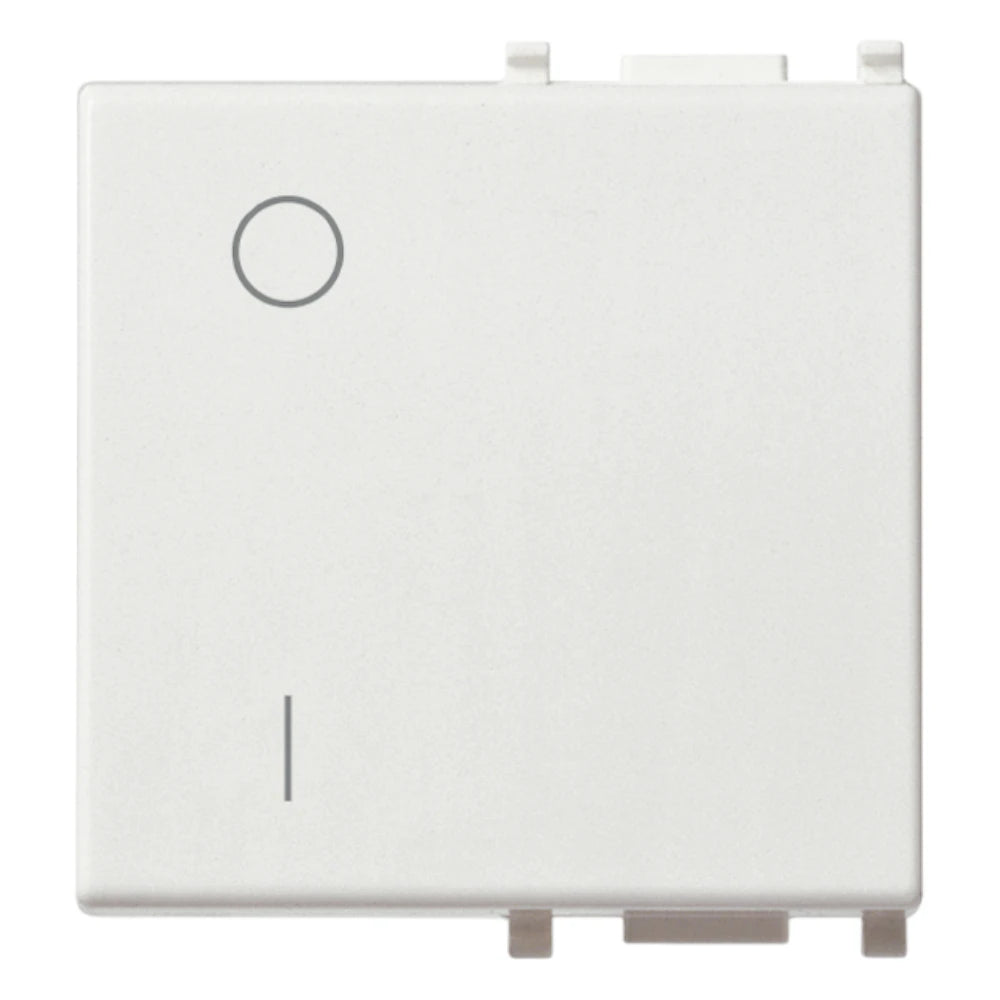

Vimar Plana Interchangeable 2-Module Button, Lightable, IP40

Overview

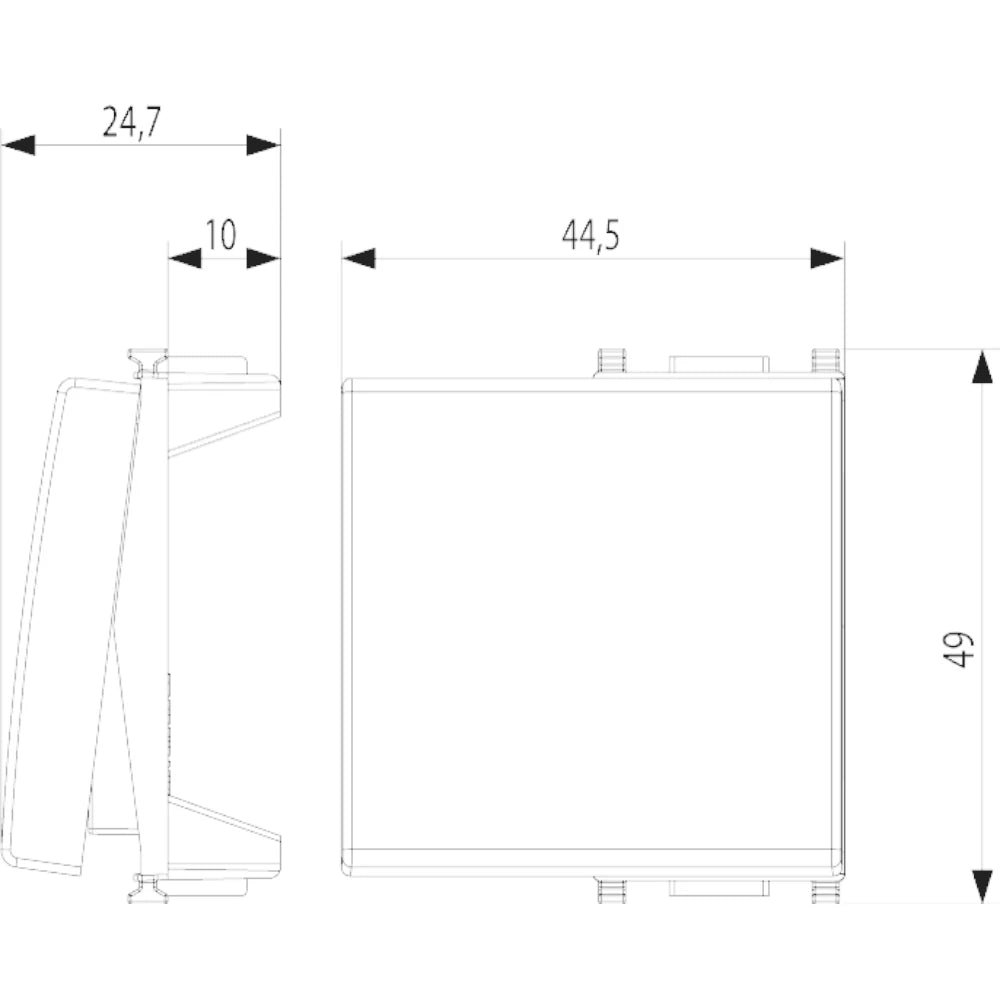

The Vimar Plana Series is a family of interchangeable 2-module buttons for Plana switch and push-button positions, with IP40 protection, a one-part rocker format, and a glossy halogen-free thermoplastic construction.

For boat interiors, this is the visible control piece that gives a panel a clean and readable finish while keeping the switch function easy to identify. It suits protected locations such as cabins, galleys, heads, companionway areas, and sheltered helm panels where the control face needs to match the rest of the Plana installation.

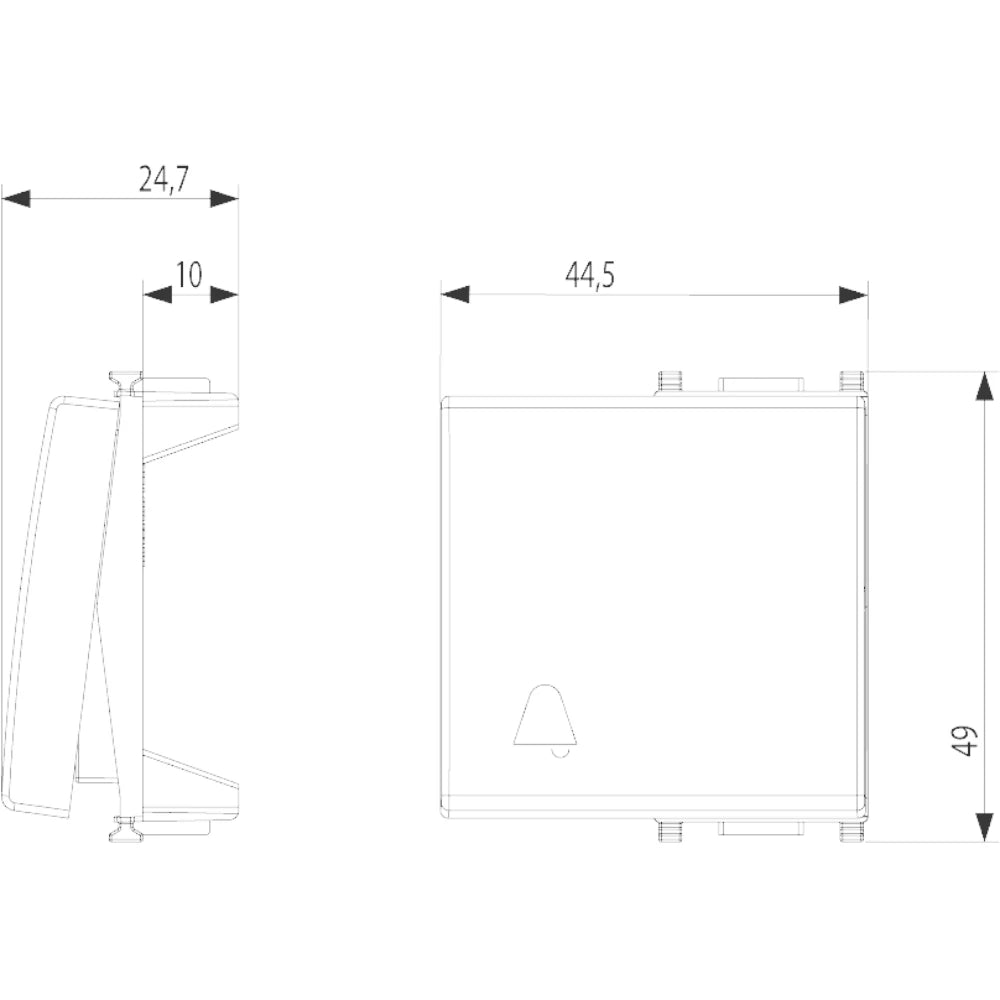

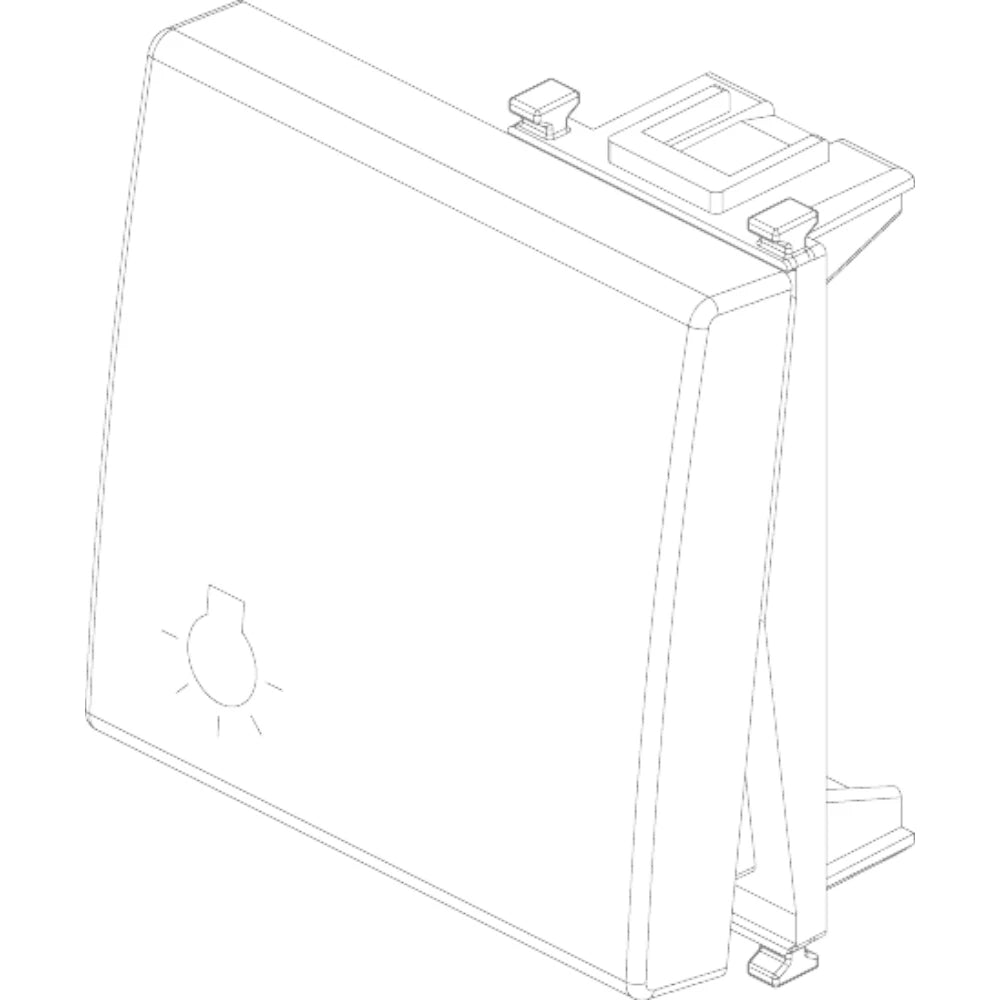

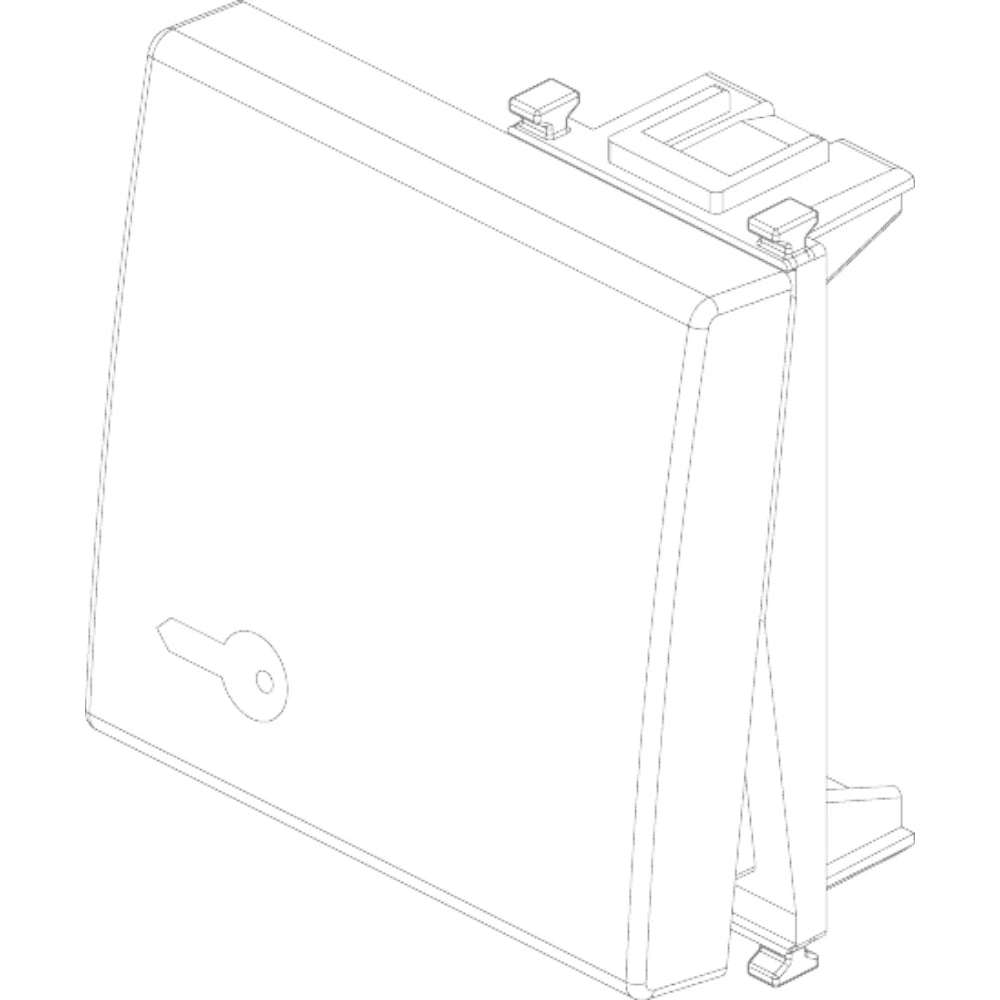

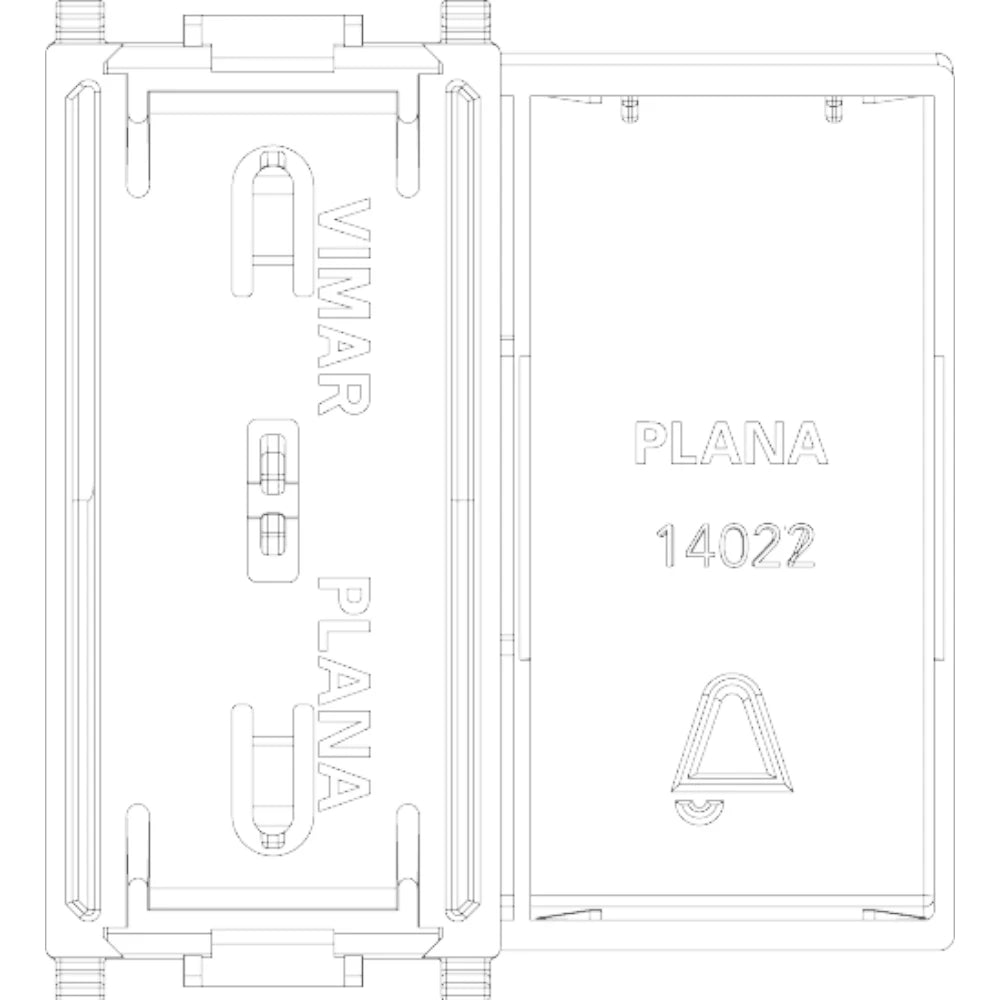

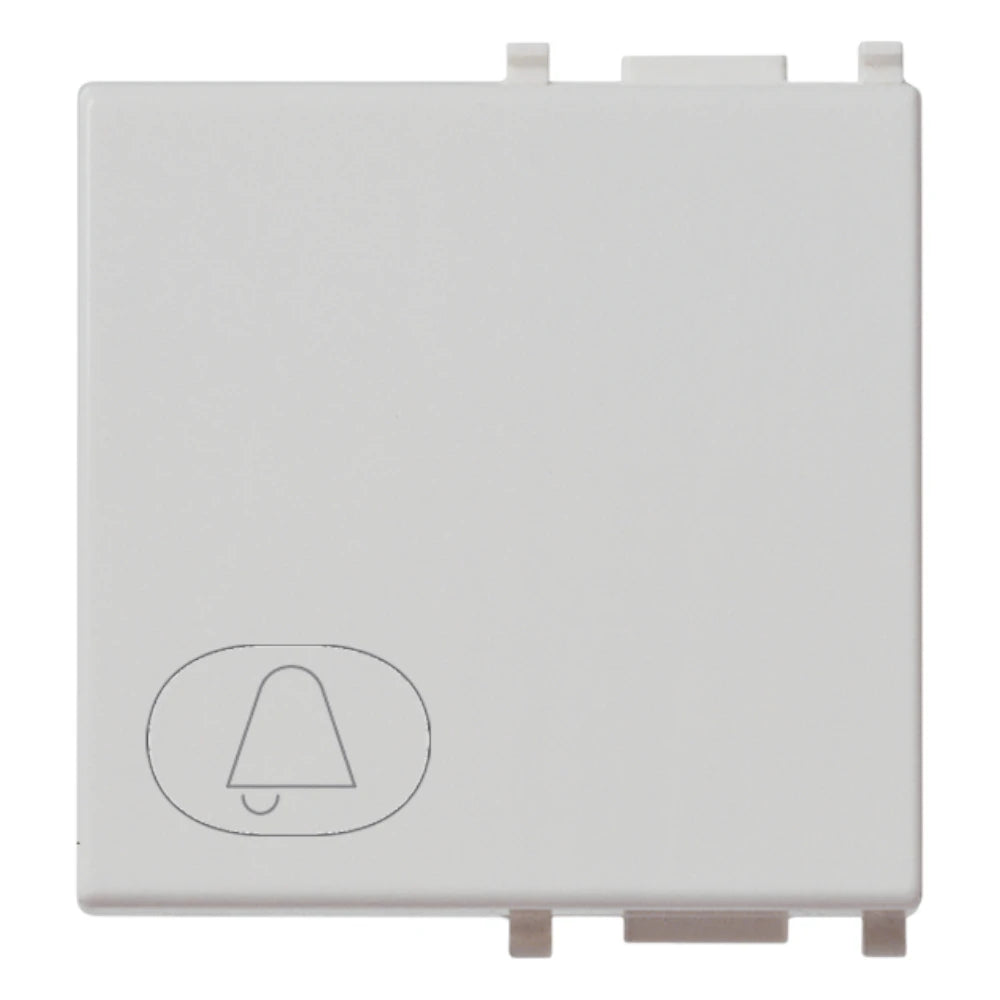

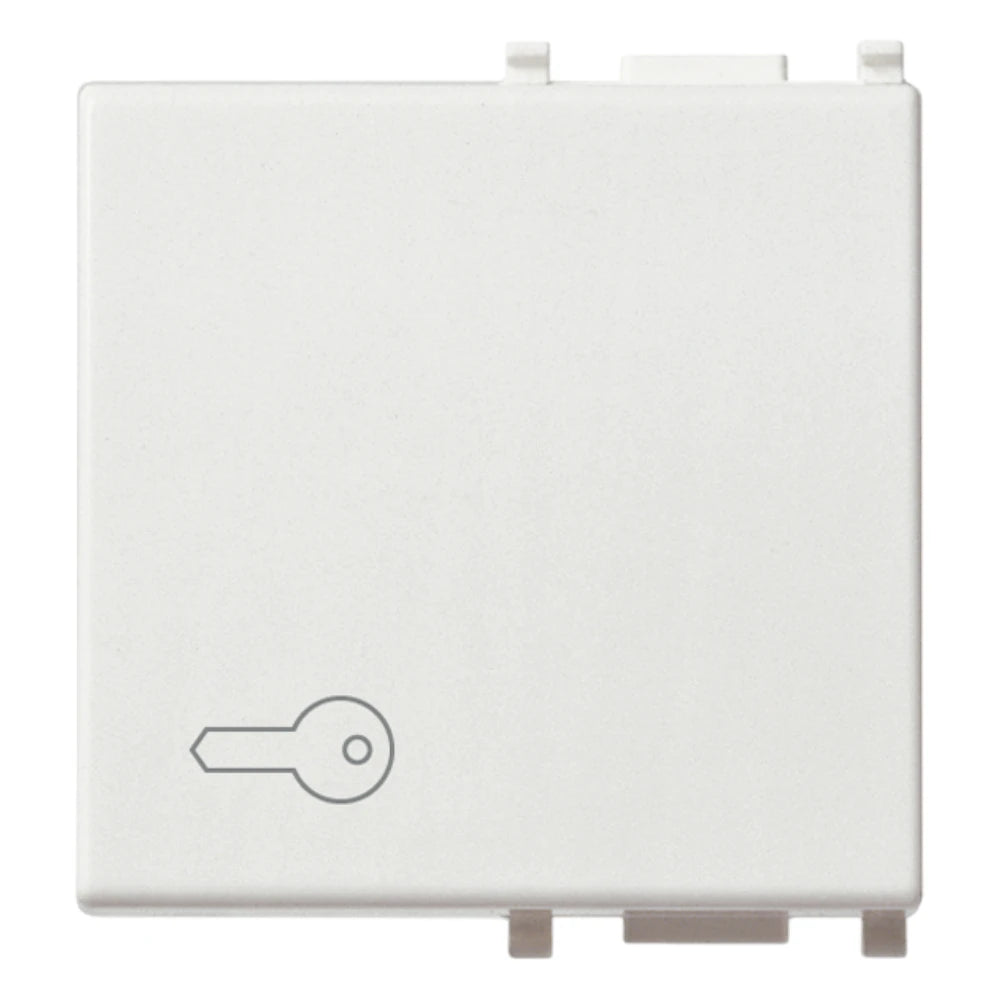

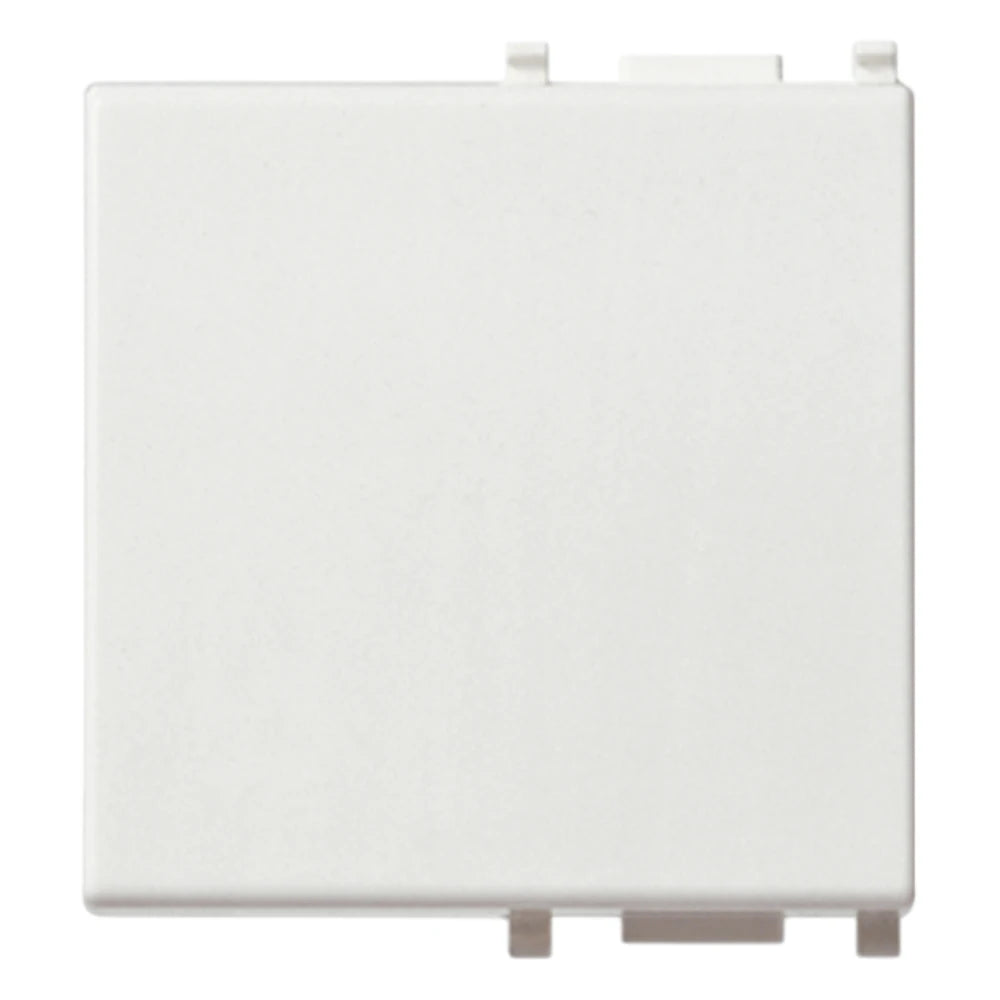

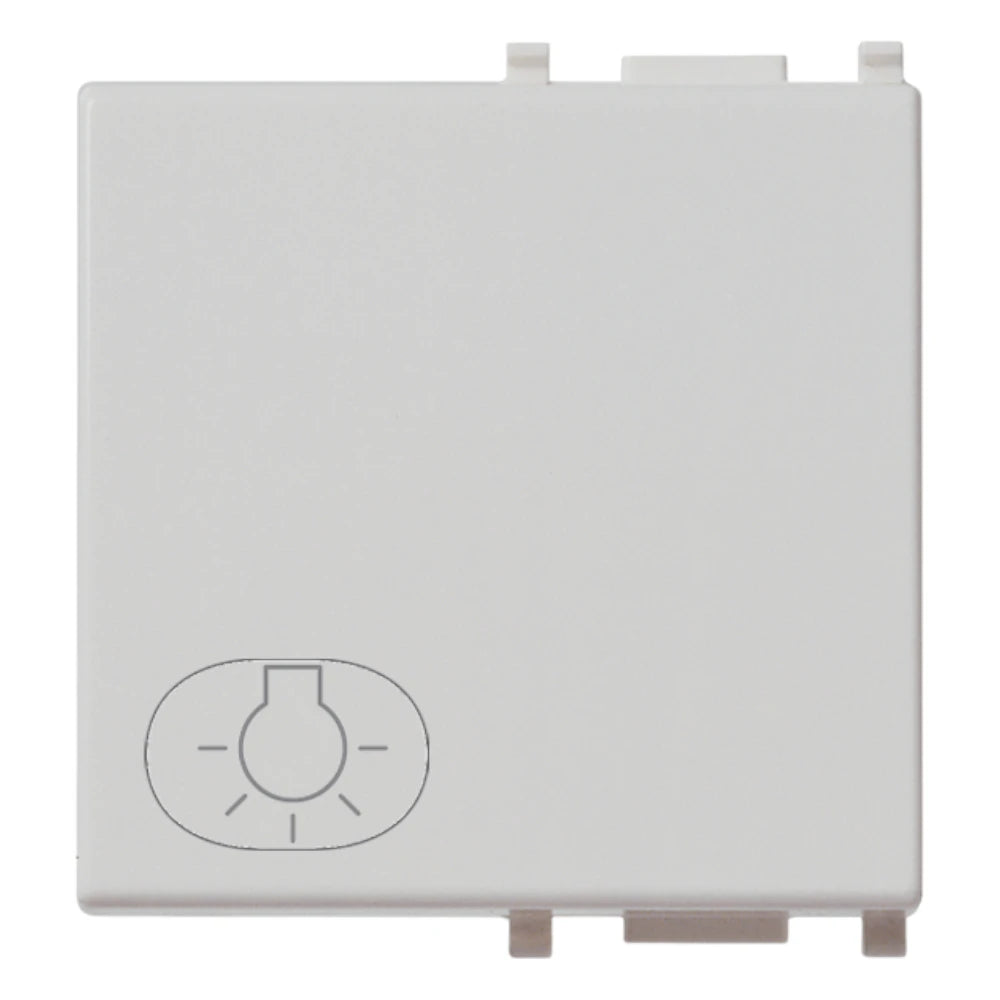

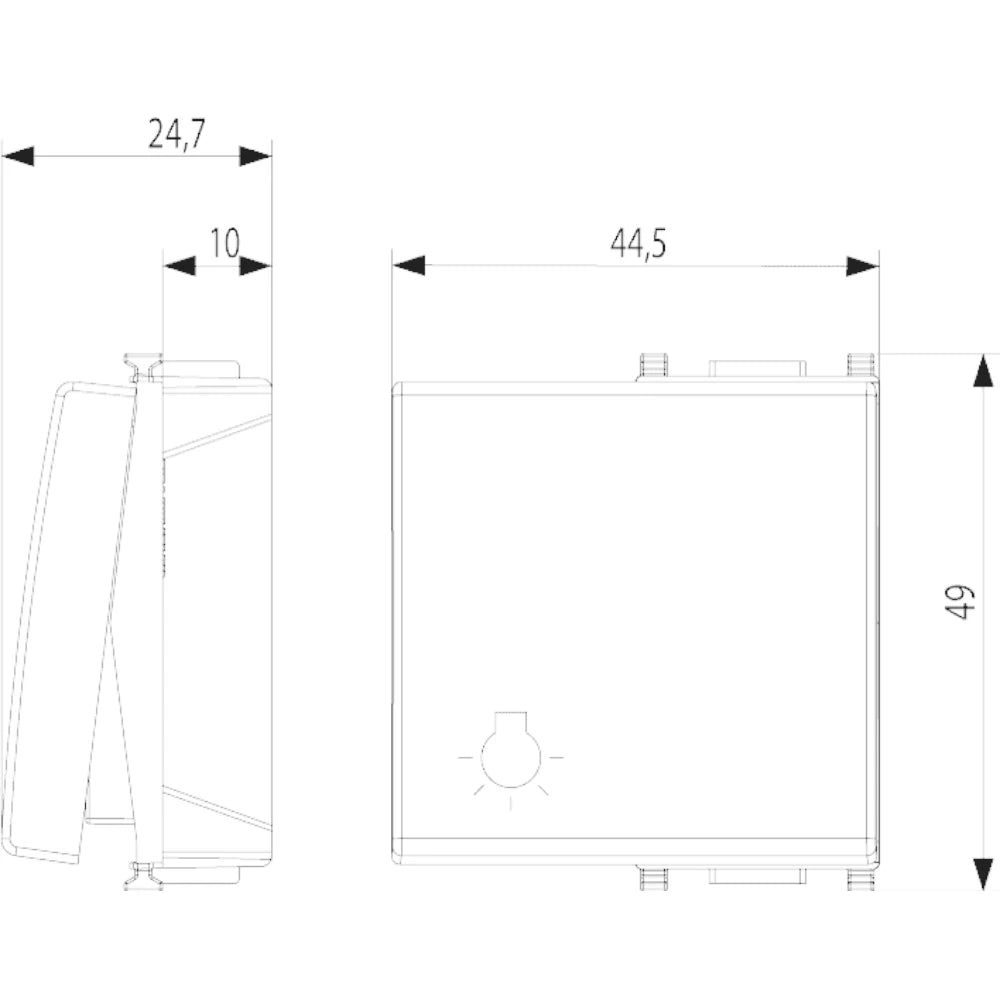

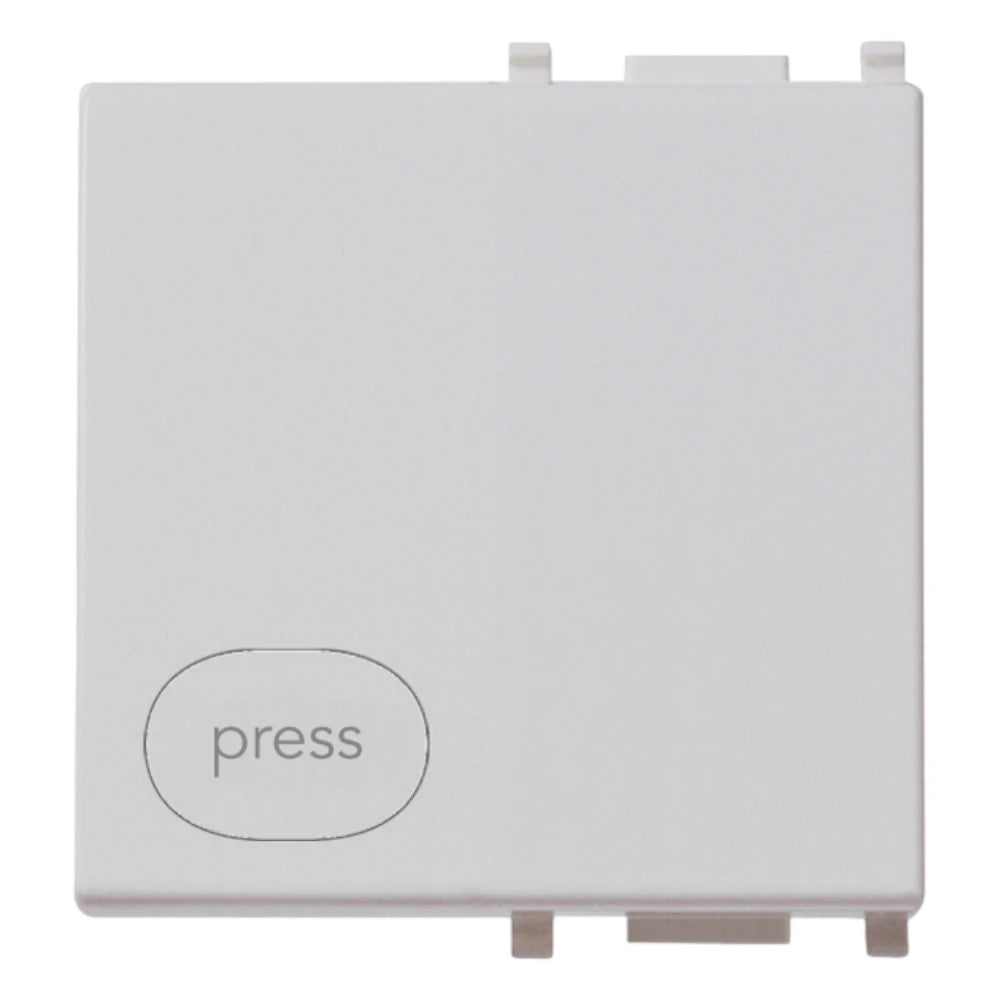

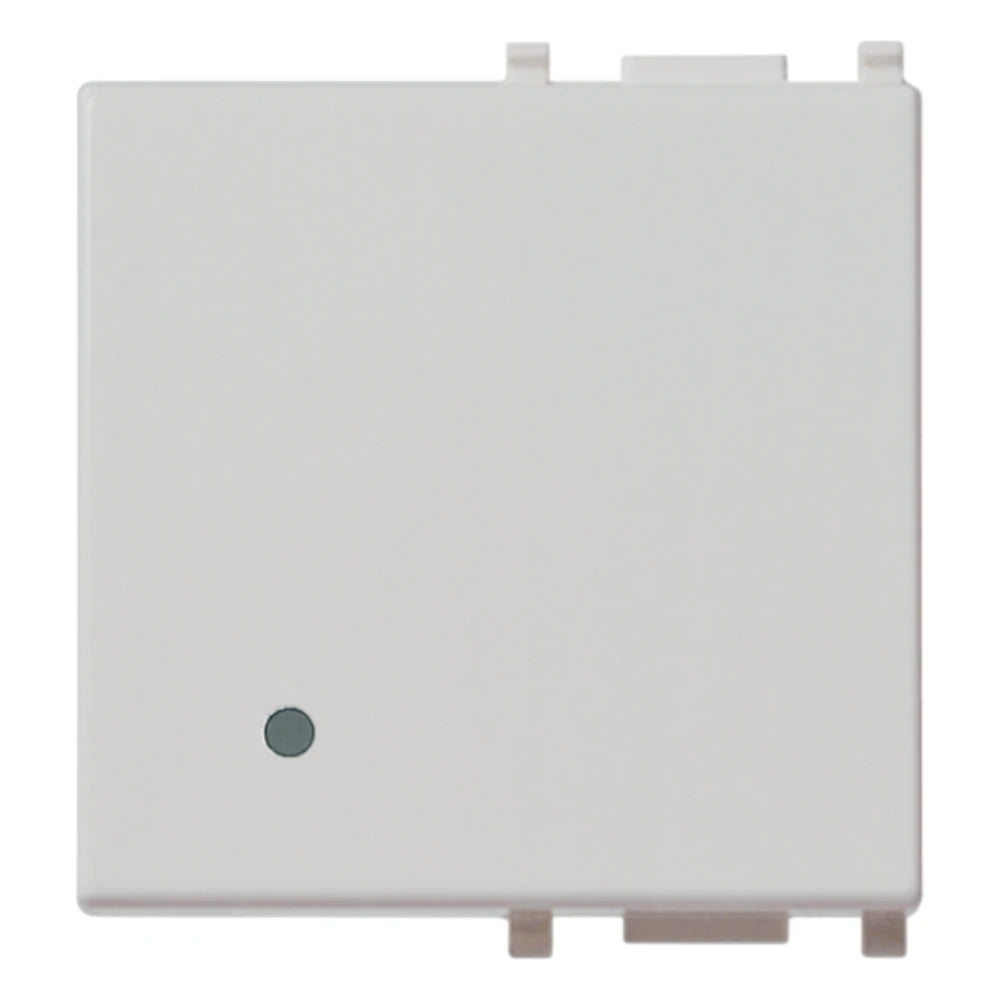

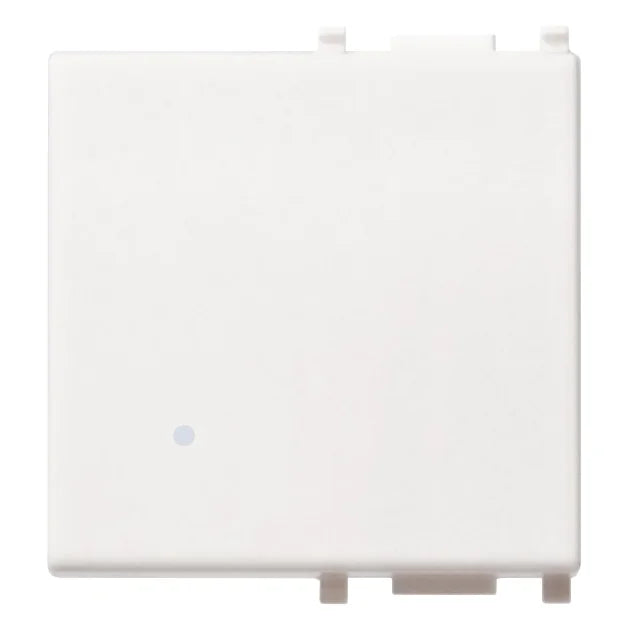

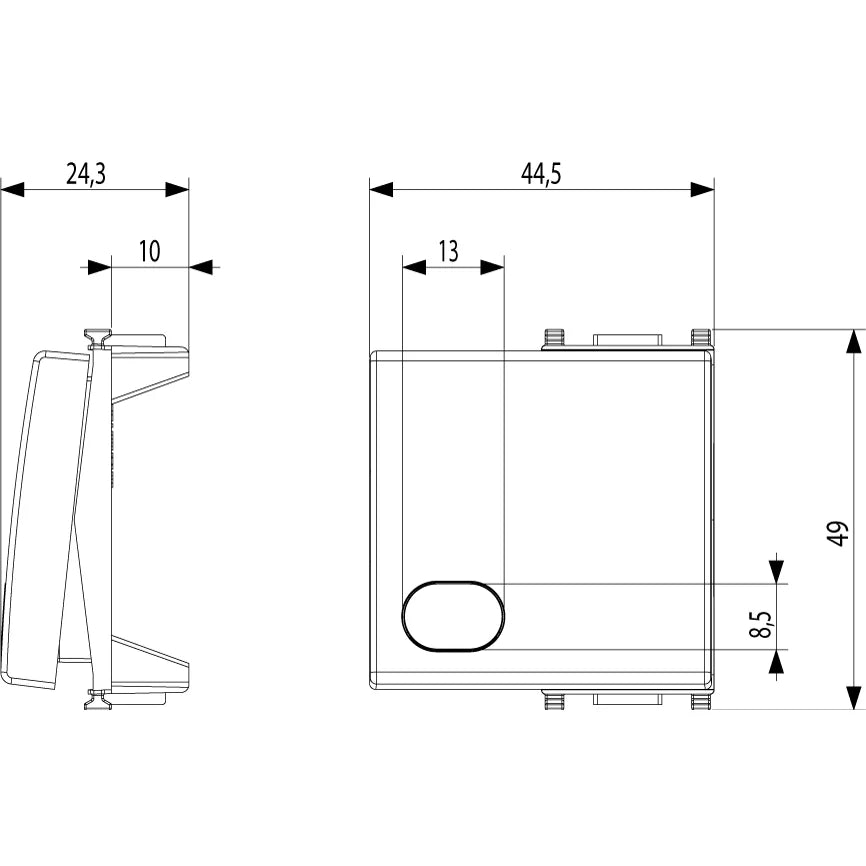

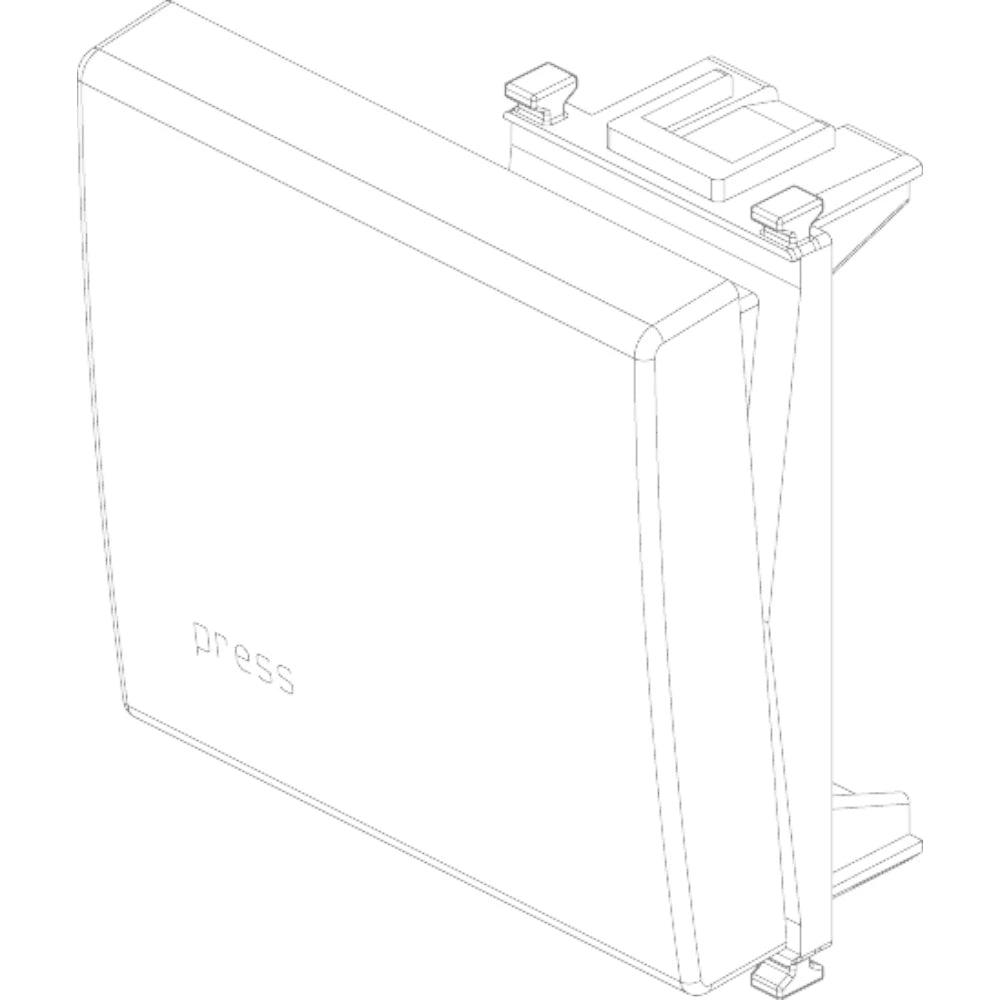

The range includes plain lightable fronts and versions marked for light, bell, key, O/I, PRESS, dot, and customizable symbol use. That makes it easier to keep multi-function panels clear without mixing styles across the vessel.

Key features

• Plana 2-module interchangeable button format for switch and push-button control points

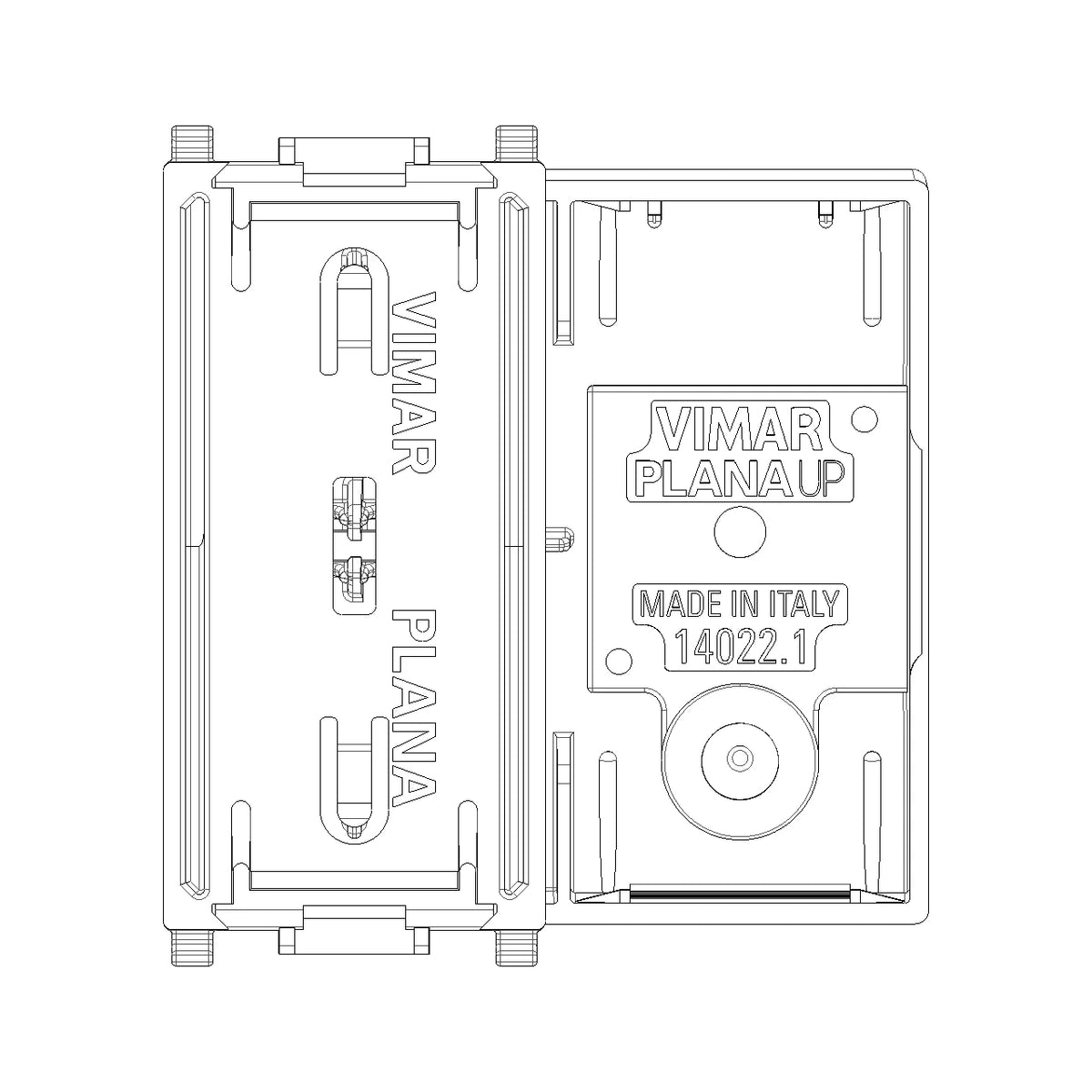

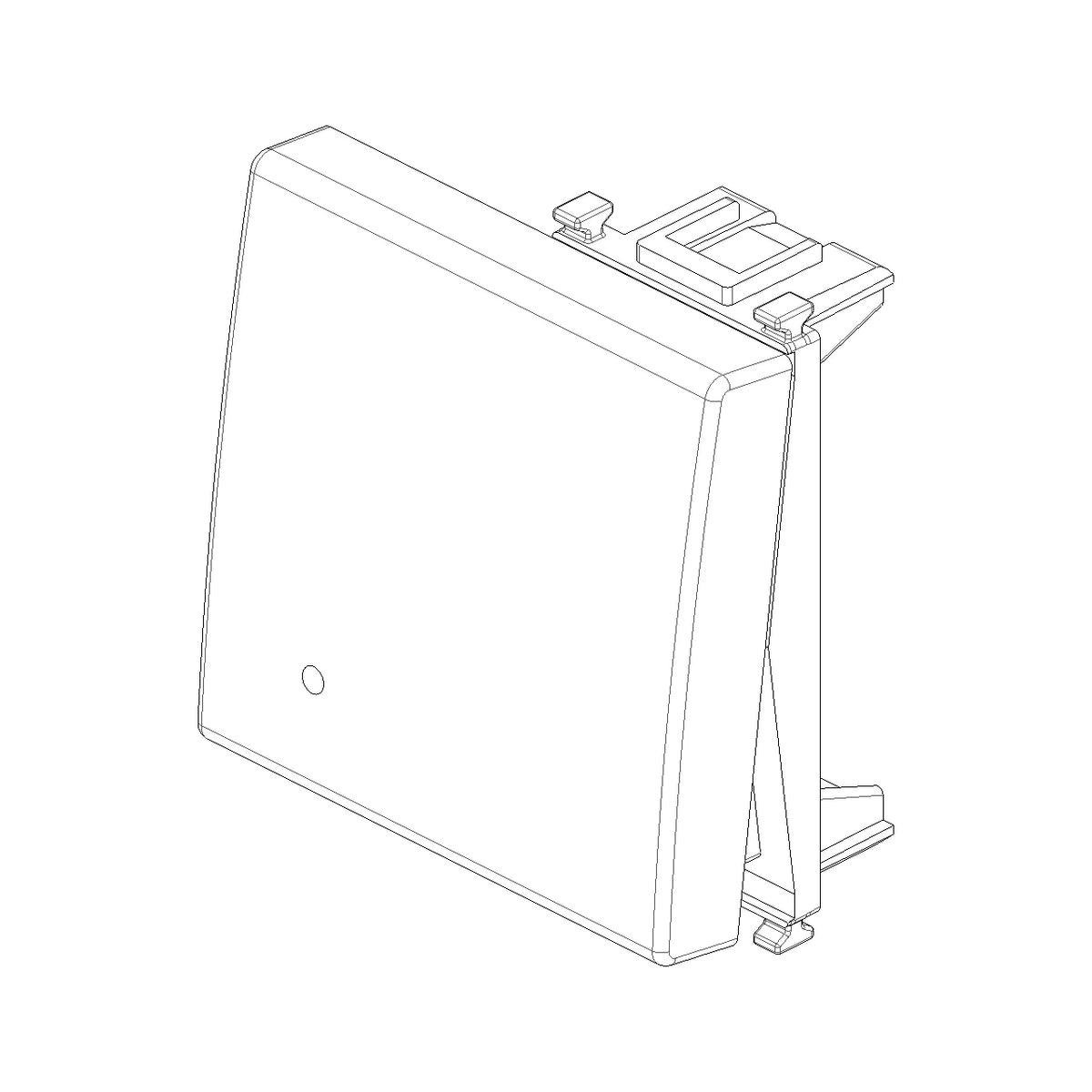

• One-part rocker design with clamp mounting
• IP40 protection for protected interior mounting locations
• Halogen-free thermoplastic body with a glossy surface finish
• Available across the range in white, silver, and antibacterial white depending on variant
• Lightable and symbol-marked options available for clearer panel identification

Variants

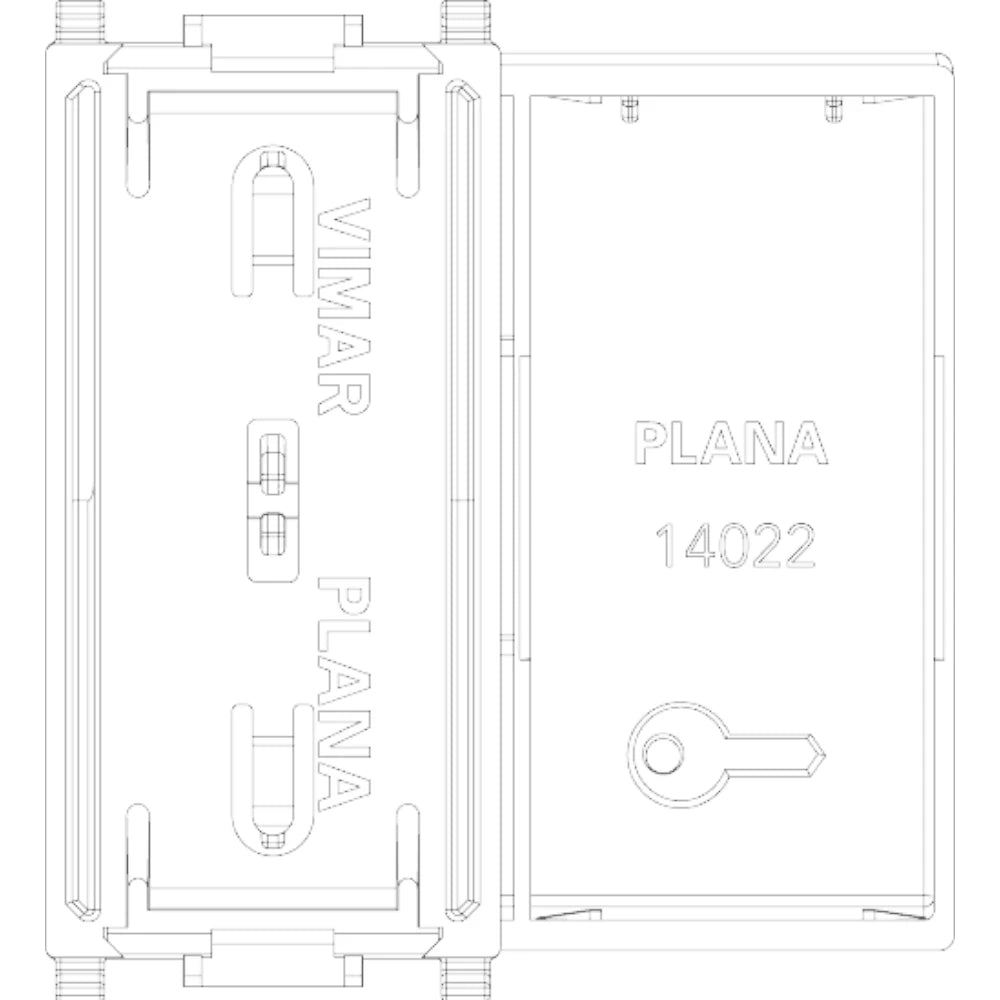

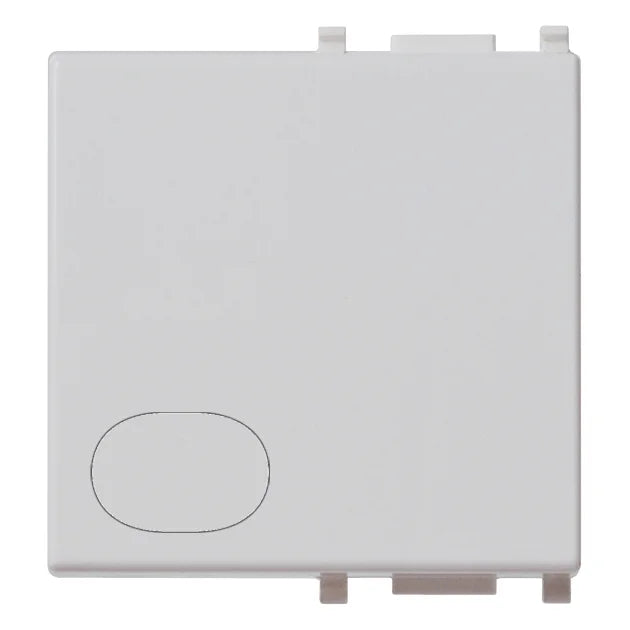

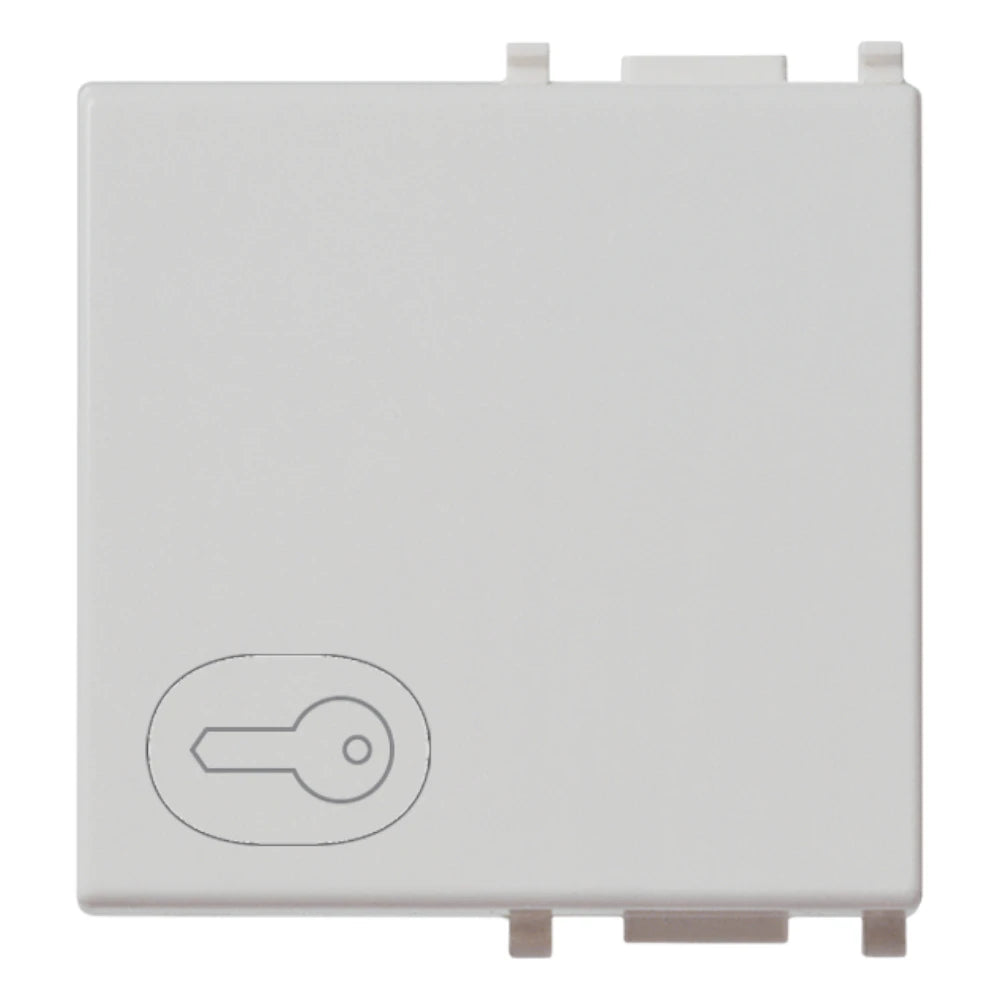

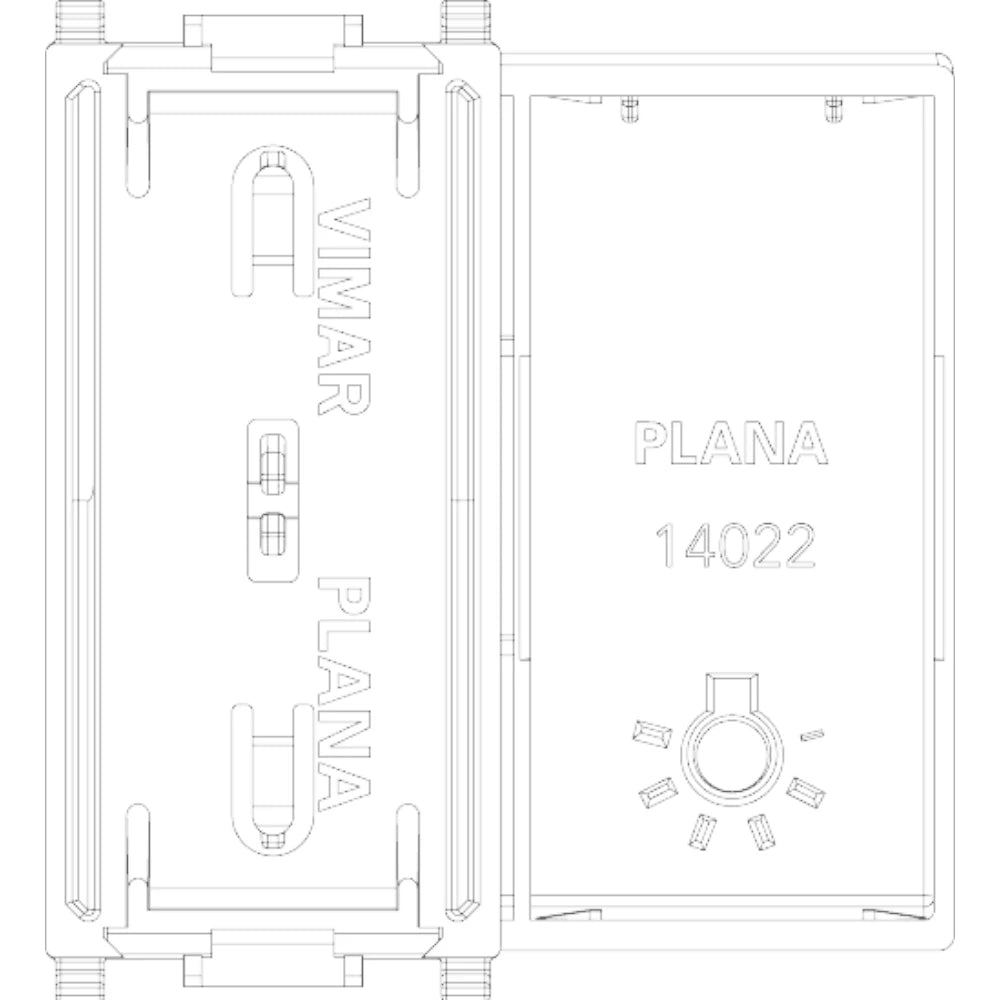

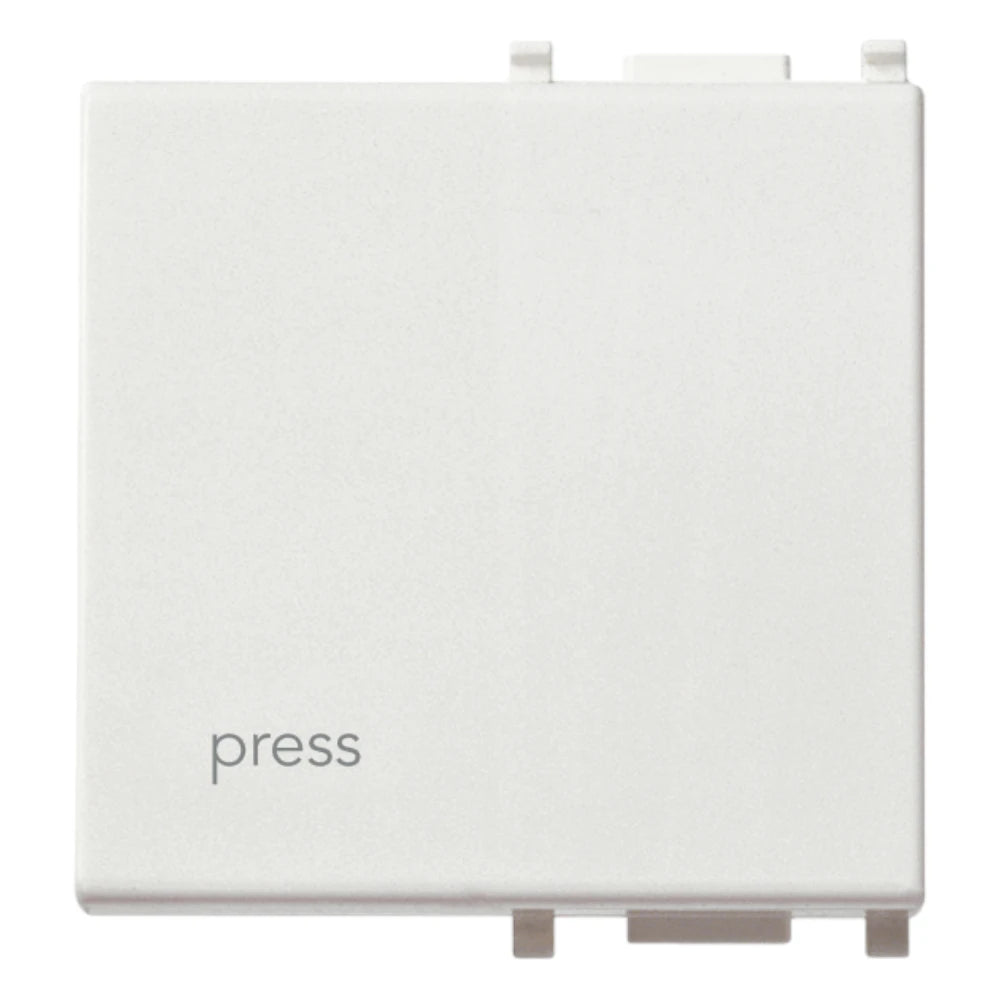

This range varies mainly by front finish and symbol marking. Available finishes include white and silver, plus an antibacterial white version in the plain lightable format. Front markings across the family include simple, light symbol, bell symbol, key symbol, O/I symbol, PRESS symbol, a lightable dot, and a customizable lightable symbol version.

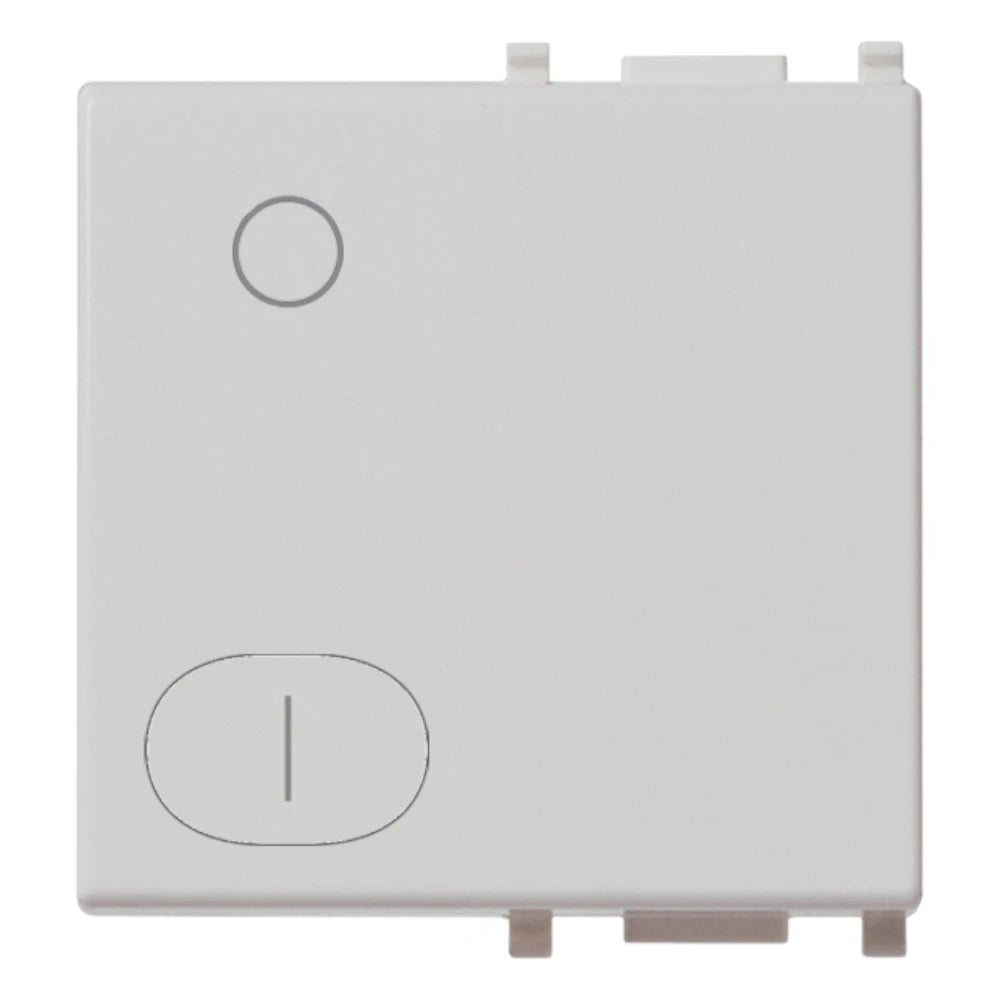

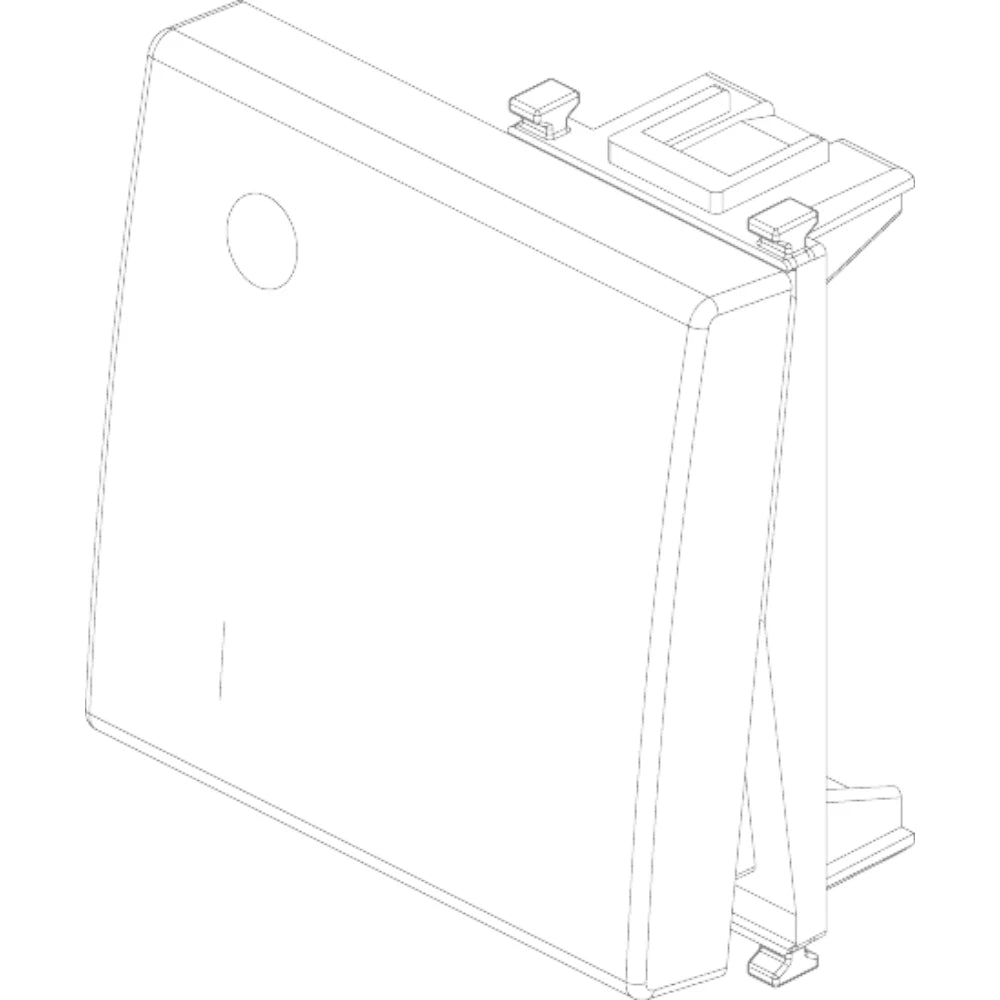

The core format stays consistent as a 2-module interchangeable button within the Plana line. The main choice is the face style and legend that matches the circuit or control point on the panel. The O/I versions are matched to the 14015.0 2P switch mechanism.

Compatibility and fit

This product family is meant for Vimar Plana installations, so the first fit check is the series and the 2-module position on the device. It works as the front control element for domestic switching functions rather than as a standalone electrical mechanism.

On board, it is a good match for refits or new interior panels where you want consistent switch styling and a clear legend for lighting, access, service circuits, or bell functions. Because the rating is IP40, it is better suited to protected interior areas than to exposed deck locations or washdown zones.

Installation and use

The clamp-mounted rocker format keeps installation straightforward when replacing a worn button face or when matching a new control point to an existing Plana panel. For marine refit work, that helps when appearance and function both matter, especially on panels where several switches sit side by side.

The antibacterial white option makes practical sense in areas where hands are frequently wet or where hygiene matters more, such as heads and galley-adjacent panels. Symbol-marked versions also help crew and guests understand the control at a glance without relying on labels elsewhere on the panel.
