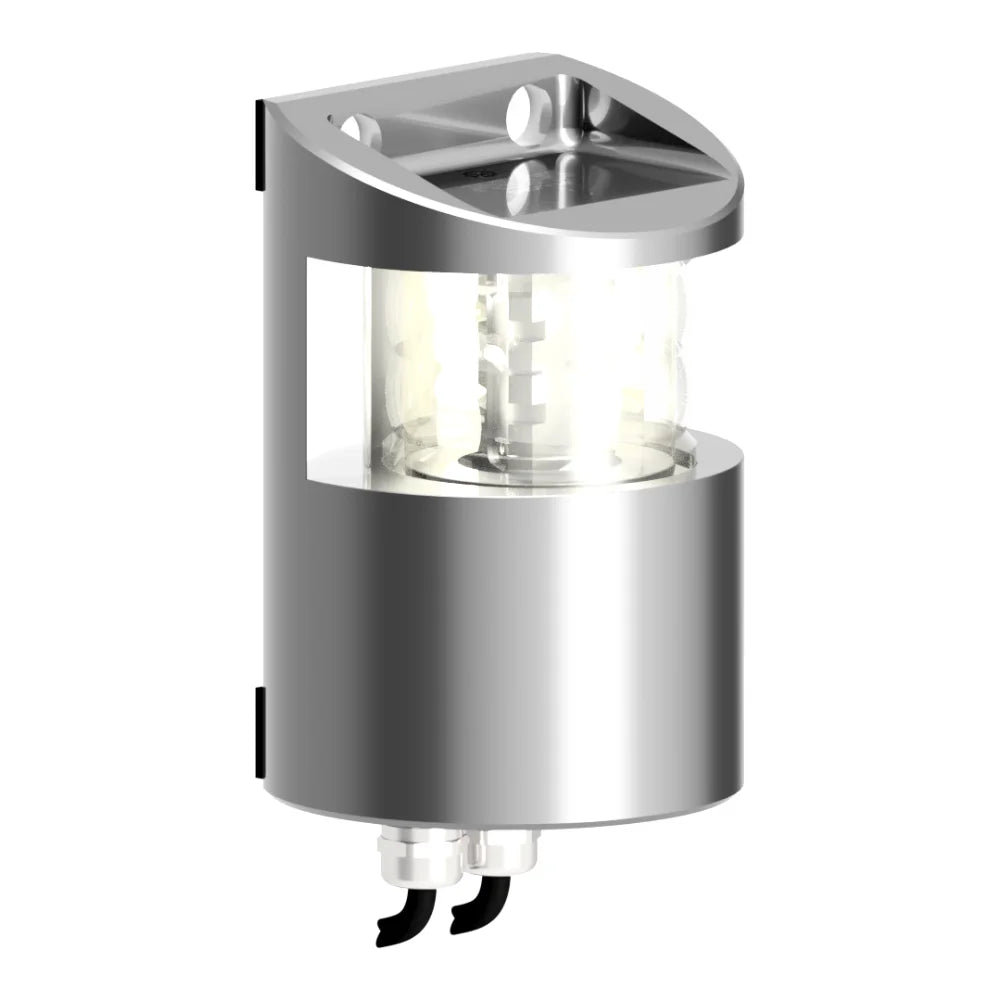

Lopolight Double LED Masthead Light, 5nm, 225°, 20-32VDC

Overview

This Lopolight double LED masthead navigation light is a vertically mounted fixture with a 225° white light sector and a visibility rating of 5 nautical miles. Operating on 20-32V DC, it is intended for vessels in the 20-50 meter range and uses a double masthead configuration for navigation lighting.

The fixture measures 92.5 mm in diameter and 135 mm in height, with an IP68 protection rating. Its anodized aluminum housing, PMMA lens, and A4 stainless steel screws are suited to marine installations. Both finish options share the same electrical specifications, light output, and mounting arrangement.

Key features

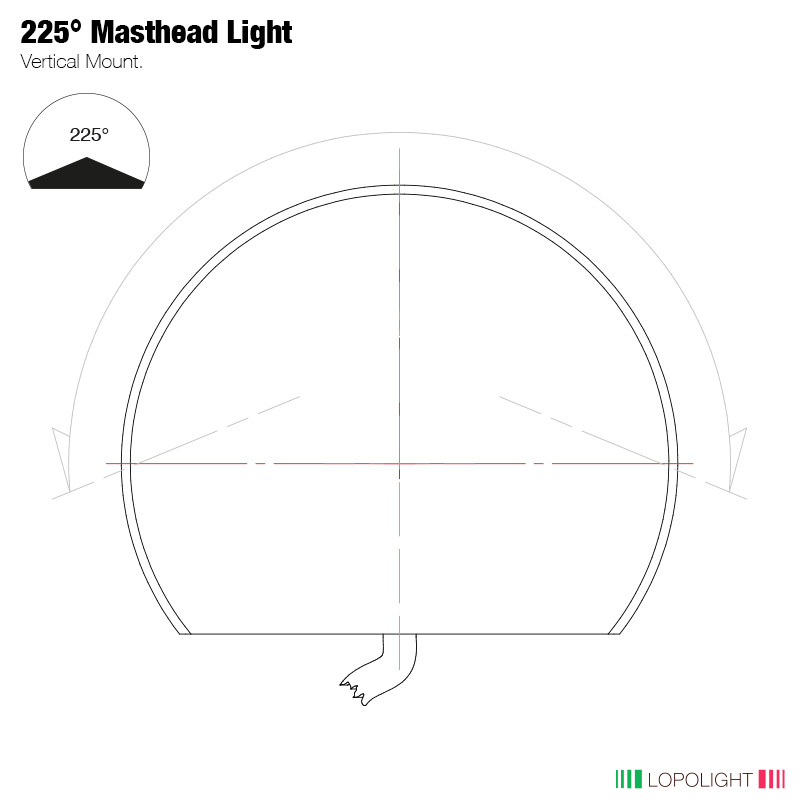

• White LED masthead navigation light with 225° coverage, 5nm visibility, and luminous intensity greater than 52 cd.

• 20-32V DC operating range with 7W power consumption and 290 mA current draw at 24V DC.

• IP68-rated construction with an anodized aluminum housing, PMMA lens, and A4 stainless steel fasteners.

• Vertical mounting configuration with cables exiting from the bottom of the fixture.

• Overall dimensions of 92.5 mm diameter by 135 mm height.

• DNV-certified navigation light with listed approvals including COLREG72, EN14744, IEC 60945, USCG, and MED.

Variants

This double masthead navigation light is available in two anodized aluminum housing finishes: silver and black.

The finish changes the exterior appearance of the fixture, while both configurations retain the same white light output, 5nm visibility, 225° coverage, 20-32V DC operating range, and vertical mounting arrangement.

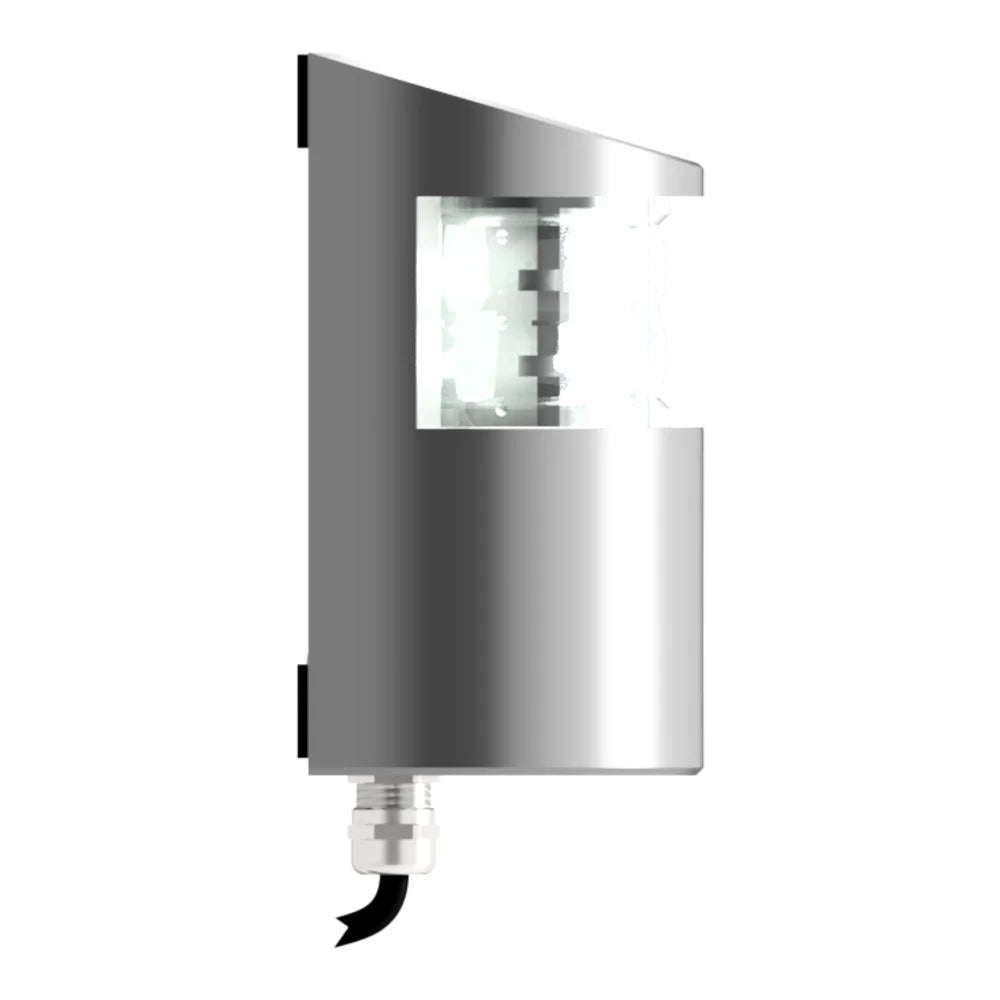

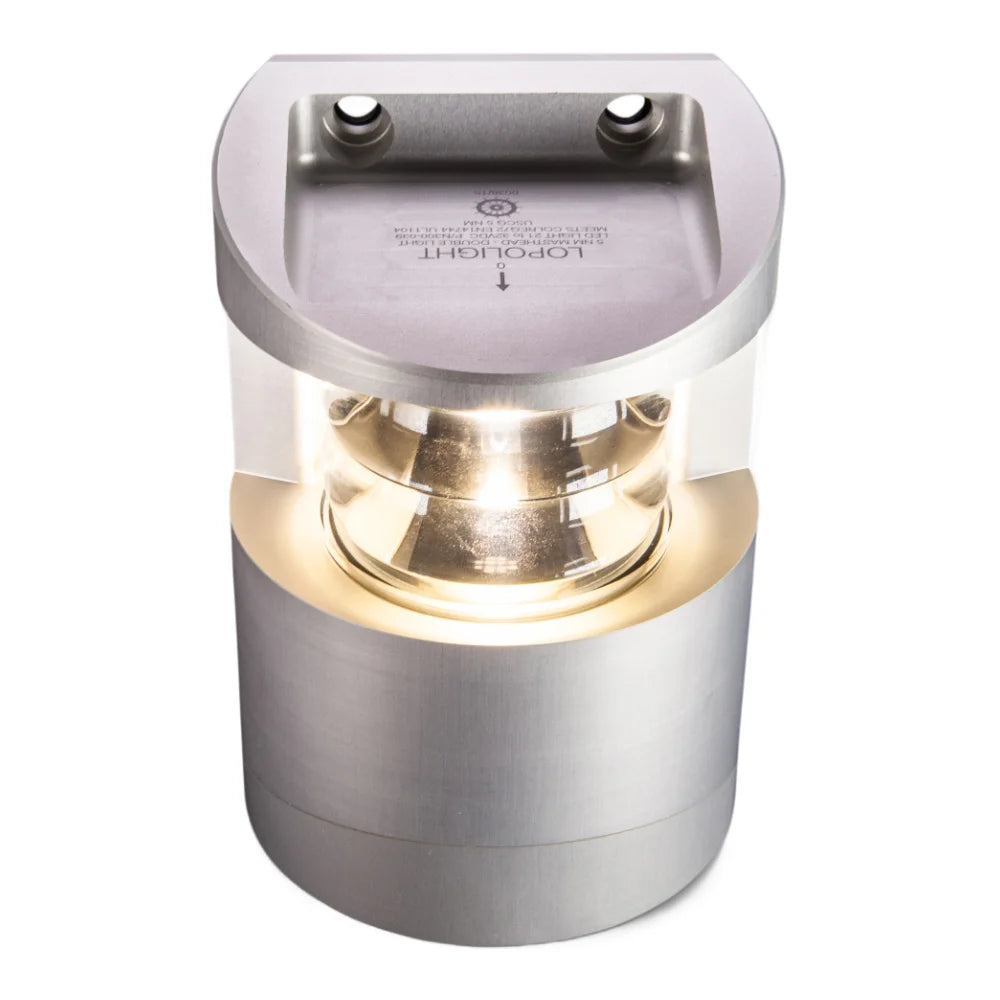

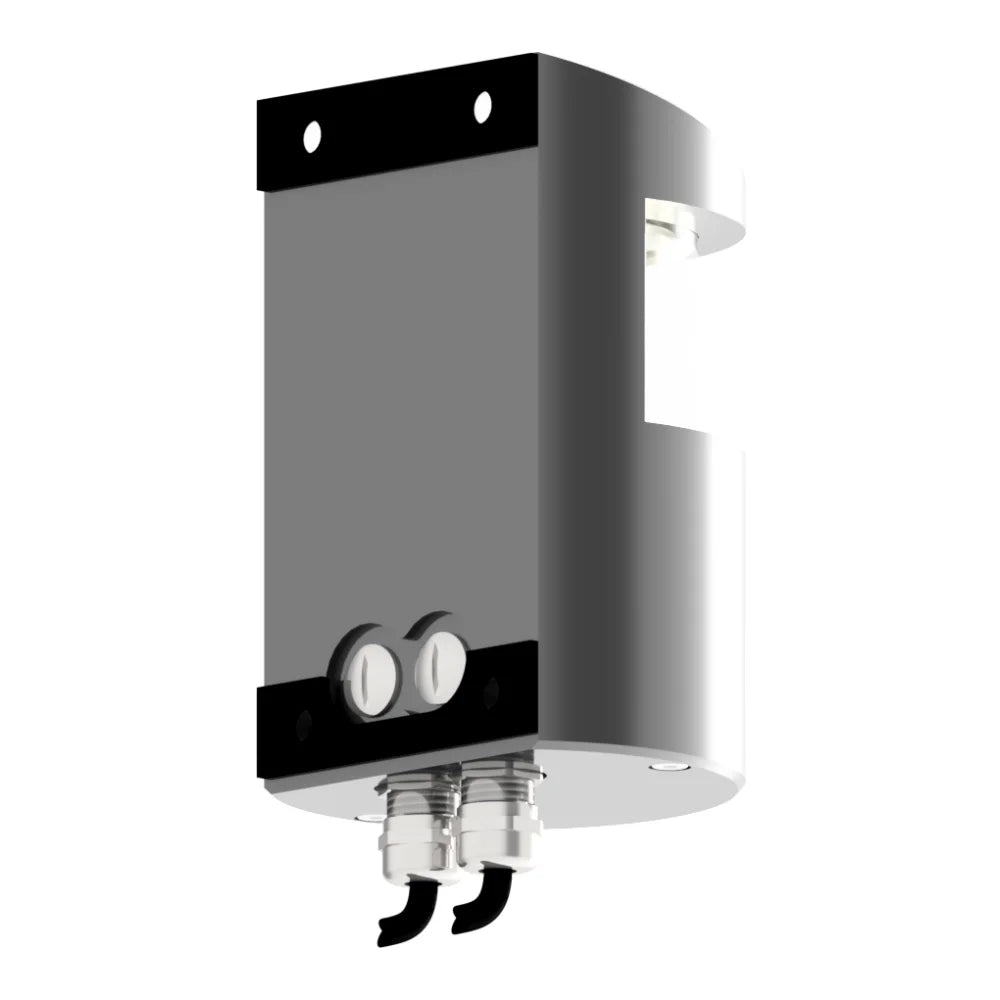

• 300-039-CD: Silver anodized aluminum finish, giving the fixture a silver exterior while maintaining white navigation light output.

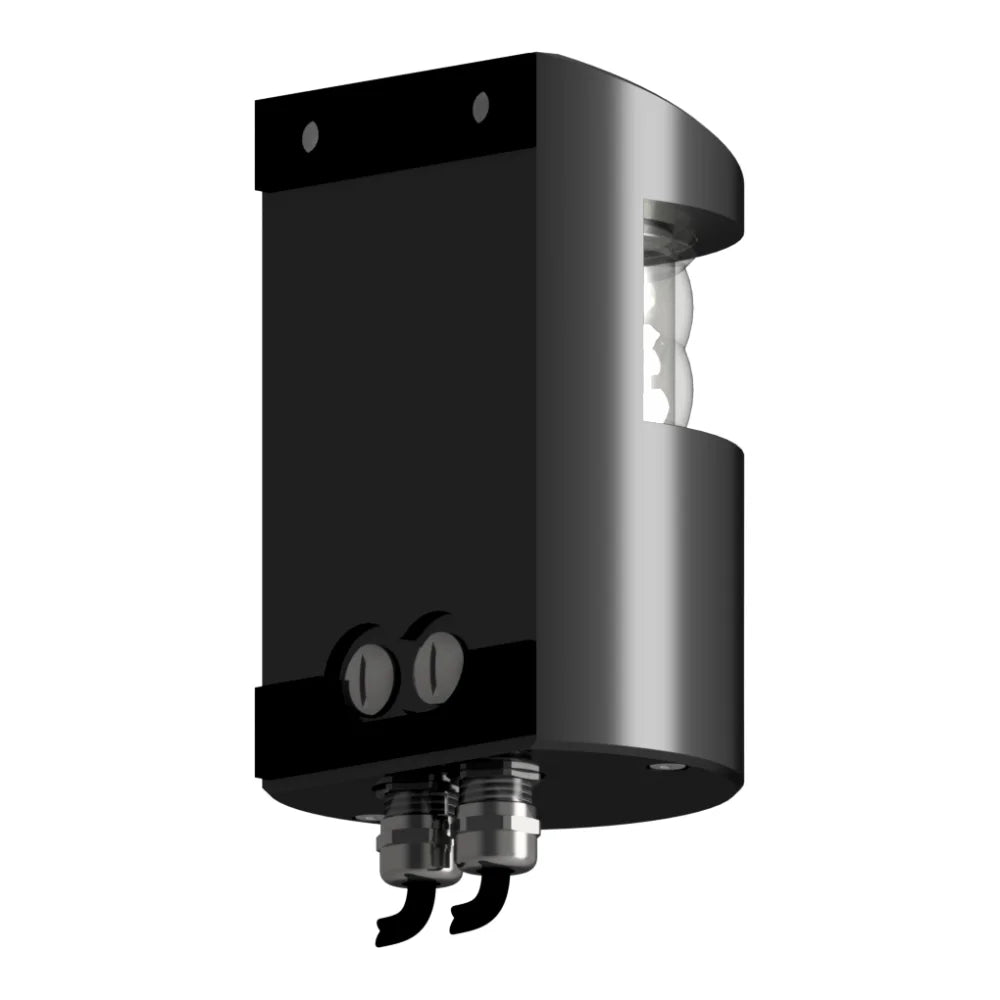

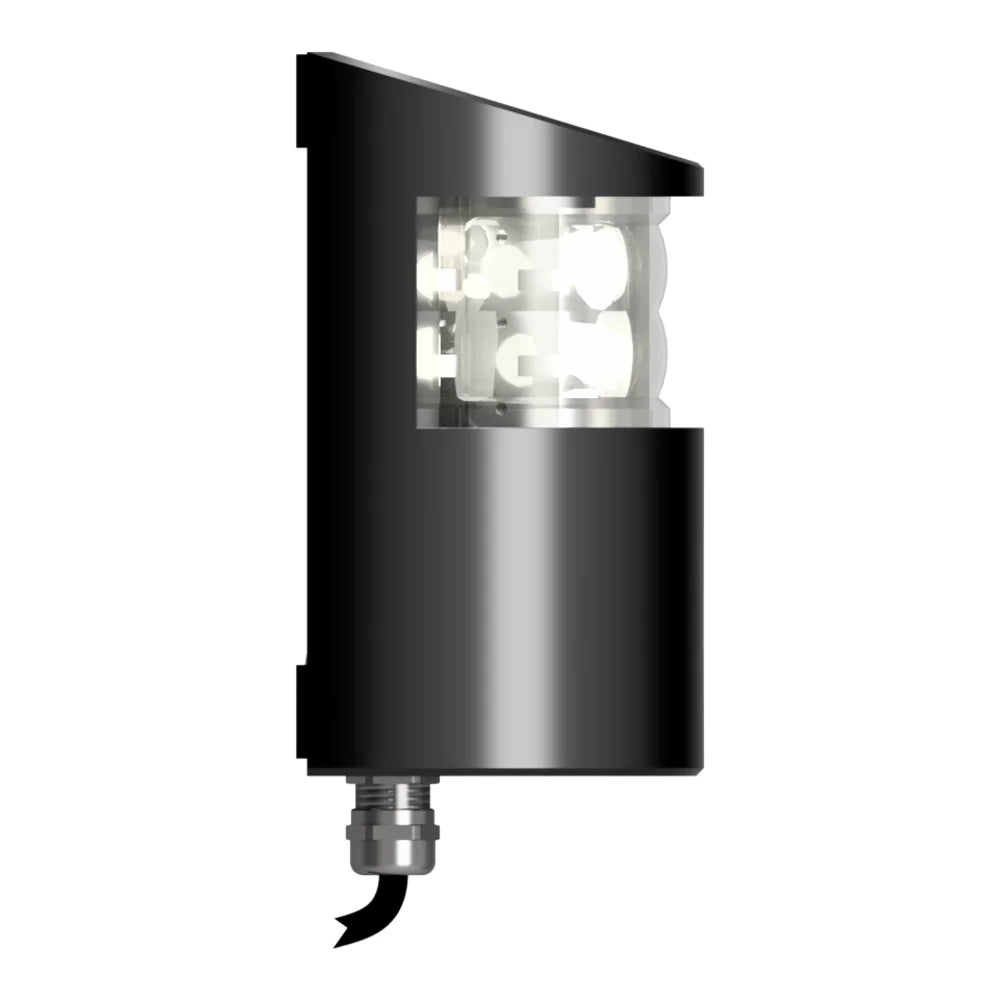

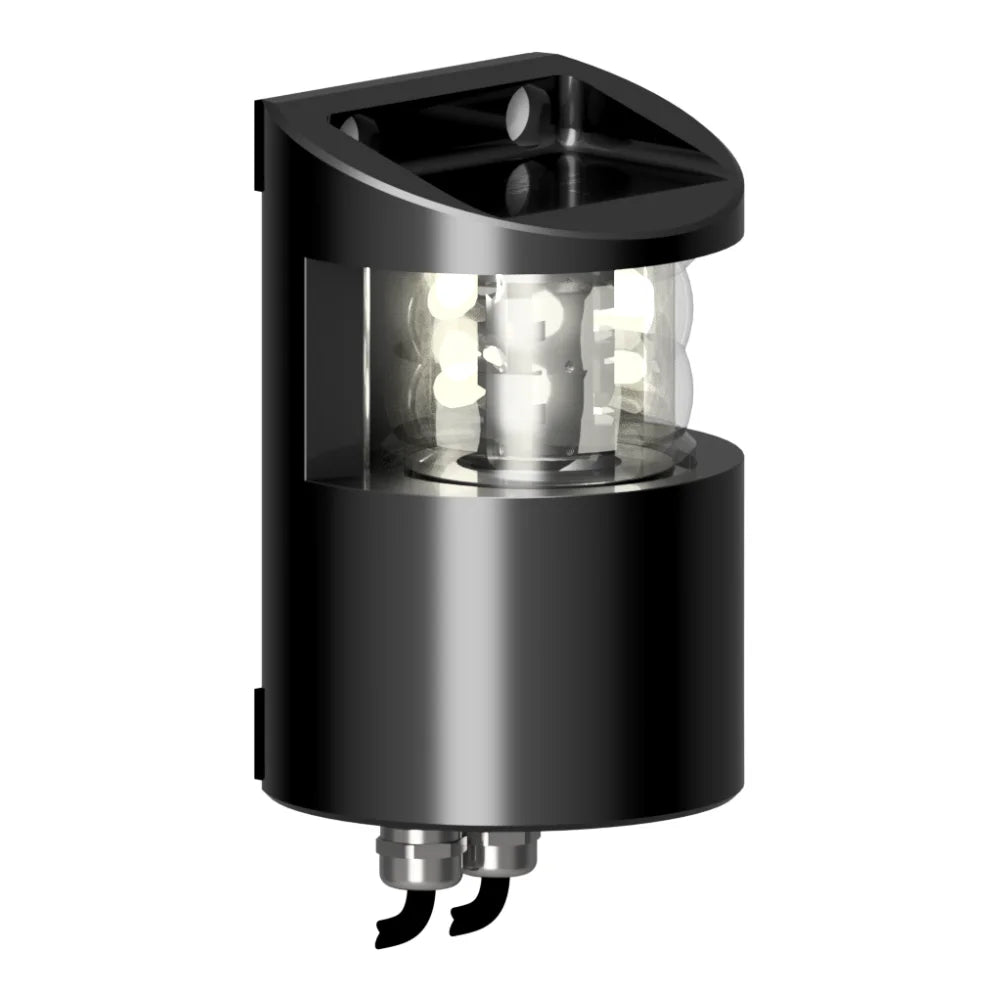

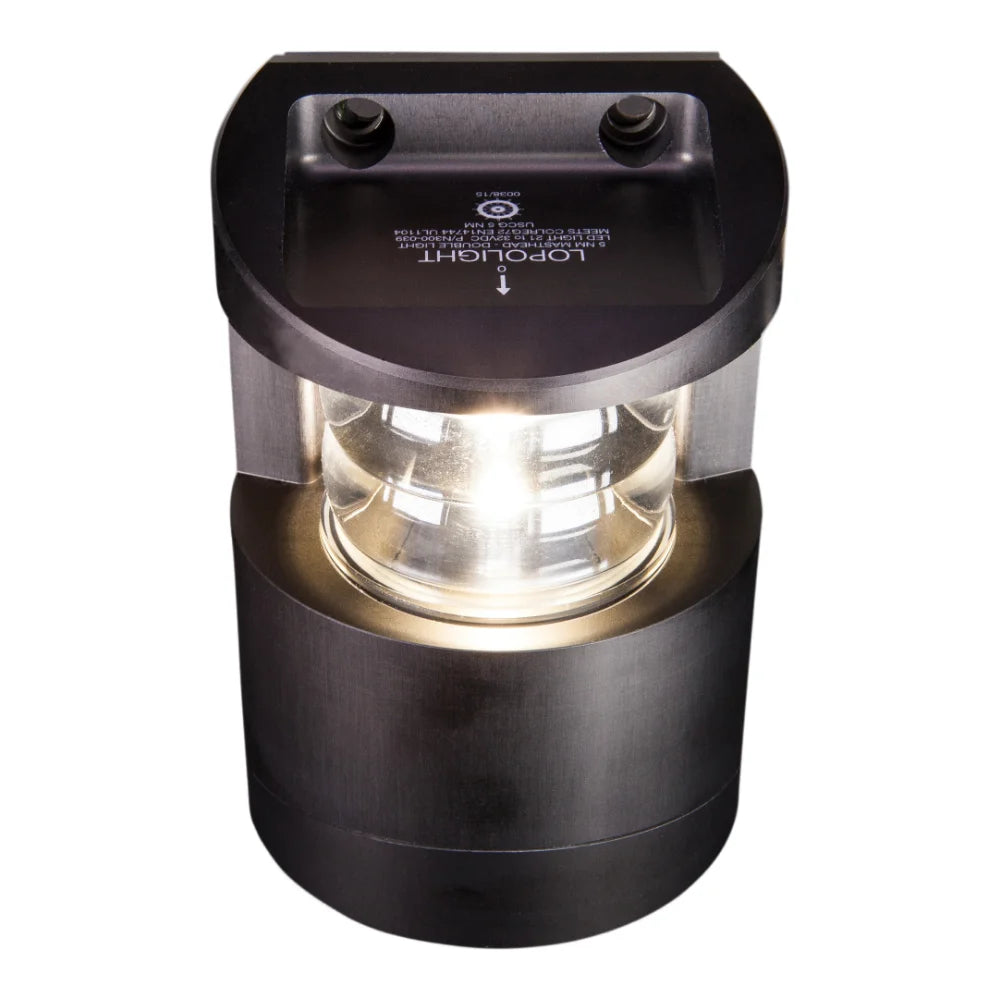

• 300-039-B-CD: Black anodized aluminum finish, giving the fixture a black exterior while maintaining white navigation light output.

Installation and setup

The fixture mounts vertically with its electrical cables routed through the bottom. Its 92.5 mm diameter and 135 mm height should be considered when planning the mounting location and available clearance. The specified minimum feed wire cross-section is 0.5 mm².

Use on board

This light serves as a white forward-facing masthead navigation light on vessels requiring a 225° light sector and 5nm visibility. The double configuration and two housing finishes allow integration into navigation lighting arrangements on larger yachts and commercial vessels within the specified 20-50 meter vessel range.
