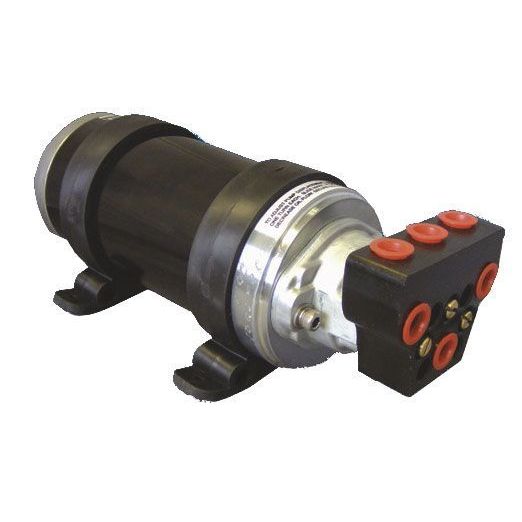

Octopus Autopilot Drives - 1000cc/min Reversing Piston Pump - 12Vdc

Advanced Piston Pump Technology for Precise Autopilot Control

The Octopus Autopilot Drives 1000cc/min Reversing Piston Pump 12Vdc is engineered for superior hydraulic performance in marine applications. Utilizing a patented piston pump design with only three moving parts, it delivers exceptional reliability and efficiency. Unlike conventional hydraulic gear pumps that suffer from internal leakage, the piston pump precisely positions the rudder, resulting in sharper steering and reduced power consumption. This means fewer course corrections, enhancing overall autopilot efficiency and extending battery life.

Exceptional Power and Efficiency

This piston pump is designed to outperform standard gear pumps, providing more than twice the hydraulic output per watt of input. The efficient ram positioning minimizes energy waste, leading to power savings of up to 50%. Its adjustable flow rate ensures compatibility with various vessel requirements, allowing boat owners to fine-tune performance to their specific needs.

Simplified Installation and Maintenance

The Octopus Autopilot Drives pump is built with convenience in mind. Unlike traditional systems that require a Rudder Feedback unit to compensate for gear leakage, this piston pump maintains accurate ram positioning, eliminating the need for additional components. This significantly simplifies the installation process. Furthermore, integrated shut-off valves allow for easy servicing without the need to drain the steering system, making maintenance hassle-free.

Key Technical Specifications

• Pump Type: Reversing piston pump
• Flow Rate: 1000cc/min
• Voltage: 12V DC
• Power Consumption: Up to 50% lower than traditional gear pumps
• Adjustability: Variable flow rate for optimized performance
• Compatibility: Designed for use with leading autopilot systems without a Rudder Feedback unit

Highlights

• Patented piston pump technology with only three moving parts for increased reliability
• Over twice the hydraulic output per watt of input compared to standard pumps
• Reduced power consumption through precise ram positioning
• Adjustable flow rate to match vessel requirements
• Built-in shut-off valves for easy servicing without draining the system
• Eliminates the need for a Rudder Feedback unit, simplifying installation

This high-performance autopilot drive pump is the ideal solution for boat owners seeking precision, efficiency, and reduced maintenance demands.
