Imtra 3-LED Marine Deck Light, 9-32VDC, 21W, IP68/IP69K

Overview

This Imtra 3-LED Marine Deck Light is a bracket-mounted lighting fixture for illuminating marine decks and exterior work areas. Operating on 9-32VDC electrical systems, its three LEDs deliver 1,275 effective lumens with a total power consumption of 21W. The mixed 40°/60° beam provides focused and wider illumination for visibility across the mounting area.

The fixture combines a powder-coated die-cast aluminum housing with an adjustable 304 stainless steel mounting bracket. Its IP68/IP69K ingress protection, vibration-resistant construction, and built-in reverse polarity protection support operation in demanding marine environments.

Key features

• Three 7W LEDs with 1,275 effective lumens of light output.

• 9-32VDC input range compatible with common 12V and 24V marine electrical systems.

• IP68/IP69K protection against water ingress and high-pressure water jets.

• 5,000K white light with a mixed 40°/60° beam angle.

• Adjustable 304 stainless steel mounting bracket for directional aiming.

• Powder-coated die-cast aluminum housing with a polycarbonate lens.

• 36-inch, 16 AWG duplex boat cable for electrical connection.

• Reverse polarity protection and vibration resistance rated to 21 Grms.

Variants

The 3-LED Marine Deck Light is available in two housing finishes to accommodate different exterior lighting installations.

Both configurations share the same LED output, electrical specifications, ingress protection, housing construction, and adjustable stainless steel mounting system. Only the housing finish changes.

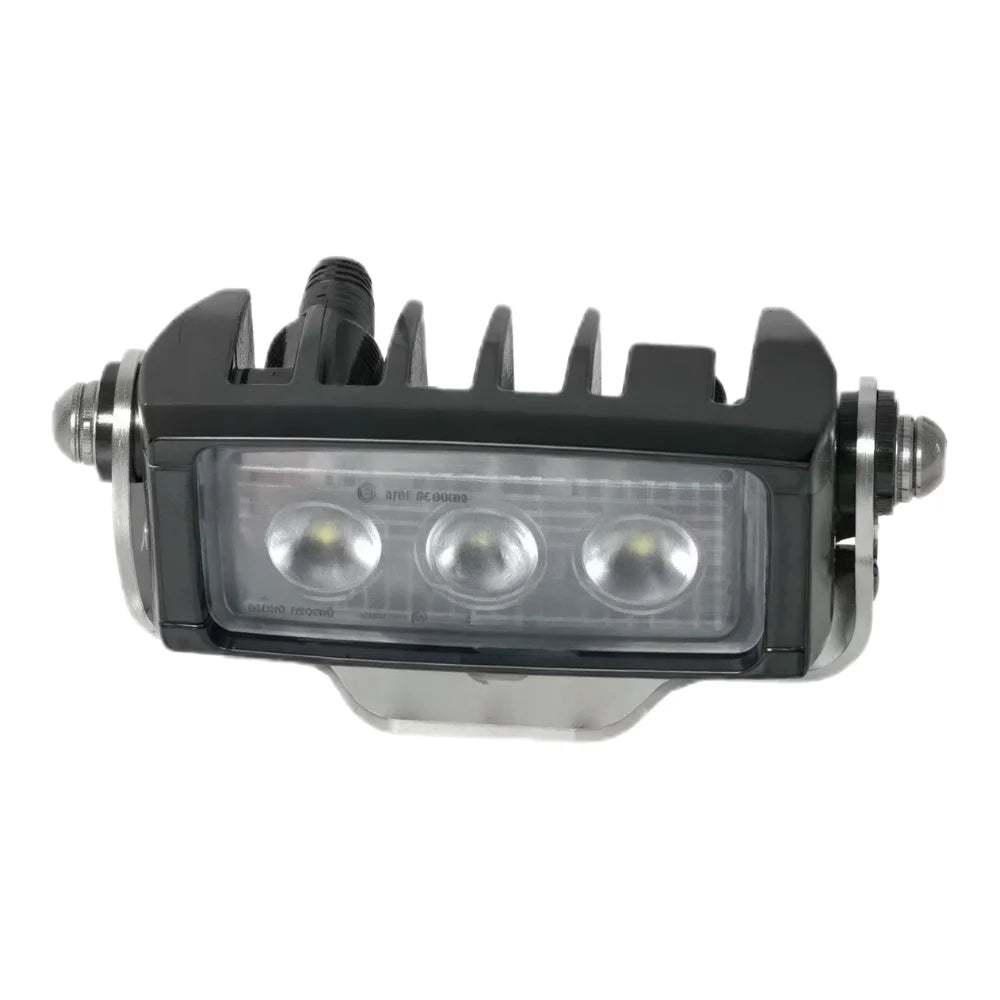

• ILVX0703MB: Black housing finish with powder-coated die-cast aluminum construction for installations requiring a black fixture.

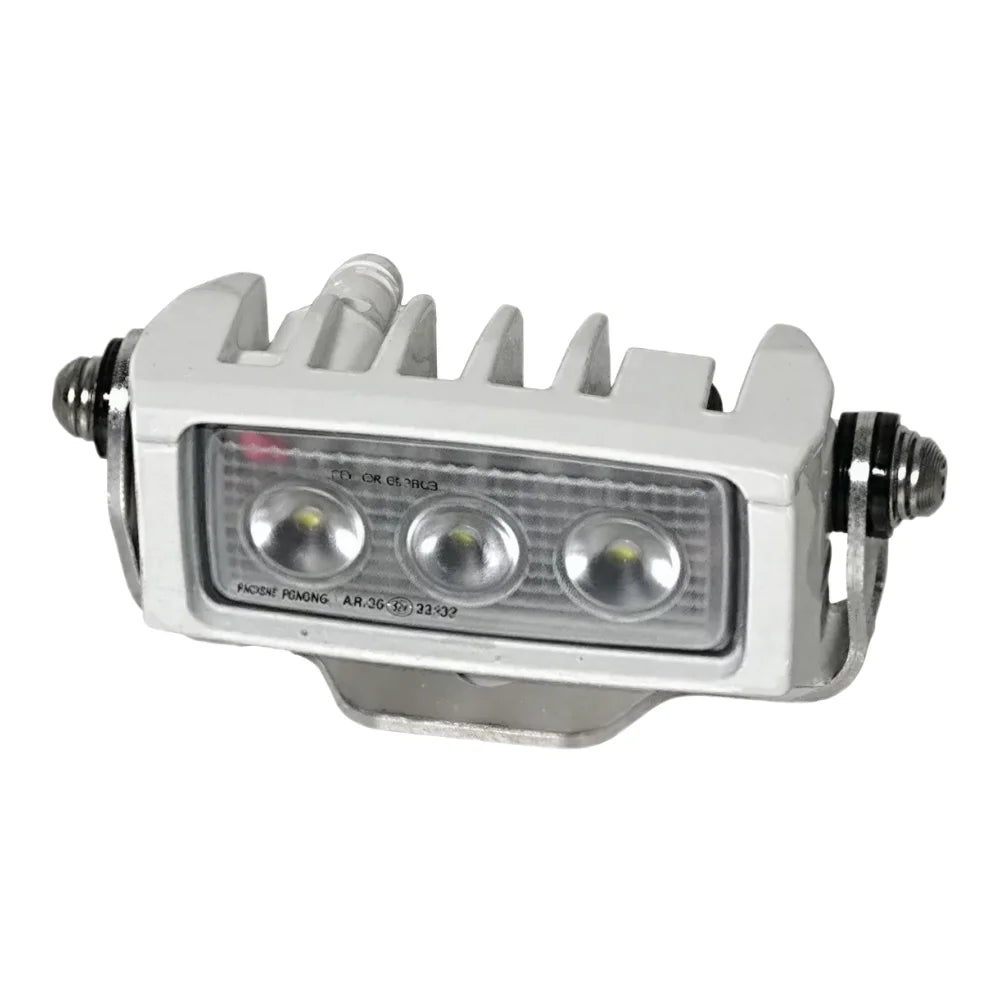

• ILVX0703MW: White housing finish with powder-coated die-cast aluminum construction for installations requiring a white fixture.

Installation and electrical connections

The fixture attaches through its stainless steel bracket using a single mounting bolt. Side adjustment bolts allow the light to be tilted and secured at the required illumination angle. Installation requires clearance around the housing for heat dissipation, and flush mounting is not permitted.

The supplied duplex cable uses a red positive power lead and a black negative ground lead. Electrical connections must be made using suitable connectors, with a drip loop and waterproof cable gland where the wiring enters the vessel. Verify the DC supply voltage before connecting the fixture.

What's included

• One 3-LED marine deck light with installed mounting bracket.

• One M8 hex head mounting bolt.

• One metal washer.

• One nylon locking nut.

• One isolating spacer kit.
