Raymarine NMEA 2000 Engine Gateway Cable Kit, SeaTalk NG to DeviceNet, 1 m Spur Cable, 5-Way Connector, 12V Power Cable, 2 Terminators

Overview

The Raymarine T12217 is a Cable Kit for NMEA 2000 Gateway installations that helps link Raymarine SeaTalk NG equipment with NMEA 2000 gateway hardware using the included SeaTalk NG and DeviceNet connection parts. It is a practical kit for building out a small SeaTalk NG network section with power, termination, a 5-way connector, a 1 m spur cable, and a DeviceNet female adapter cable.

This kit is commonly used when adding engine or system data to a Raymarine network, including setups with Raymarine displays or instruments and NMEA 2000 engine gateway connections. It gives installers the core pieces needed to create a powered and terminated SeaTalk NG backbone connection instead of sourcing each cable and terminator separately.

Key features

• Connects SeaTalk NG networking hardware with NMEA 2000 gateway equipment through the included DeviceNet female adapter cable.
• Includes a 1 m SeaTalk NG spur cable for connecting a Raymarine display, instrument, or compatible SeaTalk NG device to the network.
• SeaTalk NG 5-way connector helps create a compact connection point for the network section.
• SeaTalk NG power cable supports a powered network backbone installation when the network requires its own supply connection.
• Two SeaTalk NG terminators are included for correct backbone termination at both ends of the network segment.
• Useful for helm, electronics cabinet, or console installations where Raymarine SeaTalk NG devices need to exchange data with NMEA 2000 gateway hardware.

Installation and setup

The kit is intended for network installation rather than a standalone sensor or display connection. The 5-way connector, power cable, and terminators form the base of the SeaTalk NG network section, while the spur cable and DeviceNet female adapter provide the device and gateway connection points.

During installation, the backbone should be powered and terminated correctly, with spur connections kept to the appropriate network layout for the vessel. This makes the kit a good match for refits, electronics upgrades, and engine-data integrations where the installer needs a clean bridge between Raymarine SeaTalk NG equipment and NMEA 2000 gateway hardware.

Compatibility and fit

This cable kit is made for SeaTalk NG and NMEA 2000 gateway integration. It is especially relevant on boats using Raymarine displays, instruments, or SeaTalk NG network components alongside gateway hardware that uses a DeviceNet-style NMEA 2000 connection.

Before ordering, check the existing network layout, available connection points, and whether the vessel already has power and termination in place. This kit is most useful when those core SeaTalk NG backbone pieces are needed as part of the installation.

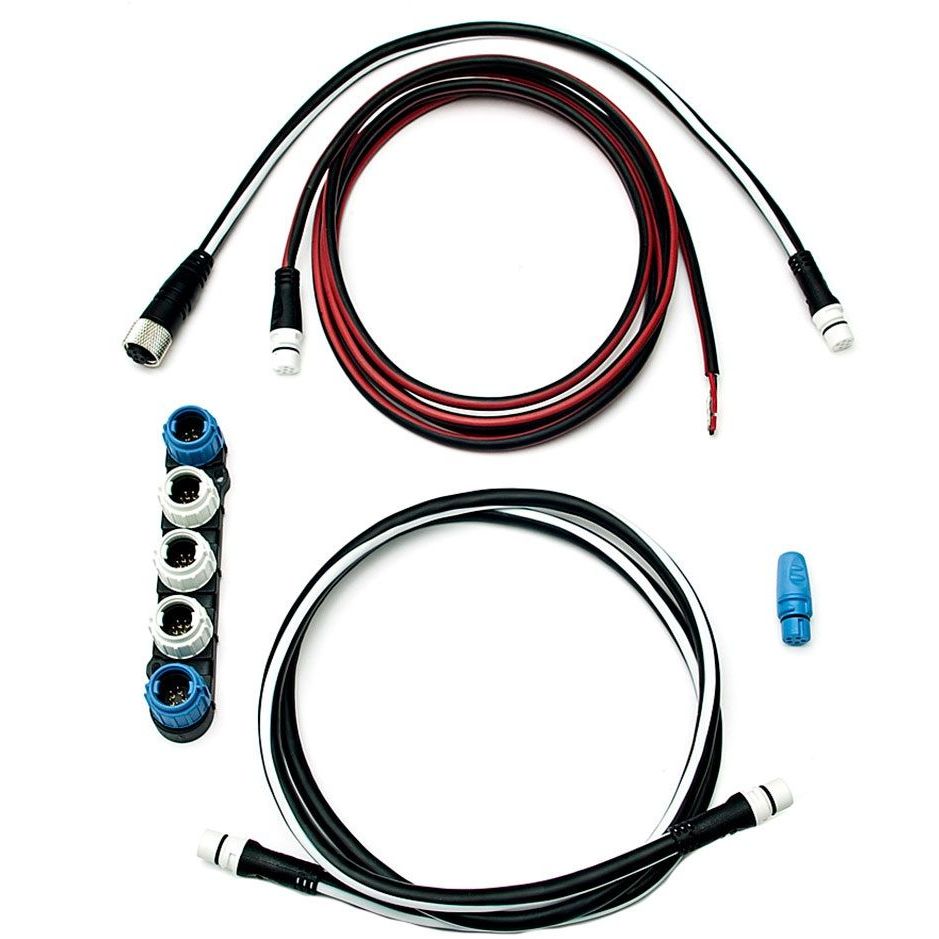

What’s included

• 1 x A06039 SeaTalk NG spur cable, 1 m
• 1 x A06045 SeaTalk NG to DeviceNet female adapter cable
• 1 x A06064 SeaTalk NG 5-way connector
• 1 x A06049 SeaTalk NG power cable
• 2 x A06031 SeaTalk NG terminators
