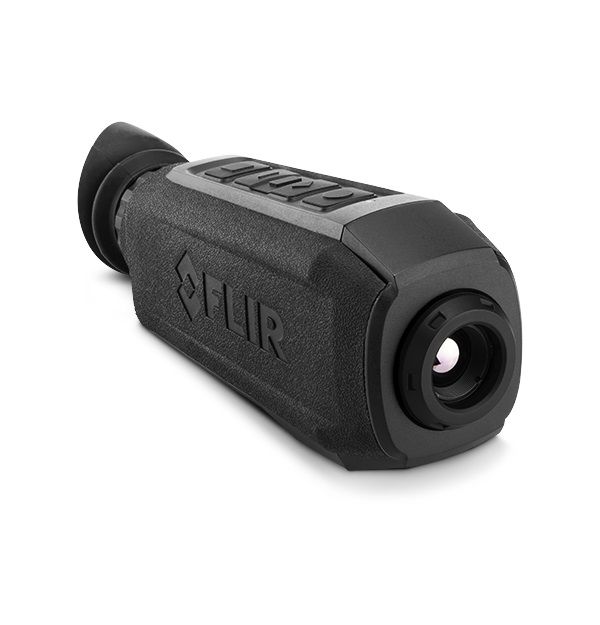

FLIR Systems - SCION PTM166 Thermal Monocular 640 x 480 32d FOV IP Streaming 60Hz

Advanced Thermal Imaging for Marine and Tactical Operations

The FLIR Systems SCION PTM166 Thermal Monocular is a powerful and rugged thermal imaging device designed to enhance situational awareness in demanding marine and tactical environments. With cutting-edge thermal imaging technology, real-time video streaming, and a durable, ergonomic design, this monocular provides unparalleled vision clarity in low-light and obscured conditions.

Built with FLIR’s Boson® thermal core, the SCION PTM166 delivers high-resolution thermal imaging with a rapid 60 Hz refresh rate, ensuring smooth and unwavering visuals. Its intuitive controls, onboard recording, and picture-in-picture zoom make it an invaluable tool for security, search and rescue, and marine navigation.

High-Performance Thermal Imaging Technology

Equipped with a 640 x 512 thermal detector and FLIR’s advanced image processing, the SCION PTM166 provides crisp thermal imagery even in the most challenging conditions. The 14mm lens system and 32° x 24° field of view allow users to detect objects up to 550 meters away with precision.

Rugged and Ergonomic Design

Designed for durability, the SCION PTM166 features a robust housing that withstands harsh marine environments. Its ergonomic build ensures a comfortable grip for extended use, making it ideal for professional applications requiring long-term deployment.

Seamless Connectivity and Data Sharing

With built-in WiFi and Bluetooth connectivity, users can stream video and transfer image files in real time. The USB-C port allows for power input, video output, and data transfer, ensuring seamless integration into existing marine and tactical systems.

Versatile Viewing and Imaging Modes

The SCION PTM166 offers multiple temperature imaging modes, including White Hot, Black Hot, Iron Bow, Rainbow, Graded Fire, and Lava, enabling users to adapt to different environments and detection needs. Viewing modes such as Scouting and Picture-in-Picture enhance target acquisition and monitoring.

Technical Specifications

• Detector Type: 640 x 512 resolution
• Lens System: 14 mm
• Optical Magnification: 0.7x
• Digital Zoom: 1X, 2X, 4X, 8X
• Field of View: 32° x 24°
• Refresh Rate: 60 Hz
• Detection Range (1.8m man): 550m
• Display: Quad-VGA (1280x960) high-definition display
• Display Focus: Manual

Product Dimensions

• Size: 227 x 76.8 x 60.5 mm (9 x 3 x 2.4 in)
• Weight: 452 g (without batteries), 572 g (with batteries)

Power and Battery Life

• Battery Type: 6x CR123A 3V Lithium Battery
• Battery Life: Up to 4.5 hours at 20°C
• Auto Power Off: Yes

Connectivity and Communication

• Bluetooth: BLE 4.1+
• WiFi: Video streaming, file transfer
• USB-C: Power input, video output, file transfer

Additional Features

• Onboard Storage: 2 GB internal storage, expandable via microSD™ (up to 128 GB)
• Mounting: ¼-20 tripod mount
• Temperature Imaging Modes: White Hot, Black Hot, Iron Bow, Rainbow, Graded Fire, Lava
• Viewing Modes: Scouting, Picture-in-Picture
• Additional Sensors: Magnetic Compass, Accelerometer
• Real-Time Features: Picture while recording, real-time clock, date/time stamp

Highlights

• High-resolution thermal imaging with a smooth 60 Hz refresh rate
• Onboard recording and real-time video streaming capabilities
• Multiple thermal color palettes for versatile environmental adaptability
• Rugged and ergonomic design for professional marine and tactical applications
• Wireless connectivity via Bluetooth and WiFi for seamless data transfer

This thermal monocular is the perfect tool for marine professionals, law enforcement, and search and rescue teams looking for reliable thermal imaging performance in any environment.
