Imtra Neon Top-Emitting LED Rope Light, IP66, 5/16 x 5/8 in

Overview

This Imtra Neon LED Rope Light is a flexible, top-emitting linear lighting solution for marine interior and exterior installations. Its UV-resistant PVC housing measures 5/16" x 5/8" and produces a continuous, diffused glow without the visible LED dots associated with conventional rope lighting. The IP66-rated construction supports applications such as cockpit lighting beneath gunwales, concealed cove lighting, and illumination under toe kicks.

The rope light features a 160° beam angle and consumes approximately 2.44 watts per foot. Its flexible construction accommodates curved mounting surfaces, while designated cutting points allow installation lengths to be adjusted within the limits of the selected voltage configuration.

Key features

• Top-emitting LED configuration produces a continuous, diffused lighting effect.

• IP66 ingress protection for suitable interior and exterior marine installations.

• UV-resistant PVC housing with a 5/16" x 5/8" cross-section.

• 160° beam angle for broad light distribution.

• Power consumption of approximately 2.44W per foot.

• Flexible construction accommodates curved mounting paths.

• Cuttable at designated intervals determined by the operating voltage.

Variants

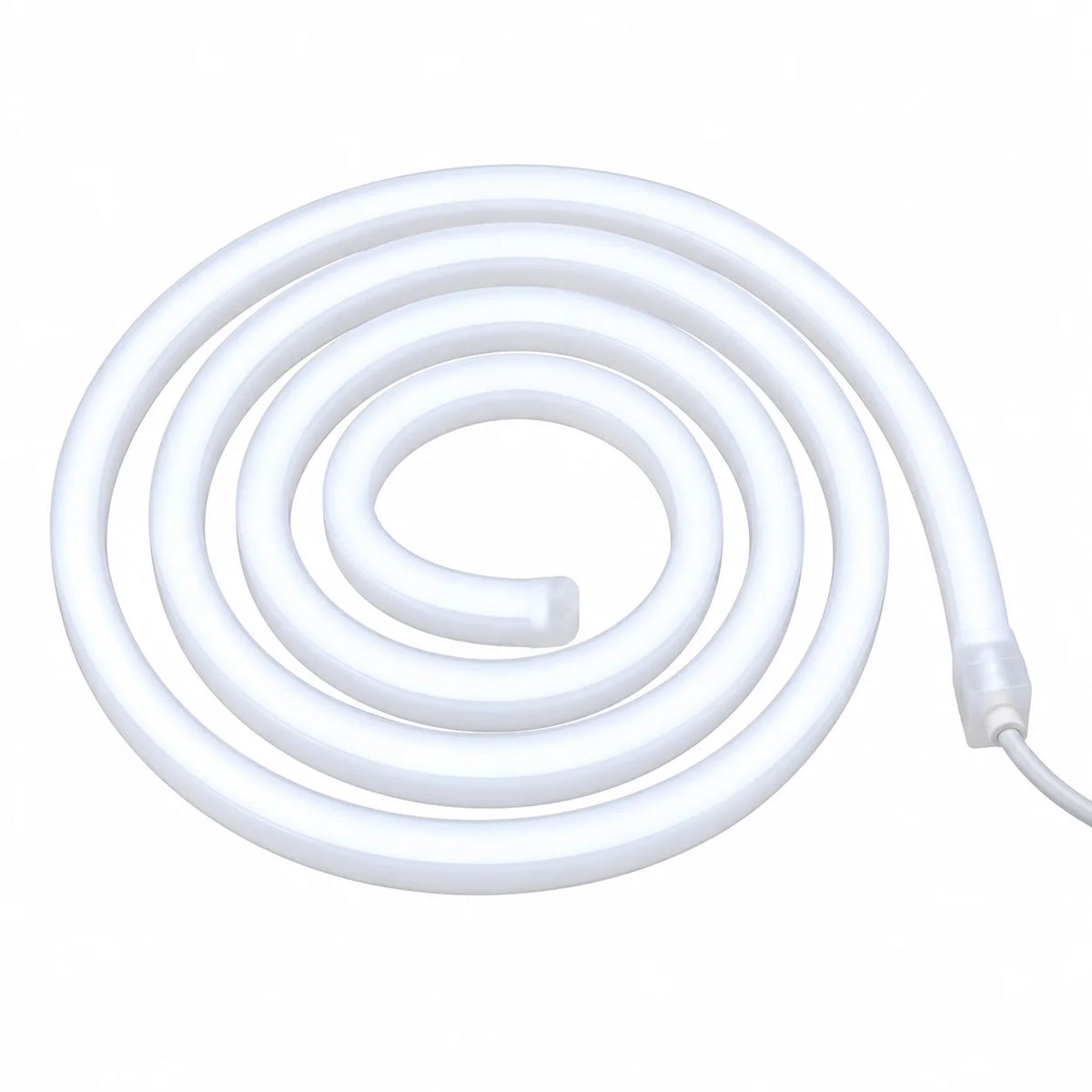

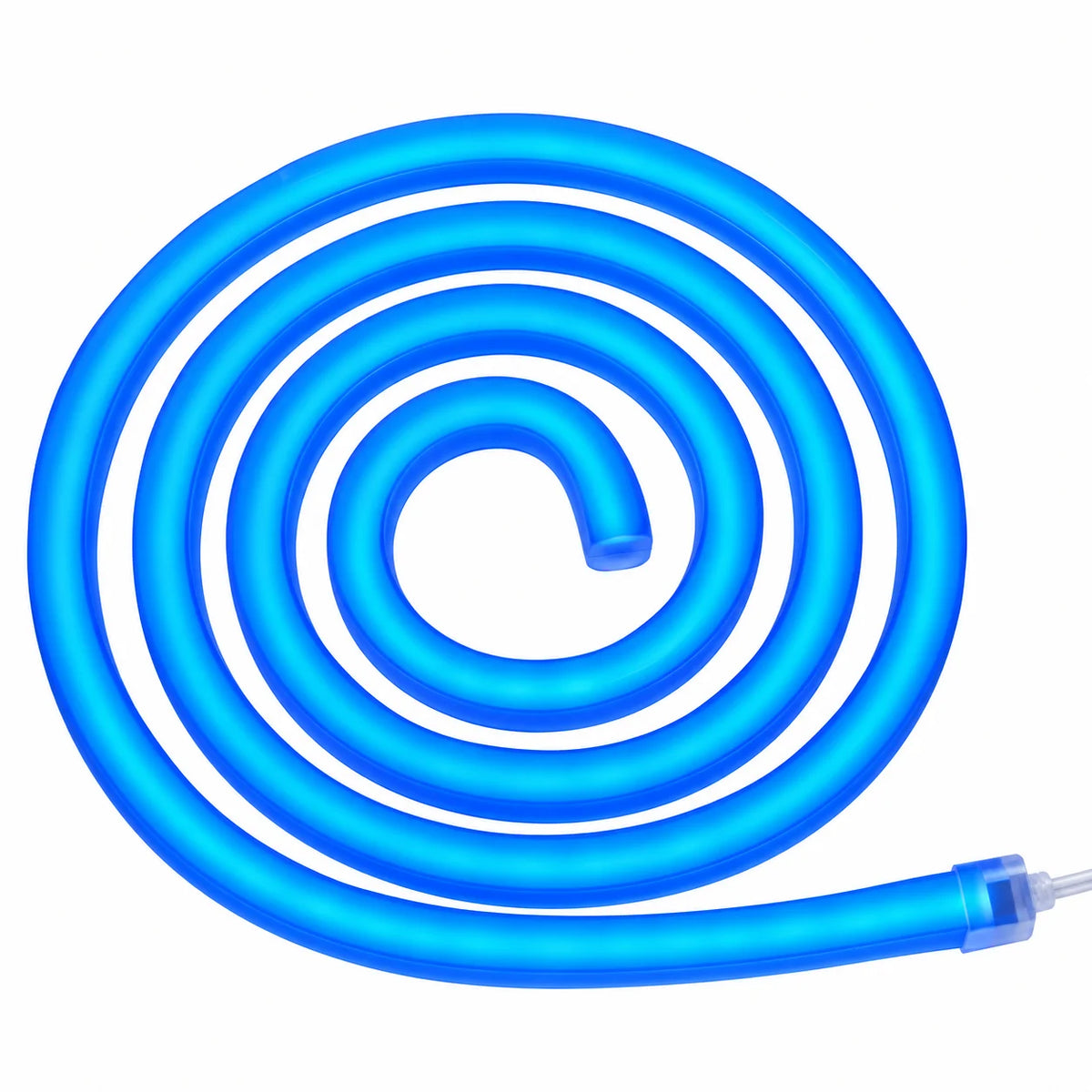

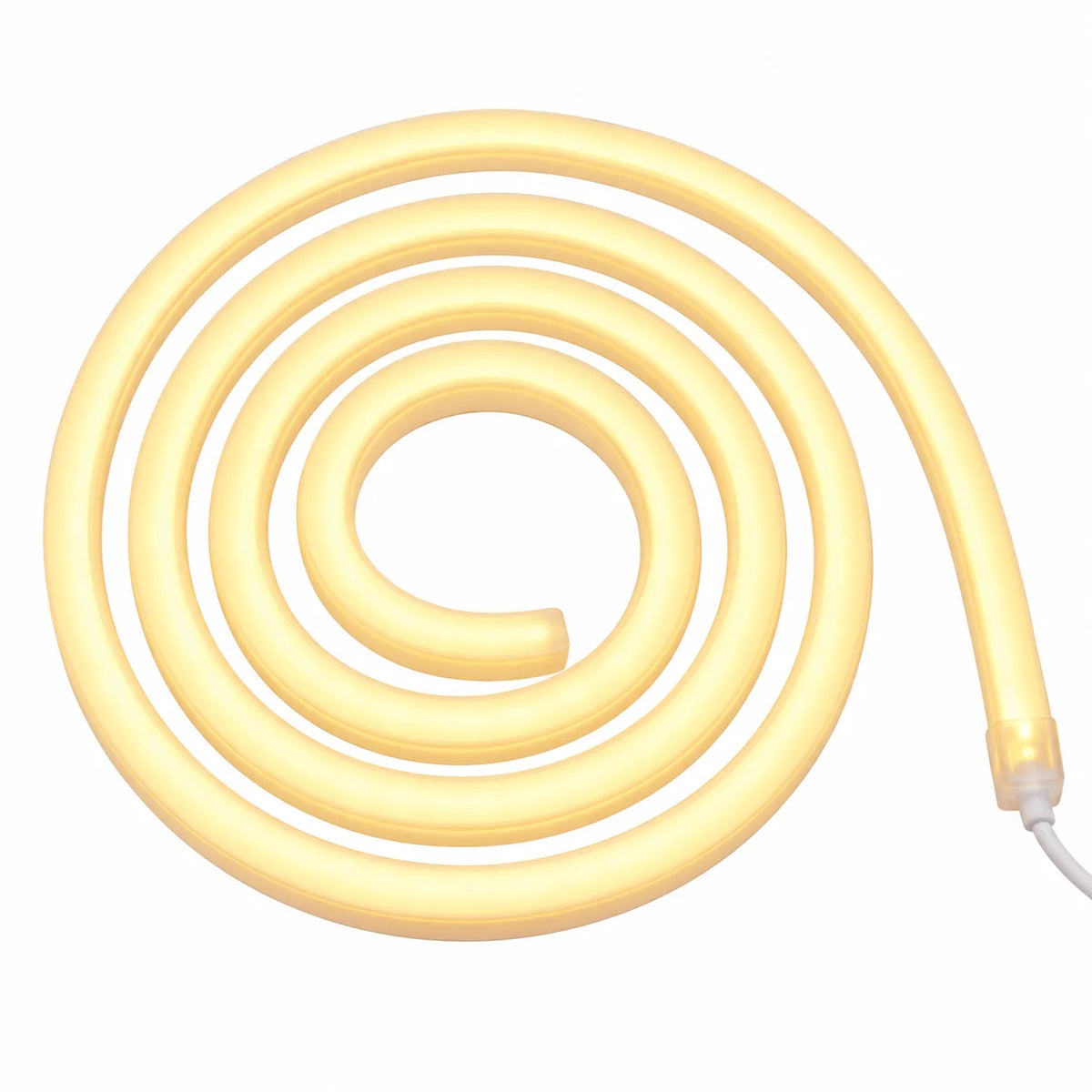

The Neon LED Rope Light is available in Warm White, Cool White, and Blue output colors, with 12V, 24V, and 120V configurations. These options accommodate different lighting requirements and electrical systems while maintaining the same top-emitting design, housing dimensions, and IP66 protection rating.

Cutting intervals and maximum continuous run lengths depend on voltage. The 12V configuration permits cuts approximately every 3.3" with a maximum run of 33 feet, while the 24V configuration uses approximately 6.56" intervals with a maximum run of 66 feet. The 120V configuration has approximately 19.7" cutting intervals and supports runs up to 164 feet.

Installation and electrical connections

The 12V and 24V configurations operate on regulated DC power. The 120V configuration uses a compatible connector kit with an inline rectifier for connection to a 120VAC supply. The power connection must match the selected configuration, and voltage regulation is particularly important for DC installations exposed to electrical fluctuations.

Installation requires compatible power connectors, an end cap, and mounting clips or track. These accessories are available separately, although connector kit inclusion may differ for full-spool purchases. Mounting hardware is secured to the installation surface before the rope light is pressed into position.

Cutting is permitted only at marked locations, and exposed connections and ends must be properly sealed to maintain moisture protection. The rope light should not be subjected to repeated flexing or sharp bends, and the installation must remain within the specified cutting and maximum-run limitations.
