Analytic Systems Waterproof IP66 DC Converter 10A, 12V Out 20-80V In, Ruggedized VCH10W-12

Analytic Systems Waterproof IP66 DC Converter 10A, 12V Out 20-80V In, Ruggedized VCH10W-12 - Apollo Lighting
Analytic Systems Waterproof IP66 DC Converter 10A, 12V Out 20-80V In, Ruggedized VCH10W-12 - Apollo Lighting

  • Perfect Fit, Guaranteed

    Get the right part every time

  • Expert Support

    Our in-house specialists know our products inside and out

  • Enhanced Value & Service

    We go beyond the sale with professional and balanced services

  • Wordwide Delivery

    Enjoy hassle-free worldwide delivery

Analytic Systems Waterproof IP66 DC Converter 10A, 12V Out 20-80V In, Ruggedized VCH10W-12

(No reviews) Write a Review
$453.00
SKU: APL976394
MPN: VCH10W-12
UPC: N/A
Adding to cart… The item has been added
Description

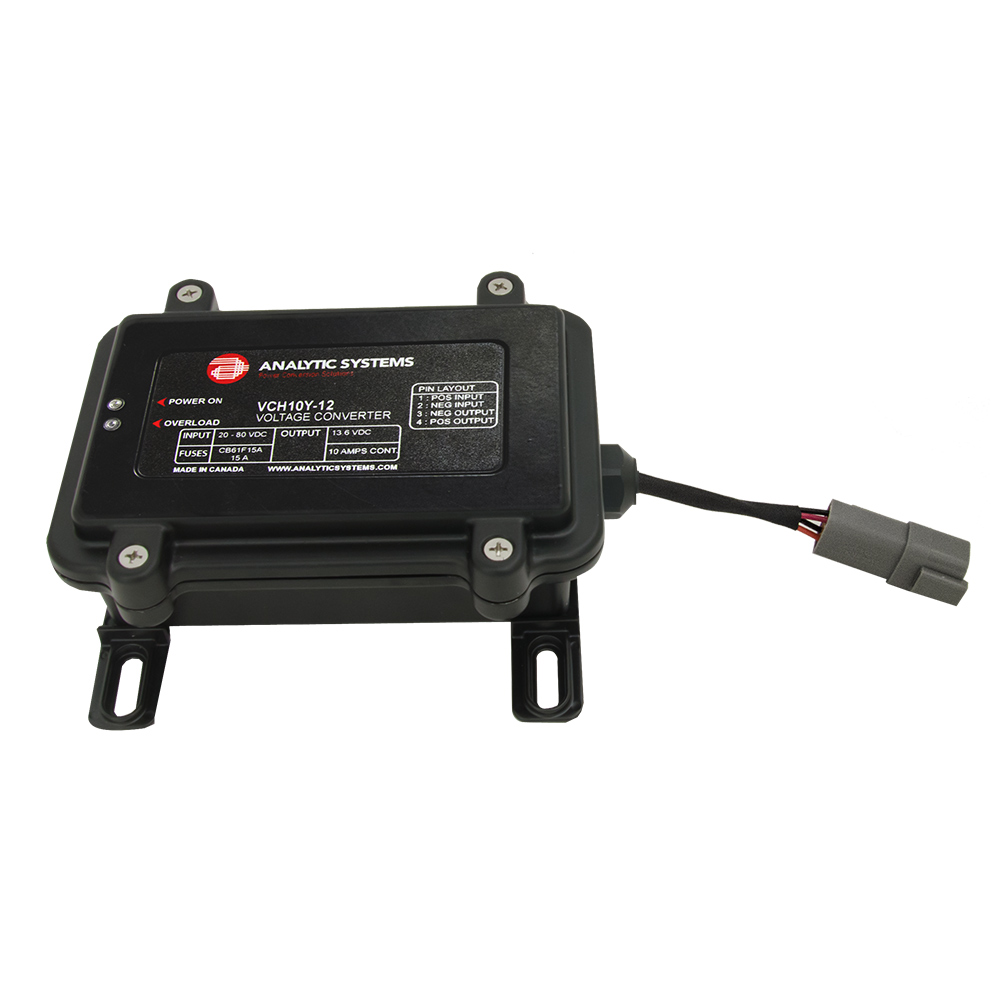

Waterproof IP66 DC Converter 10A, 12V Out 20-80V In, Ruggedized

The VCH10 Step Down series of Voltage Converters supply up to 10 amps of output current at 12, 24, 36 or 48 volts from any higher voltage between 20 and 80 volts DC in an IP66 rated watertight and EMC shielded enclosure for use in rugged environments.

The standard VCH10W model offers a Deutsch connector on a pigtail input/output cable, and the military grade VCH10MW features separate bayonet style MIL connectors for input and output.

The all surface mount high frequency design offers higher reliability, higher efficiency (more than 92%), more power (up to 544 watts at 48 VDC Out) and minimum size.

The VCH10MW is rated for operation from -40 to +55 degrees C and has been tested and confirmed to meet MIL-STD-461F for radiated and conducted emissions. It is designed to meet MIL-STD-810G for shock and vibration.

The unit has reverse input protection, output current limiting and output over-voltage protection.

Features:

  • Watertight O-ring sealed and EMC gasketed enclosure
  • MIL connectors
  • ‘Output ON’ and ‘Overload’ LED indicators
  • Compact size and easy mounting
  • Up to 80V input
  • Heavy duty ruggedization with wide temperature range
  • Paralleling diodes
  • Custom output voltages available
  • Two year warranty (parts and labor)
Video
PDF
Specifications
Condition: New
Lens Type:
Light Color:
Product Color:
Power:
Resistant Material:
Product Type:
Operating Voltage:
Color Temperature:
Product Material:
Accessory Type:
Light Switch:
Button Type:
Dimmable:
Lumens:
Light Type:
Amperage:
Cut out:
LED Light:
Depth:
Front:
Visibility:
Flexible:
Mounting:
Cabling Type:
Frequency Response:
Display:
Diffuser Type:
Adjustable:
Compatibility:
Noise Decibels:
Model compatibility:
Average lifetime:
Electric Current (Power):
Output Voltage:
Beam Angle:
Connection Type:
Total Length:
ANT Frequency:
Voltage Protection:
Dimming Type:
Chain Length:
LED's Quantity:
LED's per meter:
Channels:
Breaking Capacity:
Bulb Type:
Sensor type:
Modules Quantity:
Frequency:
Connectivity:
add_pdf_link:
Rope Length:
Holders Cuantity:
Kilowatts:
Map Zone:

We ship all in-store (FL) stock orders the same day if placed before 3 PM EST, Monday through Friday. Orders placed after this time will ship the next business day. Orders fulfilled from other warehouses or manufacturers may not ship the same day. If an item is out of stock, we will notify you promptly.
