Lopolight Anchor Light, 2nm, 360° White Light, Hoistable, Horizontal Mount

Overview

The Lopolight 2nm 360° White hoist navigation light is a white all-round anchor light for vessels up to 50 m that need a hoistable light with a 2 nautical mile visibility rating. It runs on 10-32VDC systems, carries an IP68 rating, and uses an M12 connector, making it suitable for common 12V and 24V onboard electrical setups where water exposure, vibration, and salt air are part of normal use.

The light has 360° white output with intensity above 5.4 cd and is approved to COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, and LR. Construction includes an anodized aluminum housing, PMMA lens, A4 stainless steel screws, epoxy, and polyurethane.

Key features

• 360° white anchor light with 2 nm visibility for all-round marking when the vessel is at anchor.
• Hoistable mounting format for installations where the light needs to be raised into position rather than fixed on a base.
• 10-32VDC operating range works across common 12V and 24V marine electrical systems.
• IP68-rated housing supports exposed mounting locations where spray, washdowns, and weather are expected.
• M12 connector keeps the electrical interface defined for a serviceable installation.
• Rated for -25°C to 55°C operation, with 167 mA draw at 12VDC and 110 mA draw at 24VDC.
• Anodized aluminum body, PMMA lens, A4 stainless steel screws, epoxy, and polyurethane materials suit deck and rig exposure in saltwater environments.

Variants

This product is offered in two finish configurations for installations where the visible light housing needs to match surrounding hardware.

The finish changes the appearance of the housing. The hoistable mounting, white 360° light output, 2 nm visibility rating, 10-32VDC operating range, IP68 rating, M12 connector, and vessel-size coverage remain consistent across the confirmed 1-connector versions.

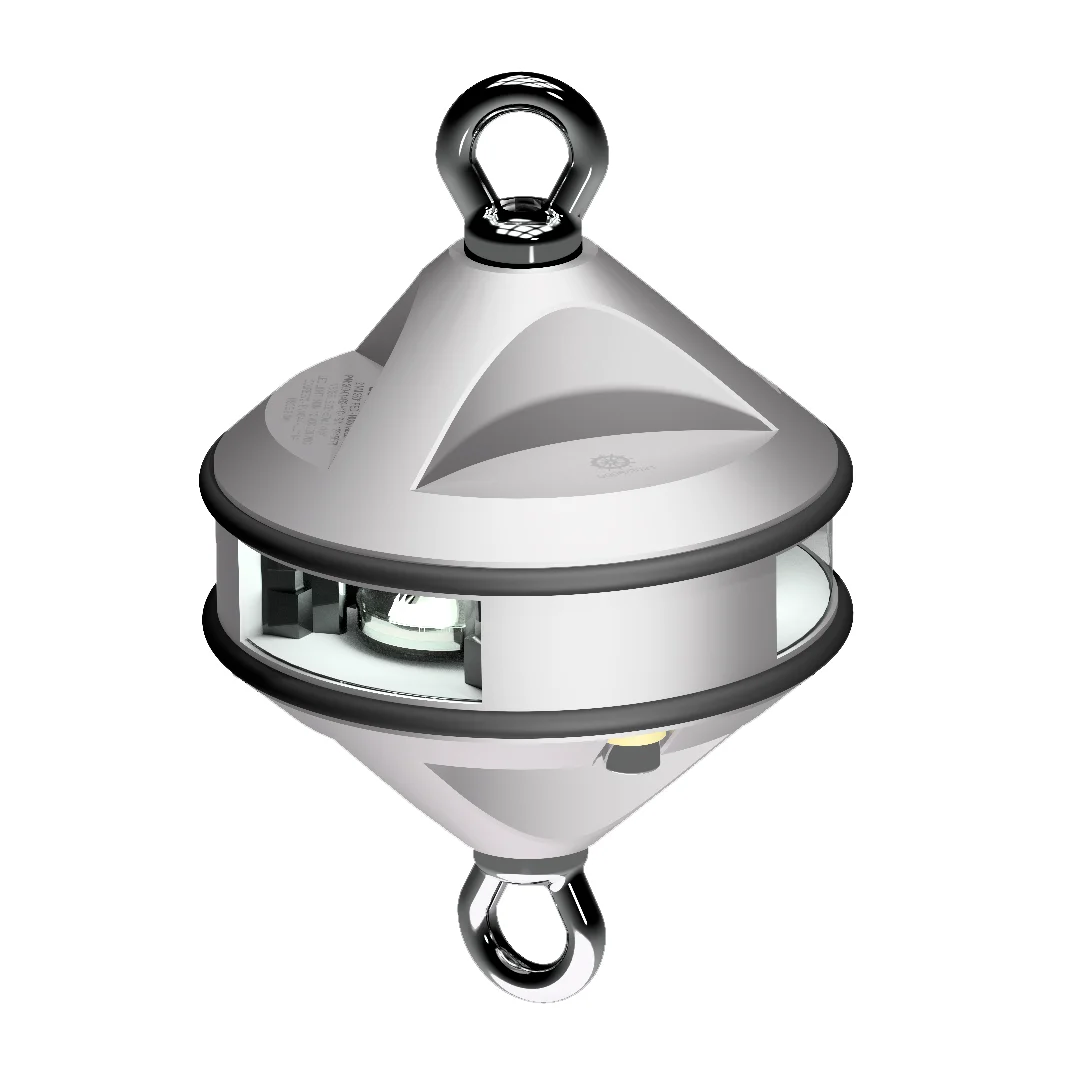

• 200-012G2-H1C, finish: silver anodized. The silver housing suits installations near stainless or bare aluminum fittings where a lighter hardware finish is already used on deck or aloft.

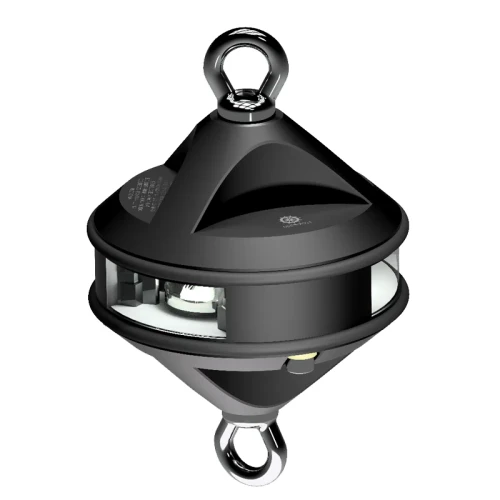

• 200-012G2-H1C-B, finish: black anodized. The black housing gives the light a darker visible profile on black masts, dark brackets, or other dark exterior hardware.

Installation and system fit

Use this light where an all-round white anchor light is required and the installation calls for a hoistable arrangement instead of a fixed pole or surface base. The 10-32VDC input gives room for voltage variation on battery-charging systems, and the current draw helps when planning circuit load, switch panels, or navigation-light monitoring.

The M12 connector should be matched with the correct mating cable or connector hardware for the boat. For exposed installations, keep the connection protected, strain relieved, and positioned so the light can be hoisted and lowered without twisting or loading the cable.

Use on board

This light is a good match for cruising boats, racing sailboats, and larger yachts that need a hoistable all-round white anchor light with verified navigation-light approvals and a finish that can match the rig or deck hardware. The IP68 rating and material set make it appropriate for locations that see spray, rain, and routine washdowns.
